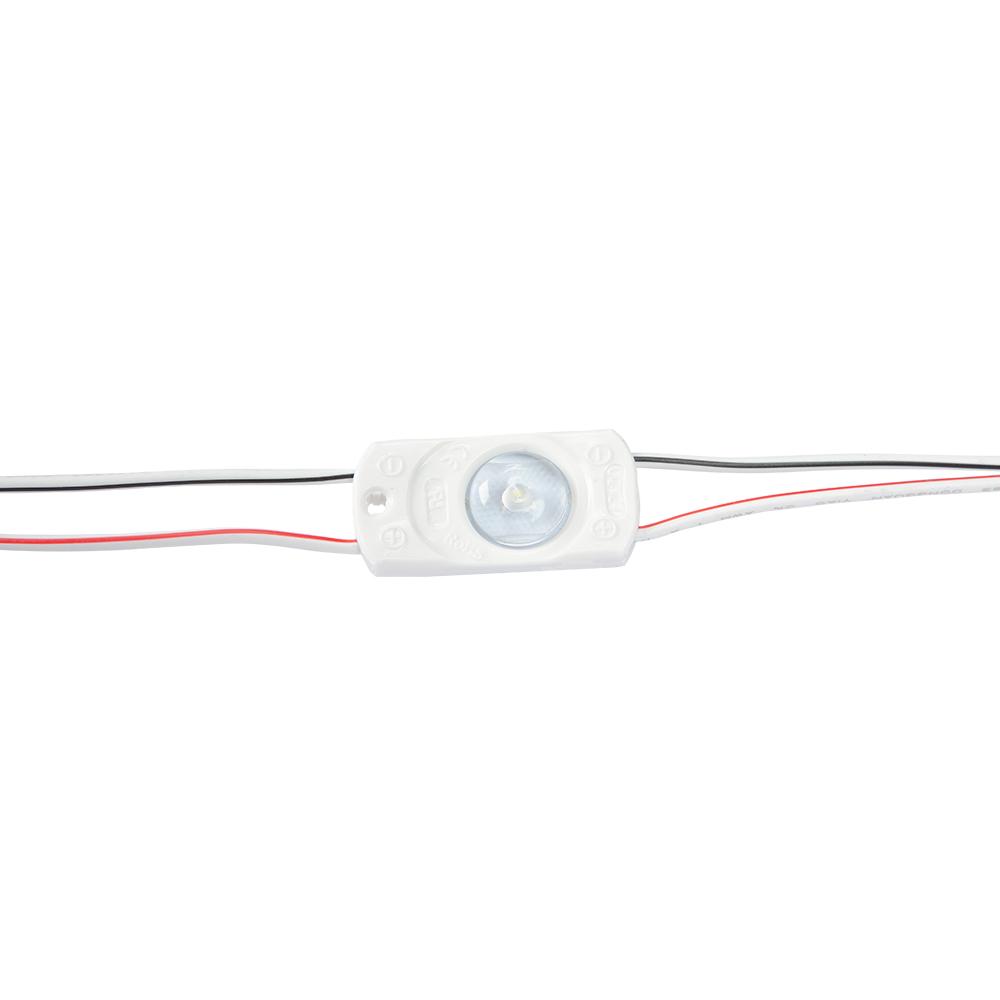

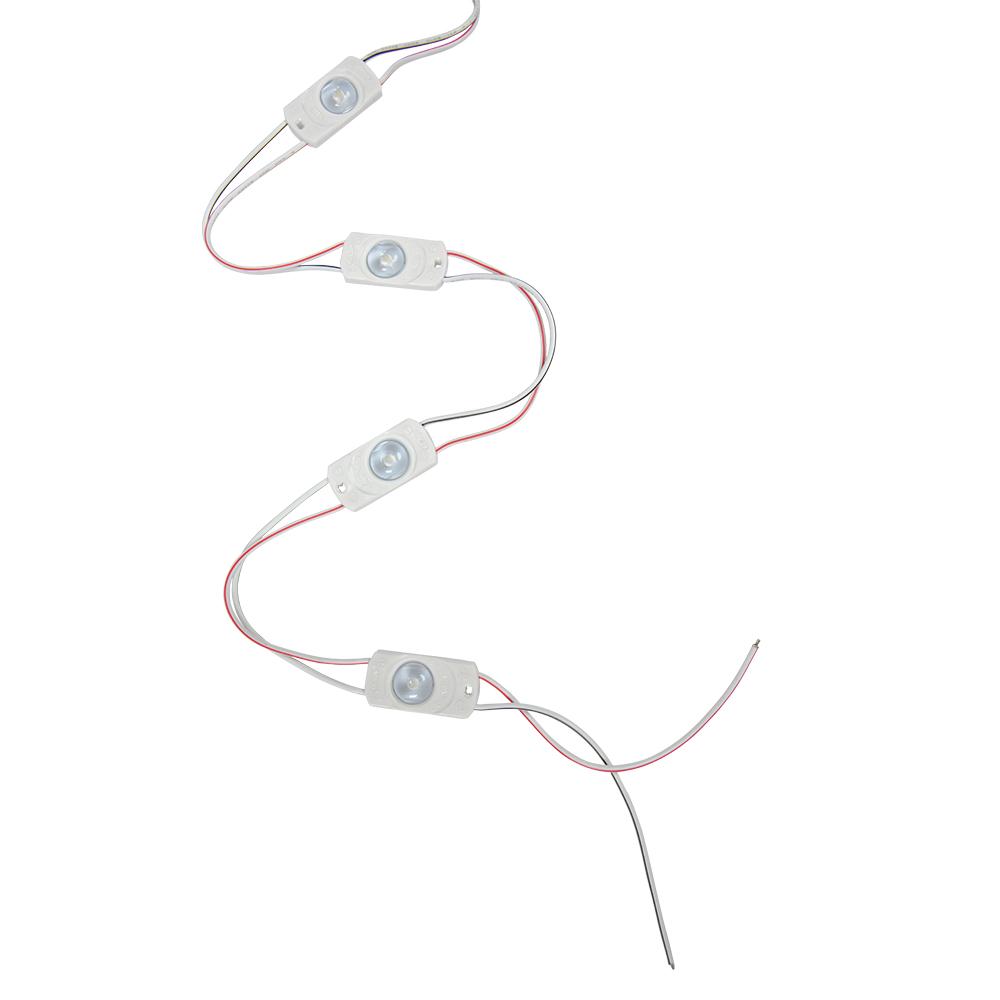

Background module || 1x2835LED | current stabilizer | W7000K
125-061These background modules are suitable for light boxes in, for example, subways, buildings and shopping centers. The modules can be placed at a depth of 4-15 cm.
Features
- High quality SMD2835 LED
- Special lens design, 170 ° beam angle with even light.

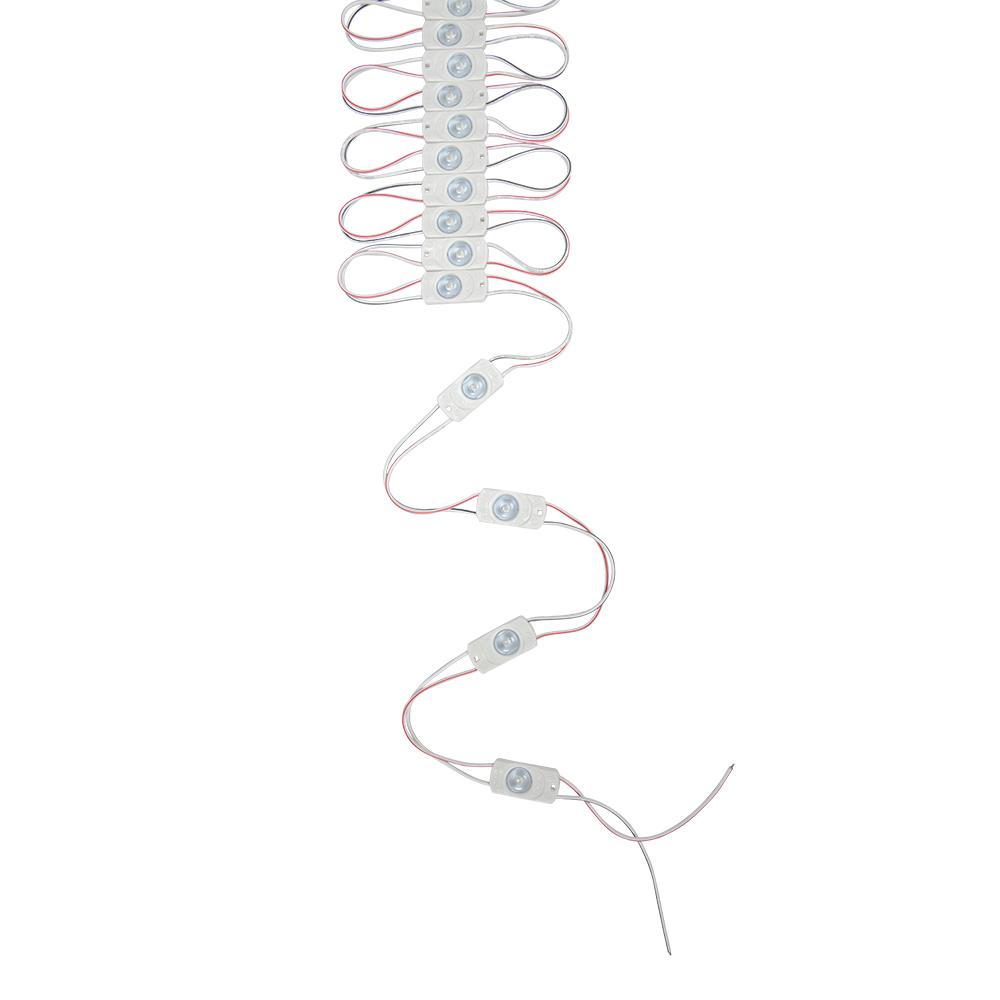

- Anti-dust, anti-moisture, waterproof, anti-shock. Max. Height 20 pieces in a series
- CE, ROHS and UL certified.
Product Name
Background module || 1x2835LED | current stabilizer | W7000K
Ean
8714984939165
Outer box qty
1500st
Colour
White
Housing colour
White
Connection type
Cable
Length
36mm
Width
18mm
Height
6mm
Lamp power
0.4 - 0.4W
Colour temperature
7000K
Beam angle
170 - 170°
Voltage type
DC
Operating voltage
12 - 12V
Operating current
33 - 33mA
Suitable for constant voltage
Yes
Suitable for constant current
No
Average nominal lifetime
50000h
Degree of protection (IP)
IP66
Luminous flux
40 - 40lm
Specific luminous efficacy
100 - 100lm/W
Number of LEDs
1
External driver required
Yes
Warranty
3 years
Product Name
Background module || 1x2835LED | current stabilizer | W7000K
Voltage type
DC
Ean
8714984939165
Operating voltage
12 - 12V
Outer box qty
1500st
Operating current
33 - 33mA
Colour
White
Suitable for constant voltage
Yes
Housing colour
White
Suitable for constant current
No
Connection type
Cable
Average nominal lifetime
50000h
Length
36mm
Degree of protection (IP)
IP66
Width
18mm
Luminous flux
40 - 40lm
Height
6mm
Specific luminous efficacy
100 - 100lm/W
Lamp power
0.4 - 0.4W
Number of LEDs
1
Colour temperature
7000K
External driver required
Yes
Beam angle
170 - 170°
Warranty
3 years
These background modules are suitable for light boxes in, for example, subways, buildings and shopping centers. The modules can be placed at a depth of 4-15 cm.
Features
High quality SMD2835 LED
Special lens design, 170 ° beam angle with even light.
Anti-dust, anti-moisture, waterproof, anti-shock. Max. Height 20 pieces in a series
CE, ROHS and UL certified.
Datasheet
Datasheet-background-module-1x2835led-current-stabilizer-w7000k-125-061.pdf
Energy labels
Characteristics sheet
125-061_technical_datasheet_extended.pdf
