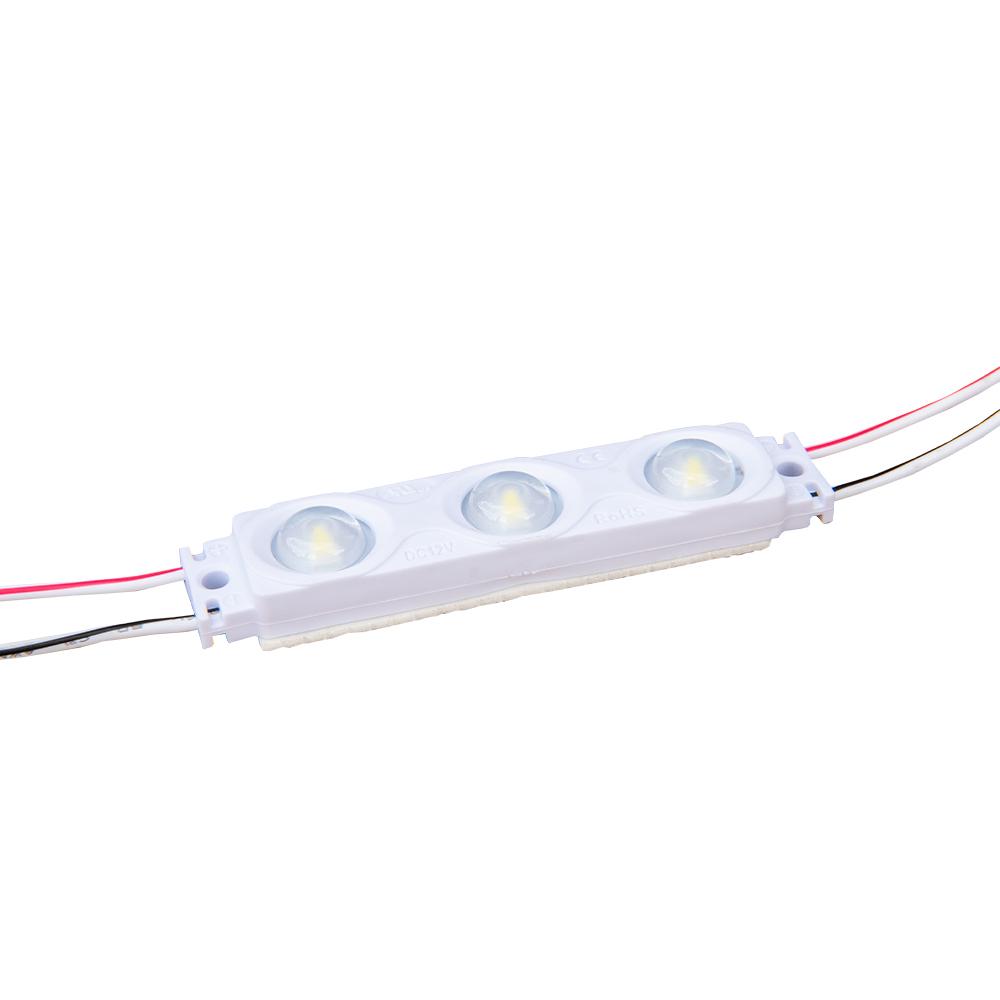

Background module | 3x2835LED | current stabilizer | WW3000K
125-078These background modules are suitable for light boxes at airports, subways, buildings and shopping centres. Ideal mounting depth: 8-12 cm from the light box cover.
Features
- High quality SMD2835 LED
- Special lens design, 160° beam angle with uniform light.

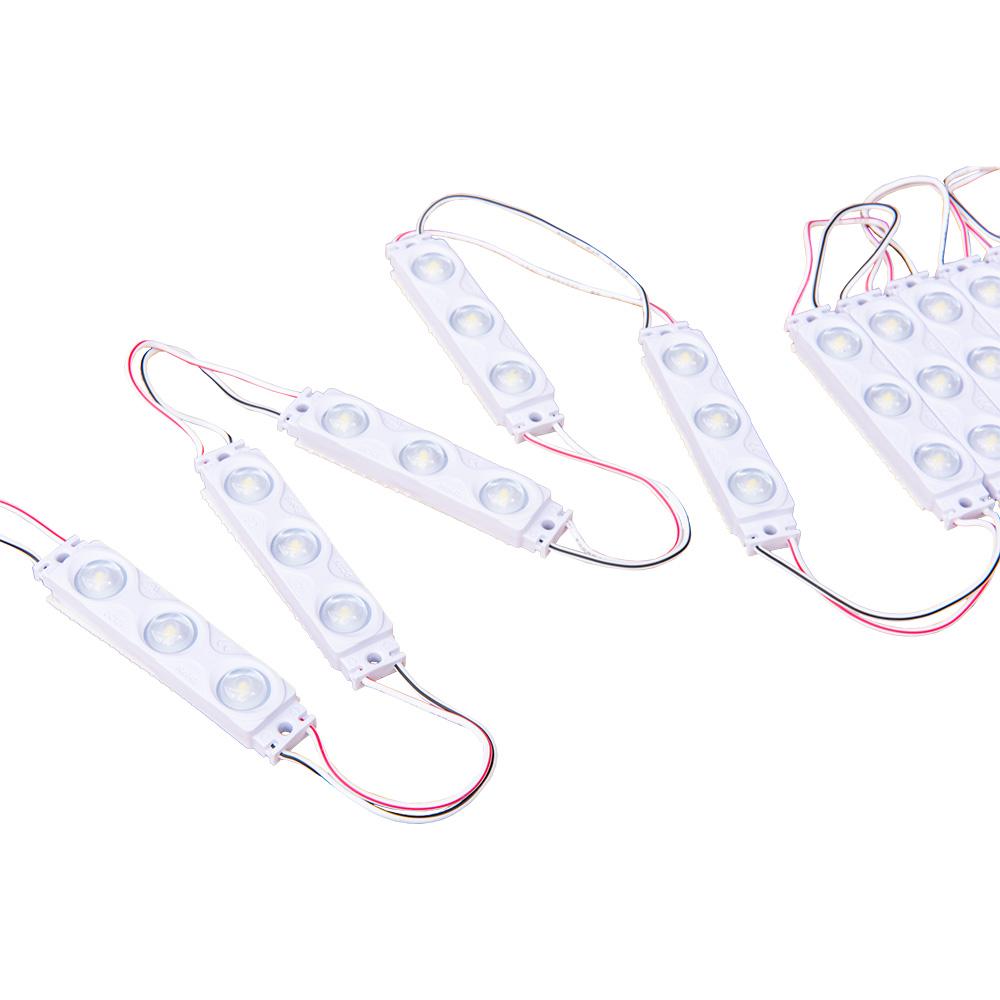

- Anti-dust, anti-moisture, waterproof, anti-shock. max. 50 pieces in series
- CE, ROHS and UL certified
Product Name
Background module | 3x2835LED | current stabilizer | WW3000K
Ean
8714984927230
Outer box qty
100st
Colour
White
Housing colour
White
Connection type
Cable
Length
75mm
Width
15mm
Height
9mm
Lamp power
1.1 - 1.1W
Colour temperature
3000K
Beam angle
160 - 160°
Voltage type
DC
Operating voltage
12 - 12V
Operating current
92 - 92mA
Suitable for constant voltage
Yes
Suitable for constant current
No
Average nominal lifetime
50000h
Degree of protection (IP)
IP65
Luminous flux
108 - 108lm
Specific luminous efficacy
95 - 95lm/W
Number of LEDs
3
External driver required
Yes
Warranty
3 years
Product Name
Background module | 3x2835LED | current stabilizer | WW3000K
Voltage type
DC
Ean
8714984927230
Operating voltage
12 - 12V
Outer box qty
100st
Operating current
92 - 92mA
Colour
White
Suitable for constant voltage
Yes
Housing colour
White
Suitable for constant current
No
Connection type
Cable
Average nominal lifetime
50000h
Length
75mm
Degree of protection (IP)
IP65
Width
15mm
Luminous flux
108 - 108lm
Height
9mm
Specific luminous efficacy
95 - 95lm/W
Lamp power
1.1 - 1.1W
Number of LEDs
3
Colour temperature
3000K
External driver required
Yes
Beam angle
160 - 160°
Warranty
3 years
These background modules are suitable for light boxes at airports, subways, buildings and shopping centres. Ideal mounting depth: 8-12 cm from the light box cover.
Features
High quality SMD2835 LED
Special lens design, 160° beam angle with uniform light.
Anti-dust, anti-moisture, waterproof, anti-shock. max. 50 pieces in series
CE, ROHS and UL certified
Datasheet
Datasheet-background-module-3x2835led-current-stabilizer-ww3000k-125-078.pdf
Energy labels
Characteristics sheet
125-078-photometric-light-report.pdf
125-078.ldt
