Casambi | controller | Casambi/RF to trailing edge

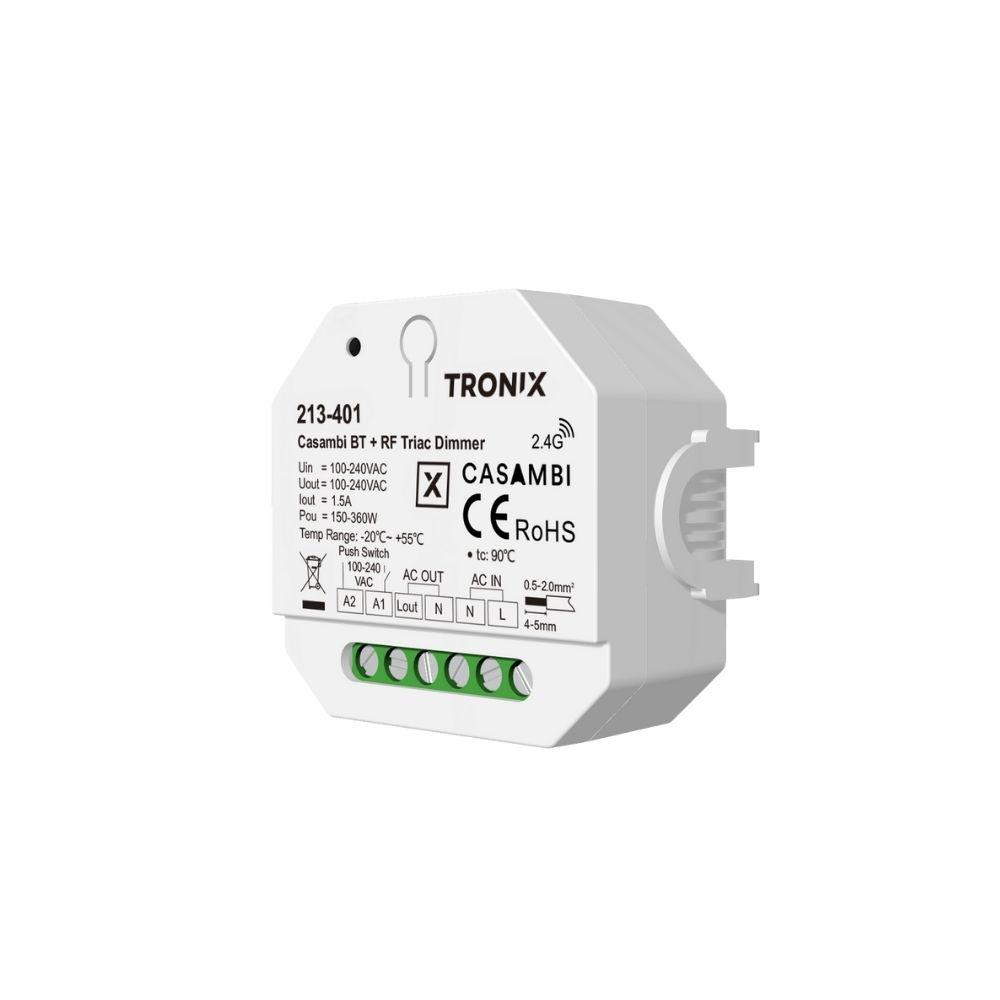

213-401Casambi Bluetooth trailing edge dimmer for precise trailing edge phase-cut dimming of dimmable LED lighting and conventional light sources. Designed for professional installations where compatibility, stability and configurability are essential.
Key product features
- Light value memory: Yes
- Suitable for use with push button: Yes
- Mounting method: Recessed
- Control voltage (V): 100–240
- Trailing edge dimming: Yes
- Max. switching capacity LED (W): 200
- Control method: Casambi
Product Name
Casambi | controller | Casambi/RF to trailing edge
Ean
8714984953932
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
Casambi
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
30mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
Casambi | controller | Casambi/RF to trailing edge
Applicable with button
Yes
Ean
8714984953932
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. depth of built-in installation box
30mm
Control method
Casambi
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
200W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
This Casambi Bluetooth + RF trailing edge dimmer is a mains-voltage controlled AC phase-cut dimmer for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and high-voltage halogen lighting. The dimmer features 1 channel and supports both leading edge and trailing edge dimming, configurable via the integrated adjustment button. Control is provided via Bluetooth Mesh in combination with the Casambi app, an optional RF remote control or an external AC push button.
Within the Casambi app, functions such as on/off control, smooth dimming, group configurations, scenes, minimum and maximum dim levels and start-up behaviour can be configured easily. The dimmer offers 256 dimming levels across a range from 0 to 100% for stable and flicker-free light control.
Thanks to Bluetooth Mesh technology, each Casambi device acts as a signal repeater, making the network scalable and robust in professional installations. The dimmer features thermal and electrical overload protection with automatic reset and is suitable for DIN-rail mounting or installation in a standard wall box or ceiling box. The product is intended for indoor use and complies with relevant safety and EMC standards.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-controller-casambirf-to-trailing-edge-213-401.pdf
Characteristics sheet
213-401_manual.pdf
