Casambi | dimmer | 230V | 200W | recessed | 230V push dim
214-219Compact Casambi trailing edge dimmer module for 100–240 V AC, controllable via the Casambi app or a 230 V push button. Suitable for 2-wire and 3-wire installations. Compatible with dimmable LEDs, halogen lamps and retrofit projects.
Key product features
- Light value memory: Yes
- Applicable with button: Yes
- Mounting method: Built-in
- Control voltage (V): 100–240
- Dimming phase cut-off (trailing edge): Yes
- Max. switching power LED (W): 200
- Control method: Casambi
Product Name
Casambi | dimmer | 230V | 200W | recessed | 230V push dim
Ean
8714984952287
Outer box qty
100st
Colour
White
Connection type
Screwed terminal
Operating method
Radio frequency (RF)
Control method
Casambi
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
18mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
Casambi | dimmer | 230V | 200W | recessed | 230V push dim
Applicable with button
Yes
Ean
8714984952287
Applicable with transmission button
Yes
Outer box qty
100st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Radio frequency (RF)
Min. depth of built-in installation box
18mm
Control method
Casambi
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
200W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
The single-channel trailing edge dimmer handles up to 250 W (at 230 V) and supports dimmable LED lamps, LED drivers, HV halogen and low-voltage lighting with electronic transformers. Use the Casambi app to configure dimming curves, scenes, soft-start, and group control. Control is possible both wirelessly and via a 230 V push button.
Supports both 2-wire (without neutral) and 3-wire (with neutral) installation. Note: a minimum load of 20 W is required for stable operation in 2-wire setups; otherwise, use a bypass (article 214-999).

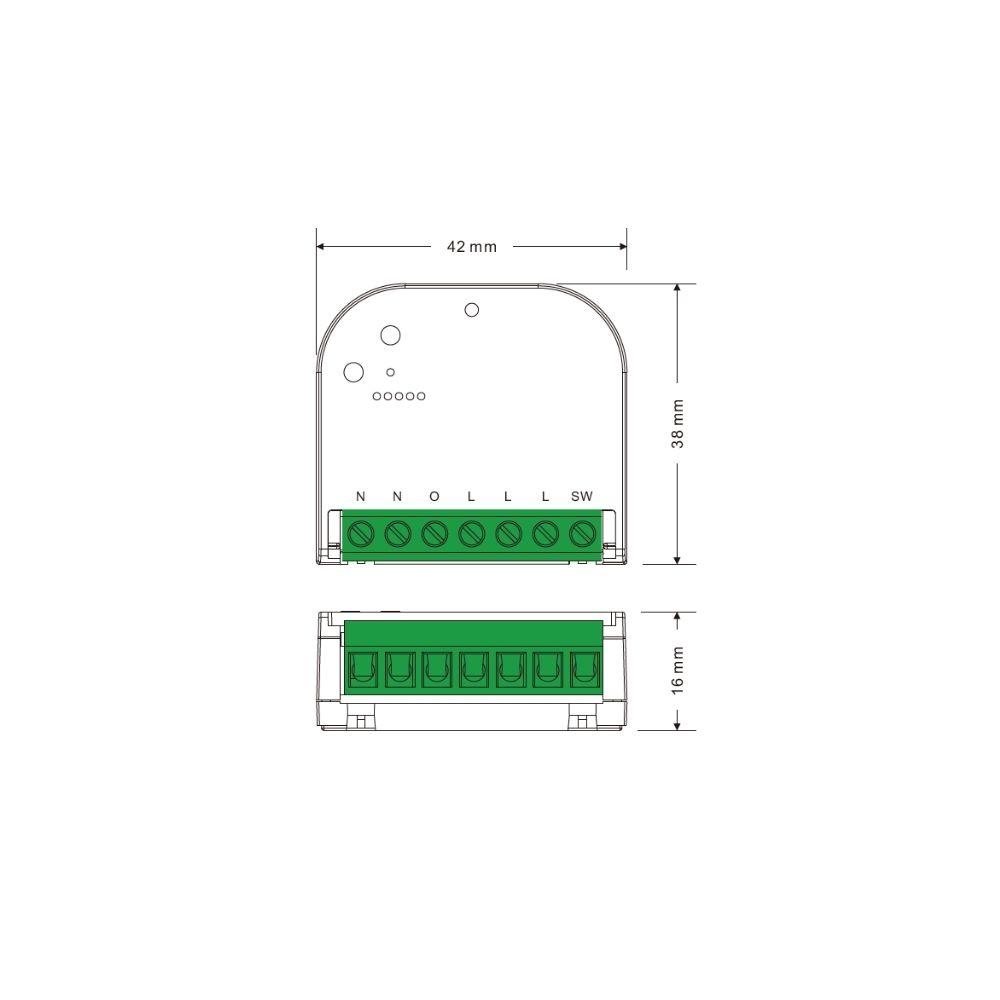

With dimensions of just 42×38×16 mm, the module fits easily behind a wall switch or inside a junction box, making it ideal for retrofit applications with existing wiring. Also suitable for centralised control setups in hotel rooms, residential spaces or hospitality environments.
Optional: use a strain relief cover from the Tronix range or a DIN rail bracket for installation in a distribution cabinet.
Casambi is a wireless lighting control system based on Bluetooth Low Energy (BLE). Luminaires, dimmers and sensors form a mesh network for flexible control without gateways or additional wiring. This module operates standalone or as part of a larger Casambi setup.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
