Casambi | driver | 25W | 250~700mA | max. 54V | NFC | TW
214-227Casambi-dimmable LED driver (25W) with 2 channels for Tuneable White applications. Output current adjustable via NFC; control via Casambi app or push-dim. Compact, efficient, and designed for professional indoor lighting.
Key product features
- Suitable for constant current: Yes
- Output voltage (V): 6 – 54
- Output current (mA): 250 – 700
- Output power (W): 1.5 – 25
- Input voltage (V): 200 - 240
- Control method: Casambi
- Driver type: Constant current
Product Name
Casambi | driver | 25W | 250~700mA | max. 54V | NFC | TW
Ean
8714984952362
Outer box qty
1st
Housing
Plastic housing
Model
Dynamic
Output voltage
6 - 54V
Output current
250 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
1.5 - 25W
Degree of protection (IP)
IP20
Length
120mm
Width
41mm
Height
28mm
Power consumption
25W
Input voltage
196 - 264V
Frequency input voltage
0 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Casambi
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
Central (central battery)
Control type
Constant current
Warranty
5 years
Product Name
Casambi | driver | 25W | 250~700mA | max. 54V | NFC | TW
Input voltage
196 - 264V
Ean
8714984952362
Frequency input voltage
0 - 60Hz
Outer box qty
1st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Dynamic
Overtemperature protection
Yes
Output voltage
6 - 54V
Control method
Casambi
Output current
250 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-25 - 45°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
100000h
Output power
1.5 - 25W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Dimmable
Yes
Width
41mm
Emergency power supply system
Central (central battery)
Height
28mm
Control type
Constant current
Power consumption
25W
Warranty
5 years

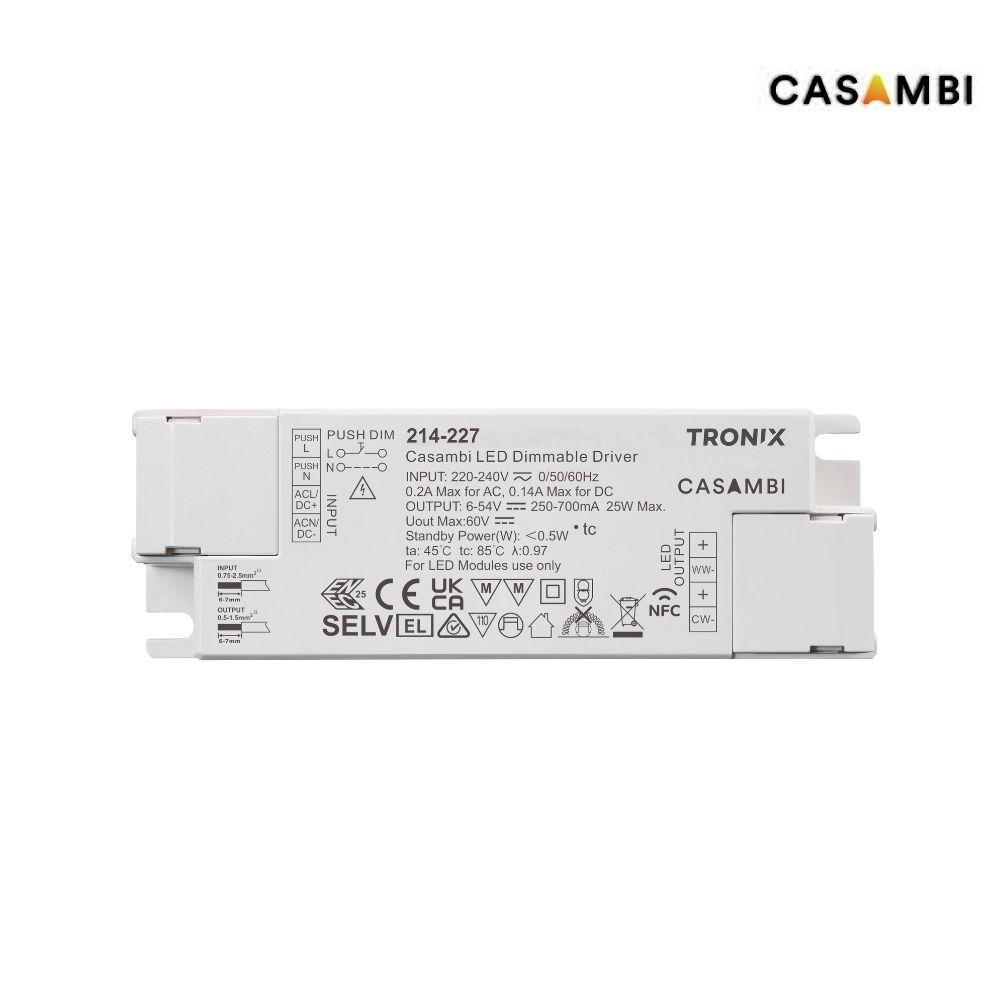

This Casambi LED driver with 2 outputs is specially designed for Tuneable White luminaires and enables seamless control of both brightness and colour temperature. The maximum output power is 25W, and the current can be easily set between 250 and 700 mA using the NFC configuration tool. It can be operated wirelessly via the Casambi app or manually via a 230 V push switch. In addition to switching and dimming, a double-click allows easy toggling between brightness and colour temperature control.

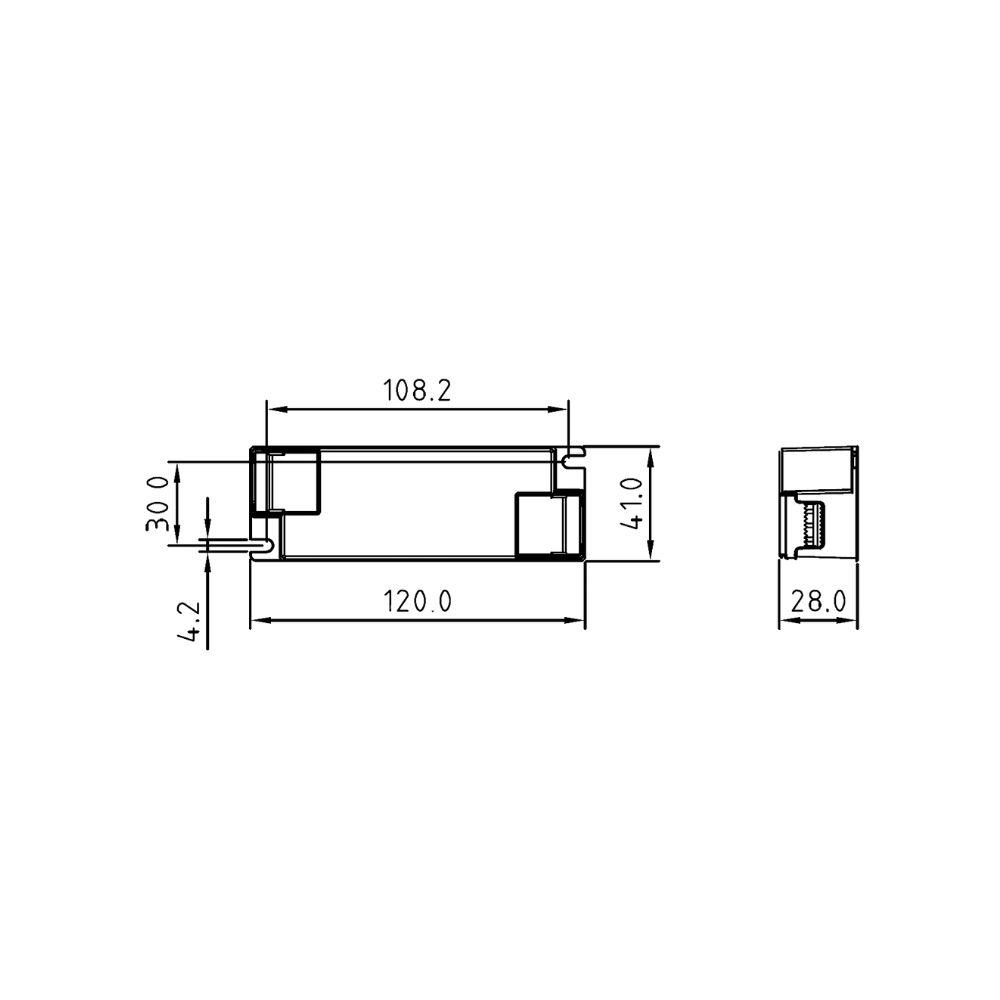

The compact design (120 × 41 × 28 mm) in a fully insulated Class II plastic housing with IP20 protection makes this driver suitable for various indoor lighting applications, such as panels and downlights. It offers high efficiency (>83%) and a power factor above 0.96 at full load. Amplitude/CCR dimming ensures smooth, stable dimming from 0.01% to 100%.
With a lifetime of over 100,000 hours at ambient temperatures up to 45 °C, this driver is equipped with comprehensive protection against overload, overheating, and short circuits. This ensures reliable performance, even in demanding professional environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
