Casambi | sensor | recessed | motion + light | white
214-202Compact Bluetooth motion sensor with light detection for Casambi networks. Suitable for recessed installation. Controls lighting or scenes based on motion and ambient light.
Key product features
- Mounting method: Recessed
- Networkable: Yes
- Diameter reach on floor (m): 7
- Response value sensitivity adjustable: Yes
- Response value luminosity adjustable: Yes
- With movement sensor: Yes
- With light sensor: Yes
Product Name
Casambi | sensor | recessed | motion + light | white
Ean
8714984934917
Outer box qty
1st
Colour
White
Type
Casambi
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
3m
Suitable for degree of protection (IP)
IP44
Suitable for wireless transmission
Yes
Constant light control
No
Networkable
Yes
Max. reach sideways
5m
Max. reach frontally
5m
Diameter reach on floor
7m
Detection angle horizontal
100 - 100°
Min. switch-on time
1s
Max. duty cycle
60min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
No
Max. switching power
1000W
Operation mode switch
No
Staircase light controller
Yes
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Matt
Warranty
5 years
Product Name
Casambi | sensor | recessed | motion + light | white
Min. switch-on time
1s
Ean
8714984934917
Max. duty cycle
60min
Outer box qty
1st
With presence detector
No
Colour
White
With movement sensor
Yes
Type
Casambi
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
Yes
Sensor connect
No
Response value luminosity adjustable
Yes
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Flush-mounted
Dim function with dimmer basic element
Yes
Mounting height
3m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP44
Max. switching power
1000W
Suitable for wireless transmission
Yes
Operation mode switch
No
Constant light control
No
Staircase light controller
Yes
Networkable
Yes
Halogen free
Yes
Max. reach sideways
5m
RAL-number (similar)
9016
Max. reach frontally
5m
Surface finishing
Matt
Diameter reach on floor
7m
Warranty
5 years
Detection angle horizontal
100 - 100°
This compact recessed sensor detects both motion and light levels and communicates via Bluetooth Low Energy (BLE) within Casambi-controlled networks, and is available in white and black. It automatically switches lighting or triggers pre-programmed scenes based on presence and measured ambient brightness.

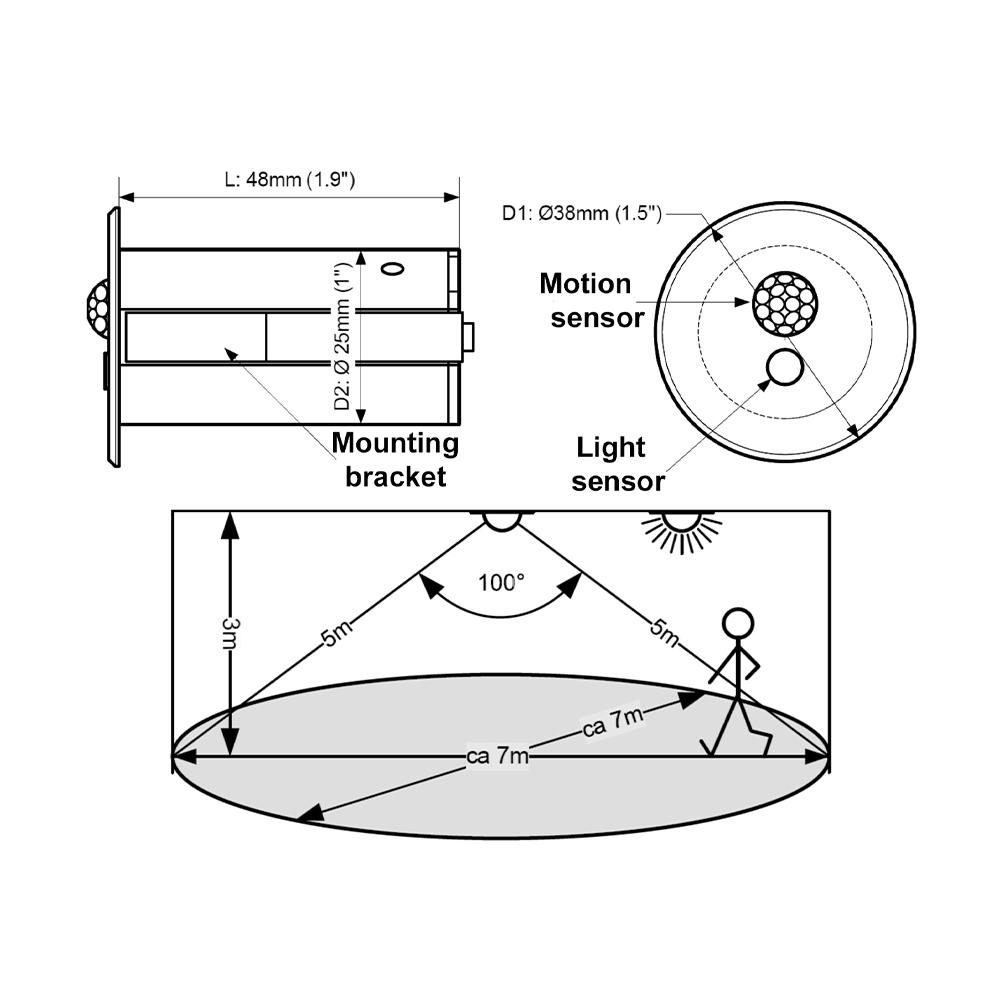

Operating at an input voltage of 220–240V AC, 50/60 Hz, the sensor emits a BLE signal. It detects movement up to 5 metres with a 100° horizontal detection angle. The built-in light sensor allows for reliable differentiation between daylight and darkness.
Installation is straightforward: a 25 to 27 mm drill hole enables discreet mounting into ceilings or walls. The front side is IP44-rated, making it suitable for dry or slightly damp indoor spaces.
Configuration and programming are carried out via the Casambi app (iOS or Android), where specific actions, scenes and behaviours can be set. Ideal for retail, hospitality and office environments requiring automated lighting control.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-sensor-recessed-motion-light-white-214-202.pdf
Manual
CASAMBI_App_FullUserGuideEnglisch.pdf
Characteristics sheet
214-202_203_technical_datasheet_extended.pdf
