Casambi | sensor | recessed | PIR + light + 0-10V | white
214-223Casambi ceiling module with PIR and light sensor for autonomous 0–10V dimming. Operates on 12/24 VDC and is fully controllable via the Casambi app. Compact flush-mount design (Ø70–73 mm) and energy savings through daylight control.
Key product features
- Mounting method: Flush-mount
- Networkable: Yes
- Diameter reach on floor (m): 5
- Response value sensitivity adjustable: Yes
- Response value luminosity adjustable: Yes
- With movement sensor: Yes
- With light sensor: Yes
Product Name
Casambi | sensor | recessed | PIR + light + 0-10V | white
Ean
8714984952324
Outer box qty
1st
Colour
White
Type
Casambi
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
3m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
Yes
Constant light control
No
Networkable
Yes
Max. reach sideways
4m
Max. reach frontally
4m
Diameter reach on floor
8m
Detection angle horizontal
90 - 90°
Min. switch-on time
1s
Max. duty cycle
60min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
No
Max. switching power
1000W
Operation mode switch
No
Staircase light controller
Yes
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Matt
Warranty
5 years
Product Name
Casambi | sensor | recessed | PIR + light + 0-10V | white
Min. switch-on time
1s
Ean
8714984952324
Max. duty cycle
60min
Outer box qty
1st
With presence detector
No
Colour
White
With movement sensor
Yes
Type
Casambi
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
Yes
Sensor connect
No
Response value luminosity adjustable
Yes
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Flush-mounted
Dim function with dimmer basic element
Yes
Mounting height
3m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP20
Max. switching power
1000W
Suitable for wireless transmission
Yes
Operation mode switch
No
Constant light control
No
Staircase light controller
Yes
Networkable
Yes
Halogen free
Yes
Max. reach sideways
4m
RAL-number (similar)
9016
Max. reach frontally
4m
Surface finishing
Matt
Diameter reach on floor
8m
Warranty
5 years
Detection angle horizontal
90 - 90°

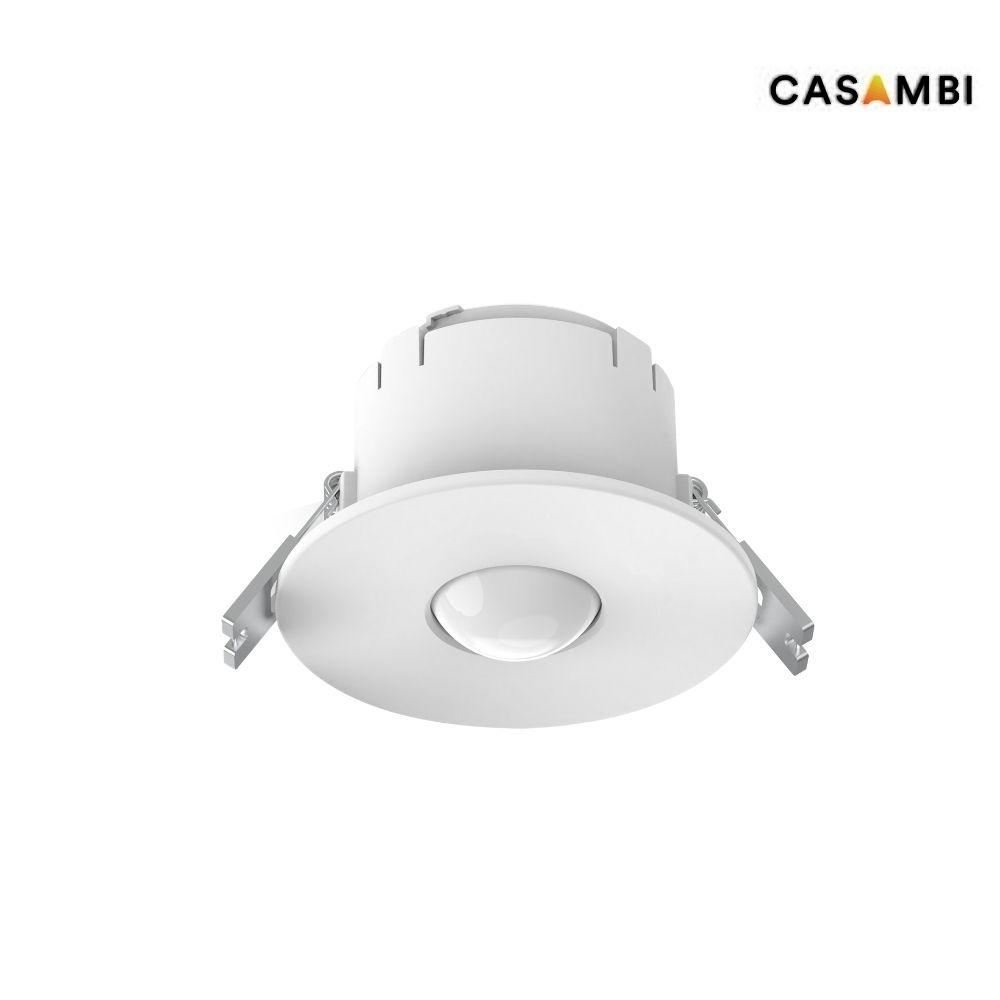

This ceiling module combines a passive infrared sensor (PIR) with a light sensor for daylight-dependent control. The 0–10V output allows compatible drivers to be dimmed down to off. Control options include fixed settings, scheduling, or full automation—seamlessly integrated into the Casambi network.

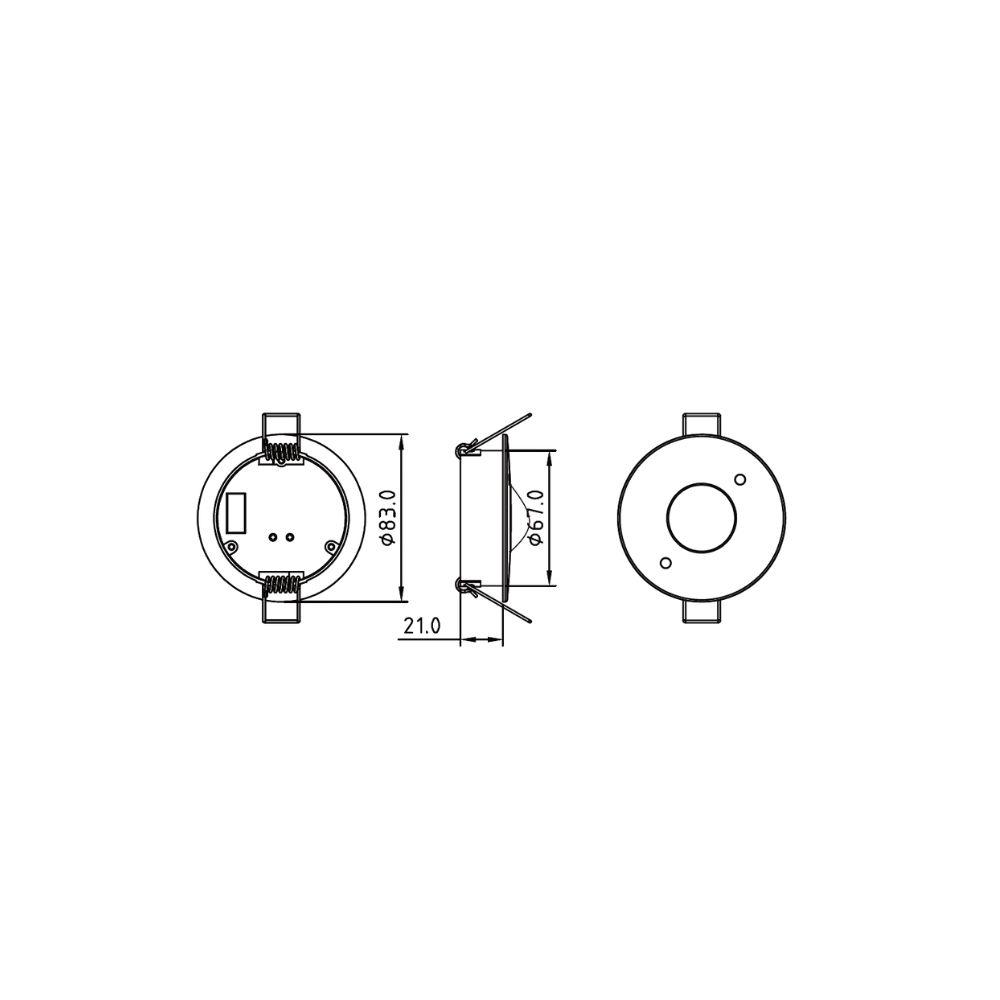

The module operates on 12 or 24Â V DC and is designed for flush mounting (cut-out Ø70–73Â mm). It offers a detection area of up to 5 metres at floor level, with a 130° detection angle and a lux range of 0–1000 lx. The wireless Casambi mesh (2.4Â GHz) offers an open-field range of approx. 50 metres, enabling scalable and reliable lighting control.
Ideal for daylight-rich spaces such as offices, meeting rooms, corridors and entrances—where energy savings and user comfort are combined in a single solution.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
