Casambi | single wall switch
214-204Wireless wall transmitters for Casambi networks. Available in 2- or 4-channel versions with freely programmable functions. Battery-free, fully maintenance-free and compatible with standard 55 × 55 mm cover frames.
Key product features
- Number of colour channels: 1
- Type of control: Casambi
- Number of zones: 2
Product Name
Casambi | single wall switch
Ean
8714984934931
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

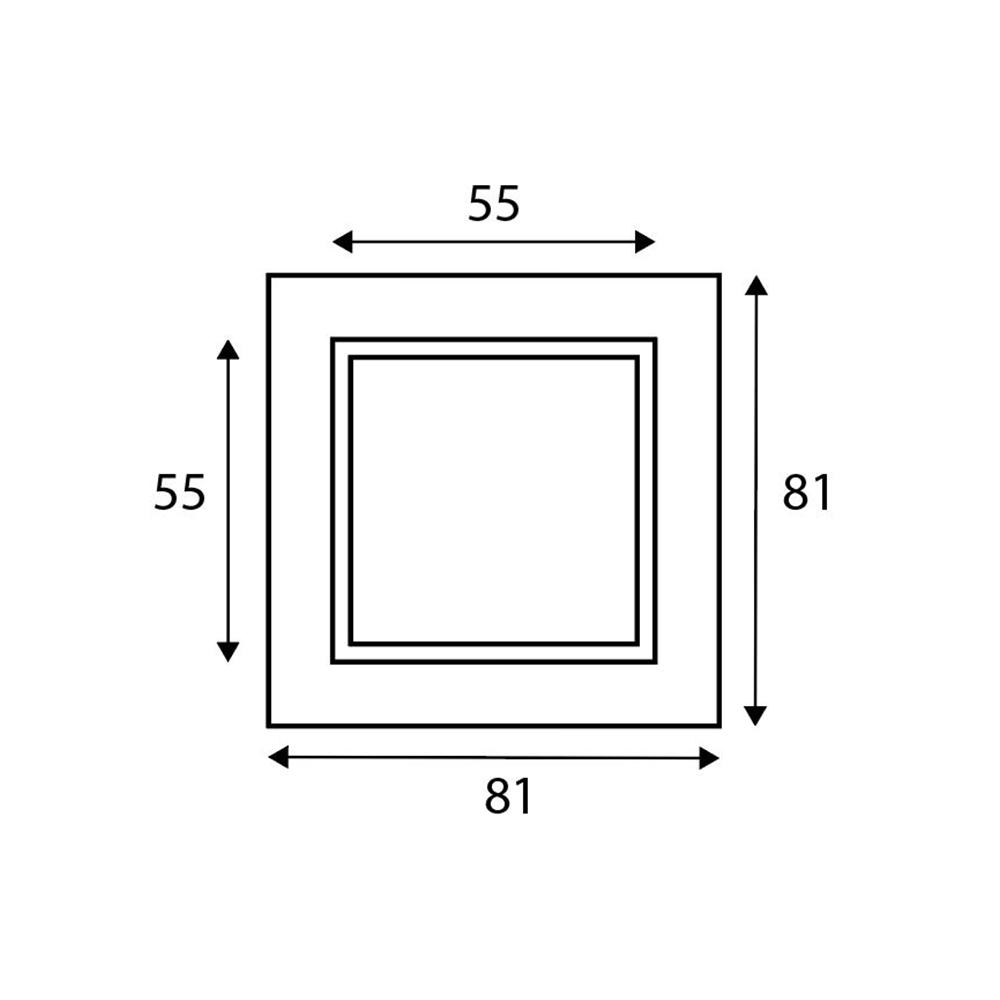

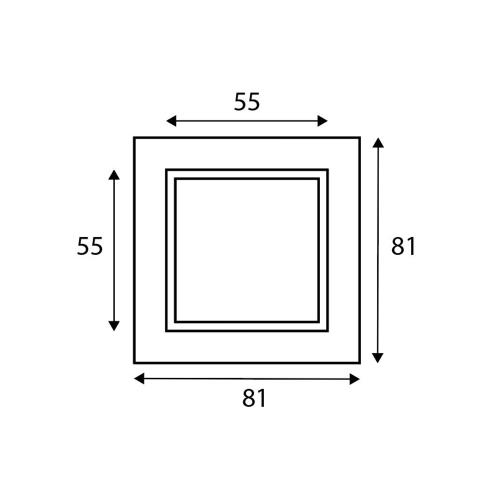

Length
81mm
Width
81mm
Height
14mm
Number of zones
2
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
0 - 0V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Warranty
5 years
Product Name
Casambi | single wall switch
Height
14mm
Ean
8714984934931
Number of zones
2
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
0 - 0V
Output voltage
0 - 0V
Control method
Casambi
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
81mm
Compatible with Casambi
Yes
Width
81mm
Warranty
5 years
These battery-free wall transmitters with energy harvesting are designed for wireless control of scenes, colours or dim levels within Casambi systems. Communication takes place via Bluetooth Low Energy (BLE) in the 2.402–2.48 GHz frequency range, with an indoor signal range of approximately 10 metres. Available in 2- or 4-channel versions.
The radio signal is powered entirely by kinetic energy, generated by pressing the button. This eliminates the need for batteries and makes the system completely maintenance-free and sustainable. The expected service life is approximately 50,000 activations.
The transmitters come with a matching Opus 55 Inform frame by Jäger Direkt, but are also compatible with standard 55 × 55 mm systems from manufacturers such as Gira, Jung, Merten and Berker. This ensures easy integration into existing switch series. Initial programming is done via smartphone or tablet using NFC, after which the transmitter can be added to the Casambi network. For optimal performance, the network mode should be set to “Balanced.”
Thanks to their slim design, measuring only 14 mm thick, these transmitters are both aesthetically and functionally suited for use in residential spaces, offices and hotels.
More information
More details about this product can be found in the product specifications. For accessories, available options and related products, see the related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-single-wall-switch-214-204.pdf
Manual
CASAMBI_App_FullUserGuideEnglisch.pdf
Characteristics sheet
214-199_204_technical_datasheet_extended.pdf
