Casambi | wall switch | RGBTW | 4 zones

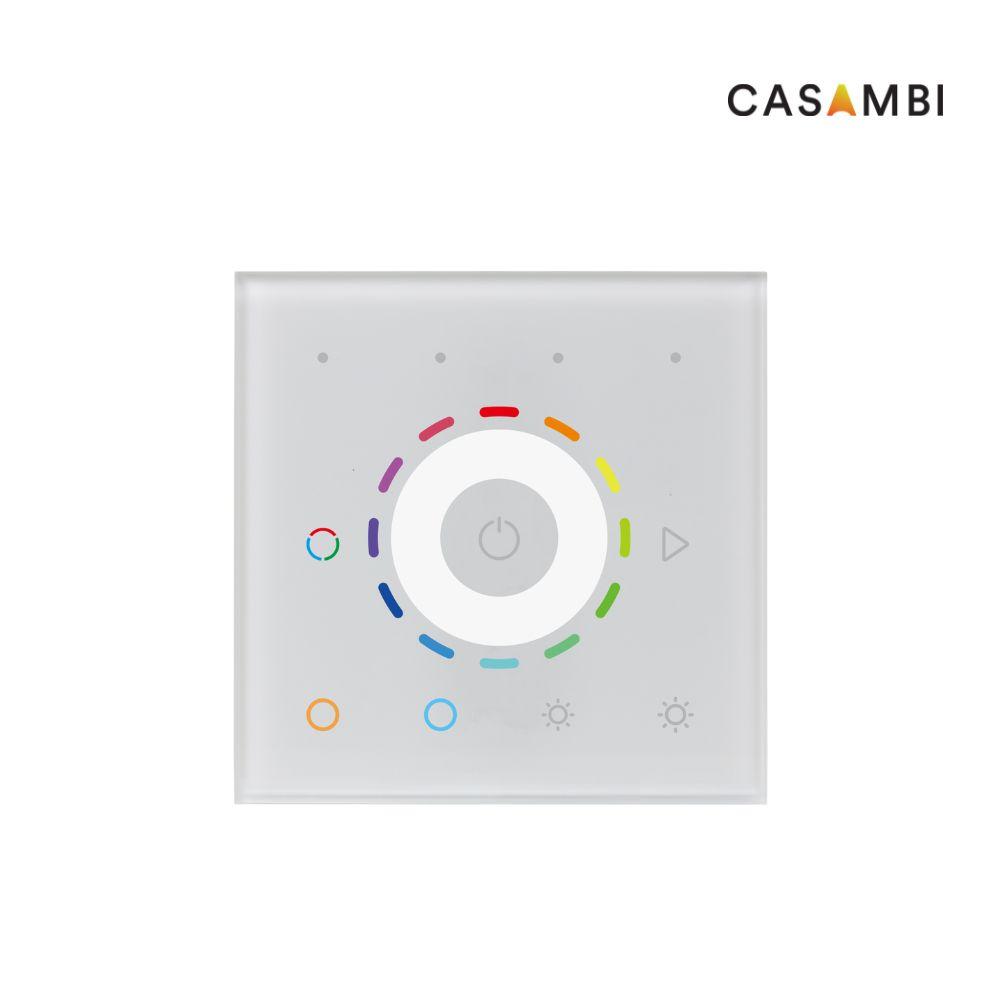

214-224Casambi RGBCCT touch panel with glass front for local control of zones and scenes. Operates on 100–240V AC (IP20) and connects to the Casambi mesh network. Functions include zones 1–4, on/off, dimming, colour adjustment, and animation.
Key product features
- Control type: Casambi
- Number of colour channels: 5
- Input voltage (V): 100 – 240
- Number of zones: 4
Product Name
Casambi | wall switch | RGBTW | 4 zones
Ean
8714984952331
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
80mm
Width
80mm
Height
30mm
Number of zones
4
Number of colour channels
5, RGBTW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
100 - 240V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Warranty
5 years
Product Name
Casambi | wall switch | RGBTW | 4 zones
Height
30mm
Ean
8714984952331
Number of zones
4
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
100 - 240V
Output voltage
0 - 0V
Control method
Casambi
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
80mm
Compatible with Casambi
Yes
Width
80mm
Warranty
5 years
The panel offers zone selection (1–4), on/off, dimming (±10% per click, hold = continuous), colour temperature adjustment (±400 K per click, hold = continuous), and an animation button to start or pause scenes or effects. It also features 9 built-in colour animations.
Pair the panel in the Casambi app to the same network and assign a luminaire or group to each zone. Button 5 can be used to start or pause a scene or animation. This allows intuitive local control combined with app-based configuration of groups, scenes, and schedules.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
