DALI | controller | DALI to trailing edge | DIN

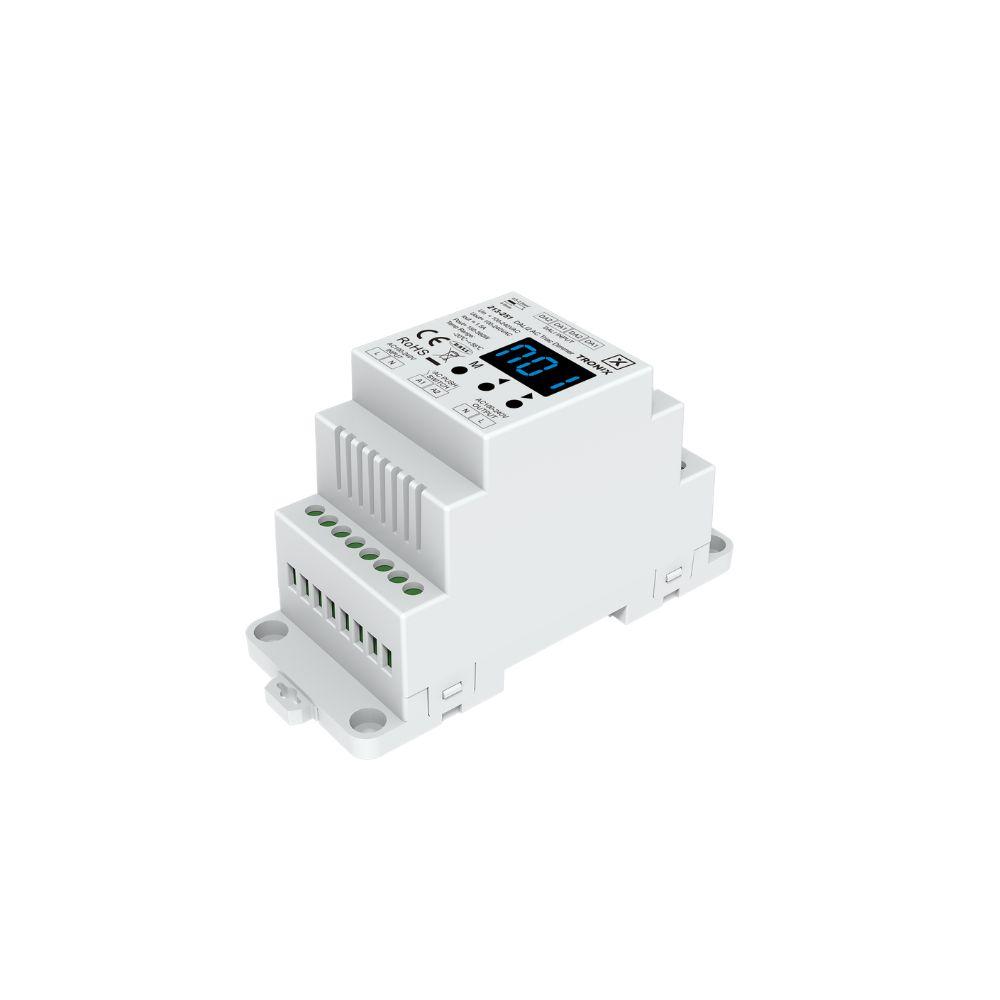

213-251This AC trailing edge DALI-2 dimmer is designed for precise phase-cut dimming control of 230 V light sources. Suitable for professional installations with mains-voltage lighting.
Product features
- Control method: DALI
- DIN rail mounting: Yes
- Input voltage (V): 100–240
- Output voltage (V): 100–240
- Max. output current (A): 1.5
Product Name
DALI | controller | DALI to trailing edge | DIN
Ean
8714984953659
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DALI
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DALI | controller | DALI to trailing edge | DIN
Applicable with button
Yes
Ean
8714984953659
Applicable with transmission button
No
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. brightness controllable
Yes
Control method
DALI
Max. switching power LED
200W
Mounting method
Built-in
Light value memory
Yes
Material
Plastic
Halogen free
Yes
Material quality
Thermoplastic
RAL-number (similar)
9016
Applicable with presence indicator
Yes
Core cross section
0.75 - 2.5mm²
Suitable for degree of protection (IP)
IP20
Warranty
5 years
Applicable with movement sensor
Yes
This AC trailing edge DALI-2 dimmer is designed for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting on mains voltage. The dimmer features a single output channel and one DALI address and The dimmer features a single output channel and one DALI address and supports both leading edge and trailing edge dimming for optimal compatibility with different loads.
Configuration is carried out via integrated control buttons and a digital display, allowing precise adjustment of parameters such as the DALI address, dimming mode, dimming curve and minimum brightness. Both linear and logarithmic dimming curves can be selected, ensuring predictable and comfortable light control across the full dimming range from 0 to 100 percent with 256 dimming levels.
In addition to DALI control, the dimmer also supports operation via an external AC push button for on/off switching and smooth dimming. The dimmer is equipped with thermal protection with automatic recovery and supports high inrush currents, contributing to reliable operation in professional installations. The DIN rail design enables easy installation in distribution cabinets. The product complies with the DALI-2 standard in accordance with IEC 62386 and with relevant safety and EMC standards.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-controller-dali-to-trailing-edge-din-213-251.pdf
Characteristics sheet
213-251_manual.pdf
