DALI | controller | DALI to trailing edge | recessed

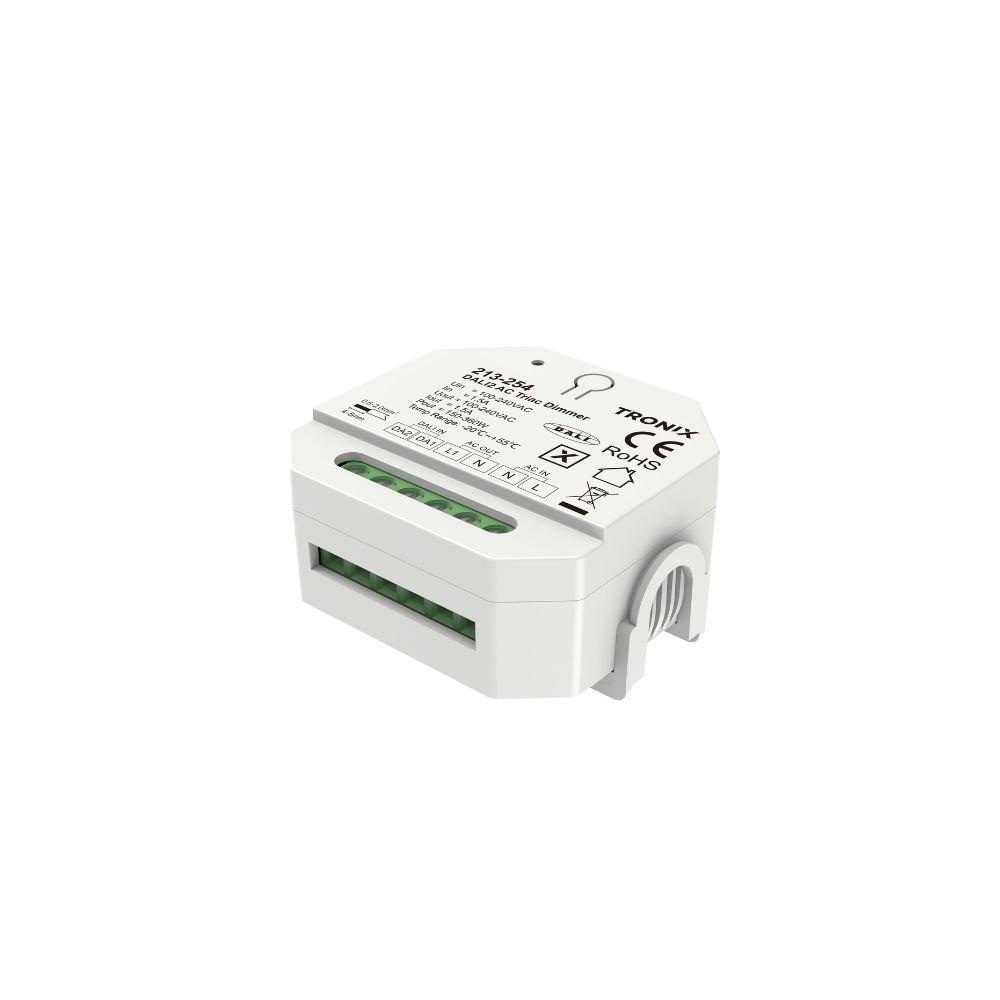

213-254This compact DALI-2 AC trailing edge dimmer precisely controls 230V light sources via phase dimming. Suitable for professional installations where compact integration, flexibility and reliable DALI control are required.
Key product features
- Control method: DALI
- Number of colour channels: 1
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
- Max. output current (A): 1.5
- Suitable for flush mounting: Yes
Product Name
DALI | controller | DALI to trailing edge | recessed
Ean
8714984953680
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DALI
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
28mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DALI | controller | DALI to trailing edge | recessed
Applicable with button
Yes
Ean
8714984953680
Applicable with transmission button
No
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. depth of built-in installation box
28mm
Control method
DALI
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
200W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
This DALI-2 AC trailing edge dimmer switches and dims single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting on mains voltage. The dimmer features 1 output channel and 1 DALI address and supports both leading edge and trailing edge dimming for optimal compatibility with different load types.
Addressing is automatically assigned via the DALI master. In addition, the dimmer supports control via an external push button for on/off switching and smooth dimming from 0–100%. Adjustable minimum brightness ensures stable dimming performance at low levels and prevents flickering or unintended switch-off.
Thermal and electrical protection safeguard against overheating and overload, with automatic recovery. The compact design allows easy installation in luminaires or confined mounting spaces. The product complies with the DALI-2 standard according to IEC 62386 and relevant safety and EMC standards and is suitable for professional residential and commercial applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-controller-dali-to-trailing-edge-recessed-213-254.pdf
Characteristics sheet
213-254_manual.pdf
