DALI | controller | DALI to trailing edge | surface mounted

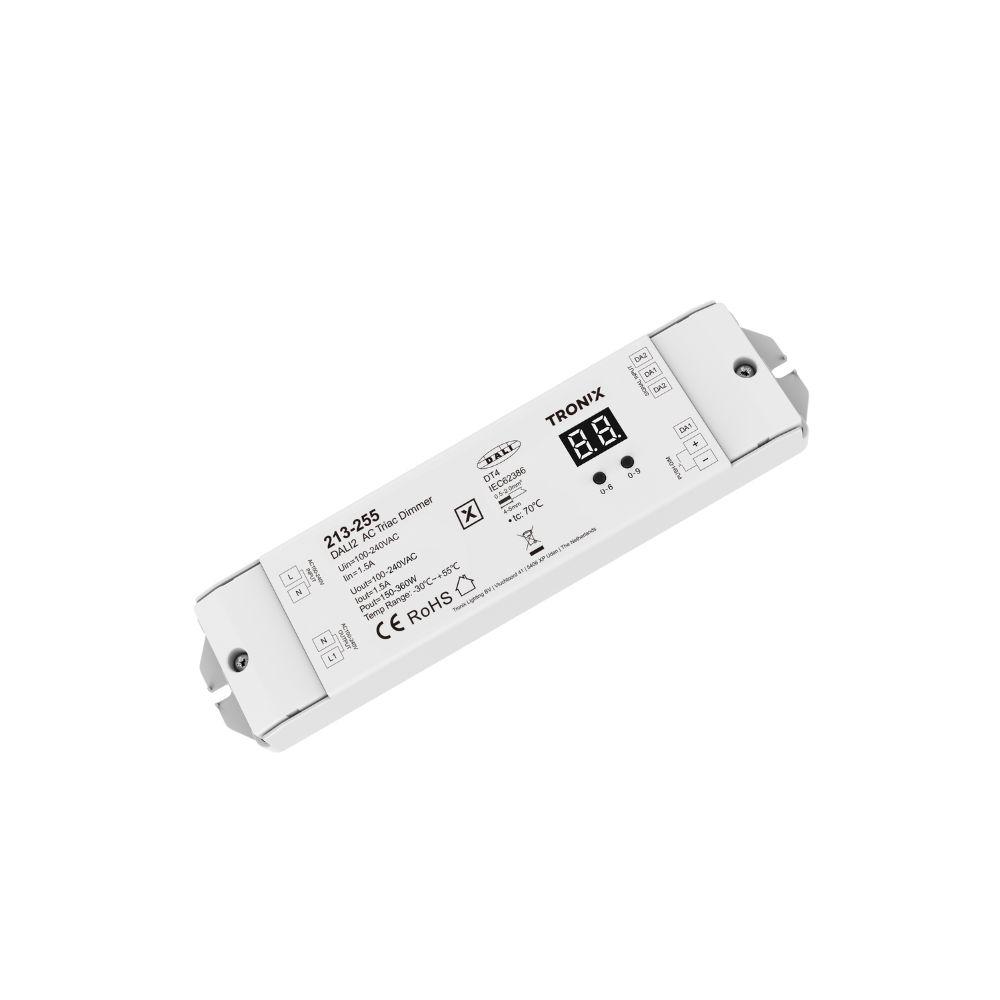

213-255This AC trailing edge DALI-2 dimmer controls 230V light sources via leading edge and trailing edge phase dimming. Developed for professional installations where adjustability, load capacity and reliable DALI control are essential.
Key product features
- Control method: DALI
- Number of colour channels: 1
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
- Max. output current (A): 1.5
- Suitable for surface mounting: Yes
Product Name
DALI | controller | DALI to trailing edge | surface mounted
Ean
8714984953697
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DALI
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DALI | controller | DALI to trailing edge | surface mounted
Applicable with button
Yes
Ean
8714984953697
Applicable with transmission button
No
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. brightness controllable
Yes
Control method
DALI
Max. switching power LED
200W
Mounting method
Surface mounted
Light value memory
Yes
Material
Plastic
Halogen free
Yes
Material quality
Thermoplastic
RAL-number (similar)
9016
Applicable with presence indicator
Yes
Core cross section
0.75 - 2.5mm²
Suitable for degree of protection (IP)
IP20
Warranty
5 years
Applicable with movement sensor
Yes
This AC trailing edge DALI-2 dimmer switches and dims single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and mains-voltage halogen lighting. The dimmer features 1 output channel and 1 DALI address and supports both leading edge and trailing edge dimming, selectable via the operating menu for optimal compatibility with different load types.
The DALI address can be automatically assigned by a DALI master or manually configured via the integrated control buttons and digital display. In addition, the dimmer supports control via an external push button for on/off switching and smooth dimming from 0–100%, with memory function for the last light level, even after power failure.
Adjustable minimum brightness between 1–40% ensures stable dimming performance at low levels and prevents flickering or unintended switch-off of connected light sources.
Thermal protection safeguards against overheating and enables automatic recovery. The slim linear design allows easy installation in luminaires or compact mounting spaces. The product complies with the DALI-2 standard according to IEC 62386 and relevant safety and EMC standards.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-controller-dali-to-trailing-edge-surface-mounted-213-255.pdf
Characteristics sheet
213-255_manual.pdf
