DALI | master | push dim to DALI

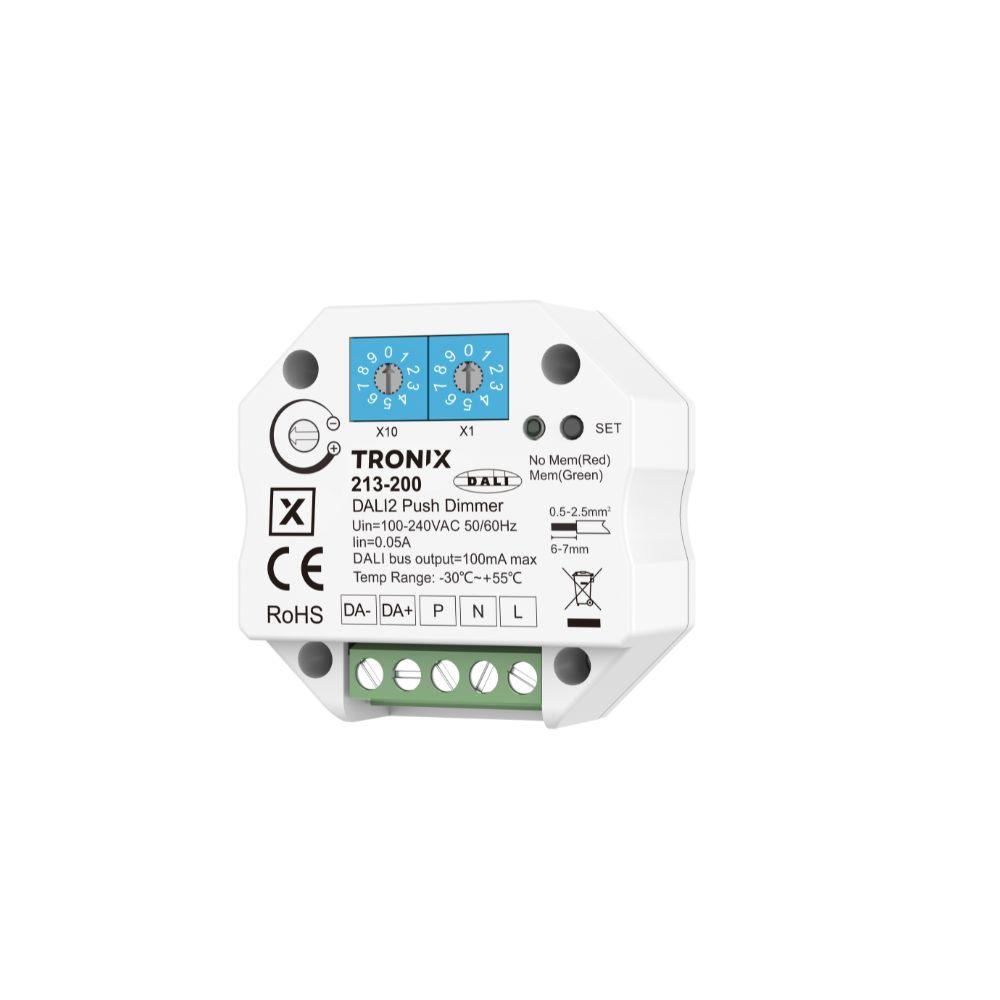

213-200This DALI-2 push dimmer is designed for simple and reliable control of DALI drivers and electronic ballasts. Suitable for professional installations where compact installation, stable communication and intuitive operation are required.
Product features
- Type of control: DALI
- Number of colour channels: 1
- Input voltage (V): 100–240
Product Name
DALI | master | push dim to DALI
Ean
8714984953581
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.1A
Output voltage
16 - 16V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

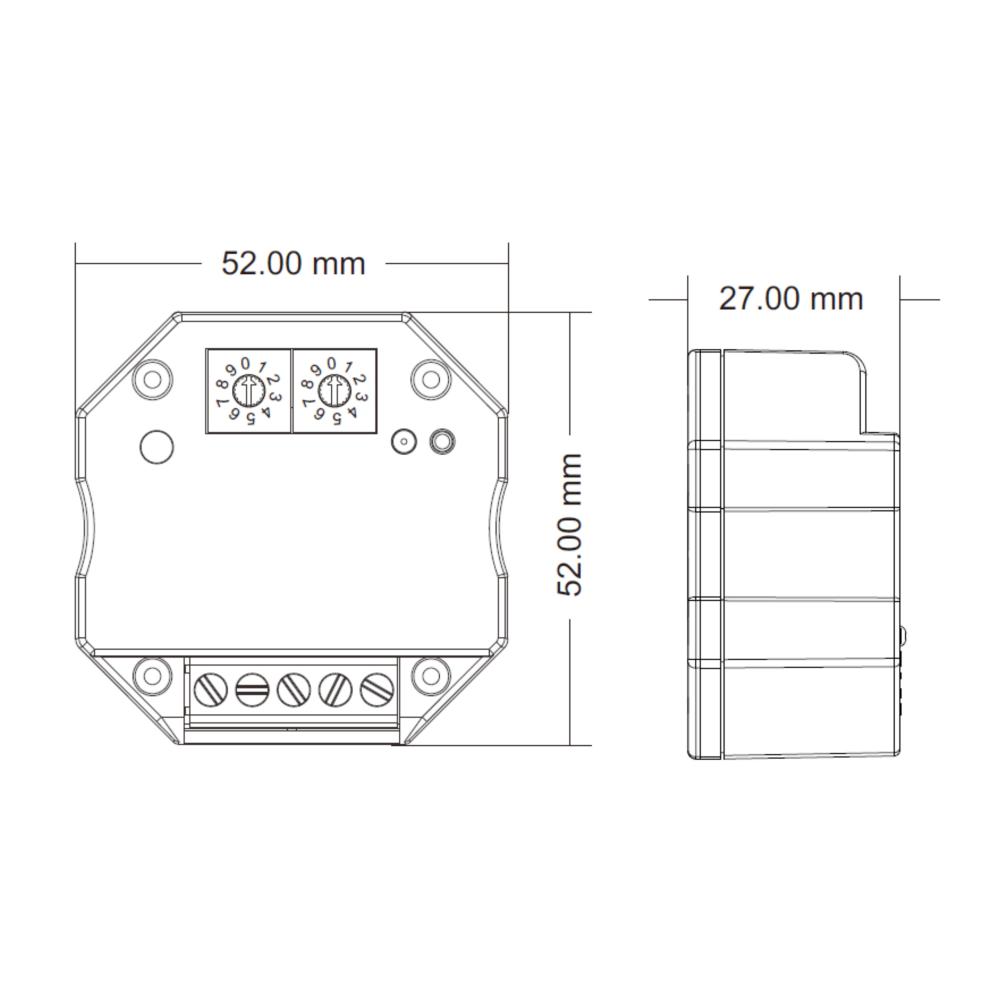

Height
27mm
Diameter
52mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
100 - 240V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DALI | master | push dim to DALI
Diameter
52mm
Ean
8714984953581
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
100 - 240V
Max. output current
0.1A
Control method
DALI
Output voltage
16 - 16V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Height
27mm
Warranty
5 years
This DALI-2 push dimmer controls DALI drivers and electronic ballasts via uni-directional broadcast communication. Operation is carried out using a conventional push button: a short press switches the light on or off, while a long press enables smooth dimming. The dimmer can be used with or without a memory function, optionally storing the last set light level.
Rotary dials allow precise adjustment of the DALI address and dimming speed, enabling the lighting control to be accurately matched to the application. In addition, the device can function as a power supply for the DALI bus, providing stable bus voltage and current for connected components.
Thanks to its compact design, the dimmer is suitable for installation in standard flush-mounted boxes. The robust construction, DALI-2 compliance and conformity with safety and EMC standards make this dimmer suitable for professional residential and commercial lighting installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-master-push-dim-to-dali-213-200.pdf
Characteristics sheet
213-200_manual.pdf
