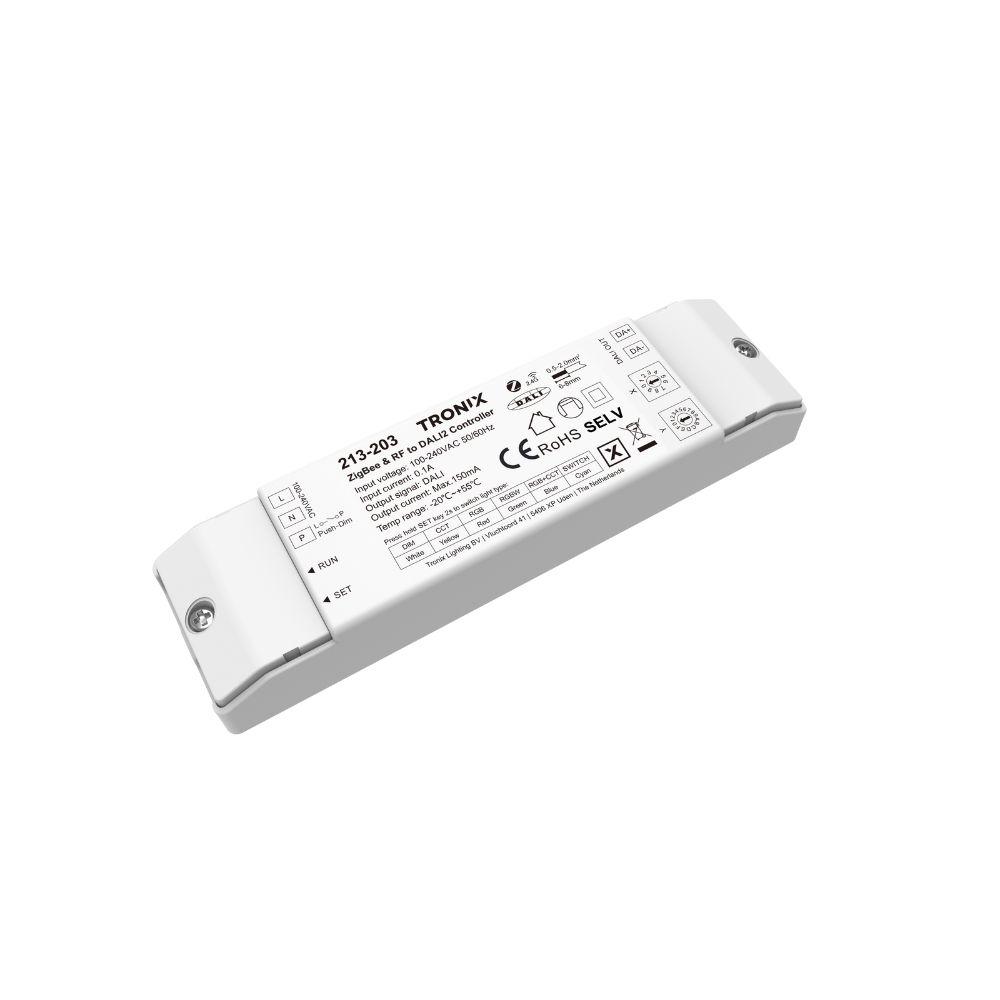

DALI | master | Zigbee/RF to DALI | surface mounted
213-203This Zigbee & RF DALI-2 dimmer enables smart, wireless control of DALI lighting via Dimmit or Philips Hue, with a gateway required. Suitable for professional applications with smart, wireless control.
Product features
- Type of control: DALI
- Number of colour channels: 5
- Suitable for surface mounting: Yes
- Number of zones: 1
Product Name
DALI | master | Zigbee/RF to DALI | surface mounted
Ean
8714984953611
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.15A
Output voltage
16 - 16V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

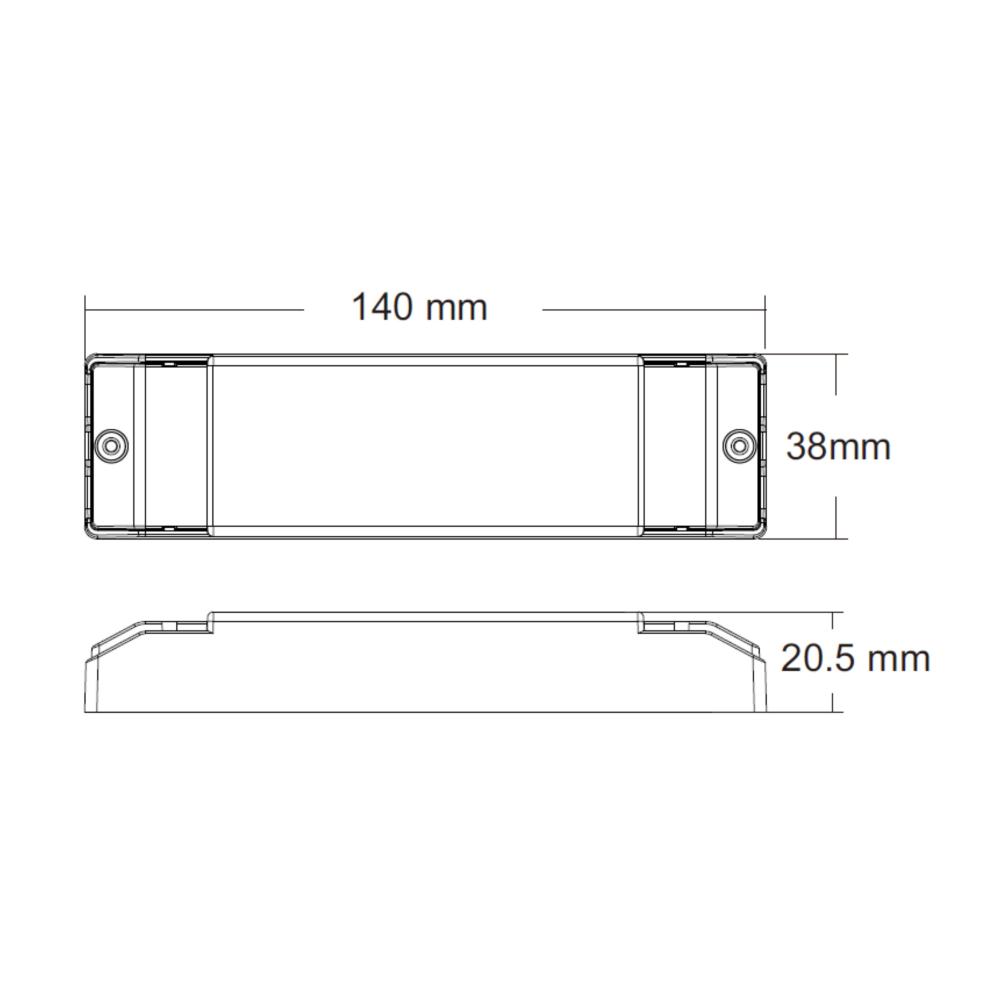

Length
140mm
Width
38mm
Height
20.5mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
100 - 240V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DALI | master | Zigbee/RF to DALI | surface mounted
Height
20.5mm
Ean
8714984953611
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
100 - 240V
Max. output current
0.15A
Control method
DALI
Output voltage
16 - 16V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
140mm
Control type
Constant voltage
Width
38mm
Warranty
5 years
This Zigbee & RF DALI-2 dimmer functions as a DALI master and converts wireless Zigbee and RF control into a DALI control signal for DALI drivers and electronic ballasts. The dimmer supports various DALI lighting types, including single colour, Tuneable White, RGB, RGBW, RGB+CCT and switching applications.
Control via the Dimmit app is possible in combination with a Dimmit Zigbee gateway, which is required for network connectivity, cloud functionality and remote control. Integration within a Philips Hue environment requires a Philips Hue Bridge. In addition to app-based control, the dimmer also supports local operation via a conventional push button for on/off switching and smooth dimming, as well as control via optional RF 2.4 GHz remote controls.
The dimmer can also function as a DALI bus power supply and controls a single DALI address in unicast, group or broadcast mode. The compact linear design enables easy installation above ceilings or inside luminaires. The dimmer complies with relevant DALI, safety and EMC standards and is suitable for professional residential and commercial installations with DALI lighting.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dali-master-zigbeerf-to-dali-surface-mounted-213-203.pdf
Characteristics sheet
213-203_manual.pdf
