Day/night sensor | IP44 | max. 1500W
214-061Light sensor with adjustable sensitivity for automatic switching at dusk or darkness. Suitable for 230V LED lighting up to 15 A. IP44-rated for outdoor use.
Key product features
- Nominal voltage: 230 V
- Max. switching power LED: 1500 W
- Degree of protection (IP): IP44
Product Name
Day/night sensor | IP44 | max. 1500W
Ean
8714984936577
Outer box qty
100st
Colour
Black
Type
Twilight sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Surface mounted
Width
65.4mm
Height
96.2mm
Suitable for degree of protection (IP)
IP44
Nominal voltage
230V
Type of sensor
Built-in light sensor
Contacts
1 make contact (NO)
With automatic night switch-off
No
Working temperature
-20 - 40°C
Engaging brightness
2 - 100lx
Switching-off brightness
2 - 100lx
Switch-on delay
20s
Switch-off delay
20s
Surface protection
Untreated
Max. switching current (resistive load)
15A
Max. switching power LED
1500W
Halogen free
Yes
RAL-number (similar)
9005
Surface finishing
Matt
Warranty
5 years
Product Name
Day/night sensor | IP44 | max. 1500W
Contacts
1 make contact (NO)
Ean
8714984936577
With automatic night switch-off
No
Outer box qty
100st
Working temperature
-20 - 40°C
Colour
Black
Engaging brightness
2 - 100lx
Type
Twilight sensor
Switching-off brightness
2 - 100lx
Material
Plastic
Switch-on delay
20s
Sensor connect
No
Switch-off delay
20s
Material quality
Thermoplastic
Surface protection
Untreated
Mounting method
Surface mounted
Max. switching current (resistive load)
15A
Width
65.4mm
Max. switching power LED
1500W
Height
96.2mm
Halogen free
Yes
Suitable for degree of protection (IP)
IP44
RAL-number (similar)
9005
Nominal voltage
230V
Surface finishing
Matt
Type of sensor
Built-in light sensor
Warranty
5 years
This compact day/night sensor automatically switches lighting on when ambient brightness drops below the set threshold (adjustable between 2 and 100 lux), offering flexible use in various applications.
The sensor operates on 220–240V AC and supports up to 15 A load. Suitable for both conventional and LED lighting. Equipped with a rotary dial for easy light level adjustment.

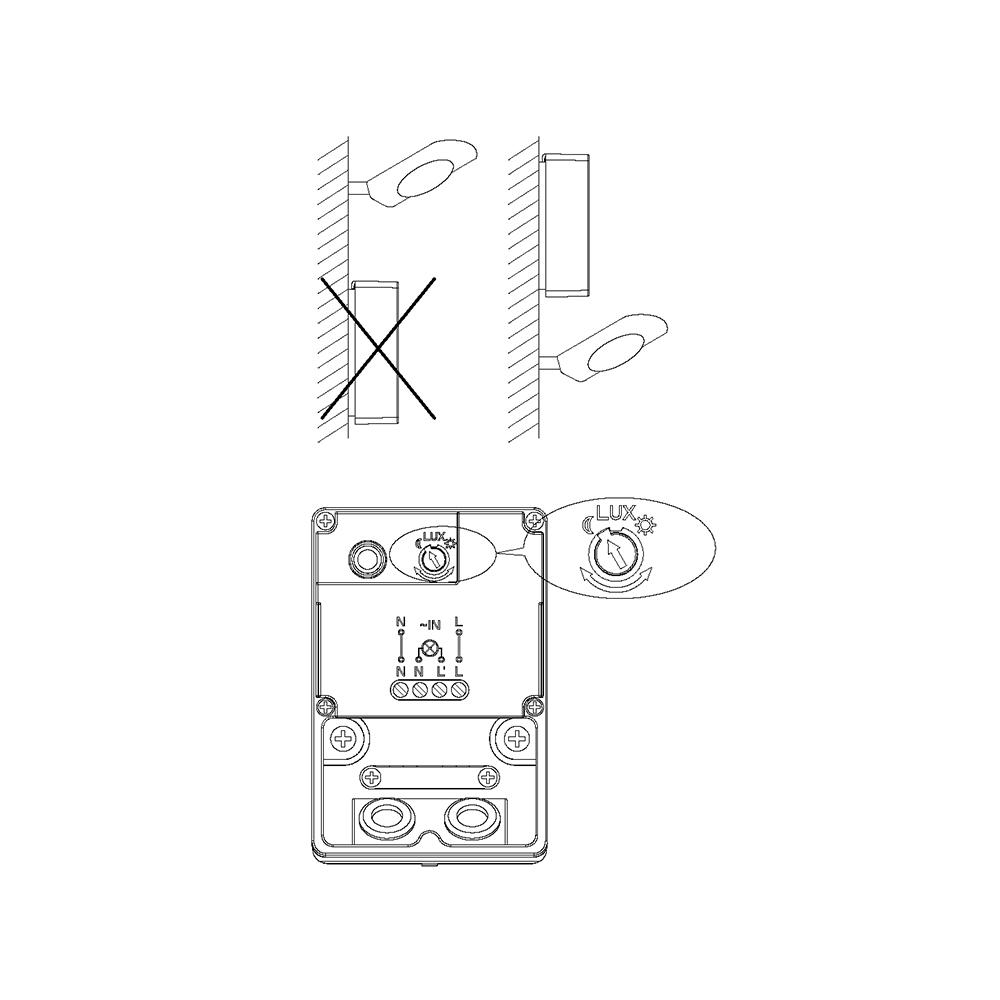

Its IP44-rated housing is designed for wall mounting and is suitable for outdoor use, e.g. garden, façade or area lighting. Ensure the sensor is positioned away from direct artificial light or moving objects to avoid false triggering.
Thanks to its compact design and straightforward wiring, the sensor is quick to install and configure.
