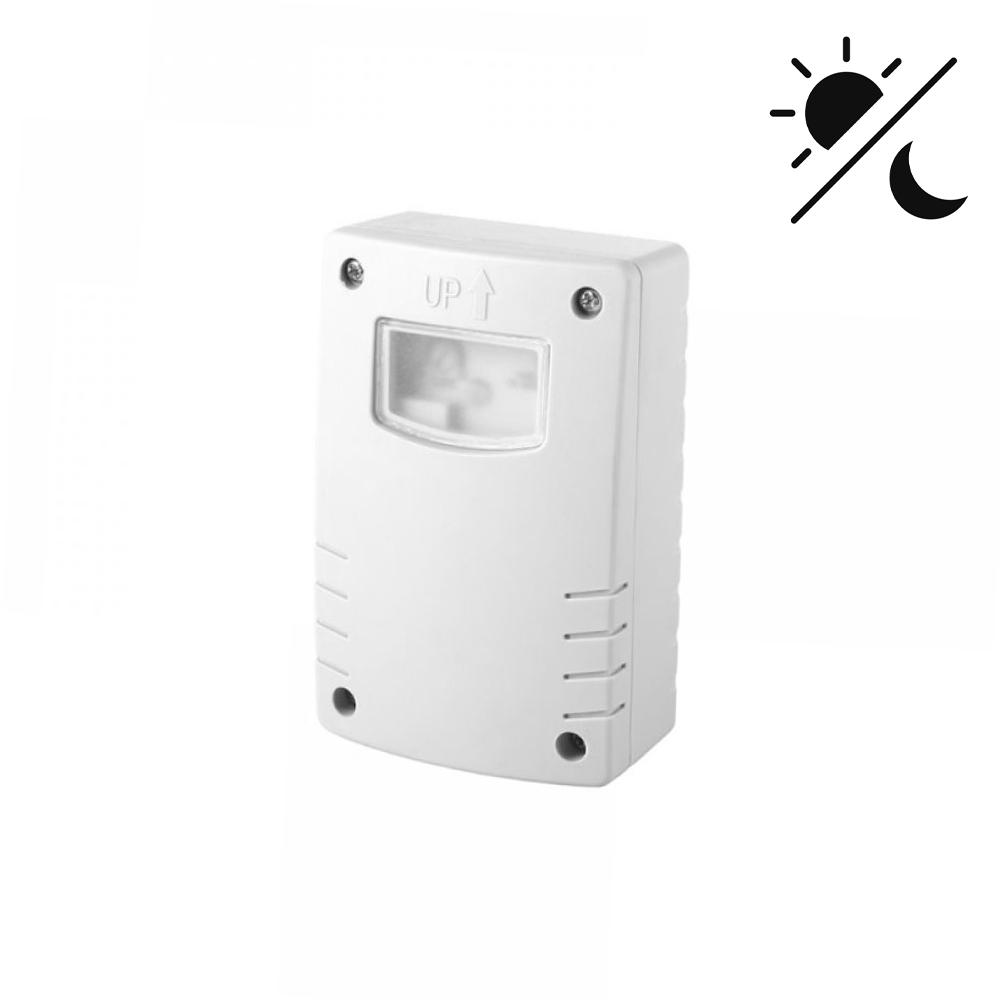

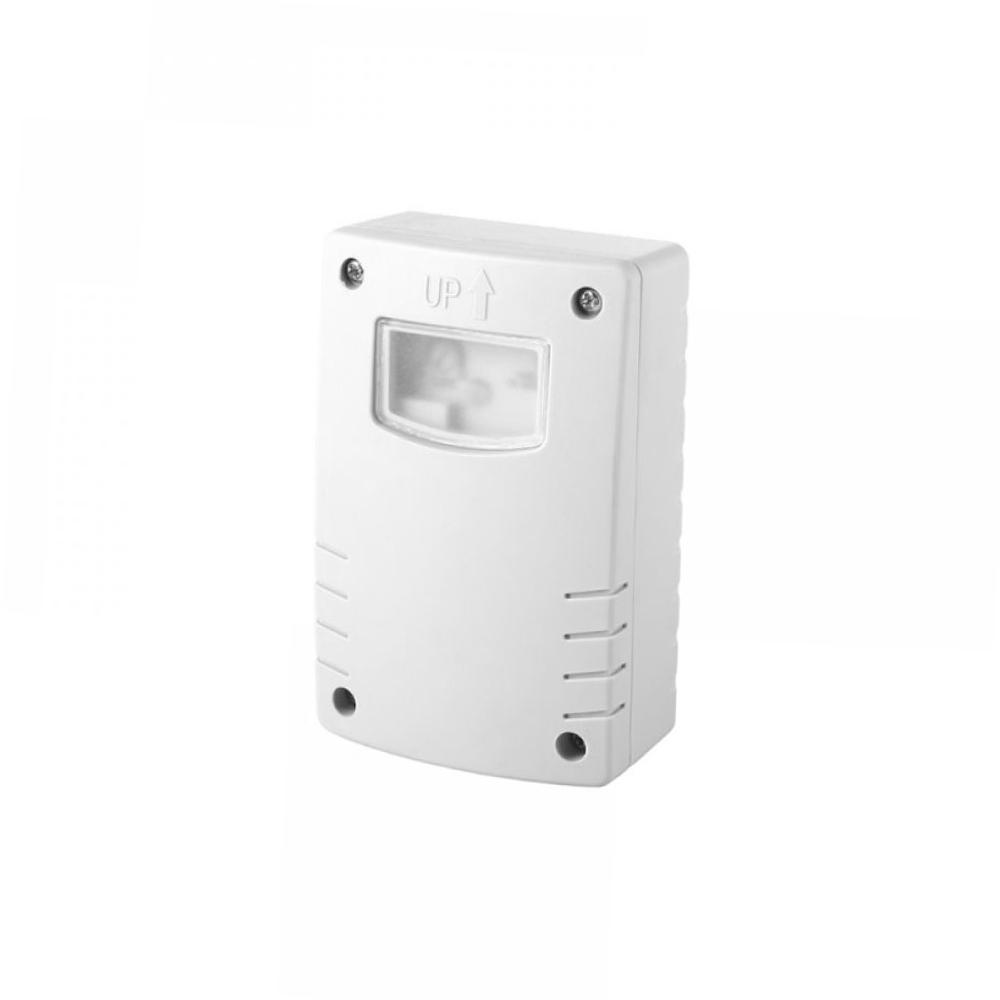

Day/night sensor | IP54 | max. 1150W | with timer
214-060Automatic day/night sensor with adjustable light sensitivity and built-in timer. Suitable for 230V LED lighting up to 10 A. IP54-rated for outdoor use.
Key product features
- Nominal voltage: 230 V
- Max. switching power LED: 1150 W
- Degree of protection (IP): IP54
Product Name
Day/night sensor | IP54 | max. 1150W | with timer
Ean
8714984936560
Outer box qty
100st
Colour
White
Type
Twilight sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Surface mounted
Width
70mm
Height
108.8mm
Suitable for degree of protection (IP)
IP54
Nominal voltage
230V
Type of sensor
Built-in light sensor
Contacts
1 make contact (NO)
With automatic night switch-off
Yes
Working temperature
-20 - 40°C
Engaging brightness
3 - 500lx
Switching-off brightness
3 - 500lx
Switch-on delay
20s
Switch-off delay
20s
Surface protection
Untreated
Max. switching current (resistive load)
10A
Max. switching power LED
1150W
Halogen free
Yes
RAL-number (similar)
9009
Surface finishing
Matt
Warranty
5 years
Product Name
Day/night sensor | IP54 | max. 1150W | with timer
Contacts
1 make contact (NO)
Ean
8714984936560
With automatic night switch-off
Yes
Outer box qty
100st
Working temperature
-20 - 40°C
Colour
White
Engaging brightness
3 - 500lx
Type
Twilight sensor
Switching-off brightness
3 - 500lx
Material
Plastic
Switch-on delay
20s
Sensor connect
No
Switch-off delay
20s
Material quality
Thermoplastic
Surface protection
Untreated
Mounting method
Surface mounted
Max. switching current (resistive load)
10A
Width
70mm
Max. switching power LED
1150W
Height
108.8mm
Halogen free
Yes
Suitable for degree of protection (IP)
IP54
RAL-number (similar)
9009
Nominal voltage
230V
Surface finishing
Matt
Type of sensor
Built-in light sensor
Warranty
5 years
This light sensor with integrated timer automatically switches lighting on when ambient brightness drops below the set lux level (adjustable from 3 to 500 lux), and off after the configured delay or when brightness increases.
The timer can be set steplessly from 1 to 9 hours or to ‘dusk-to-dawn’ mode, keeping the light on throughout the night. A flashing LED indicator confirms the selected time (e.g. 3 hours = 3 flashes).
Operating on 220–240V AC, the sensor supports up to 10 A and is suitable for both conventional and LED lighting. Its IP54 housing is splash-proof and rated for temperatures from -20 to +40 °C – ideal for outdoor or damp environments.

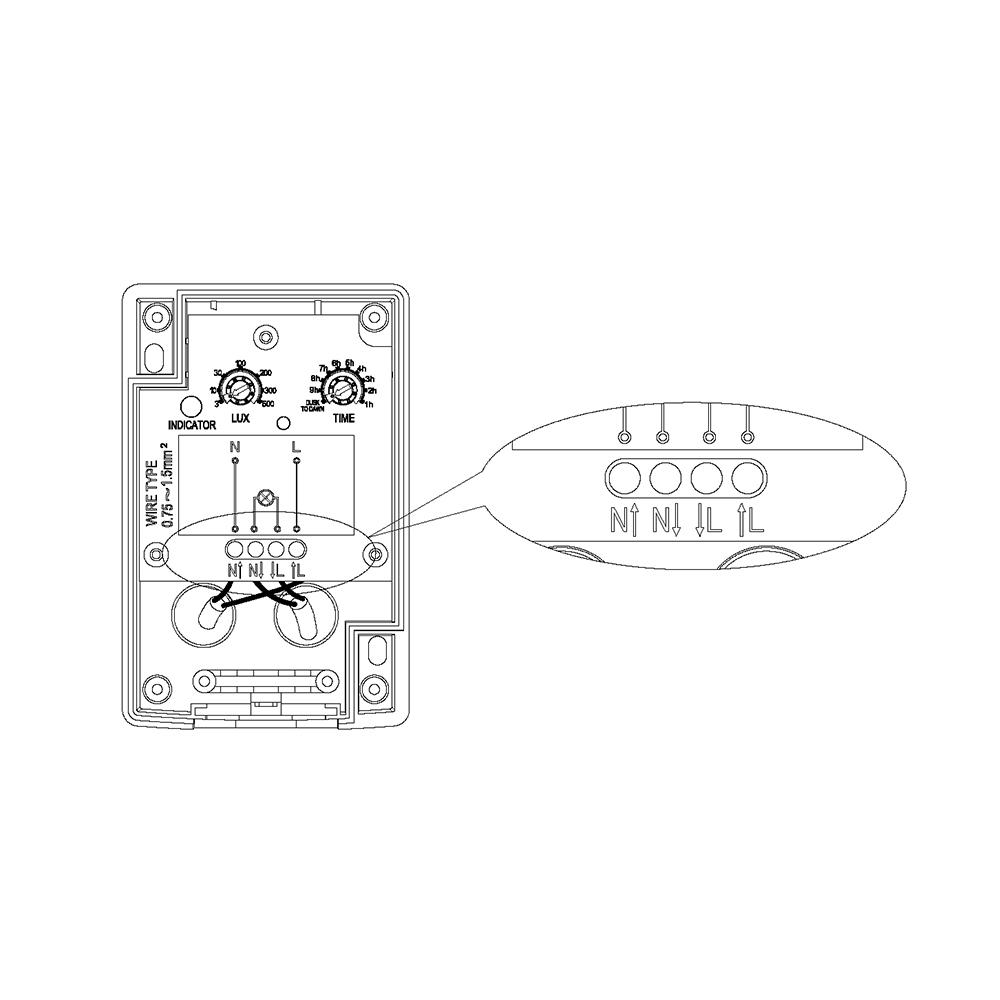

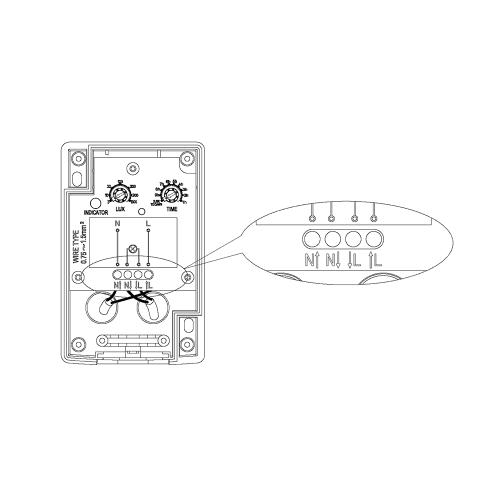

Thanks to its compact design and clear control dials (LUX and TIME), the sensor is easy to install and configure. Ensure it is placed away from artificial light or moving objects to prevent false triggering.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
