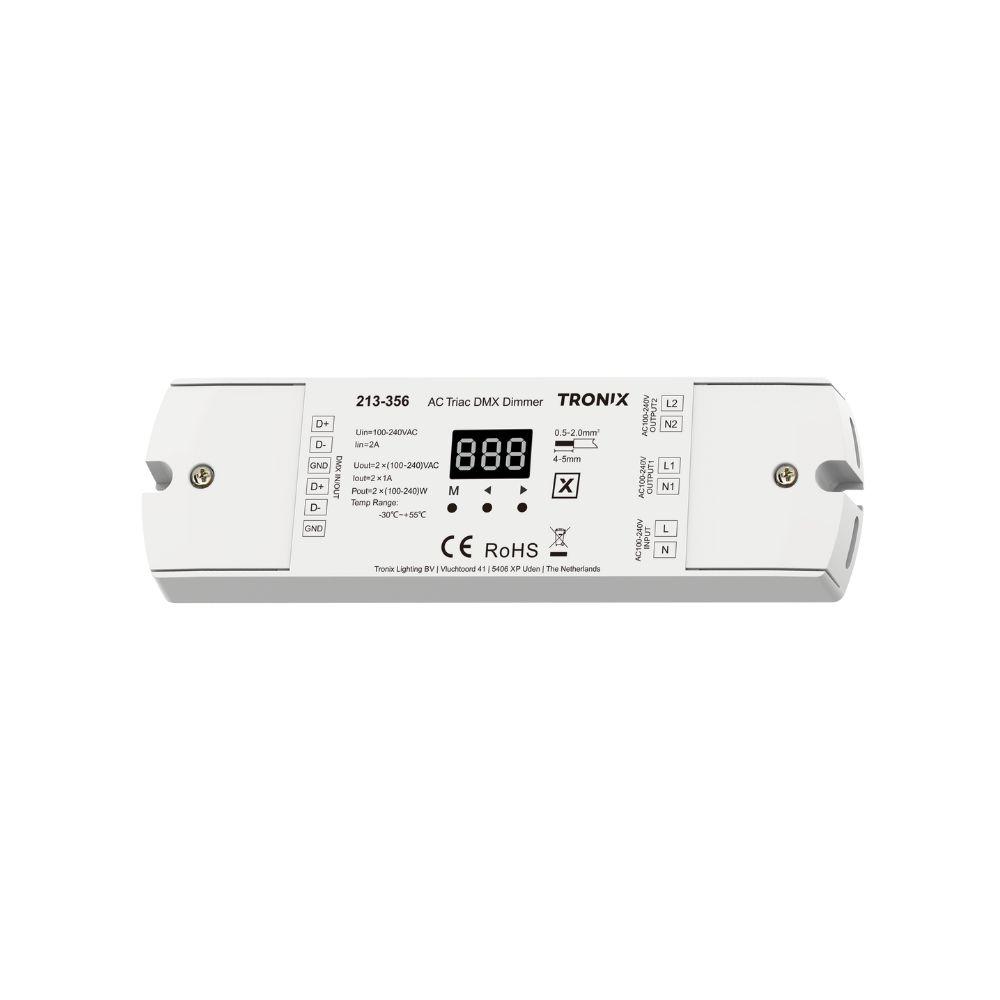

DMX | controller | 2 channels | DMX to trailing edge
213-356This 2-channel AC trailing edge DMX512 dimmer provides precise leading edge and trailing edge dimming control of 230V light sources within professional DMX installations.
Key product features
- Control method: DMX
- Number of colour channels: 1
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
- Max. output current (A): 2
- Suitable for surface mounting: Yes
- Number of zones: 2
Product Name
DMX | controller | 2 channels | DMX to trailing edge
Ean
8714984953840
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DMX
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DMX | controller | 2 channels | DMX to trailing edge
Applicable with button
Yes
Ean
8714984953840
Applicable with transmission button
No
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. brightness controllable
Yes
Control method
DMX
Max. switching power LED
200W
Mounting method
Surface mounted
Light value memory
Yes
Material
Plastic
Halogen free
Yes
Material quality
Thermoplastic
RAL-number (similar)
9016
Applicable with presence indicator
Yes
Core cross section
0.75 - 2.5mm²
Suitable for degree of protection (IP)
IP20
Warranty
5 years
Applicable with movement sensor
Yes
This AC trailing edge DMX512 dimmer is designed for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting on mains voltage. The dimmer features 2 independent output channels and supports both leading edge and trailing edge dimming, selectable via the menu for optimal compatibility with different loads.
The unit complies with the DMX512 protocol and supports RDM communication. Addressing and configuration can be performed via the integrated digital display and control buttons, or remotely via a DMX master. The device can be set to 1- or 2-channel DMX mode; in 1-channel mode, both outputs are controlled synchronously. The minimum brightness is adjustable from 1 to 40% to prevent flicker at low dimming levels.
In the event of DMX signal loss, the dimmer operates in stand-alone dimmer or dynamic mode with internal programs, including adjustable speed and brightness. Thermal protection safeguards against overheating and enables automatic restart. The dimmer operates on 100–240 V AC and is suitable for indoor use.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-2-channels-dmx-to-trailing-edge-213-356.pdf
Characteristics sheet
213-356_manual.pdf
