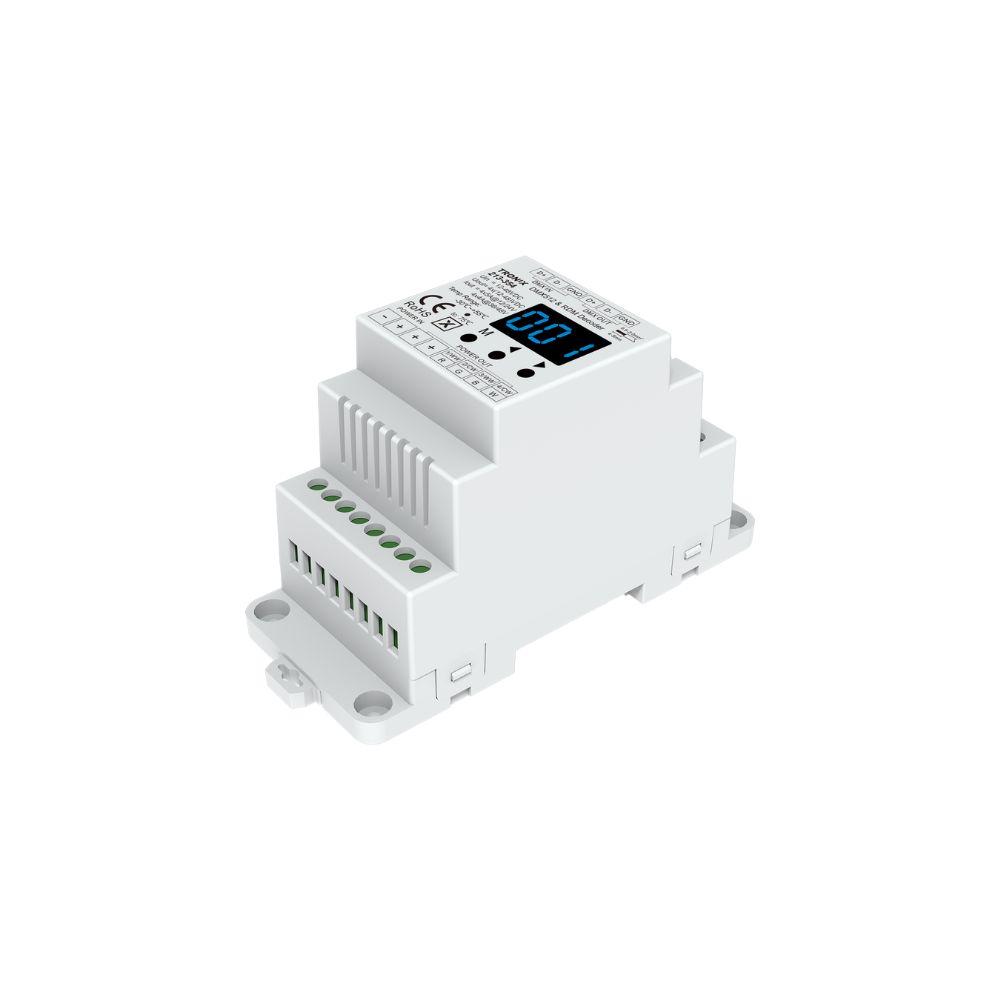

DMX | controller | 4 channels | 12~48V | DIN
213-354This 4-channel constant voltage DMX512 & RDM decoder provides precise control of single-colour, Tuneable White and RGB(W) LED strips in professional DMX installations where high load capacity and refined dimming control are required.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- DIN-rail mounting: Yes
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 20
- Control type: Constant voltage
Product Name
DMX | controller | 4 channels | 12~48V | DIN
Ean
8714984953826
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
20A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
110mm
Width
67mm
Height
48mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
Yes
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DMX | controller | 4 channels | 12~48V | DIN
Height
48mm
Ean
8714984953826
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
20A
Control method
DMX
Output voltage
12 - 48V
DIN-rail mounting
Yes
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
110mm
Control type
Constant voltage
Width
67mm
Warranty
5 years
This 4-channel constant voltage DMX512 & RDM decoder is designed for switching and dimming LED strips based on constant voltage within professional DMX lighting systems. It supports 1-, 2- or 4-channel DMX decoding and is suitable for single-colour, Tuneable White, RGB and RGBW configurations, offering broad application flexibility.
Operating on 12–48 V DC, the decoder delivers high output current per channel, making it suitable for medium to heavy LED applications. Settings such as DMX start address, channel mode, dimming resolution and PWM frequency can be configured via the integrated digital display and control buttons or remotely via RDM communication from a DMX master.
Support for 8-bit and 16-bit dimming resolution enables highly precise light control. The adjustable PWM frequency up to 32 kHz ensures flicker-free performance in camera-sensitive environments. A selectable linear or logarithmic dimming curve ensures natural light progression. In the event of DMX signal loss, the decoder operates in stand-alone dimmer or RGB/RGBW mode with internal programs.
Protection against overload, short circuit and overheating with automatic recovery ensures safe and stable operation. The DIN rail design allows easy installation in distribution cabinets.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-4-channels-1248v-din-213-354.pdf
Characteristics sheet
213-354_manual.pdf
