DMX | controller | 4 channels | 150~500mA | DIN

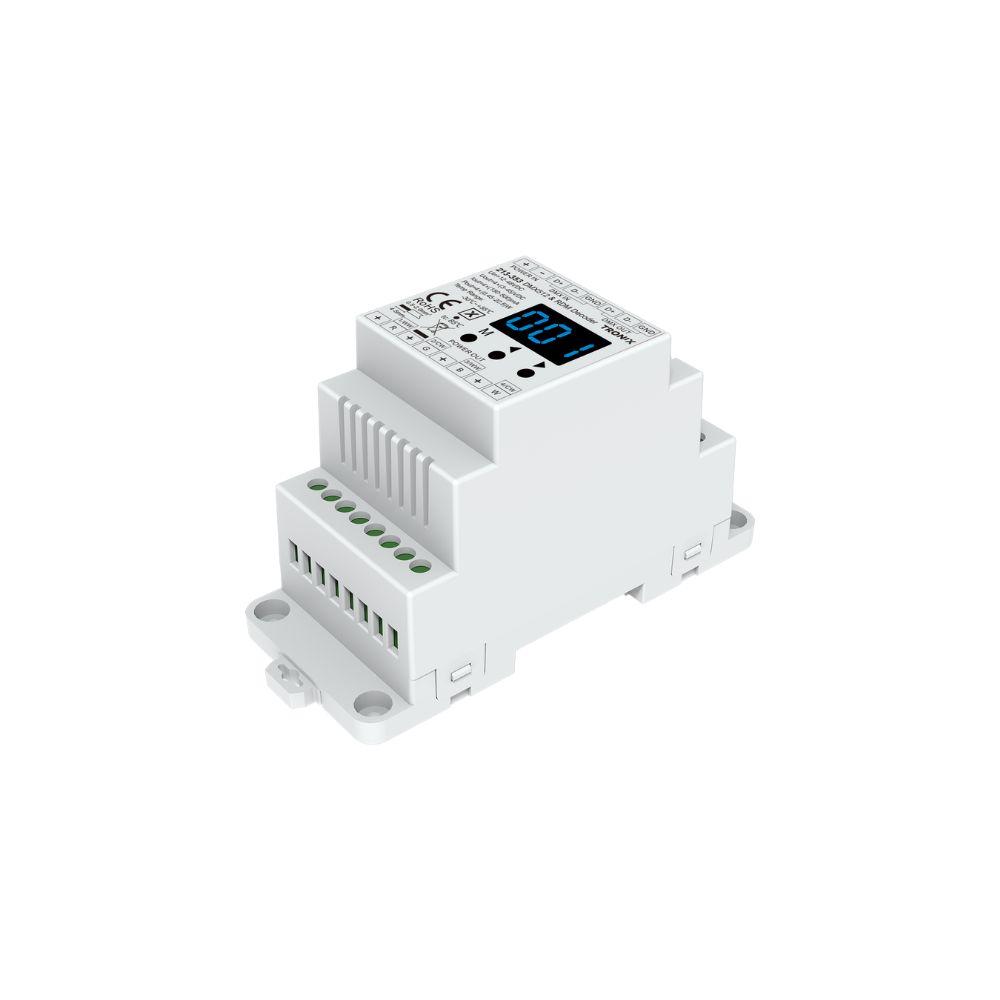

213-353This 4-channel constant current DMX512 & RDM decoder precisely controls LED modules with adjustable output current from 150–500 mA. Ideal for professional DMX installations requiring accurate current regulation and flexibility.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- DIN-rail mounting: Yes
- Output voltage (V): 3 – 45
- Input voltage (V): 12 – 48
- Max. output current (A): 0.5
- Control type: Constant current
Product Name
DMX | controller | 4 channels | 150~500mA | DIN
Ean
8714984953819
Outer box qty
1st
Model
Static
Housing
Plastic housing
Programmable
Yes
Max. output current
0.5A
Output voltage
3 - 45V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
110mm
Width
67mm
Height
48mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
Yes
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant current
Warranty
5 years
Product Name
DMX | controller | 4 channels | 150~500mA | DIN
Height
48mm
Ean
8714984953819
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Static
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
0.5A
Control method
DMX
Output voltage
3 - 45V
DIN-rail mounting
Yes
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
110mm
Control type
Constant current
Width
67mm
Warranty
5 years
This 4-channel constant current DMX512 & RDM decoder precisely controls constant current LED modules (150–500 mA per channel). As an integrated DC-DC driver, the decoder automatically adjusts the output voltage (3–45 V) per channel to the number of connected LEDs, allowing unevenly loaded channels to operate seamlessly within one installation.
It supports DMX512 and RDM communication with selectable 1-, 2- or 4-channel DMX decoding and 8-bit or 16-bit resolution for refined dimming control. The DMX start address, PWM frequency, dimming curve and channel mode can be set via the integrated digital display or remotely via RDM from a DMX master.
The PWM frequency is adjustable up to 16 kHz, making it suitable for camera-friendly applications without visible flicker. A selectable linear or logarithmic dimming curve ensures natural light progression.
In the event of DMX signal loss, the decoder automatically switches to stand-alone mode with internal programs. Protection against reverse polarity and short circuit ensures safe operation. Suitable for DIN rail mounting and operation on 12–48 V DC. The robust design complies with relevant DMX, RDM, safety and EMC standards.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-4-channels-150500ma-din-213-353.pdf
Characteristics sheet
213-353_360_manual.pdf
