DMX | controller | 4 channels | 350~1200mA | DIN

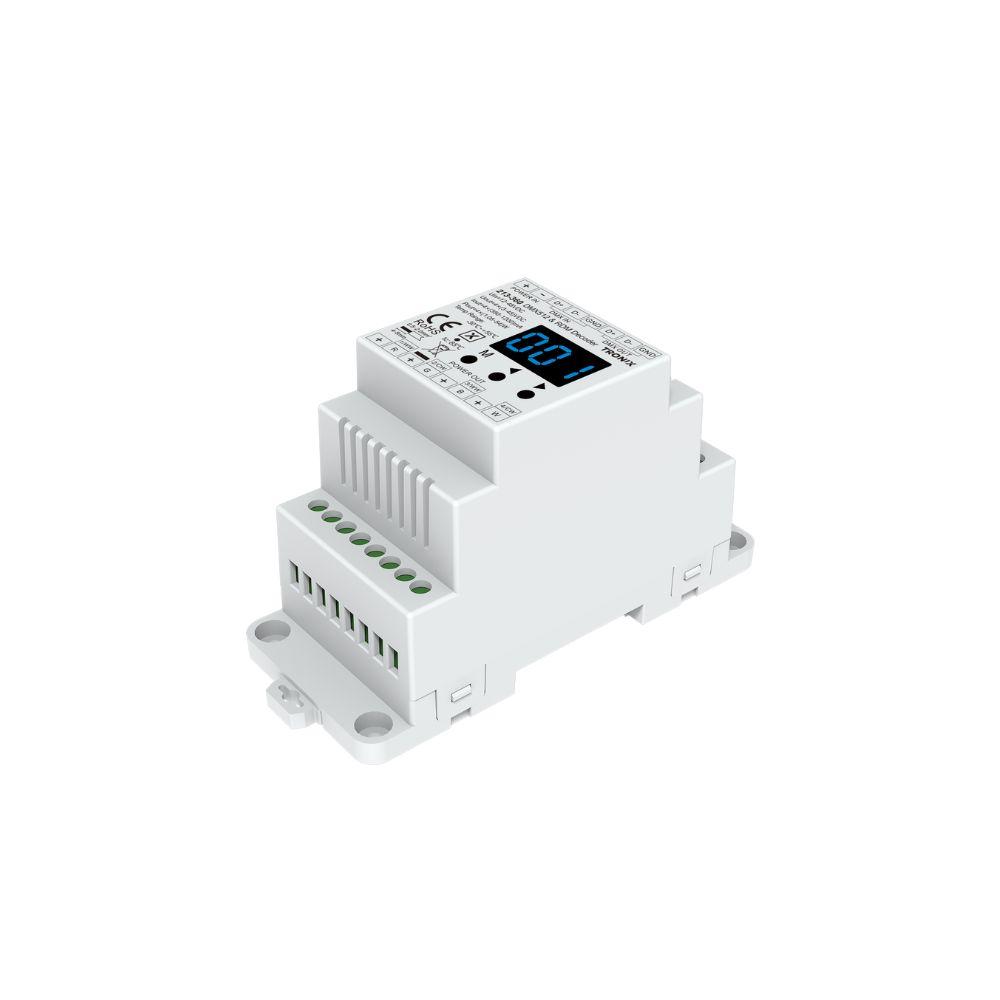

213-360This 4-channel constant current DMX512 & RDM decoder provides precise control of LED modules with current regulation from 350–1200 mA in professional DMX installations.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- DIN-rail mounting: Yes
- Output voltage (V): 3 – 45
- Input voltage (V): 12 – 48
- Max. output current (A): 1.2
- Control type: Constant current
Product Name
DMX | controller | 4 channels | 350~1200mA | DIN
Ean
8714984954250
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
1.2A
Output voltage
3 - 45V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
110mm
Width
67mm
Height
48mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
Yes
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant current
Warranty
5 years
Product Name
DMX | controller | 4 channels | 350~1200mA | DIN
Height
48mm
Ean
8714984954250
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
1.2A
Control method
DMX
Output voltage
3 - 45V
DIN-rail mounting
Yes
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
110mm
Control type
Constant current
Width
67mm
Warranty
5 years
This 4-channel constant current DMX512 & RDM decoder is designed for direct control of constant current LED modules within the higher range of 350–1200 mA. Multiple output current settings are configurable per channel. As an integrated DC-DC driver, the decoder automatically adjusts the output voltage per channel based on the number of connected LEDs, allowing unevenly loaded channels to operate seamlessly within a single installation.
The decoder supports DMX512 and RDM communication and can be configured for 1-, 2- or 4-channel DMX decoding, with selectable 8-bit or 16-bit resolution for highly accurate dimming control. The DMX start address and parameters such as PWM frequency, dimming curve and channel mode are configurable via the integrated digital display and control buttons, or remotely via RDM from a DMX master.
The PWM frequency is adjustable up to 16 kHz, making the decoder suitable for camera-friendly applications without visible flicker. A linear or logarithmic dimming curve is selectable. In the event of DMX signal loss, the decoder operates in stand-alone dimmer or RGB/RGBW mode with internal programs.
The unit is designed for DIN rail mounting and operates on 12–48 V DC. Protection against reverse polarity and short circuit ensures safe and reliable operation. The product complies with relevant DMX, RDM, safety and EMC standards and is suitable for professional residential, commercial and architectural lighting installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-4-channels-3501200ma-din-213-360.pdf
Characteristics sheet
213-353_360_manual.pdf
