DMX | controller | 4 channels | 4x8A | 12~48V

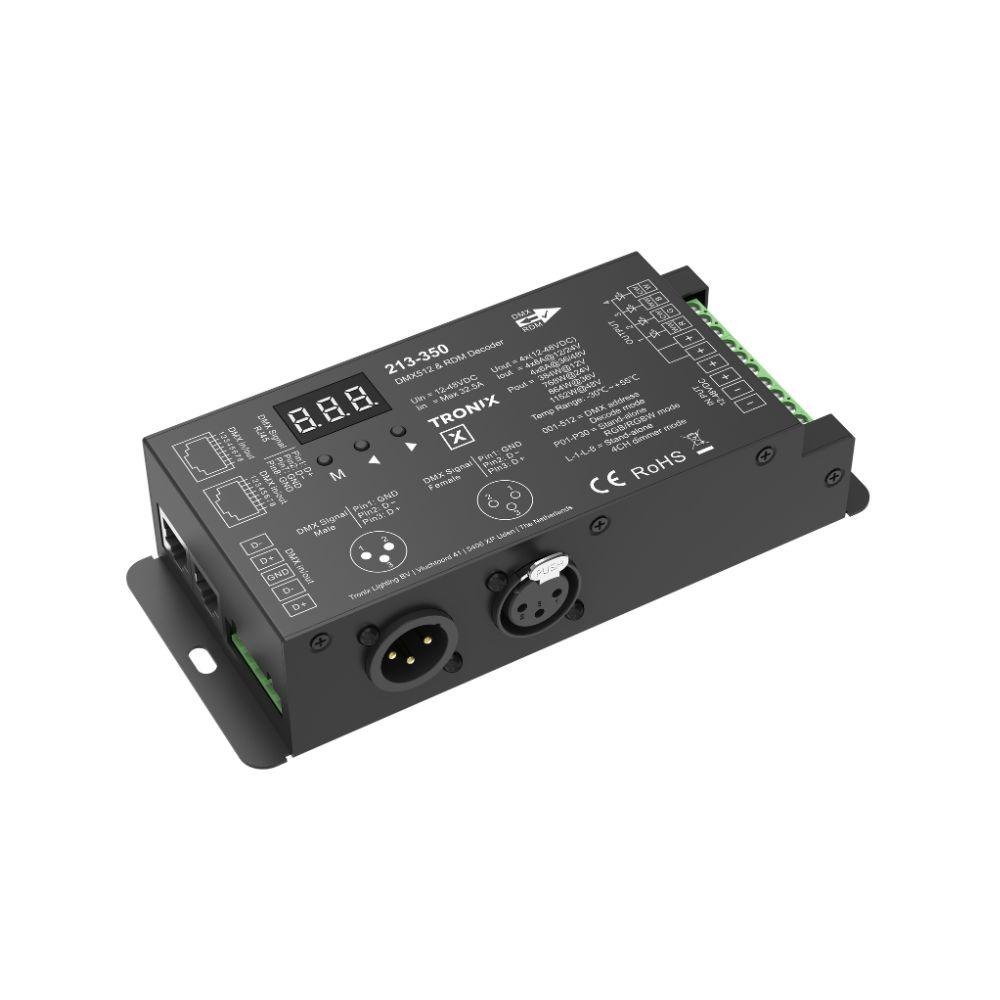

213-350This 4-channel constant voltage DMX512 & RDM decoder provides precise and flexible control of LED strips in professional DMX installations. Suitable for single-colour, Tuneable White and RGB(W) applications.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 32
- Control type: Constant voltage
Product Name
DMX | controller | 4 channels | 4x8A | 12~48V
Ean
8714984953789
Outer box qty
1st
Model
Dynamic
Housing
Metal housing
Programmable
Yes
Max. output current
32A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

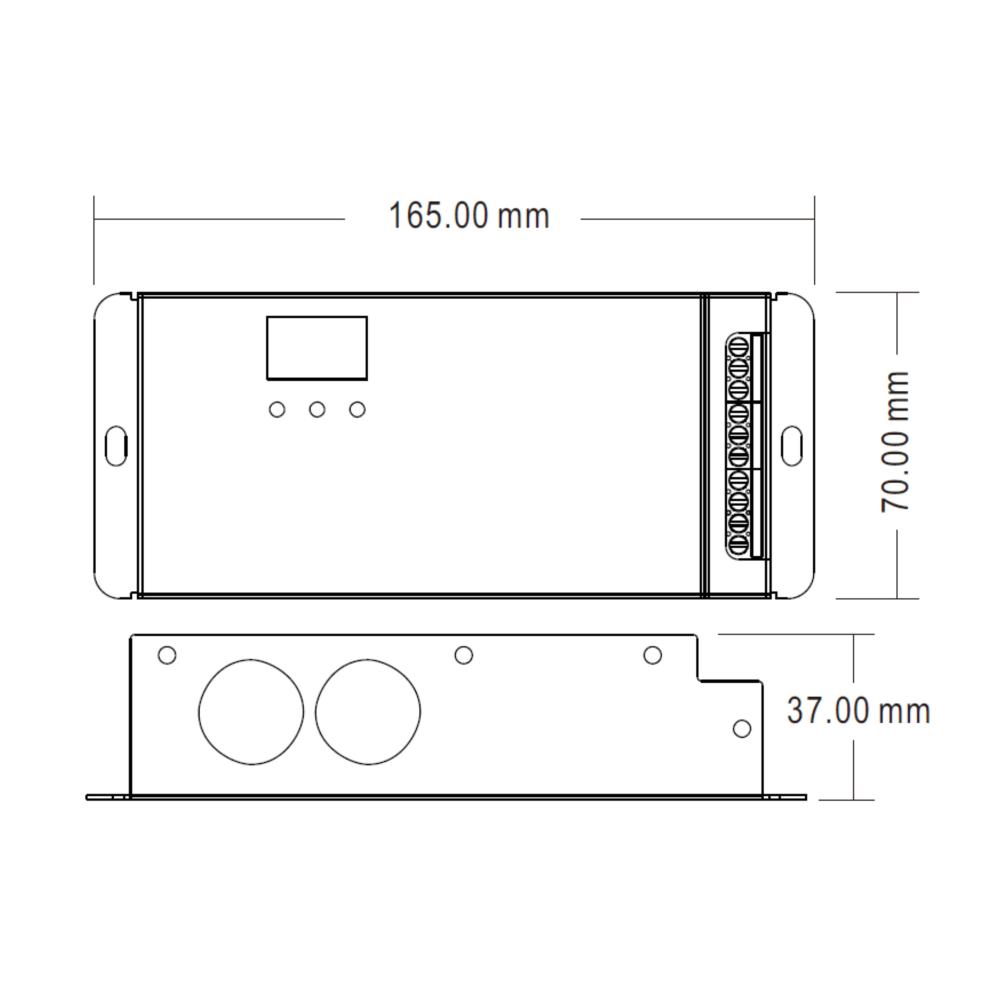

Length
165mm
Width
70mm
Height
35mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DMX | controller | 4 channels | 4x8A | 12~48V
Height
35mm
Ean
8714984953789
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Metal housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
32A
Control method
DMX
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
165mm
Control type
Constant voltage
Width
70mm
Warranty
5 years
This 4-channel DMX512 & RDM decoder precisely controls single-colour, Tuneable White, RGB and RGBW LED strips within DMX lighting systems. It supports 1-, 2- or 4-channel DMX decoding and can be set to 8-bit or 16-bit resolution for refined dimming control.
Operating on 12–48 V DC, the decoder delivers high output current per channel, making it suitable for professional applications in retail, hospitality, commercial and architectural projects. The DMX start address can be set via the integrated digital display or remotely via RDM communication from a DMX master, simplifying installation and maintenance in larger DMX networks.
The PWM frequency is adjustable from 250 Hz up to 32 kHz, suitable for both standard lighting and camera-friendly applications. Selectable linear or logarithmic dimming curves ensure natural light progression.
In case of DMX signal loss, the decoder operates in stand-alone mode with internal programs for dimmer, Tuneable White, RGB or RGBW configurations. Thermal and short-circuit protection with automatic recovery ensure safe and stable operation.
DMX input via XLR3, RJ45 or screw terminals provides installation flexibility. The robust design and compliance with relevant safety and EMC standards make this decoder suitable for professional DMX lighting installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-controller-4-channels-4x8a-1248v-213-350.pdf
Characteristics sheet
213-350_manual.pdf
