DMX decoder | 3 channel x 6 ampère | constant voltage

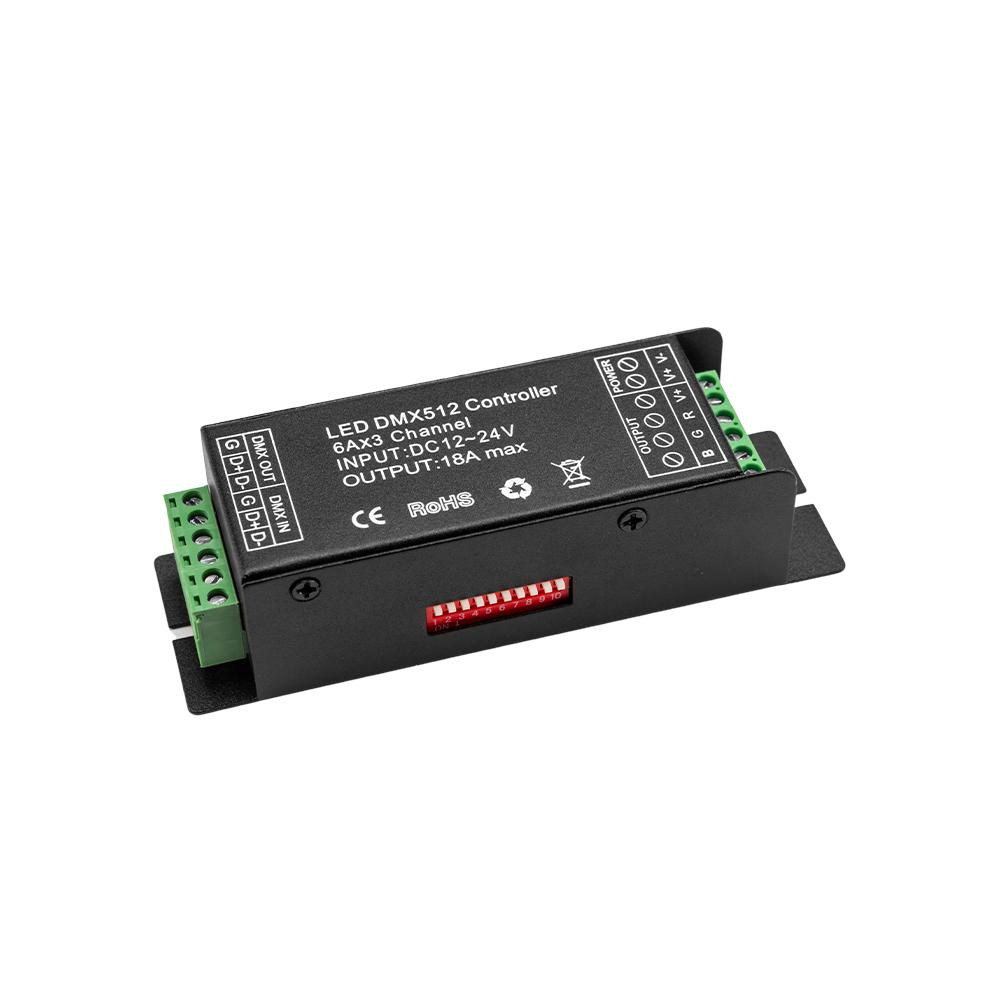

214-113DMX512 controller for RGB LED lighting with manual address setting via DIP switch. Operates on 12–24V DC and delivers up to 6 A per channel.
Key product features
- Type of control: DMX512
- Number of colour channels: 3
- Output voltage: 12 – 24 V
- Input voltage: 12 – 24 V
- Max. output current: 6 A
- Control type: Voltage-controlled
Product Name
DMX decoder | 3 channel x 6 ampère | constant voltage
Ean
8714984904088
Outer box qty
50st
Model
Dynamic
Housing
Metal housing
Programmable
Yes
Max. output current
6A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
127mm
Width
42mm
Height
33mm
Number of zones
1
Number of colour channels
3, RGB
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 24V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DMX decoder | 3 channel x 6 ampère | constant voltage
Height
33mm
Ean
8714984904088
Number of zones
1
Outer box qty
50st
Number of colour channels
3, RGB
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Metal housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
12 - 24V
Max. output current
6A
Control method
DMX
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
127mm
Control type
Constant voltage
Width
42mm
Warranty
5 years
This compact DMX-controller is suitable for RGB LED lighting with constant voltage (12–24V DC) and complies with the DMX512 protocol. It supports up to 6 amps per channel.
The DMX start address is manually set using a 10-position DIP switch. Switches 1–9 define the binary address (1–511); switch 10 activates test mode. In test mode, fixed colours or dynamic programs can be displayed, with adjustable speed via DIP settings.
A green status LED indicates the operating mode: fast flashing shows DMX512 signal reception; slow flashing indicates test mode. This controller is ideal for small to medium-sized installations, such as decorative lighting or project setups.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
