DMX | signal amplifier | 2 channels
213-359This DMX512 & RDM signal amplifier for surface mounting extends and distributes DMX signals within professional lighting installations and prevents signal loss in larger networks.
Key product features
- Type of control: DMX
- Input voltage (V): 12 – 48
- Suitable for surface mounting: Yes
- Number of zones: 2
Product Name
DMX | signal amplifier | 2 channels
Ean
8714984953871
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Suitable for outdoor use
No
Degree of protection (IP)
IP20

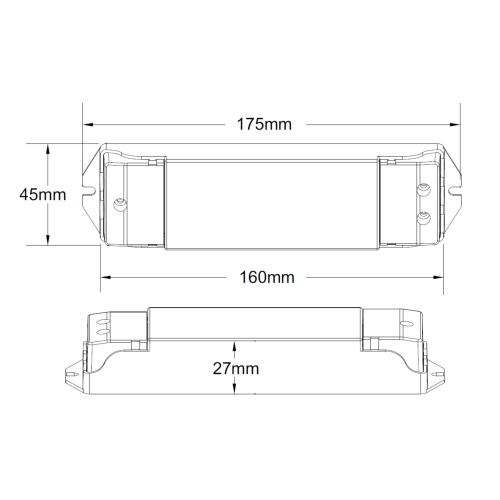

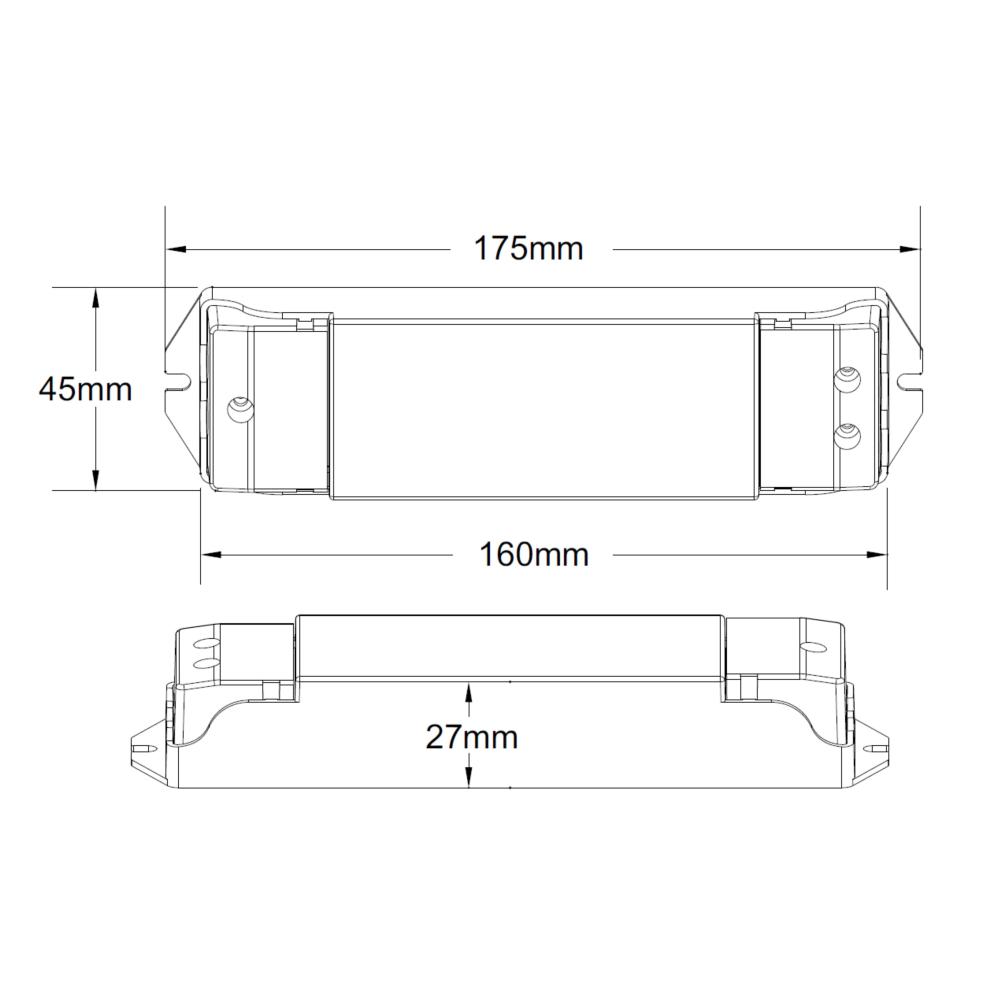

Length
175mm
Width
45mm
Height
27mm
Number of zones
2
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DMX | signal amplifier | 2 channels
Height
27mm
Ean
8714984953871
Number of zones
2
Outer box qty
1st
Suitable for surface mounting
Yes
Model
Dynamic
Suitable for built-in mounting
Yes
Housing
Plastic housing
Input voltage
12 - 48V
Programmable
No
Control method
DMX
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
175mm
Compatible with Casambi
No
Width
45mm
Warranty
5 years

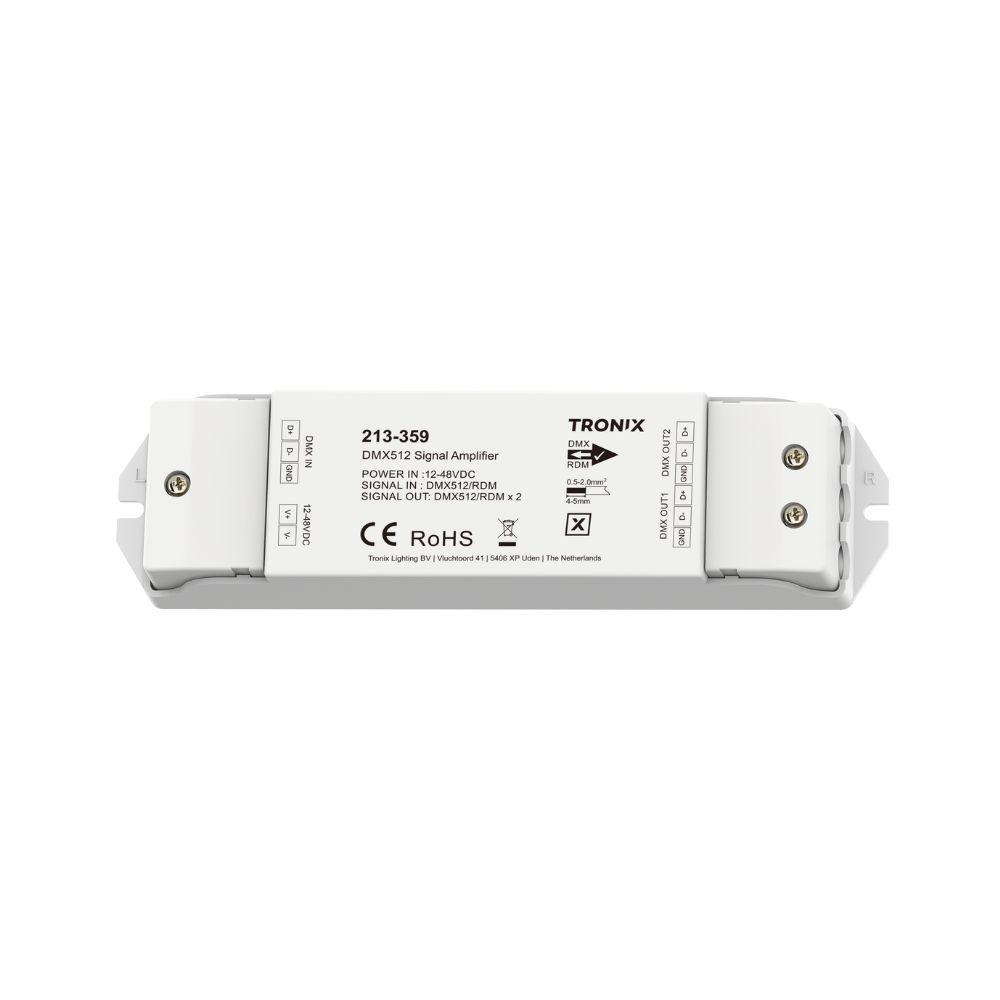

This DMX512 & RDM signal amplifier amplifies, distributes and electrically isolates DMX and RDM signals within professional DMX installations. The unit features one DMX512 & RDM input and 2 independent DMX512 & RDM outputs, enabling DMX lines to be extended, split or operated in parallel without signal degradation.
Support for bidirectional RDM communication preserves addressing and monitoring via a DMX master. Optical isolation between the input and outputs, and between the outputs themselves, prevents damage caused by incorrect wiring and minimises signal interference between connected DMX segments.
The amplifier operates on 12–48 V DC. Active signal amplification increases the maximum DMX512 transmission distance and supports reliable connection of more than 32 DMX devices per line, with a recommended maximum of 5 amplifiers in series. The surface-mount design allows direct installation on walls or panels.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-signal-amplifier-2-channels-213-359.pdf
Characteristics sheet
213-359_manual.pdf
