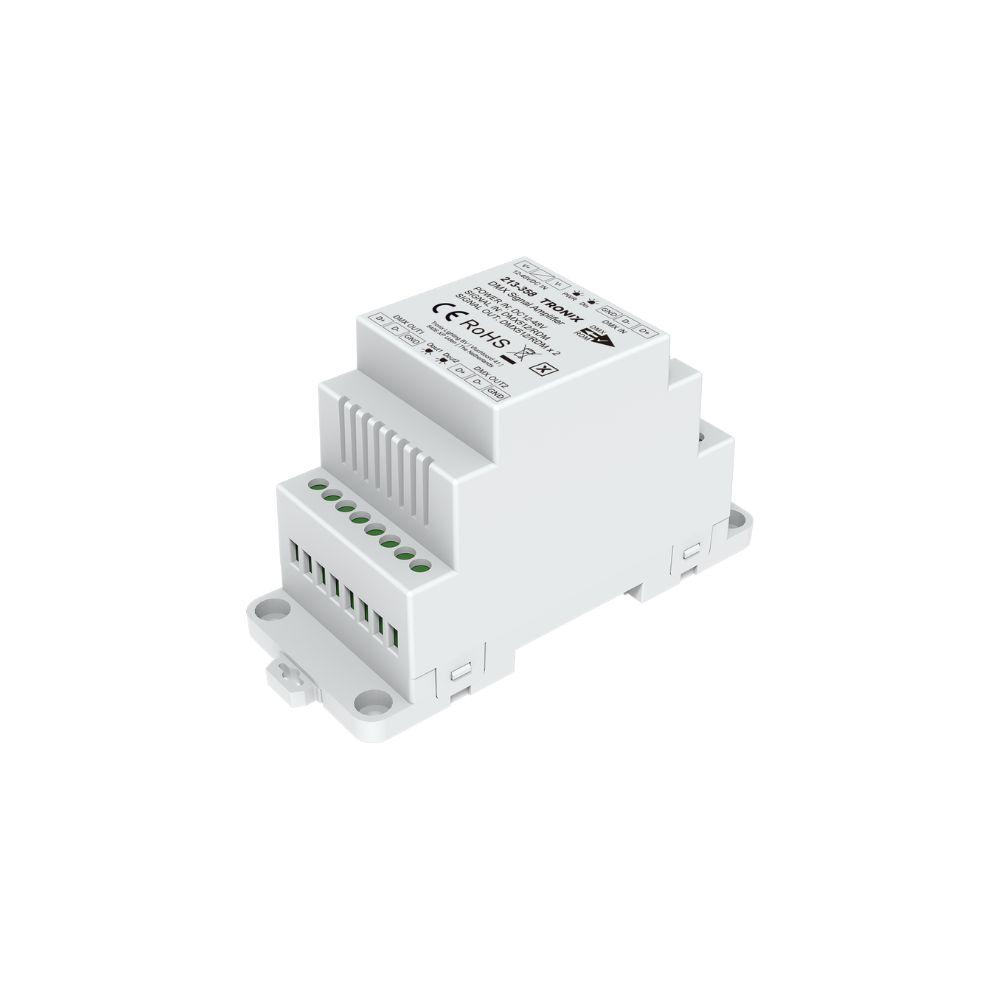

DMX | signal amplifier | 2 channels | DIN
213-358This DMX512 & RDM signal amplifier extends and distributes DMX signals within professional lighting installations and prevents signal loss in larger networks.
Key product features
- Type of control: DMX
- DIN-rail mounting: Yes
- Input voltage (V): 12 – 48
- Number of zones: 2
Product Name
DMX | signal amplifier | 2 channels | DIN
Ean
8714984953864
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
110mm
Width
67mm
Height
48mm
Number of zones
2
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
DMX
DIN-rail mounting
Yes
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DMX | signal amplifier | 2 channels | DIN
Height
48mm
Ean
8714984953864
Number of zones
2
Outer box qty
1st
Suitable for surface mounting
No
Model
Dynamic
Suitable for built-in mounting
Yes
Housing
Plastic housing
Input voltage
12 - 48V
Programmable
No
Control method
DMX
Suitable for outdoor use
No
DIN-rail mounting
Yes
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
110mm
Compatible with Casambi
No
Width
67mm
Warranty
5 years
This DMX512 & RDM signal amplifier is designed to amplify, distribute and electrically isolate DMX and RDM signals in professional DMX installations. The unit features one DMX512 & RDM input and 2 independent DMX512 & RDM outputs, enabling DMX lines to be extended, split or operated in parallel without signal degradation.
Support for bidirectional RDM communication preserves addressing and monitoring via a DMX master. Optical isolation between the input and outputs, and between the outputs themselves, prevents damage caused by incorrect wiring and minimises signal interference.
The amplifier operates on 12–48 V DC and is suitable for DIN rail mounting. Active signal amplification increases the maximum DMX512 transmission distance and supports reliable connection of more than 32 DMX devices per line, with a recommended maximum of 5 amplifiers in series.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-signal-amplifier-2-channels-din-213-358.pdf
Characteristics sheet
213-358_manual.pdf
