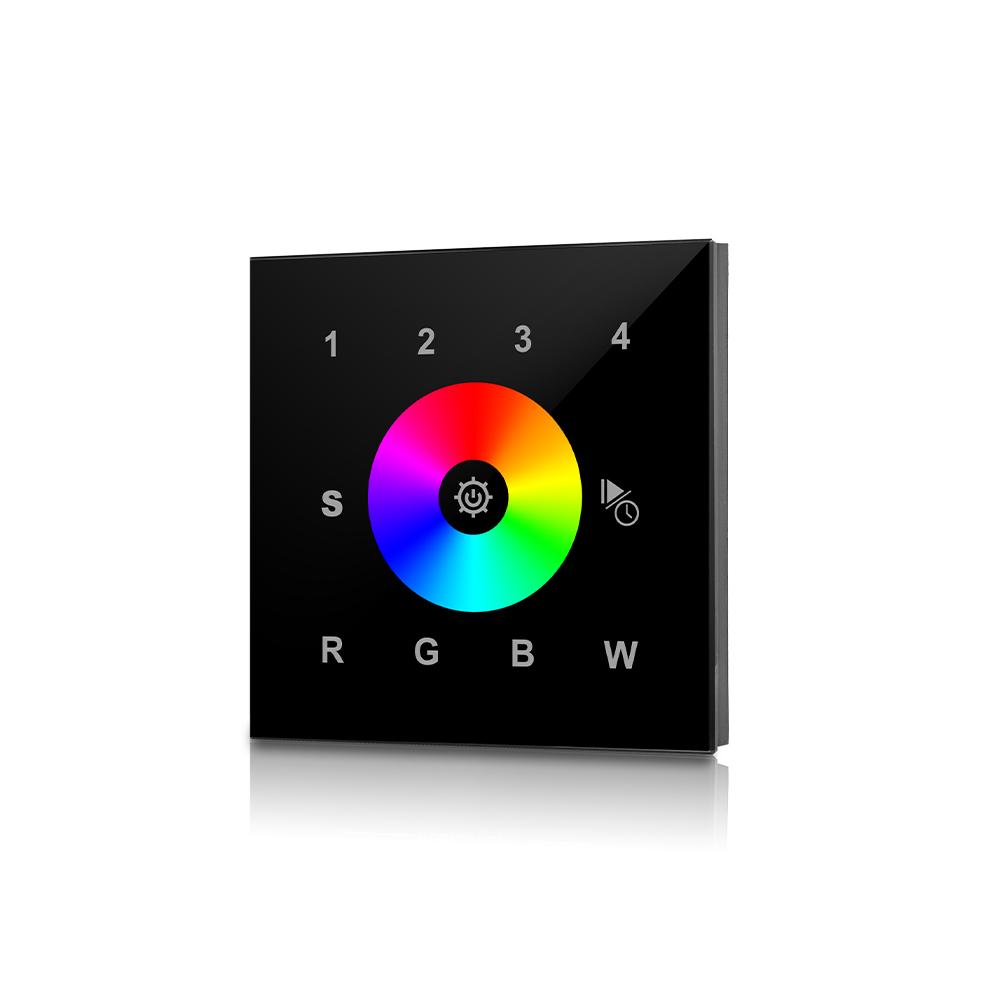

DMX wall controller || 4 zones | black
214-182DMX512 wall controller with glass touch panel for RGBW LED lighting. Supports 4 zones, 10 built-in light effects and scene memory. Available in black or white.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- Input voltage (V): 12 – 24
- Number of zones: 4
Product Name
DMX wall controller || 4 zones | black
Ean
8714984941618
Outer box qty
64st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
29.1mm
Number of zones
4
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DMX wall controller || 4 zones | black
Height
29.1mm
Ean
8714984941618
Number of zones
4
Outer box qty
64st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 24V
Output voltage
0 - 0V
Control method
DMX
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
86mm
Compatible with Casambi
No
Width
86mm
Warranty
5 years
This DMX512 wall controller is designed for intuitive control of RGBW LED lighting across four zones. Featuring a capacitive glass touch panel and sleek design, it allows for precise colour selection via the colour wheel, with separate control over each channel (R, G, B, W) for dimming or switching.
Users can turn zones on/off, adjust brightness and speed, or start and pause any of the 10 built-in light effects. Additionally, up to four scenes or colours can be saved per zone and recalled with ease.
The controller operates on 12–24V DC and transmits a standard DMX512 signal with four channels per zone. Each zone must be assigned the correct DMX address (zone 1: 001, zone 2: 005, etc.). With its compact size (86 × 86 × 29.1 mm) and IP20 rating, this controller is ideal for dry indoor environments such as residential spaces, retail, offices or hospitality.
More information
Further details about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
