DMX wall controller | black
214-135DMX512 wall controller with glass touch panel for RGB, RGBW or single-colour LED lighting. Supports 1 zone, with memory function and dynamic modes. Available in black or white.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- Input voltage (V): 12–24
Product Name
DMX wall controller | black
Ean
8714984910393
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
29.1mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DMX wall controller | black
Height
29.1mm
Ean
8714984910393
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
No
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 24V
Output voltage
0 - 0V
Control method
DMX
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
86mm
Compatible with Casambi
No
Width
86mm
Warranty
5 years

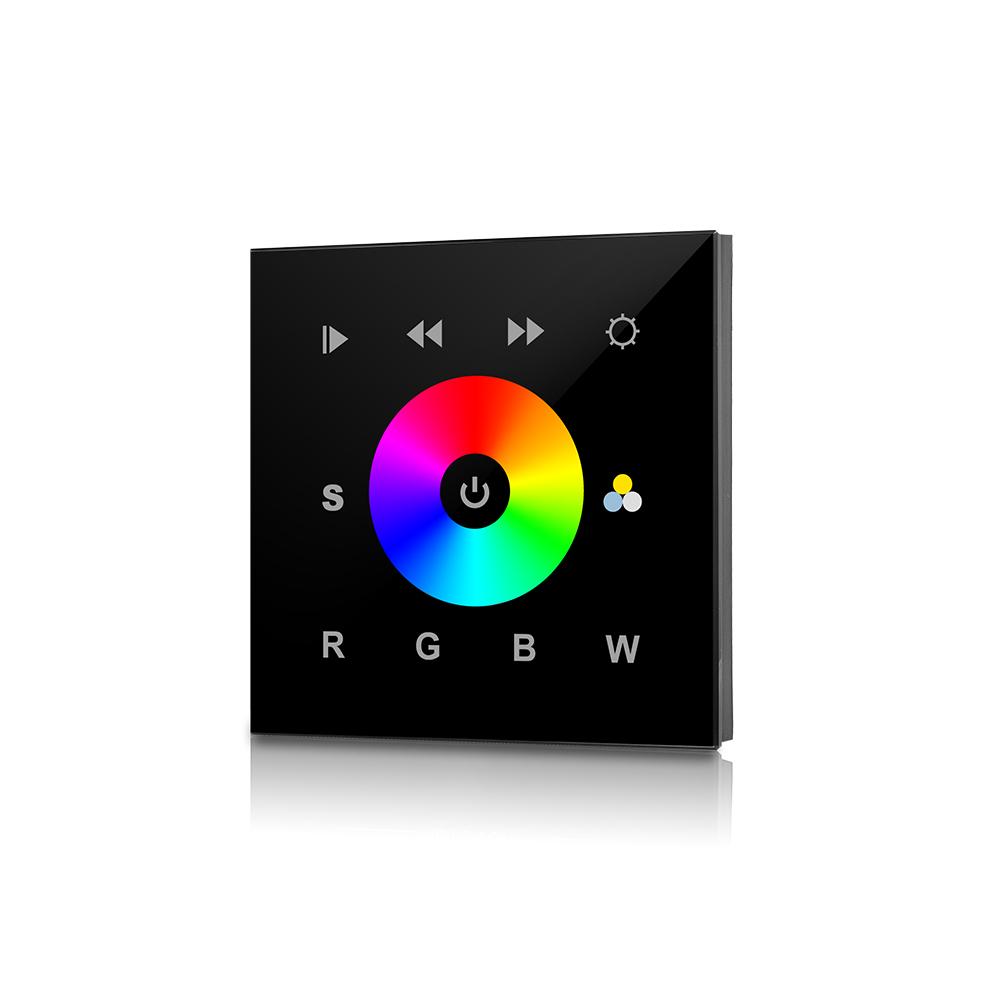

Compact wall controller for local control of RGB, RGBW or single-colour lighting via DMX512. Operation is via a sleek glass front with capacitive touch buttons, including a colour wheel, dimming function, speed control and play/pause button for dynamic effects.
The colour wheel enables precise selection. Each channel (R, G, B, W) can be switched or dimmed individually. The memory function allows colours or modes to be saved by holding the 'S' button.
The controller outputs a standard DMX512 signal. All connected DMX decoders must be set to address 001. Operates on 12–24V DC. IP20 rated for indoor use.
Thanks to its compact design (86 × 86 × 29.1 mm) and the choice of black or white finish, this controller fits a wide range of interior styles – from residential to professional environments such as hospitality, retail and offices.
Further information
More details about this product can be found in the technical specifications. For accessories, available options and related products, see the related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380
