DMX | wireless | transmitter
213-351Wireless DMX512 transmitter and receiver for real-time DMX communication without cabling. Designed for flexible and interference-free control of professional lighting installations.
Key product features
- Type of control: DMX
- Input voltage (V): 5 – 5
- Degree of protection (IP): IP20
Product Name
DMX | wireless | transmitter
Ean
8714984953796
Outer box qty
1st
Model
Static
Housing
Metal housing
Programmable
No
Max. output current
0.5A
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Number of zones
1
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
5 - 5V
Control method
DMX
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
DMX | wireless | transmitter
Number of zones
1
Ean
8714984953796
Suitable for surface mounting
Yes
Outer box qty
1st
Suitable for built-in mounting
No
Model
Static
Input voltage
5 - 5V
Housing
Metal housing
Control method
DMX
Programmable
No
DIN-rail mounting
No
Max. output current
0.5A
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Warranty
5 years

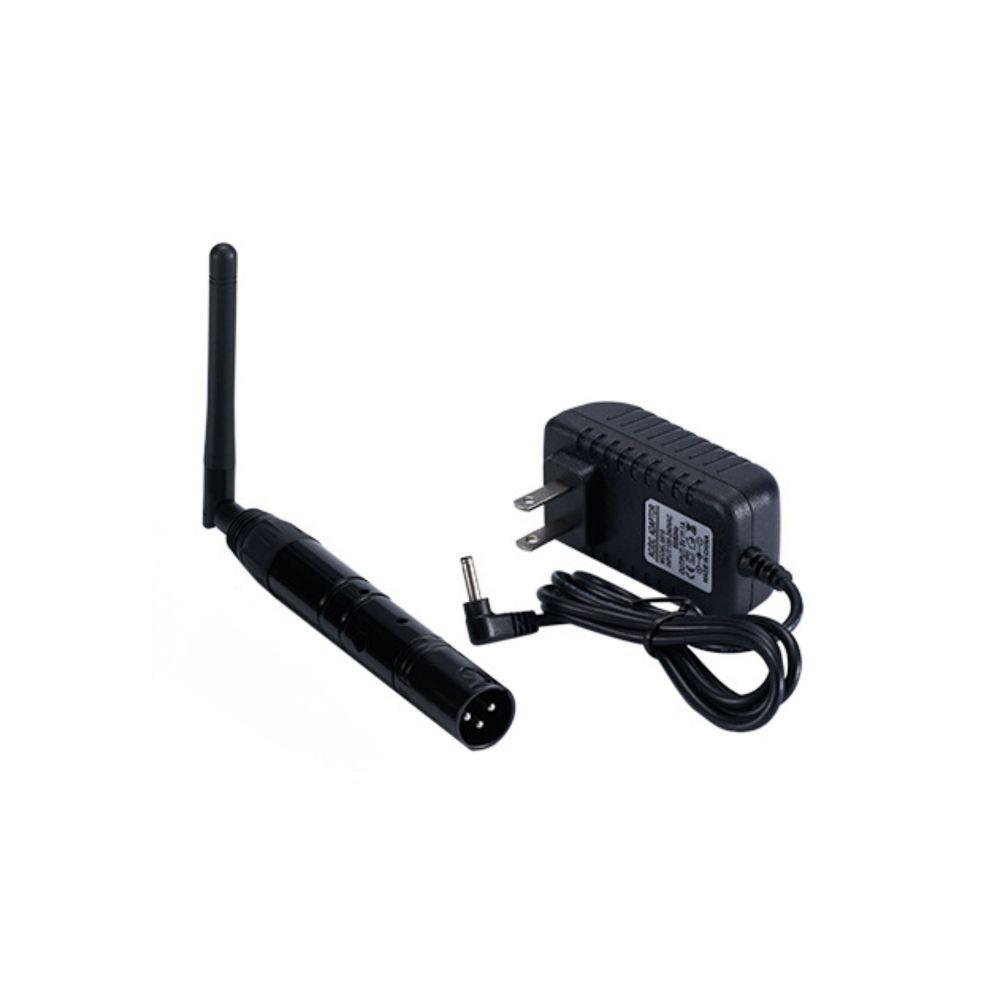

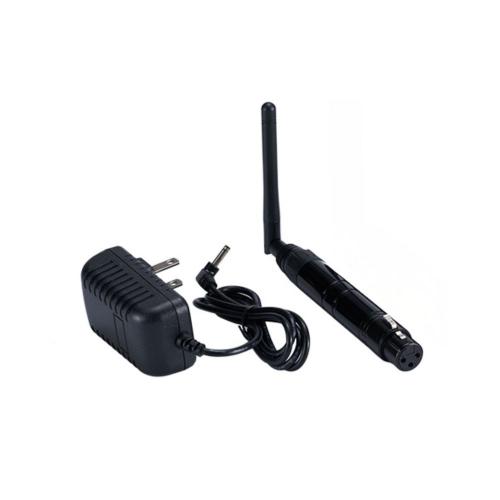

These 2.4 GHz wireless DMX512 transmitter and receiver units enable the wireless transmission and reception of standard DMX512 signals. Communication takes place without noticeable delay, ensuring real-time control of DMX luminaires.
Up to 7 separate ID groups can be configured within one installation. This allows multiple wireless DMX networks to operate simultaneously without interference. Transmitter and receiver are paired by selecting the same ID code, supported by colour-coded LED indicators.
One transmitter can control multiple receivers simultaneously. The wireless range can also be extended using relay configuration. The maximum communication range is approximately 400 m in open space.
The units feature an XLR-3 connection and operate on a 5 V DC supply voltage. Automatic role detection allows the device to switch between transmit and receive mode depending on the incoming DMX signal.
Thanks to the compact design and simple configuration, these units are suitable for professional DMX applications in architectural, commercial and entertainment lighting. For indoor use only.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-dmx-wireless-transmitter-213-351.pdf
Characteristics sheet
213-351_352_manual.pdf
