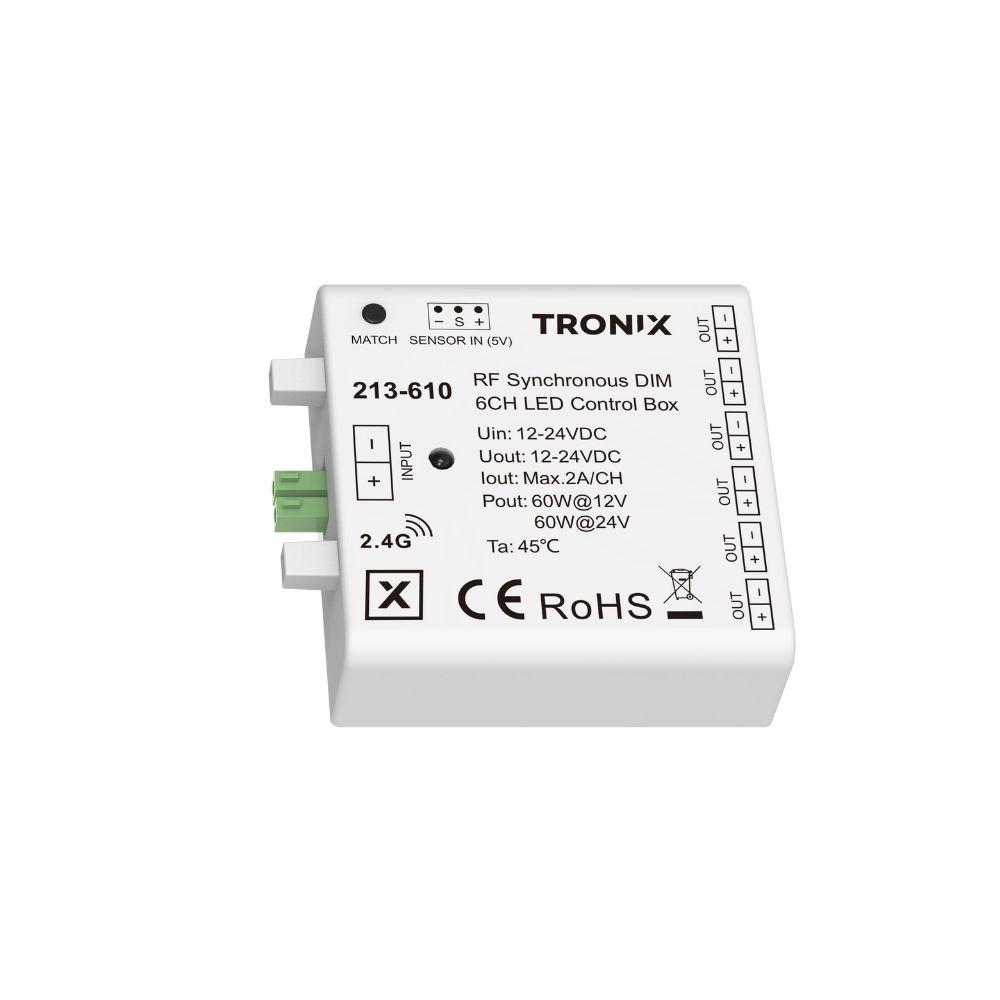

Controller for the Tronix Easy Connect system with RF control and sensor switching. Designed for automatic or manual dimming of LED lighting via remote control or connected sensor.

Key product features

Type of control: RF
Number of colour channels: 1
Output voltage (V): 0 – 24
Input voltage (V): 12 – 24
Max. output current (A): 6.25
Type of control: Voltage controlled

Sensor connect | sensor | door | white | recessed 213-532

Sensor connect | sensor | motion | white | surface mounted 213-540

Easy connect | extension cable | 2 meter 213-620

Product Name

Easy/sensor connect | controller | RF/Sensor | 6 outlets

Ean

8714984954182

Outer box qty

1st

Model

Dynamic

Housing

Plastic housing

Programmable

Max. output current

24A

Output voltage

12 - 24V

Suitable for outdoor use

Degree of protection (IP)

IP20

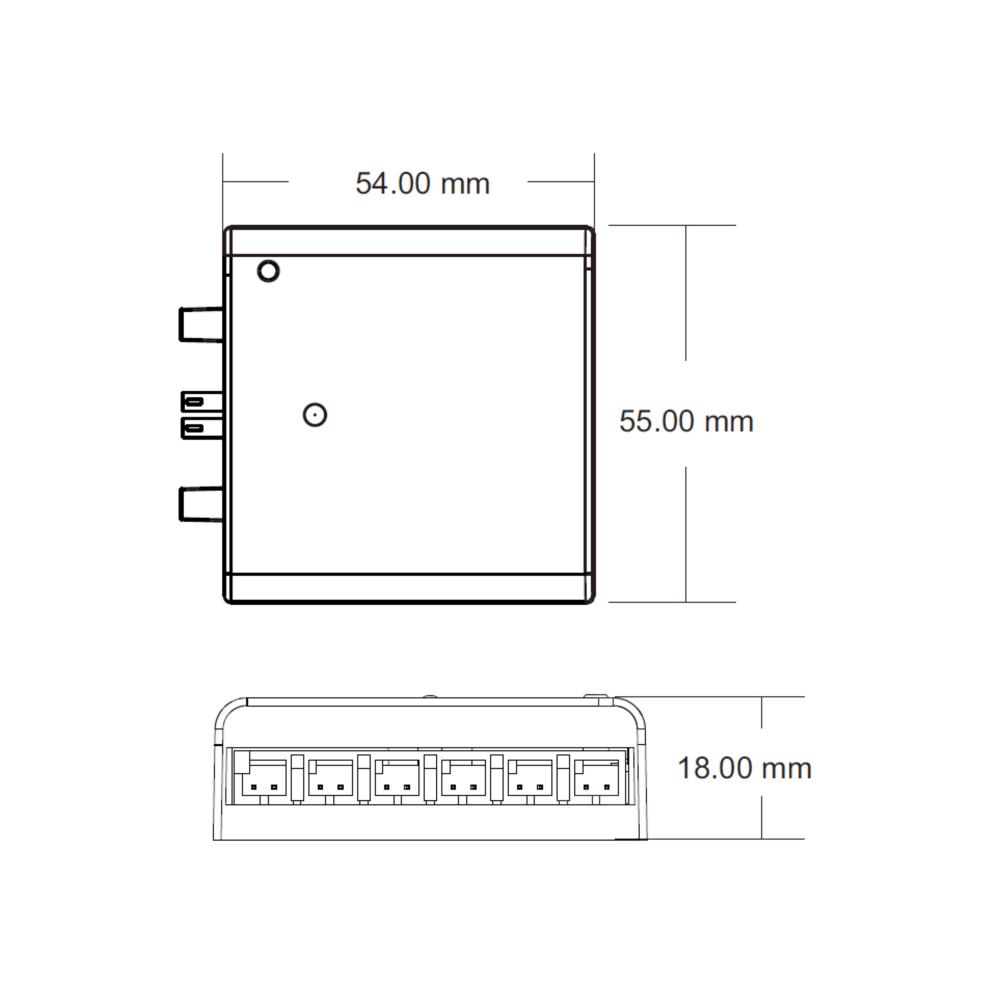

Length

55mm

Width

54mm

Height

18mm

Number of zones

Number of colour channels

1, Single Colour

Suitable for surface mounting

Yes

Suitable for built-in mounting

Yes

Input voltage

12 - 24V

Control method

DIN-rail mounting

Brand

Tronix Lighting

Compatible with Casambi

Control type

Constant voltage

Warranty

5 years

Product Name

Easy/sensor connect | controller | RF/Sensor | 6 outlets

Height

18mm

Ean

8714984954182

Number of zones

Outer box qty

1st

Number of colour channels

1, Single Colour

Model

Dynamic

Suitable for surface mounting

Yes

Housing

Plastic housing

Suitable for built-in mounting

Yes

Programmable

Input voltage

12 - 24V

Max. output current

24A

Control method

Output voltage

12 - 24V

DIN-rail mounting

Suitable for outdoor use

Brand

Tronix Lighting

Degree of protection (IP)

IP20

Compatible with Casambi

Length

55mm

Control type

Constant voltage

Width

54mm

Warranty

5 years

The Easy Connect controller enables dimming via a wireless RF remote control or via a connected sensor, such as a wave, touch or door sensor. Lighting can therefore switch automatically based on motion or touch, or be operated manually.

The controller features six synchronised outputs and operates on 12–24 V DC. The total connected load is up to 75 W at 12 V or 150 W at 24 V.

With a PWM frequency of 8 kHz, the controller provides smooth and flicker-free dimming. An optional fade time of 3 s can be set for soft light transitions.

Pairing with a remote control or sensor is done easily via the Match button. Multiple controllers can operate synchronously within the same system.

Thanks to the compact design and standardised Easy Connect connectors, installation is quick and reliable without tools or loose wiring. Ideal for applications where installation speed, clean integration and functional lighting control are important.
