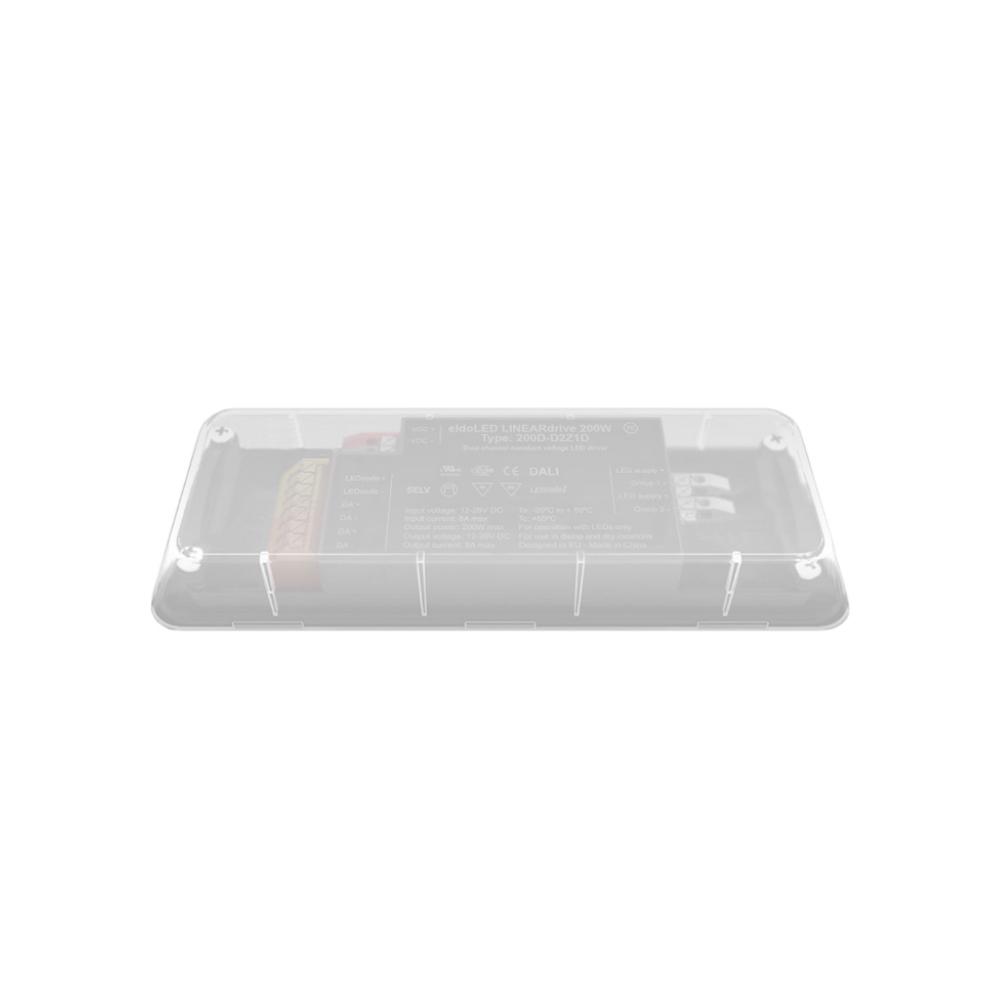

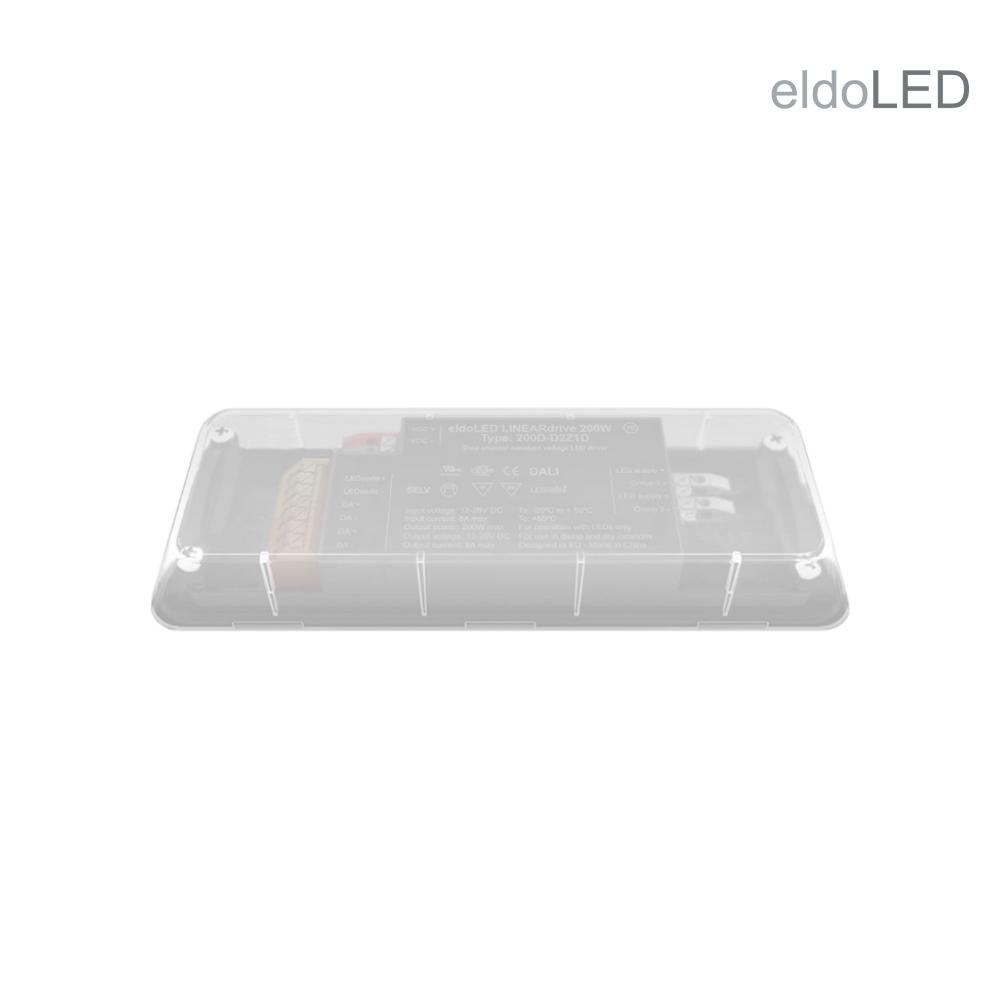

eldoLED | LINEARdrive 200D-D2Z2C | 2CH | 2 out | DALI DT8
214-356Professional 2-channel DALI DT8 LED controller (12–28V DC) for Tuneable White and dual-channel applications up to 224 W. Flicker-free dimming down to 0.1% with HydraDrive.
Key product features
- Type of control: DALI
- Number of colour channels: 2
- Output voltage (V): 12 – 28
- Input voltage (V): 12 – 28
- Max. output current (A): 8
- Control type: Constant voltage
- Number of zones: 2
Product Name
eldoLED | LINEARdrive 200D-D2Z2C | 2CH | 2 out | DALI DT8
Ean
8714984944534
Outer box qty
12st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
8A
Output voltage
12 - 28V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
50mm
Height
23mm
Number of zones
2
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 28V
Control method
DALI
DIN-rail mounting
No
Brand
eldoLED
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 200D-D2Z2C | 2CH | 2 out | DALI DT8
Height
23mm
Ean
8714984944534
Number of zones
2
Outer box qty
12st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 28V
Max. output current
8A
Control method
DALI
Output voltage
12 - 28V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
eldoLED
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
153mm
Control type
Constant voltage
Width
50mm
Warranty
5 years
The eldoLED LINEARdrive 200D is a powerful, programmable LED controller for 12–28V constant voltage systems. With DALI DT8 support, it is ideal for Tuneable White applications requiring independent control of colour temperature and brightness. The dual output provides a total current capacity of 8 A, enabling lighting setups up to 224 W.
Integrated HydraDrive technology ensures precise, flicker-free dimming down to 0.1%, with selectable linear or logarithmic dimming curves. Local control is possible via a 0–10V input or a 47 k? potentiometer on the EXT IN terminal.
Compatible with common DALI systems such as Lunatone DALI 4Net and Helvar 910/920. Thanks to LightShape technology, intensity and colour temperature can be precisely programmed and maintained across the full dimming range.
The controller features protection against overcurrent, voltage drop and reverse polarity. In the event of a power failure, the last setting is automatically stored. Requires an external short-circuit-proof power supply.
Compact and lightweight (153 × 50 × 23 mm), easy to install and configurable via TOOLbox Pro and FluxTool.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-200d-d2z2c-2ch-2-out-dali-dt8-214-356.pdf
Characteristics sheet
214-356_technical_datasheet_extended.pdf
