Emergency bulk head | 3W | auto test | incl. pictograms

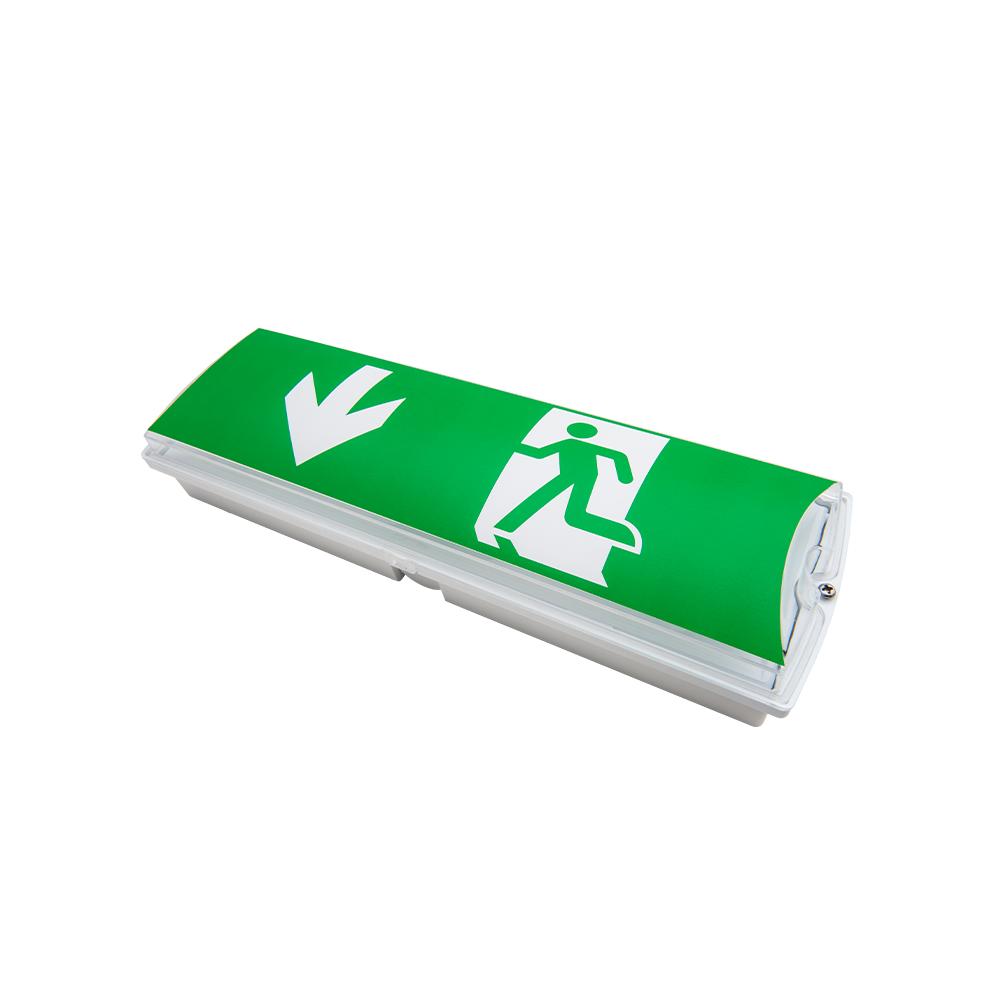

600-021Impact-resistant and splashproof LED emergency luminaire with automatic self-test and 8 interchangeable pictograms. Suitable for wall and ceiling installation in indoor and outdoor environments. Delivers 200 lumens and 3 hours of emergency operation.
Key product features
- Mounting method: Wall surface/ceiling surface
- Max. system power (W): 3
- Protection class (IP): IP65
- Recognition distance (m): 20
- Function: Escape route lighting/signage
- Impact resistance: IK10
- Emergency function monitoring system: Automatic self-test
Product Name
Emergency bulk head | 3W | auto test | incl. pictograms
Ean
8714984935303
Outer box qty
10st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
80 - 80mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Wall surface mounting/ceiling surface mounting
Degree of protection (IP)
IP65
Nominal voltage
220 - 240V
Length
340mm
Width
62mm
Height
105mm
Height/depth
105mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting/signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK10
RAL-number housing
9016
Connection type
Plug-in connection
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
200lm
Nominal operation time
3 - 3h
Max. system power
3W
Power factor
0.5
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
200 - 200lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
20m
Luminous flux in emergency mode
200lm
Type of indicator
Single-sided
Power consumption in emergency mode
2W
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Sticker
Warranty
5 years (battery 2 years)
Product Name
Emergency bulk head | 3W | auto test | incl. pictograms
Impact strength
IK10
Ean
8714984935303
RAL-number housing
9016
Outer box qty
10st
Connection type
Plug-in connection
Housing material
Plastic
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Rated lifetime L70/B50 at 25 °C
50000h
Housing colour
White
Luminous flux in standby mode
200lm
Material cover
Plastic, transparent
Nominal operation time
3 - 3h
Voltage type
AC
Max. system power
3W
Nominal current
80 - 80mA
Power factor
0.5
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Wall surface mounting/ceiling surface mounting
With heating element for battery
No
Degree of protection (IP)
IP65
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
200 - 200lm
Length
340mm
Emergency power supply system
Peripheral (individual battery)
Width
62mm
Emergency function monitoring system
Automatic self test
Height
105mm
Recognition distance
20m
Height/depth
105mm
Luminous flux in emergency mode
200lm
Colour temperature
5000 - 5000K
Type of indicator
Single-sided
Exchangeable control gear
No
Power consumption in emergency mode
2W
Function
Escape route lighting/signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Sticker
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)
Suitable for continuous circuit
Yes

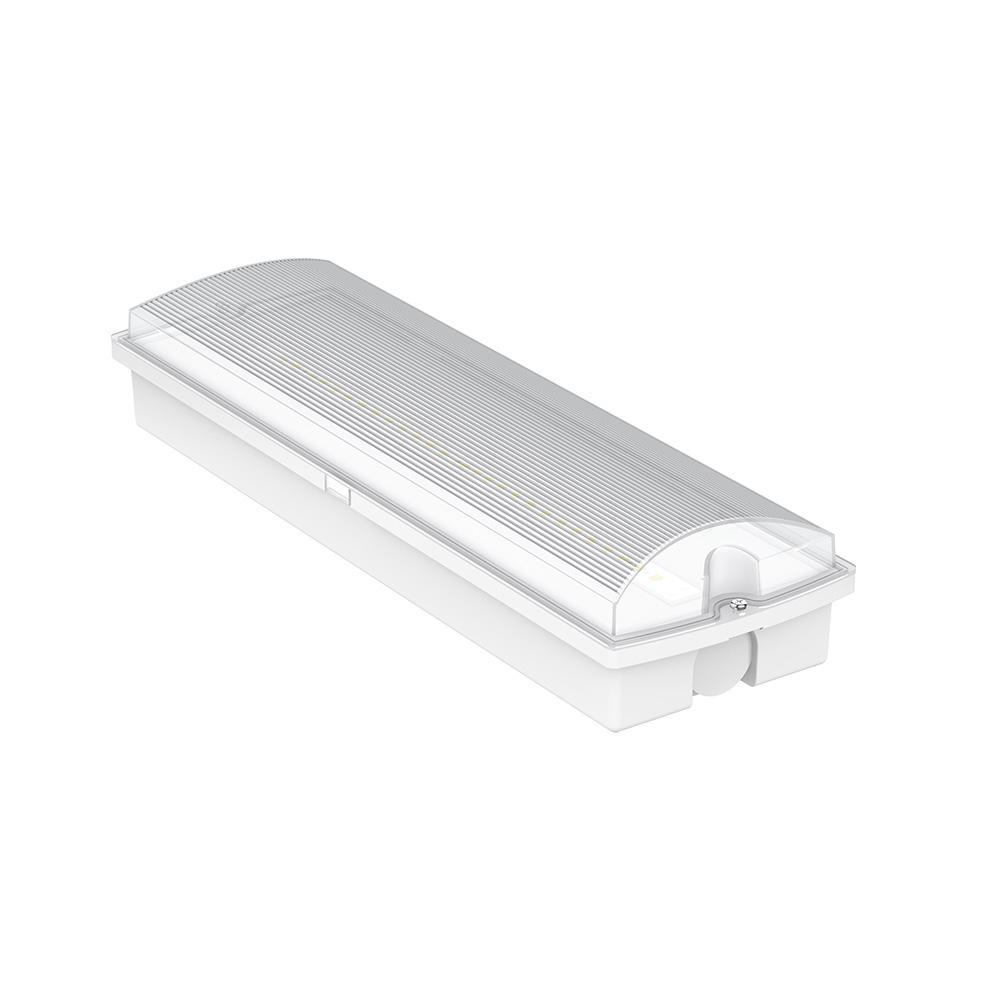

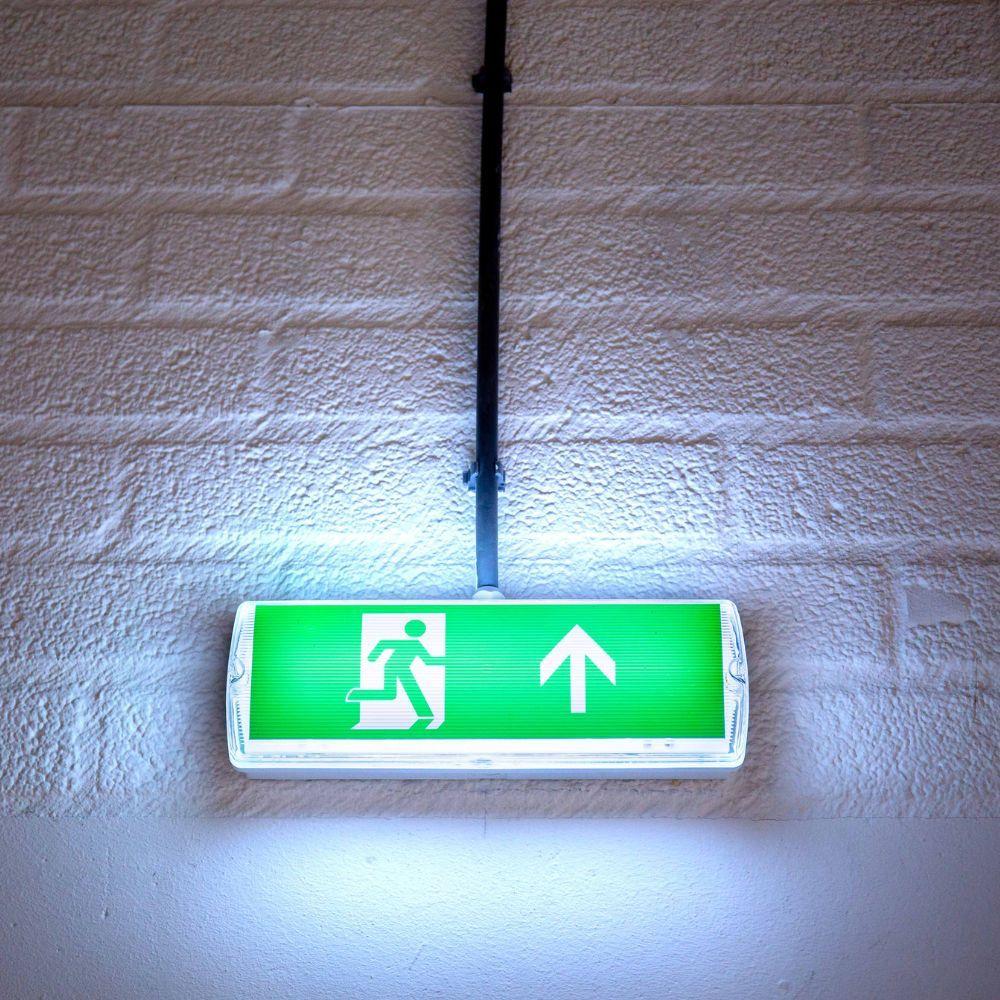

Robust LED emergency luminaire with IP65 protection and IK10 impact resistance. Designed for wall and ceiling mounting in demanding environments such as stairwells, corridors, entrances and technical areas.
Equipped with a built-in LiFePO4 battery (6.4 V – 1500 mAh) providing 3 hours of emergency operation during power failure. The light output reaches approximately 200 lumens at a power consumption of 3 W.
The automatic self-test system continuously monitors the battery, LED module, charging circuit and mains/emergency switchover. It performs a 3-minute function test every month and a 3-hour duration test annually. Errors are indicated via a two-colour LED status light with blink codes. Manual test cycles (30 seconds to 3 hours) can be initiated via the integrated test button.

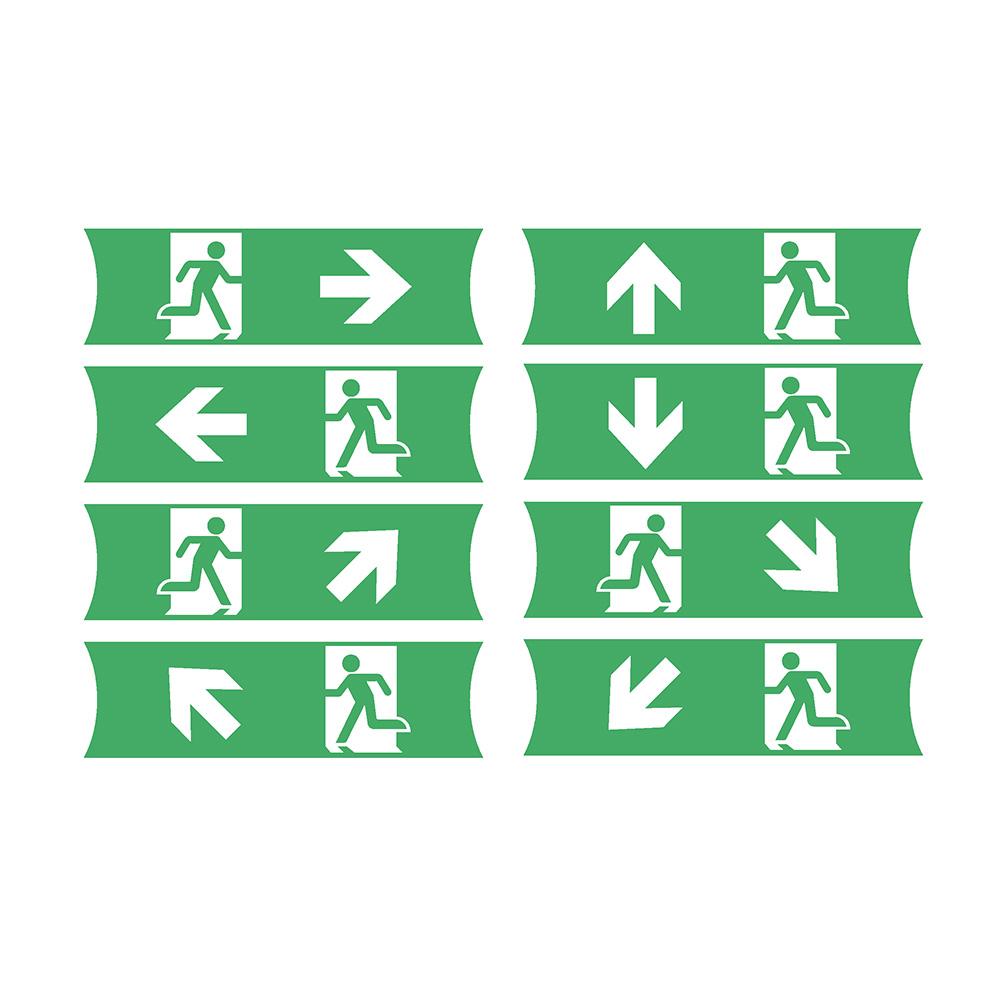

The luminaire comes standard with 8 interchangeable pictogram inserts, including all common directional options (also diagonal). This ensures easy deployment for a wide range of escape route signage requirements.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-emergency-bulk-head-3w-auto-test-incl-pictograms-600-021.pdf
Energy labels
Other attachment
600-021_Luminaire_photometric_test_report.pdf
600-021_IES.IES
Characteristics sheet
600-021_technical_datasheet_extended.pdf
Manual
600-021_Manual_NL.pdf
600-021_Manual_EN.pdf
