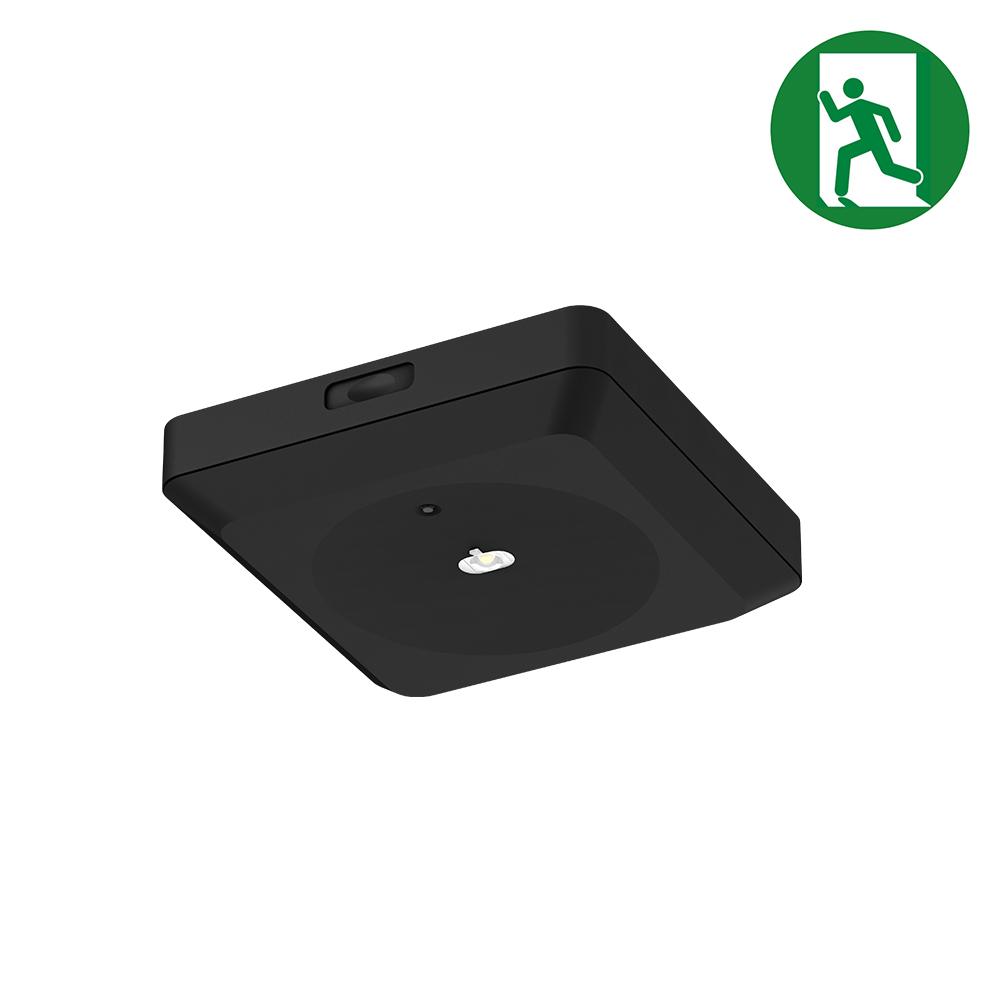

Square surface-mounted LED emergency luminaire with automatic self-test, interchangeable optics, and 220 lumen output. Suitable for escape routes and open areas. 3-hour autonomy.

Key product features

Mounting method: Surface-mounted
Max. system power (W): 3.5
Housing colour: Black
Luminous flux in emergency mode (lm): 220
Function: Escape route lighting
Emergency function monitoring system: Automatic self-test

Replacement battery for 600-018 & 600-022 600-100

Product Name

Emergency downlight | 3W | 148*148mm | black | auto test

Ean

8714984942325

Outer box qty

20st

Housing material

Plastic

Lamp type

LED not exchangeable

Housing colour

Black

Material cover

Plastic, transparent

Voltage type

Nominal current

30 - 30mA

Type of control gear

LED operating device current-controlled

Battery technology

Lithium-ion

Mounting method

Ceiling surface mounting

Degree of protection (IP)

IP20

Nominal voltage

200 - 240V

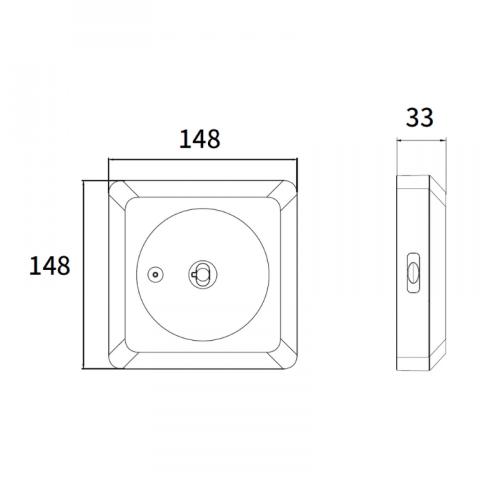

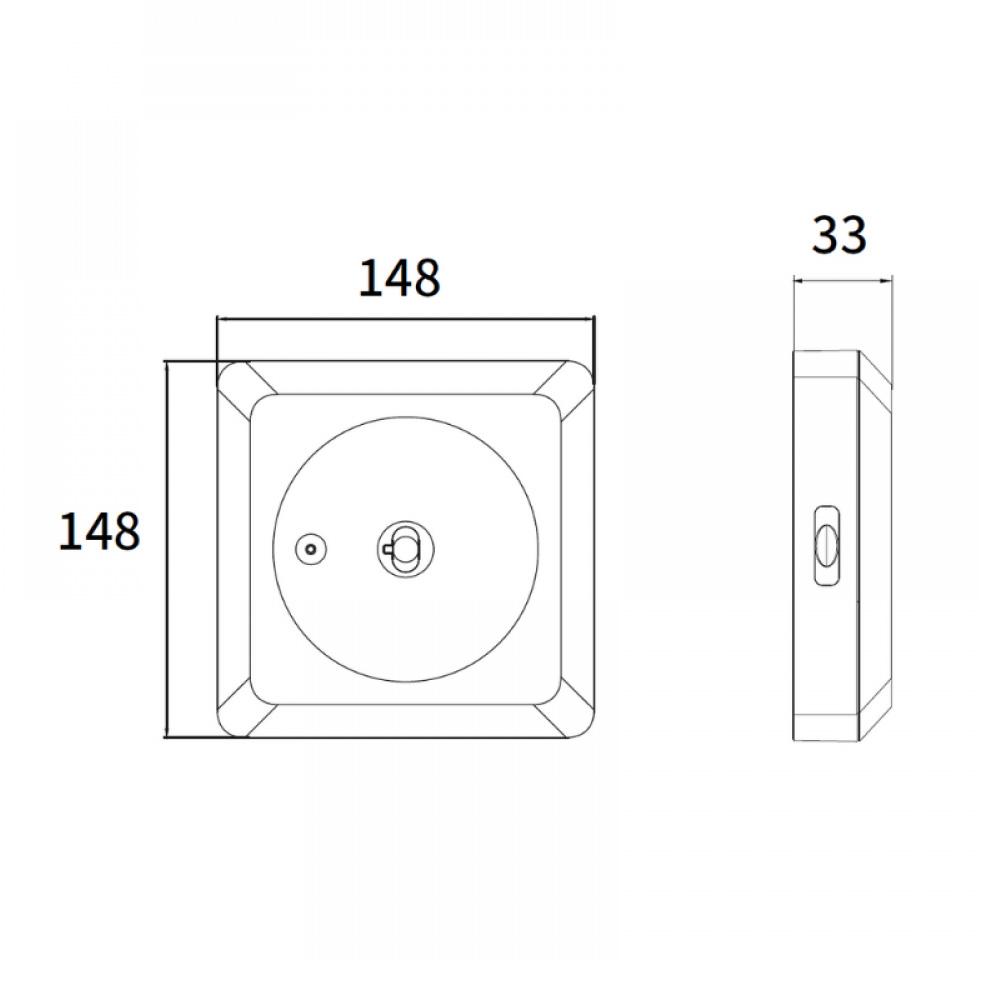

Length

148mm

Width

148mm

Height

33mm

Height/depth

33mm

Colour temperature

5000 - 5000K

Exchangeable control gear

Function

Escape route lighting

With pictogram

Suitable for standby switching

Yes

Suitable for continuous circuit

Impact strength

IK00

RAL-number housing

9005

Connection type

Plug-in connection

Light distributor

Focal lens

Luminous flux in standby mode

220lm

Nominal operation time

3 - 3h

Max. system power

Power factor

0.3

Type of wiring

Ending

Number of poles

With heating element for battery

Type of lithium-ion battery

Lithium iron phosphate (LiFePO4)

Rated luminous flux according to IEC 62722-2- 1

220 - 220lm

Emergency power supply system

Peripheral (individual battery)

Emergency function monitoring system

Automatic self test

Luminous flux in emergency mode

220lm

Power consumption in emergency mode

1.8W

Connectable conductor cross section

0.75 - 2.5mm²

Warranty

5 years (battery 2 years)

Product Name

Emergency downlight | 3W | 148*148mm | black | auto test

Suitable for standby switching

Yes

Ean

8714984942325

Suitable for continuous circuit

Outer box qty

20st

Impact strength

IK00

Housing material

Plastic

RAL-number housing

9005

Lamp type

LED not exchangeable

Connection type

Plug-in connection

Housing colour

Black

Light distributor

Focal lens

Material cover

Plastic, transparent

Luminous flux in standby mode

220lm

Voltage type

Nominal operation time

3 - 3h

Nominal current

30 - 30mA

Max. system power

Type of control gear

LED operating device current-controlled

Power factor

0.3

Battery technology

Lithium-ion

Type of wiring

Ending

Mounting method

Ceiling surface mounting

Number of poles

Degree of protection (IP)

IP20

With heating element for battery

Nominal voltage

200 - 240V

Type of lithium-ion battery

Lithium iron phosphate (LiFePO4)

Length

148mm

Rated luminous flux according to IEC 62722-2- 1

220 - 220lm

Width

148mm

Emergency power supply system

Peripheral (individual battery)

Height

33mm

Emergency function monitoring system

Automatic self test

Height/depth

33mm

Luminous flux in emergency mode

220lm

Colour temperature

5000 - 5000K

Power consumption in emergency mode

1.8W

Exchangeable control gear

Connectable conductor cross section

0.75 - 2.5mm²

Function

Escape route lighting

Warranty

5 years (battery 2 years)

With pictogram

Square LED emergency lighting fixture for surface mounting, available in white or black. Equipped with an automatic self-test function and interchangeable optics. Suitable for use in escape routes and open areas such as corridors, stairwells, entrances, and public indoor environments.

The luminaire features an efficient 5000K SMD3535 LED module and delivers 220 lumens at 3.5 W power consumption. Depending on the application, users can choose between an oval lens (asymmetrical beam, ideal for corridors and escape routes) or a round lens (symmetrical, suited for open areas).

The integrated LiFePO4 battery provides 3 hours of emergency operation in case of power failure. The intelligent IC driver performs automatic function tests (3 minutes monthly) and a duration test (3 hours annually). Battery, charge status, LED module, and mains/emergency switching are continuously monitored during operation. Errors are displayed via a two-tone LED indicator with blink codes. Manual test cycles (30 seconds to 3 hours) can be activated using the built-in test button.

More information
More details about this product can be found in the product specifications. For accessories, available options, and related products, please refer to the related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380

Datasheet

Datasheet-emergency-downlight-3w-148148mm-black-auto-test-600-029.pdf
