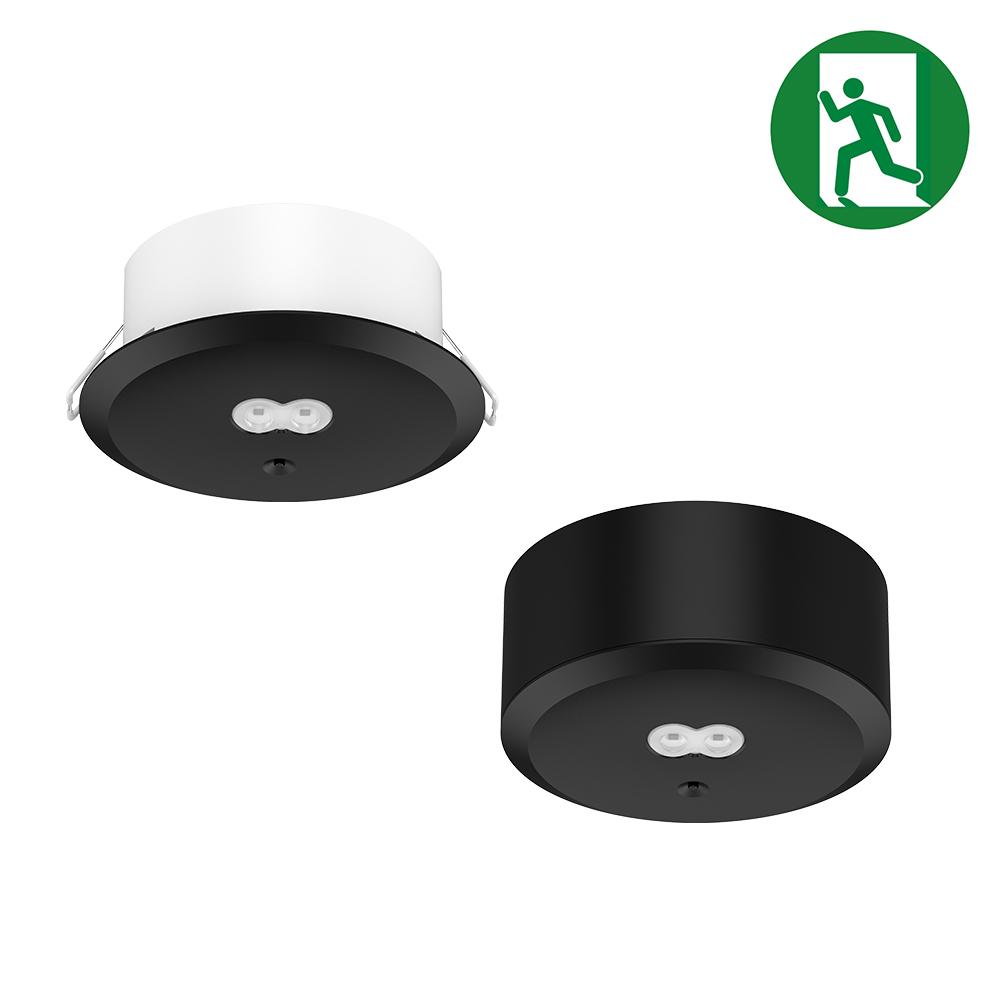

Emergency downlight | 3W | Ø140mm | black | auto test
600-026
Versatile recessed or surface-mounted emergency lighting fixture with automatic self-test and interchangeable lens (oval/round). Suitable for escape routes and open areas. Includes integrated driver and battery.
Key product features
Mounting method: Surface-mounted/recessed
Max. system power (W): 3
Housing colour: White
Luminous flux in emergency mode (lm): 240
Function: Escape route lighting
Emergency function monitoring system: Automatic self-diagnosis
Log in or become a customer?
Product Name
Emergency downlight | 3W | Ø140mm | black | auto test
Ean
8714984935297
Outer box qty
30st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
Black
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
80 - 80mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Surface mounting/recessed mounting
Degree of protection (IP)
IP20
Outer diameter
140mm
Nominal voltage
200 - 240V
Built-in height
55.34mm
Built-in height/depth
55.34mm
Height
61.55mm
Built-in diameter
112.5mm
Height/depth
61.55mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting
With pictogram
No
Suitable for standby switching
Yes
Suitable for continuous circuit
No
Impact strength
IK00
RAL-number housing
9005
Connection type
Plug-in connection
Light distributor
Focal lens
Luminous flux in standby mode
240lm
Nominal operation time
3 - 3h
Max. system power
3W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
240 - 240lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
240lm
Power consumption in emergency mode
1.7W
Connectable conductor cross section
0.75 - 2.5mm²
Warranty
5 years (battery 2 years)
Product Name
Emergency downlight | 3W | Ø140mm | black | auto test
With pictogram
No
Ean
8714984935297
Suitable for standby switching
Yes
Outer box qty
30st
Suitable for continuous circuit
No
Housing material
Plastic
Impact strength
IK00
Lamp type
LED not exchangeable
RAL-number housing
9005
Housing colour
Black
Connection type
Plug-in connection
Material cover
Plastic, transparent
Light distributor
Focal lens
Voltage type
AC
Luminous flux in standby mode
240lm
Nominal current
80 - 80mA
Nominal operation time
3 - 3h
Type of control gear
LED operating device current-controlled
Max. system power
3W
Battery technology
Lithium-ion
Power factor
0.3
Mounting method
Surface mounting/recessed mounting
Type of wiring
Ending
Degree of protection (IP)
IP20
Number of poles
2
Outer diameter
140mm
With heating element for battery
No
Nominal voltage
200 - 240V
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Built-in height
55.34mm
Rated luminous flux according to IEC 62722-2- 1
240 - 240lm
Built-in height/depth
55.34mm
Emergency power supply system
Peripheral (individual battery)
Height
61.55mm
Emergency function monitoring system
Automatic self test
Built-in diameter
112.5mm
Luminous flux in emergency mode
240lm
Height/depth
61.55mm
Power consumption in emergency mode
1.7W
Colour temperature
5000 - 5000K
Connectable conductor cross section
0.75 - 2.5mm²
Exchangeable control gear
No
Warranty
5 years (battery 2 years)
Function
Escape route lighting

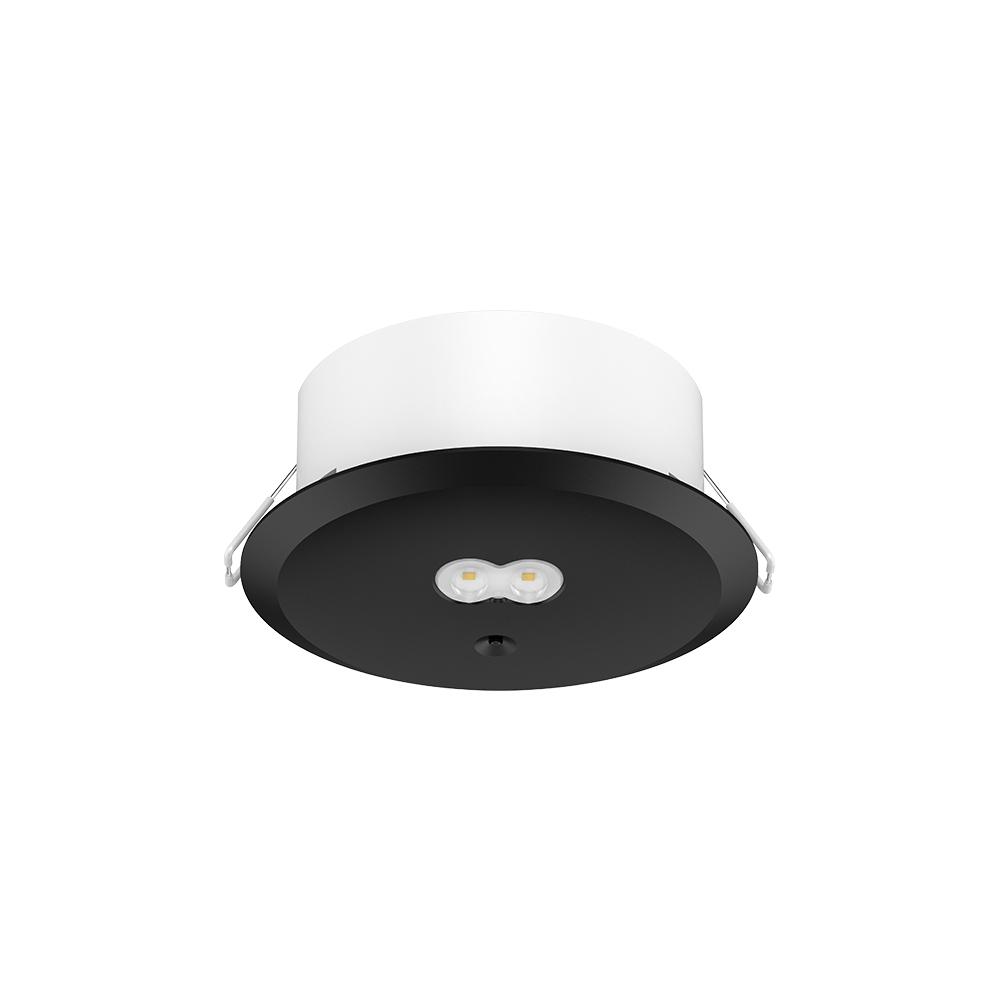

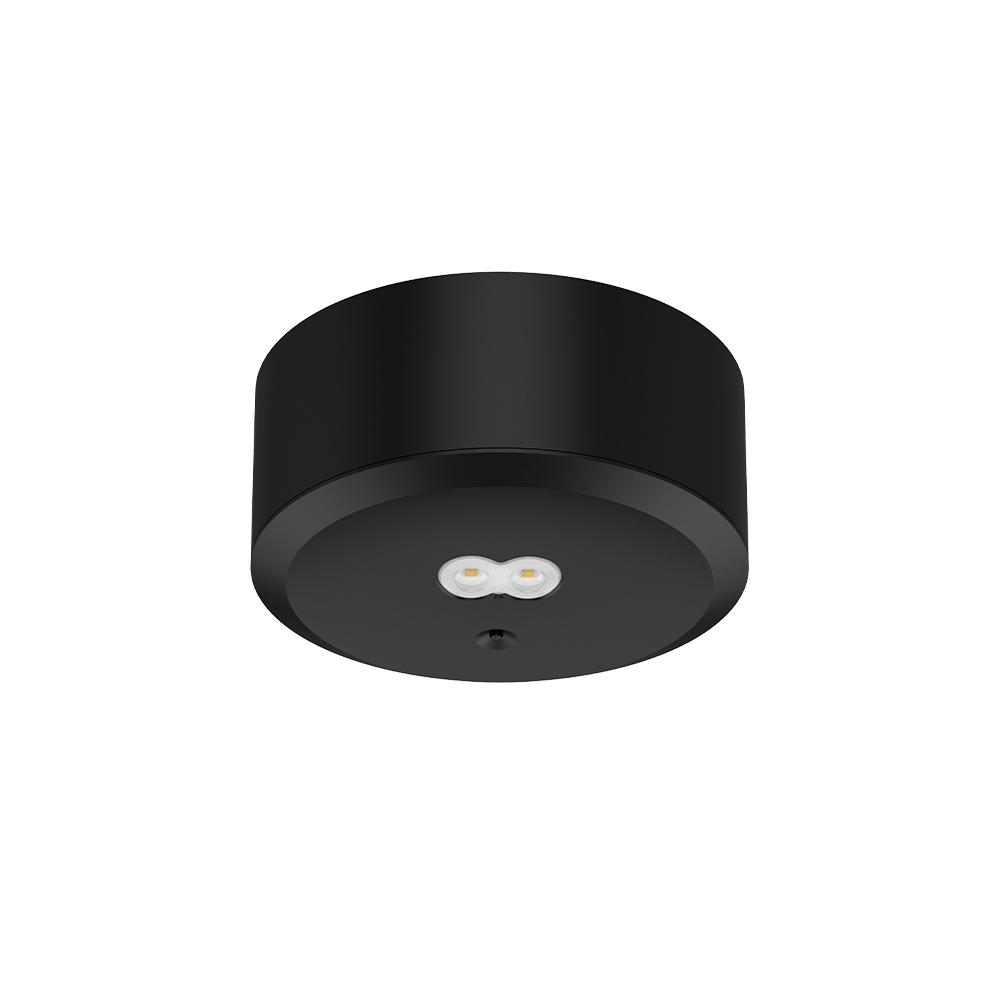

Multifunctional LED emergency luminaire with interchangeable optics and dual installation options: recessed (standard) or surface-mounted (with optional surface box). Available in white or black.
The integrated LED module provides 2.5 W output and approximately 240 lumens. The oval lens creates an asymmetrical light pattern for linear applications such as corridors, while the round lens offers symmetrical lighting for open areas.
Equipped with a LiFePO4 battery (offering 3 hours of autonomy) and an intelligent IC driver that performs automatic function tests (monthly, 3 minutes) and duration tests (annually, 3 hours). Faults are indicated via a bi-colour LED status light with specific blink codes. Manual test cycles (30 seconds to 3 hours) can be set using the integrated test button.
The standard recess diameter of Ø113–130 mm allows for easy installation into existing ceiling cut-outs. For surface-mounted applications, a surface box is available.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-emergency-downlight-3w-o140mm-black-auto-test-600-026.pdf
Energy labels
Other attachment
600-026 (Oval_Lens)_Luminaire_photometric_test_report.pdf
600-026 (Round_Lens)_Luminaire_photometric_test_report.pdf
600-026_IES (Oval_Lens).IES
600-026_IES (Round_Lens).IES
Characteristics sheet
600-025_026_technical_datasheet_extended.pdf
Manual
600-026_Manual_NL.pdf
600-026_Manual_EN.pdf
