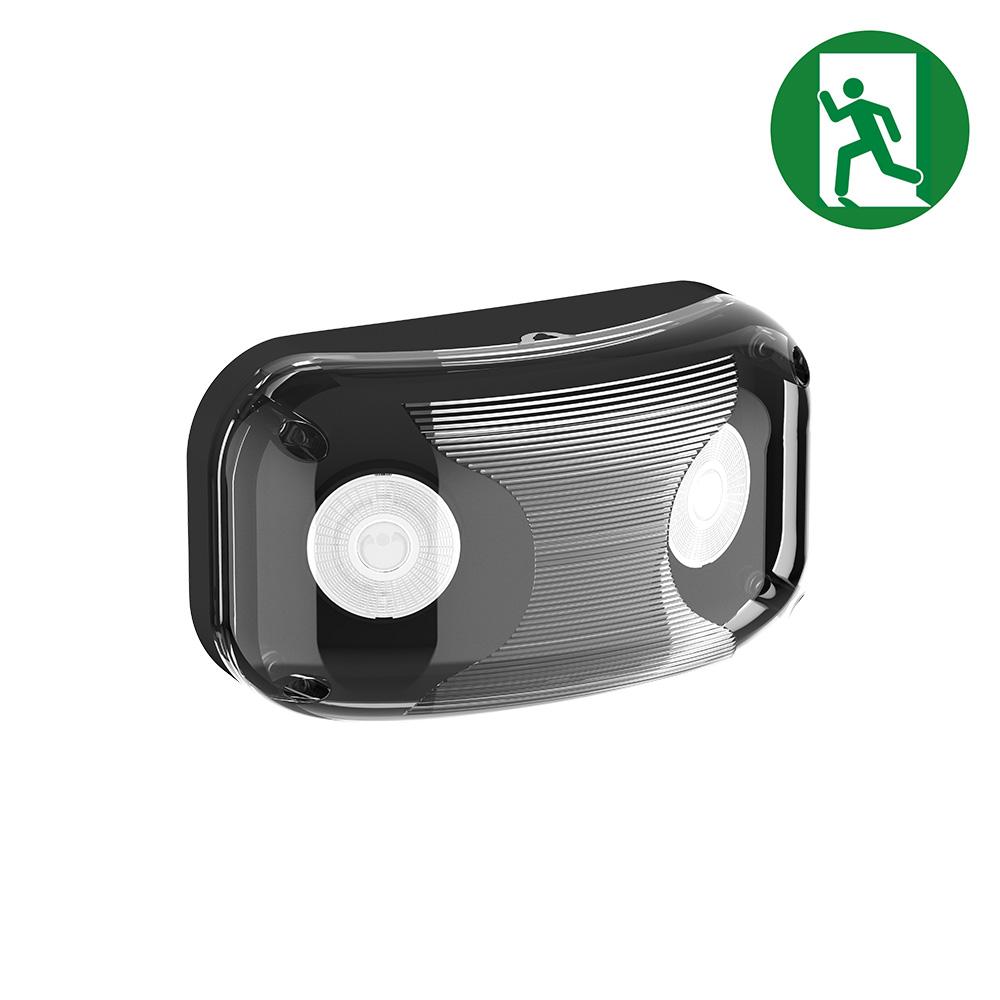

Emergency light IP65 || 4W | black | auto test
600-036Emergency lighting has become an integral part of safety regulations in buildings and offices. Emergency luminaires require functional design and visibility without dominating the environment. Tronix Emergency Lights make a natural blend with its surroundings, getting close to the perception of general lighting fixtures. The lamps can be adjusted independently of each other. The light spread makes these emergency luminaires ideal for large spaces such as warehouses.
Features
- Emergency function for a minimum of 3 hours
- High quality internal driver with optimum heat regulation
- Two independently adjustable lamps
- Suitable for installation in the ceiling or against a wall
This fixture is equipped with auto test
Autotest is a function that provides the emergency lighting with automatic periodic testing of the light source, electronics and battery, eliminating the need for manual checks. This is done via a protocol which complies with the international standard IEC62034.
1. Test after commissioning: as soon as the luminaire is connected for the first time. The batteries are charging for 24 hours, after 24 hours a full autonomy test takes place. After that, the batteries are recharging again for 24 hours.
2. Short function test: for 3 seconds the luminaire tests (after pressing and releasing the test button) the condition of battery, electronics and light source.
3. Monthly function test: automatic 3-minute monthly test.
4. Annual autonomy test: 3-hour automatic, annual, full autonomy test.
Product Name
Emergency light IP65 || 4W | black | auto test
Ean
8714984940017
Outer box qty
20st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
Black
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
16.67 - 16.67mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Ceiling surface mounting
Degree of protection (IP)
IP65
Nominal voltage
220 - 240V

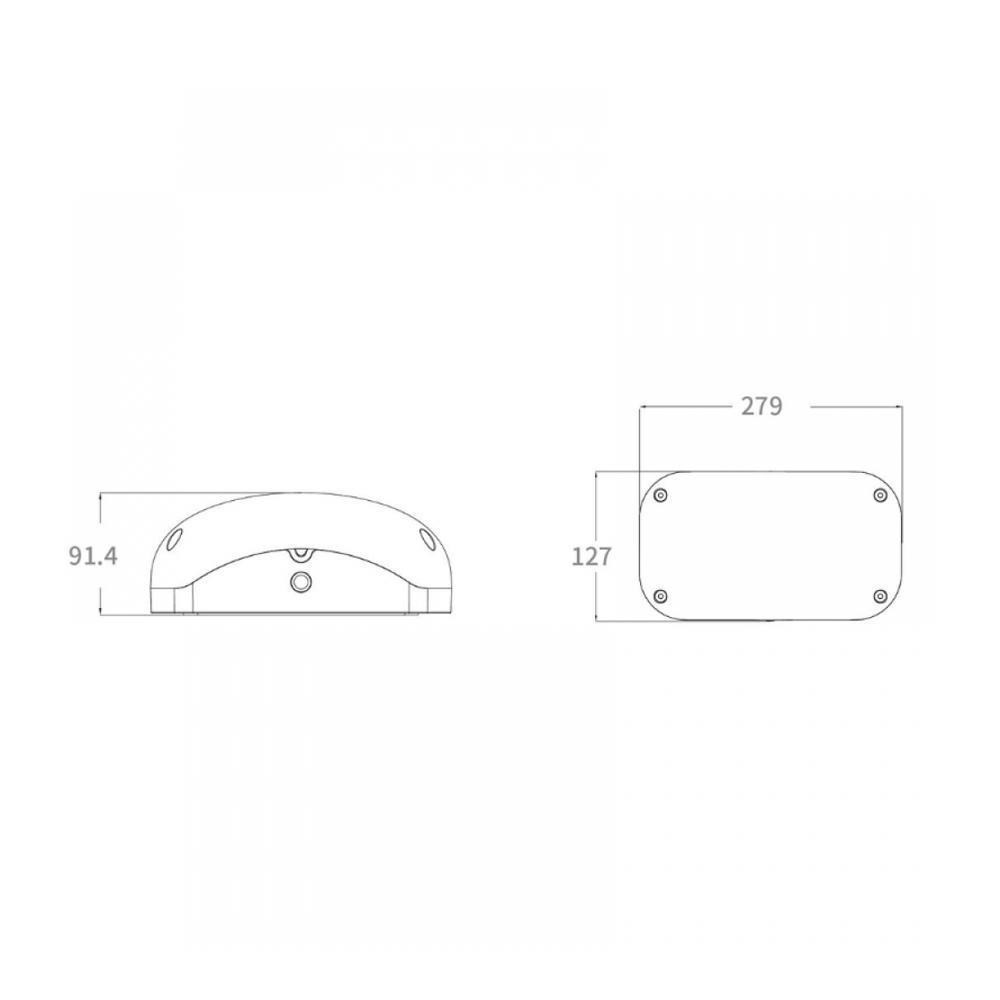

Length
279mm
Width
127mm
Height
91.4mm
Height/depth
91.4mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting
With pictogram
No
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Number of lighting heads
2
Impact strength
IK02
RAL-number housing
9005
Connection type
Plug-in connection
Light distributor
Focal lens
Nominal operation time
3 - 3h
Max. system power
4W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
400 - 400lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
40lm
Connectable conductor cross section
0.75 - 2.5mm²
Warranty
5 years (battery 2 years)
Product Name
Emergency light IP65 || 4W | black | auto test
With pictogram
No
Ean
8714984940017
Suitable for standby switching
Yes
Outer box qty
20st
Suitable for continuous circuit
Yes
Housing material
Plastic
Number of lighting heads
2
Lamp type
LED not exchangeable
Impact strength
IK02
Housing colour
Black
RAL-number housing
9005
Material cover
Plastic, transparent
Connection type
Plug-in connection
Voltage type
AC
Light distributor
Focal lens
Nominal current
16.67 - 16.67mA
Nominal operation time
3 - 3h
Type of control gear
LED operating device current-controlled
Max. system power
4W
Battery technology
Lithium-ion
Power factor
0.3
Mounting method
Ceiling surface mounting
Type of wiring
Ending
Degree of protection (IP)
IP65
Number of poles
2
Nominal voltage
220 - 240V
With heating element for battery
No
Length
279mm
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Width
127mm
Rated luminous flux according to IEC 62722-2- 1
400 - 400lm
Height
91.4mm
Emergency power supply system
Peripheral (individual battery)
Height/depth
91.4mm
Emergency function monitoring system
Automatic self test
Colour temperature
5000 - 5000K
Luminous flux in emergency mode
40lm
Exchangeable control gear
No
Connectable conductor cross section
0.75 - 2.5mm²
Function
Escape route lighting
Warranty
5 years (battery 2 years)
Emergency lighting has become an integral part of safety regulations in buildings and offices. Emergency luminaires require functional design and visibility without dominating the environment. Tronix Emergency Lights make a natural blend with its surroundings, getting close to the perception of general lighting fixtures. The lamps can be adjusted independently of each other. The light spread makes these emergency luminaires ideal for large spaces such as warehouses.
Features
Emergency function for a minimum of 3 hours
High quality internal driver with optimum heat regulation
Two independently adjustable lamps
Suitable for installation in the ceiling or against a wall
This fixture is equipped with auto test
Autotest is a function that provides the emergency lighting with automatic periodic testing of the light source, electronics and battery, eliminating the need for manual checks. This is done via a protocol which complies with the international standard IEC62034.
1. Test after commissioning: as soon as the luminaire is connected for the first time. The batteries are charging for 24 hours, after 24 hours a full autonomy test takes place. After that, the batteries are recharging again for 24 hours.
2. Short function test: for 3 seconds the luminaire tests (after pressing and releasing the test button) the condition of battery, electronics and light source.
3. Monthly function test: automatic 3-minute monthly test.
4. Annual autonomy test: 3-hour automatic, annual, full autonomy test.
Datasheet
Datasheet-emergency-light-ip65-4w-black-auto-test-600-036.pdf
Energy labels
Other attachment
600-036_Luminaire_photometric_test_report.pdf
600-036_IES.IES
Characteristics sheet
600-035_036_technical_datasheet_extended.pdf
Manual
600-036_Manual_NL.pdf
600-036_Manual_EN.pdf
