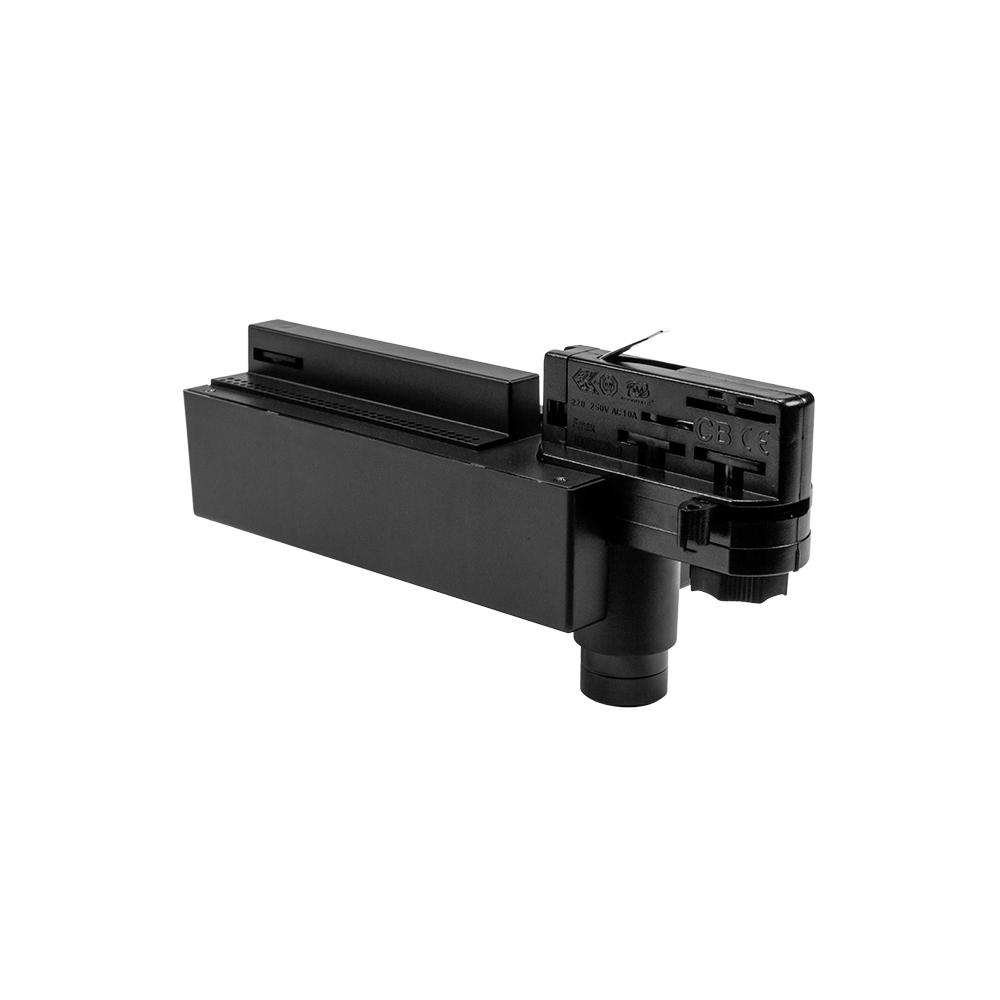

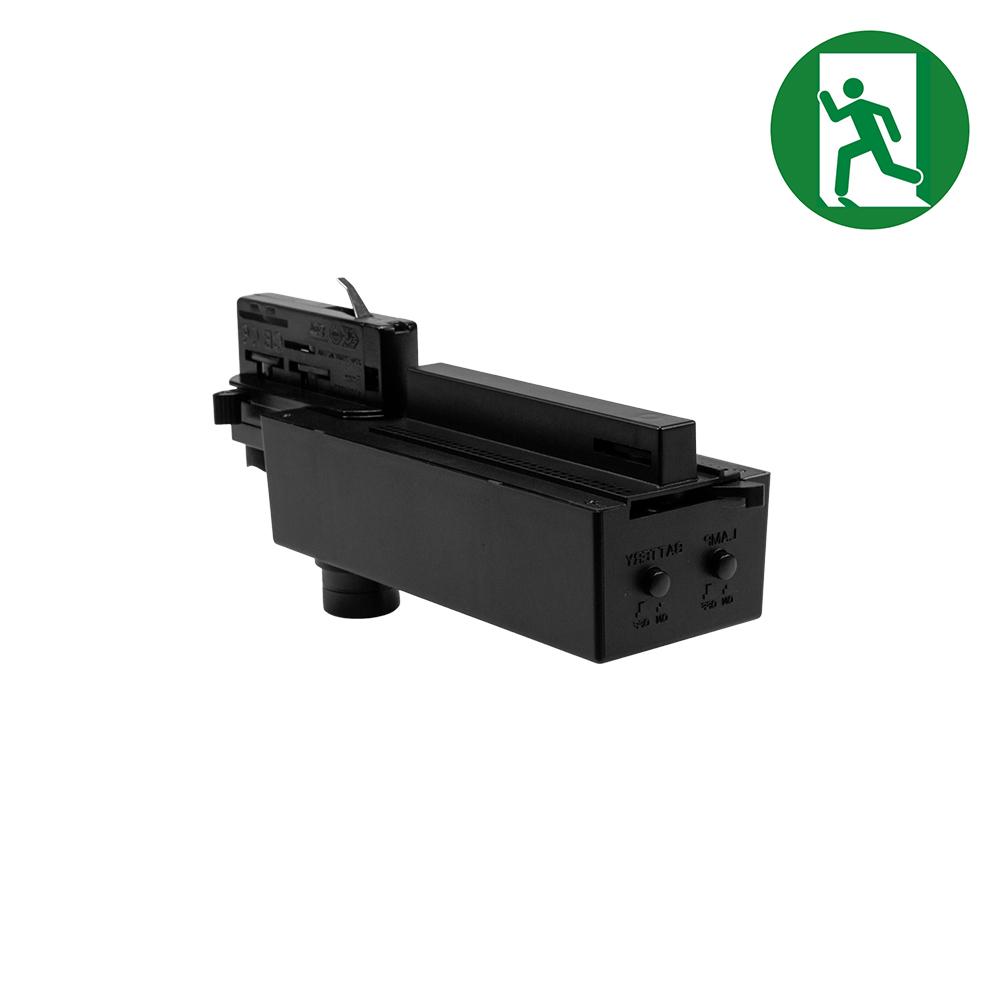

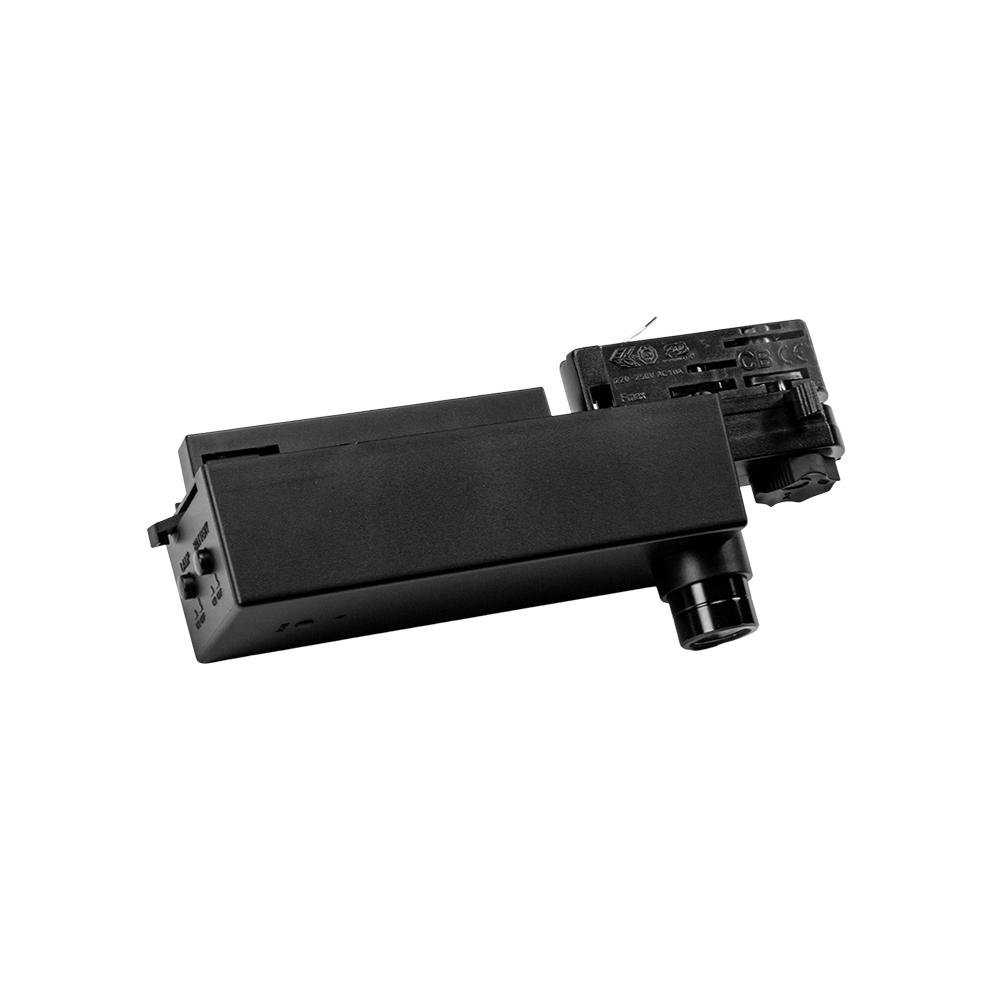

Emergency track light | 1.7W | black | auto test
600-033Emergency lighting fixture for 3-phase track systems, featuring automatic self-test, manual test option and 3-hour autonomy. Suitable for maintained or non-maintained operation in commercial and public indoor environments.
Key product features
- Mounting method: Track adapter
- Max. system power (W): 6
- Housing colour: Black
- Luminous flux in emergency mode (lm): 220
- Function: Escape route lighting
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
Emergency track light | 1.7W | black | auto test
Ean
8714984939998
Outer box qty
30st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
Black
Material cover
Without cover
Voltage type
AC
Nominal current
35 - 35mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Busbar adaptor
Degree of protection (IP)
IP20
Nominal voltage
200 - 240V

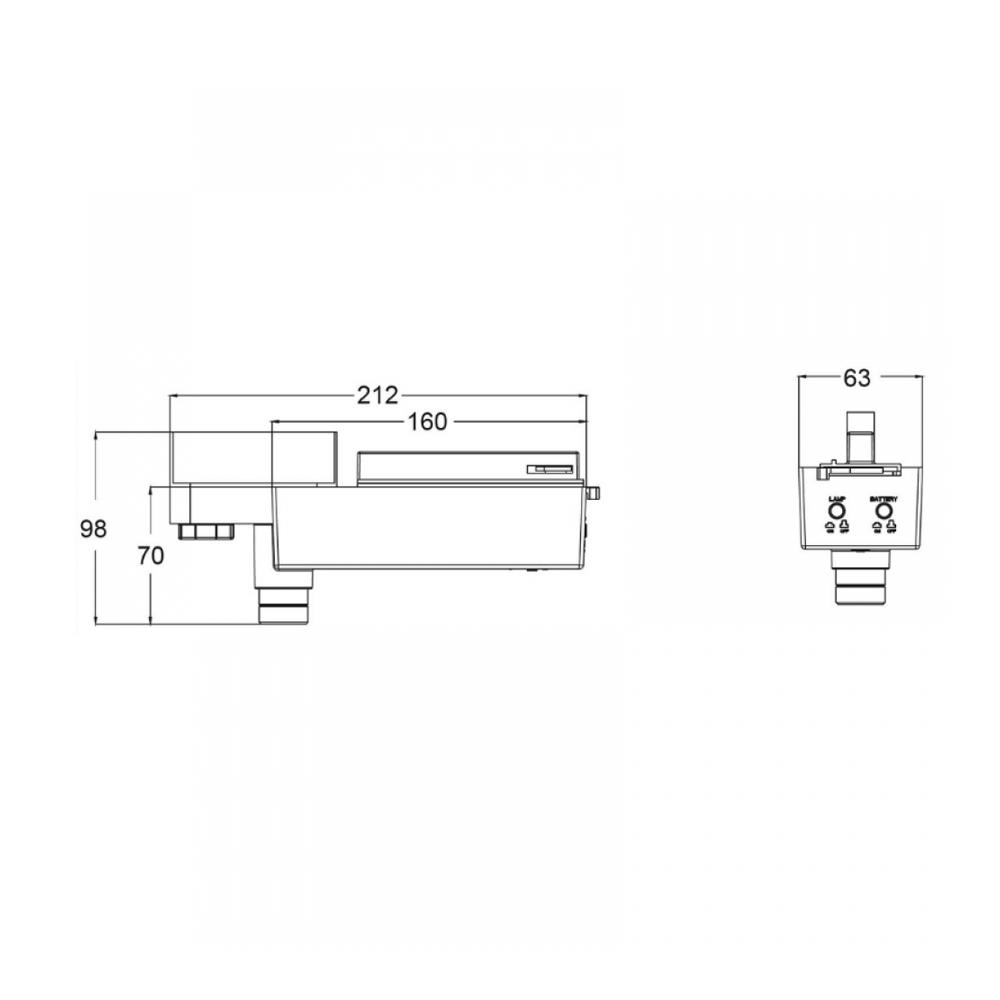

Built-in height
70mm
Length
212mm
Built-in height/depth
70mm
Width
63mm
Height
98mm
Height/depth
98mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting
With pictogram
No
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Number of lighting heads
1
Impact strength
IK02
RAL-number housing
9005
Connection type
Other
Light distributor
Focal lens
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
220lm
Nominal operation time
3 - 3h
Max. system power
6W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
220 - 220lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
220lm
Power consumption in emergency mode
1.9W
Connectable conductor cross section
0.75 - 2.5mm²
Warranty
5 years (battery 2 years)
Product Name
Emergency track light | 1.7W | black | auto test
Suitable for standby switching
Yes
Ean
8714984939998
Suitable for continuous circuit
Yes
Outer box qty
30st
Number of lighting heads
1
Housing material
Plastic
Impact strength
IK02
Lamp type
LED not exchangeable
RAL-number housing
9005
Housing colour
Black
Connection type
Other
Material cover
Without cover
Light distributor
Focal lens
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
35 - 35mA
Luminous flux in standby mode
220lm
Type of control gear
LED operating device current-controlled
Nominal operation time
3 - 3h
Battery technology
Lithium-ion
Max. system power
6W
Mounting method
Busbar adaptor
Power factor
0.3
Degree of protection (IP)
IP20
Type of wiring
Ending
Nominal voltage
200 - 240V
Number of poles
2
Built-in height
70mm
With heating element for battery
No
Length
212mm
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Built-in height/depth
70mm
Rated luminous flux according to IEC 62722-2- 1
220 - 220lm
Width
63mm
Emergency power supply system
Peripheral (individual battery)
Height
98mm
Emergency function monitoring system
Automatic self test
Height/depth
98mm
Luminous flux in emergency mode
220lm
Colour temperature
5000 - 5000K
Power consumption in emergency mode
1.9W
Exchangeable control gear
No
Connectable conductor cross section
0.75 - 2.5mm²
Function
Escape route lighting
Warranty
5 years (battery 2 years)
With pictogram
No
This emergency lighting fixture is designed for direct installation onto a 3-phase power track (4-wire, 3-circuit). Ideal for use as orientation or escape route lighting in retail spaces, offices and public buildings. Available in white or black housing.
Equipped with a high-efficiency Samsung 3535 SMD LED module (5000K), the unit delivers 220 lumens with a maximum power consumption of 6 W. The integrated LiFePO4 battery ensures 3 hours of autonomy in the event of a power failure.
The fixture supports both maintained (always on) and non-maintained (emergency only) operation. The mode can be selected via the button on the luminaire.
The automatic self-test function performs a 3-minute functional test every month and a full 3-hour duration test annually. Status is indicated via a bi-colour LED (green/red). Manual tests can be initiated using the built-in test button.
Installation is simple: the fixture locks into the track with a 90° rotating lever. Compatible with standard 3-phase track systems.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-emergency-track-light-17w-black-auto-test-600-033.pdf
Energy labels
Other attachment
2022090810315229_1787267862.pdf
Manual
600-033_Manual_NL.pdf
600-033_Manual_EN.pdf
