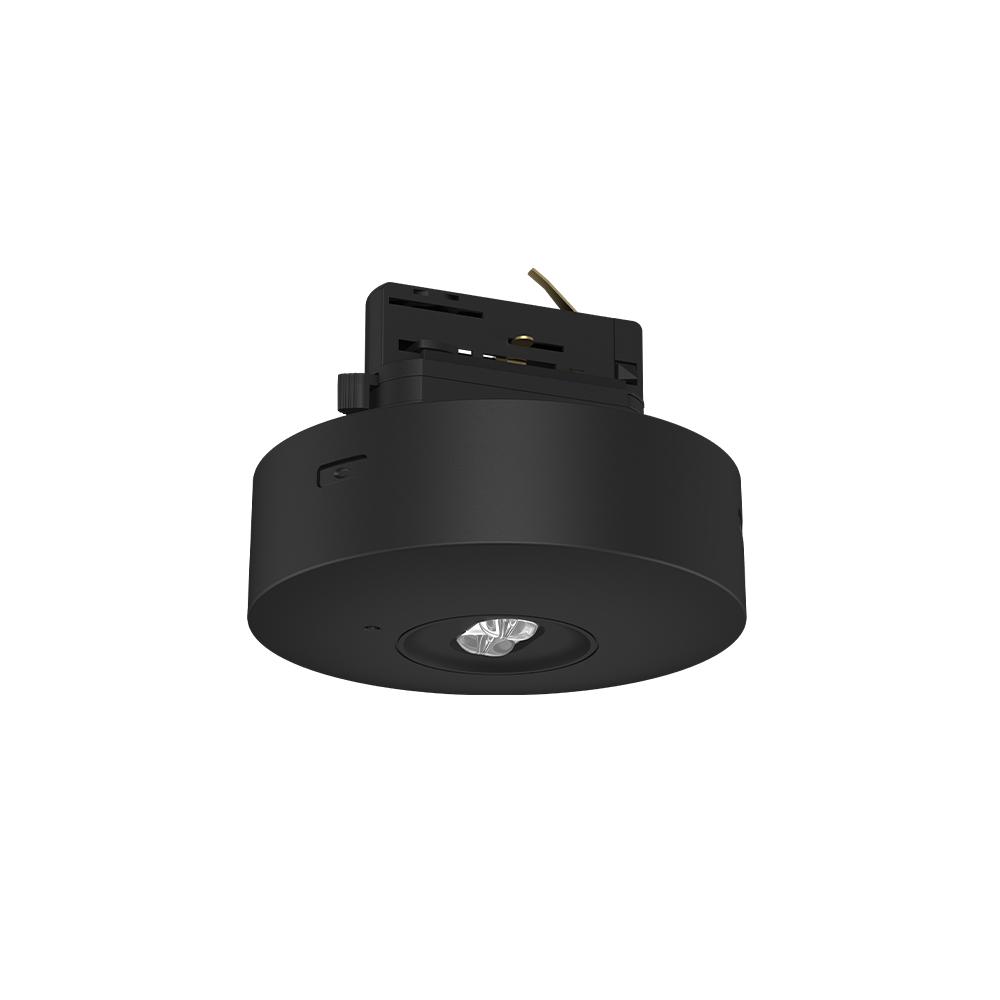

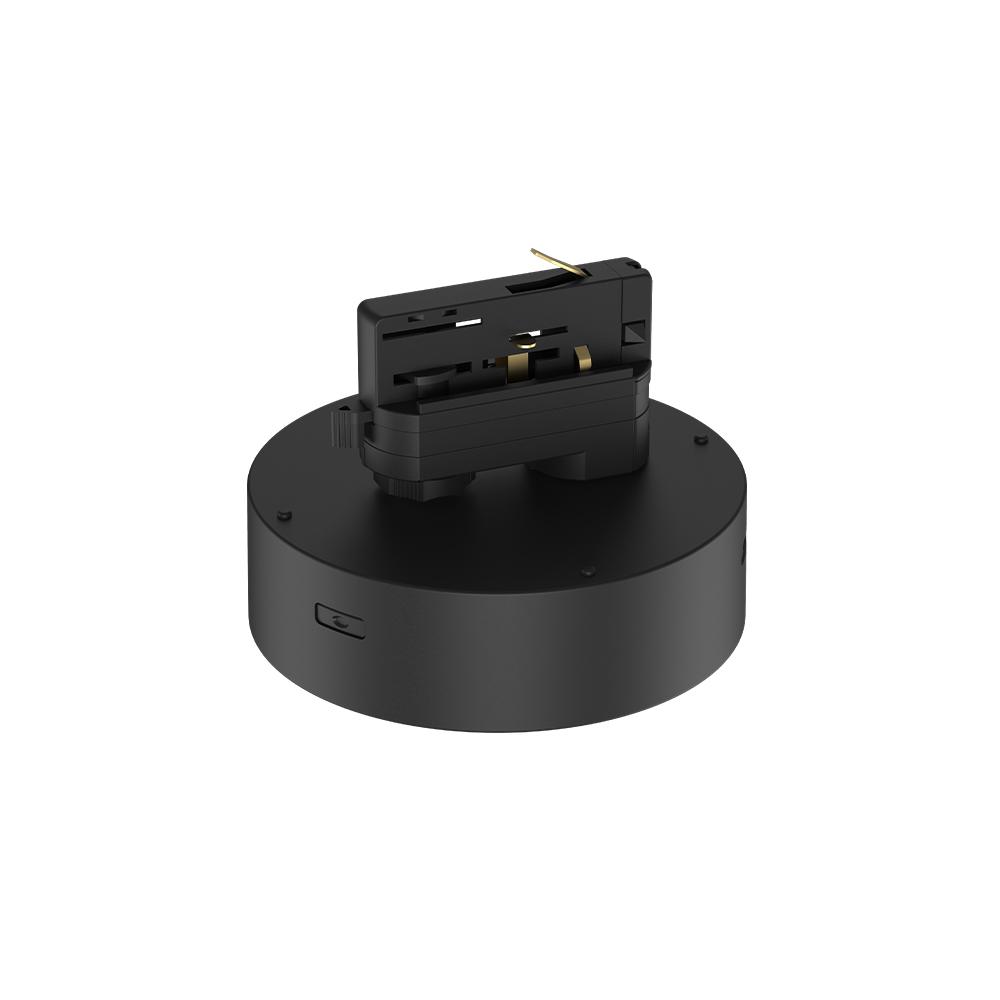

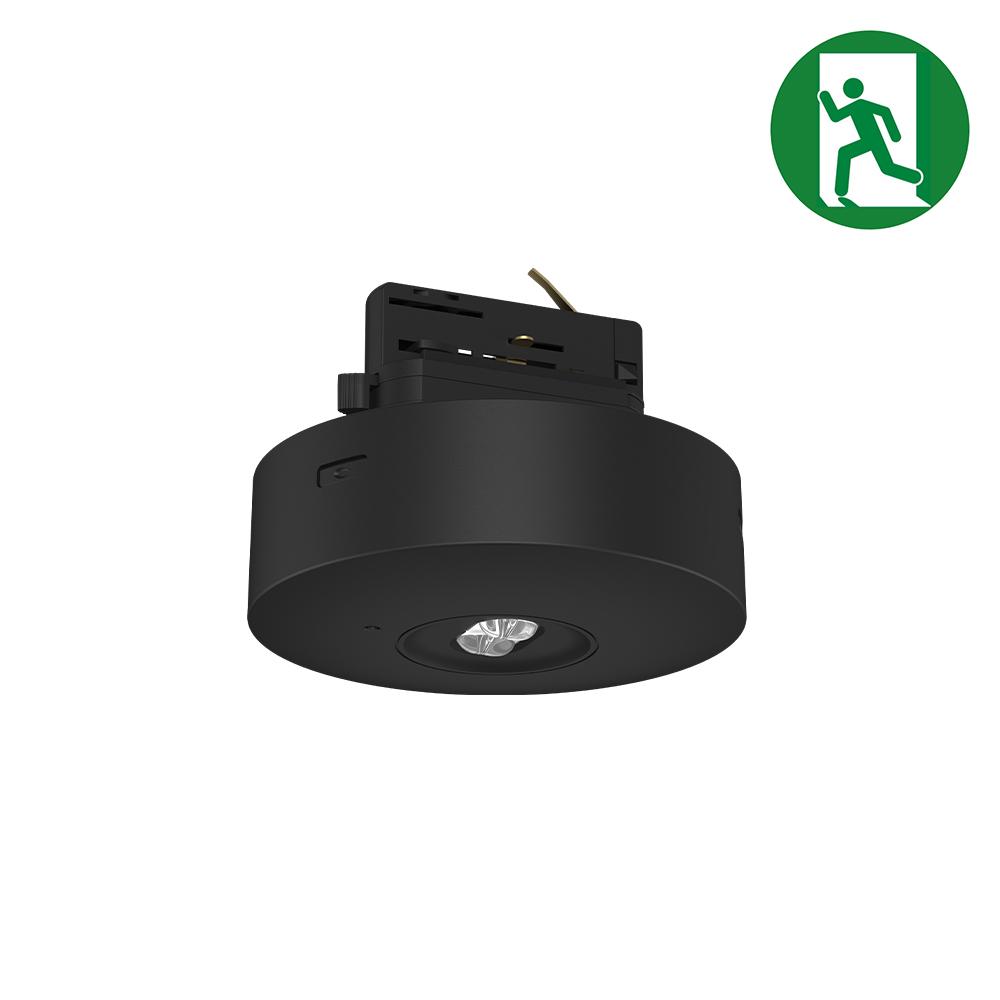

Emergency track light | 6W | black | auto test
600-049Compact emergency lighting for 3-phase tracks featuring an interchangeable lens and durable LiFePO4 battery. Includes autotest functionality compliant with IEC62034. Ideal for a wide range of applications with round or oval lens options.
Key Product Features:
- Max. system power (W): 6
- Housing color: Black
- Battery technology: Lithium-ion
- Function: Emergency lighting
- Light distributor: Focus lens
- Nominal operation time (h): 3
Product Name
Emergency track light | 6W | black | auto test
Ean
8714984950795
Outer box qty
27st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
Black
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
80 - 80mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Busbar adaptor
Degree of protection (IP)
IP20
Nominal voltage
200 - 240V

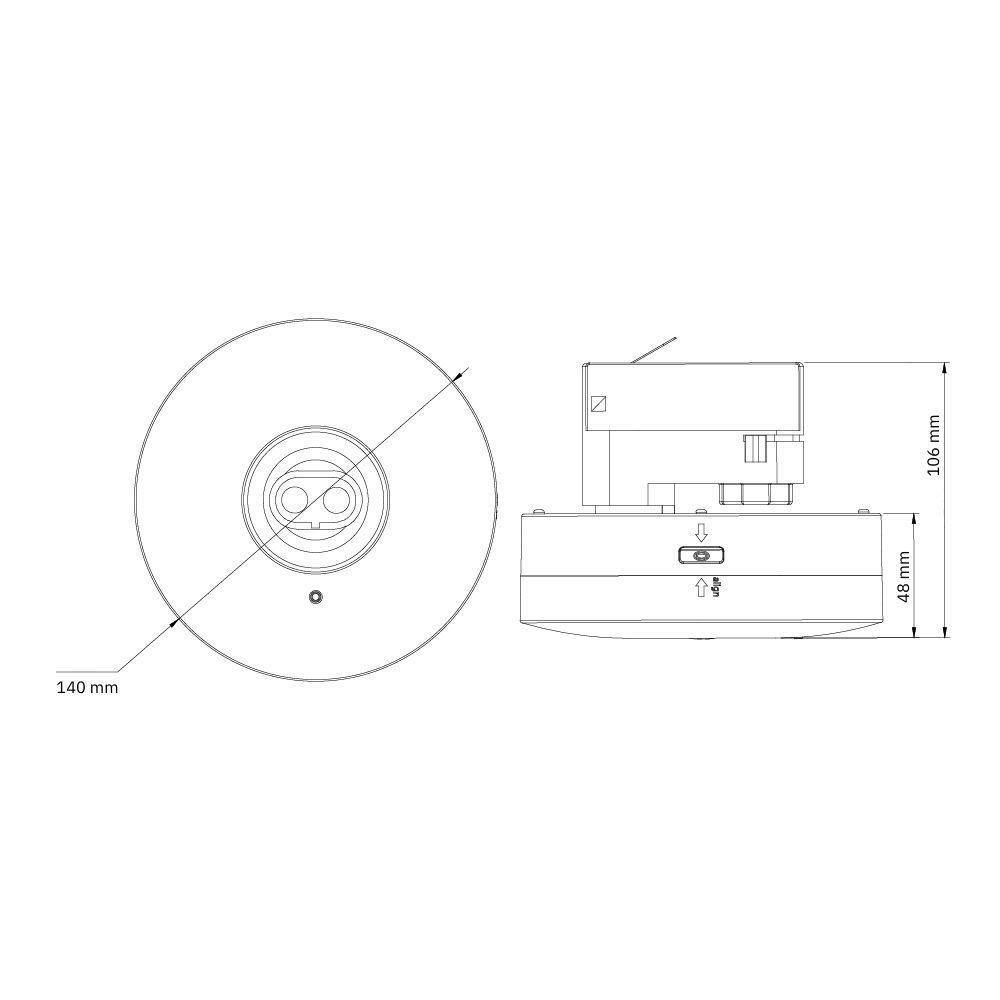

Length
140mm
Width
140mm
Height
48mm
Height/depth
48mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting
With pictogram
No
Suitable for standby switching
Yes
Suitable for continuous circuit
No
Impact strength
IK02
RAL-number housing
9005
Connection type
Plug-in connection
Light distributor
Focal lens
Nominal operation time
3 - 3h
Max. system power
6W
Power factor
0.3
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
450 - 450lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
450lm
Power consumption in emergency mode
4W
Connectable conductor cross section
0 - 0mm²
Warranty
5 years (battery 2 years)
Product Name
Emergency track light | 6W | black | auto test
With pictogram
No
Ean
8714984950795
Suitable for standby switching
Yes
Outer box qty
27st
Suitable for continuous circuit
No
Housing material
Plastic
Impact strength
IK02
Lamp type
LED not exchangeable
RAL-number housing
9005
Housing colour
Black
Connection type
Plug-in connection
Material cover
Plastic, transparent
Light distributor
Focal lens
Voltage type
AC
Nominal operation time
3 - 3h
Nominal current
80 - 80mA
Max. system power
6W
Type of control gear
LED operating device current-controlled
Power factor
0.3
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Busbar adaptor
With heating element for battery
No
Degree of protection (IP)
IP20
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
200 - 240V
Rated luminous flux according to IEC 62722-2- 1
450 - 450lm
Length
140mm
Emergency power supply system
Peripheral (individual battery)
Width
140mm
Emergency function monitoring system
Automatic self test
Height
48mm
Luminous flux in emergency mode
450lm
Height/depth
48mm
Power consumption in emergency mode
4W
Colour temperature
5000 - 5000K
Connectable conductor cross section
0 - 0mm²
Exchangeable control gear
No
Warranty
5 years (battery 2 years)
Function
Escape route lighting

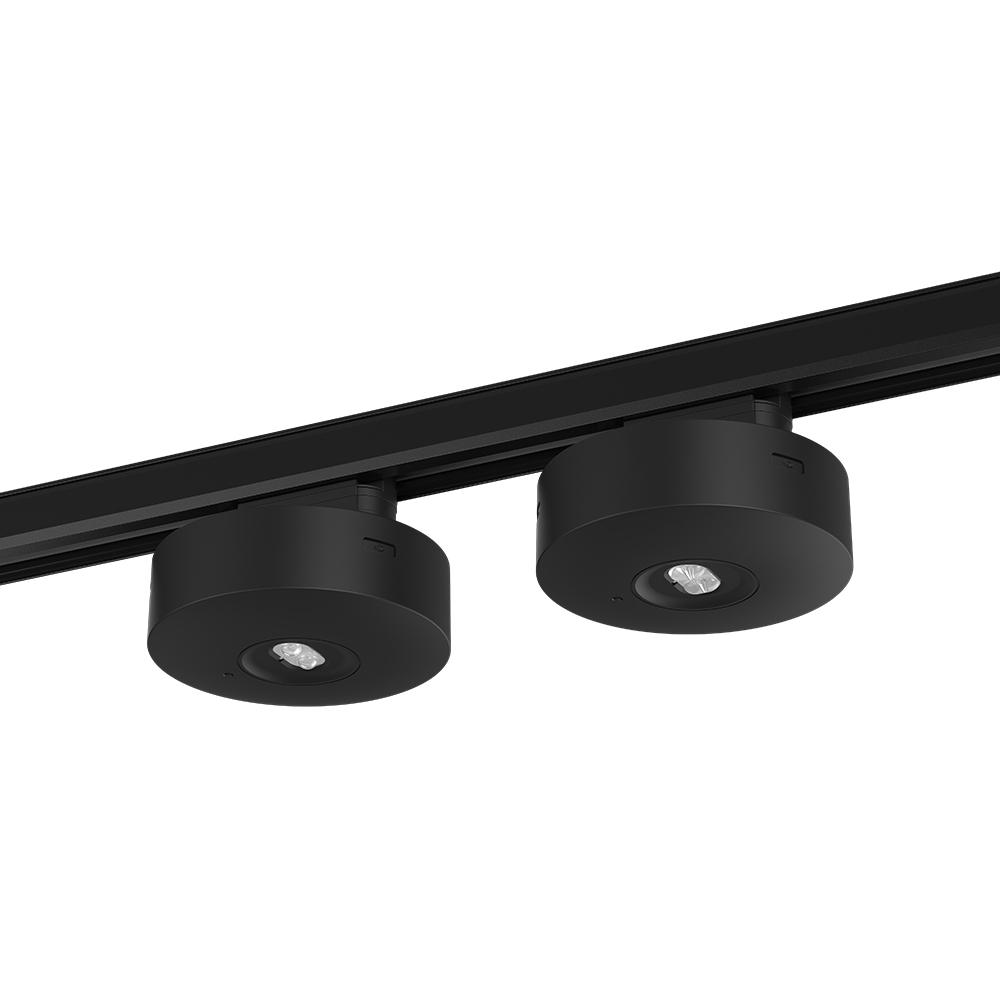

This modular track spotlight is engineered to deliver clear, compact emergency lighting for 3-phase track systems. Its interchangeable lens design (round or oval) ensures adaptability across multiple environments and use cases.
Equipped with a smart autotest function, this fixture automates periodic testing of the light source, electronics, and battery, meeting IEC62034 standards and reducing maintenance requirements. The autotest protocol includes:
1. Initial Test: Batteries charge for 24 hours, followed by a full autonomy test and recharging.
2. Short Function: Test: A 3-second test of the battery, electronics, and light source.
3. Monthly Test: Automatic 3-minute function test.
4. Annual Test: Automatic 3-hour autonomy test.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-emergency-track-light-6w-black-auto-test-600-049.pdf
Energy labels
Other attachment
600-049_round lens_Luminaire_photometric_test_report.pdf
600-049_oval lens_Luminaire_photometric_test_report.pdf
600-049_round lens_IES.IES
600-049_oval lens_IES.IES
Characteristics sheet
600-048_049_technical_datasheet_extended.pdf
