Floodlight | 100W/150W/200W | 100x60° | 3-CCT | light sensor

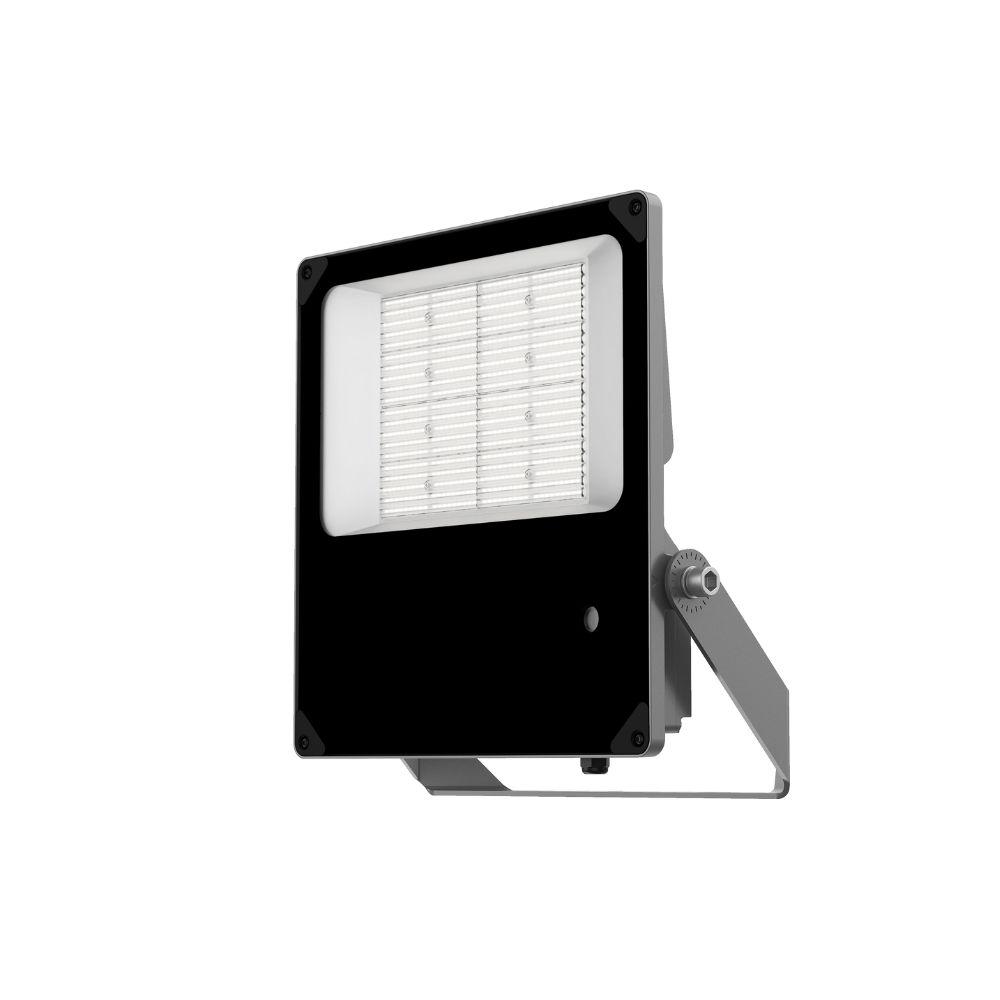

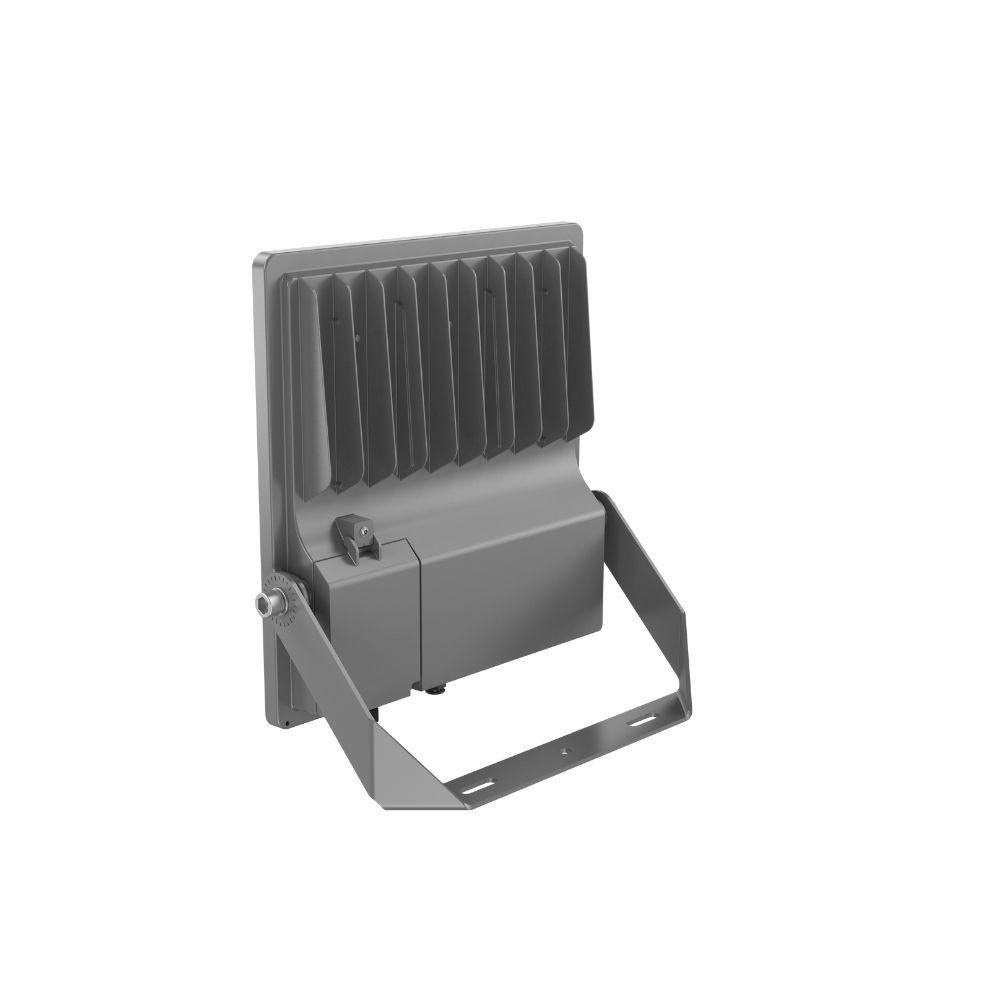

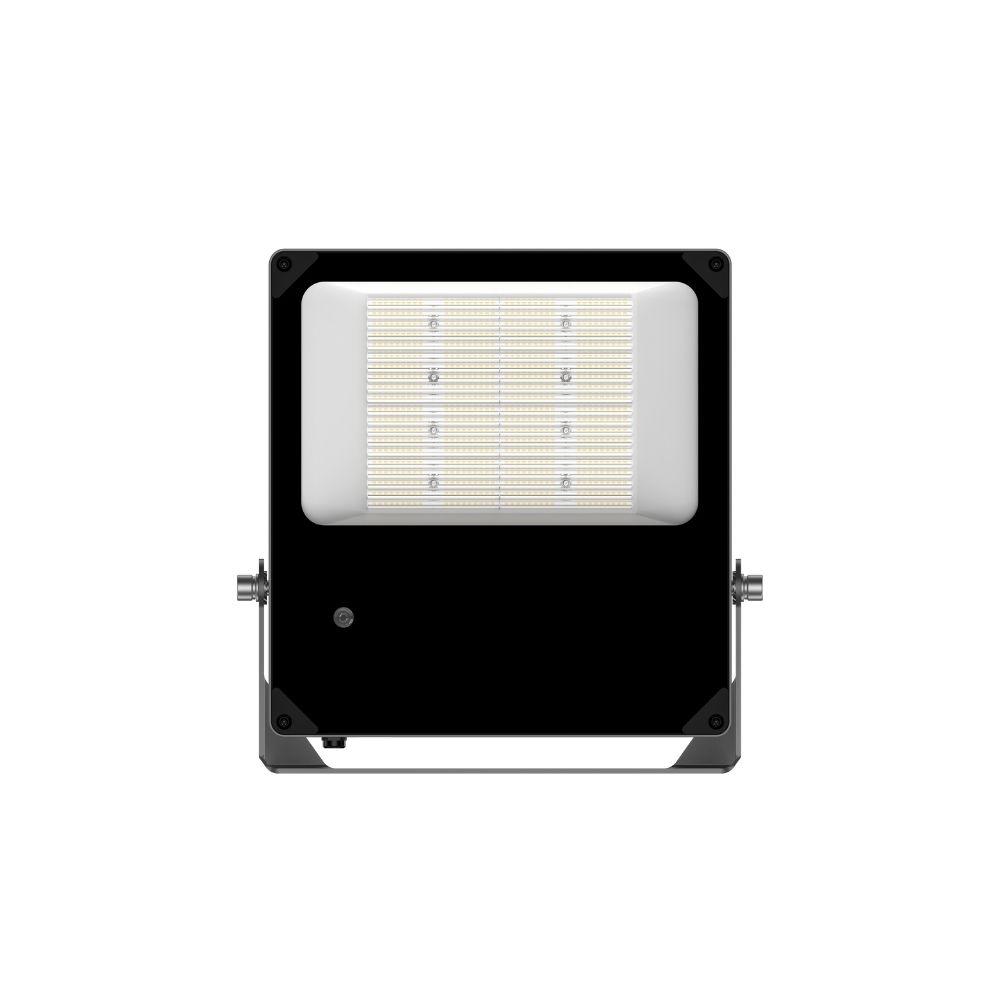

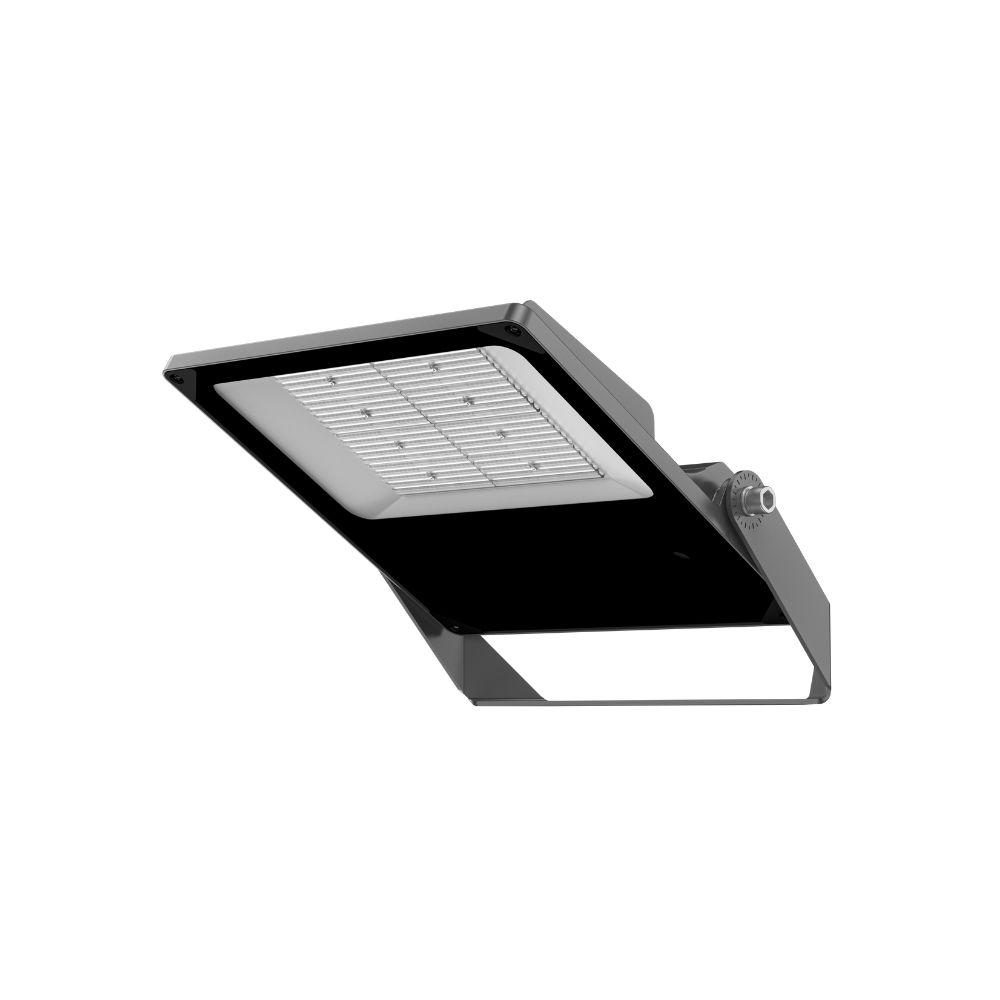

146-372Versatile 200W LED floodlight with over 140 lm/W efficacy and IP66 rating. Colour temperature selectable between 3000K, 4000K or 5000K. Max. system power adjustable to 100W, 150W or 200W. Equipped with asymmetrical lens and switchable light sensor (2 levels).
Key product features
- Max. system power (W): 200
- Colour temperature (K): 3000 – 5000
- Light distribution: Asymmetrical
- Colour of light adjustable: Preset levels
- Luminous flux adjustable: Preset levels
- Degree of protection (IP), front side: IP66
- Rated luminous flux according to IEC 62722-2-1 (lm): 14572 – 29144
Product Name
Floodlight | 100W/150W/200W | 100x60° | 3-CCT | light sensor
Ean
8714984952232
Outer box qty
1st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Schuko plug

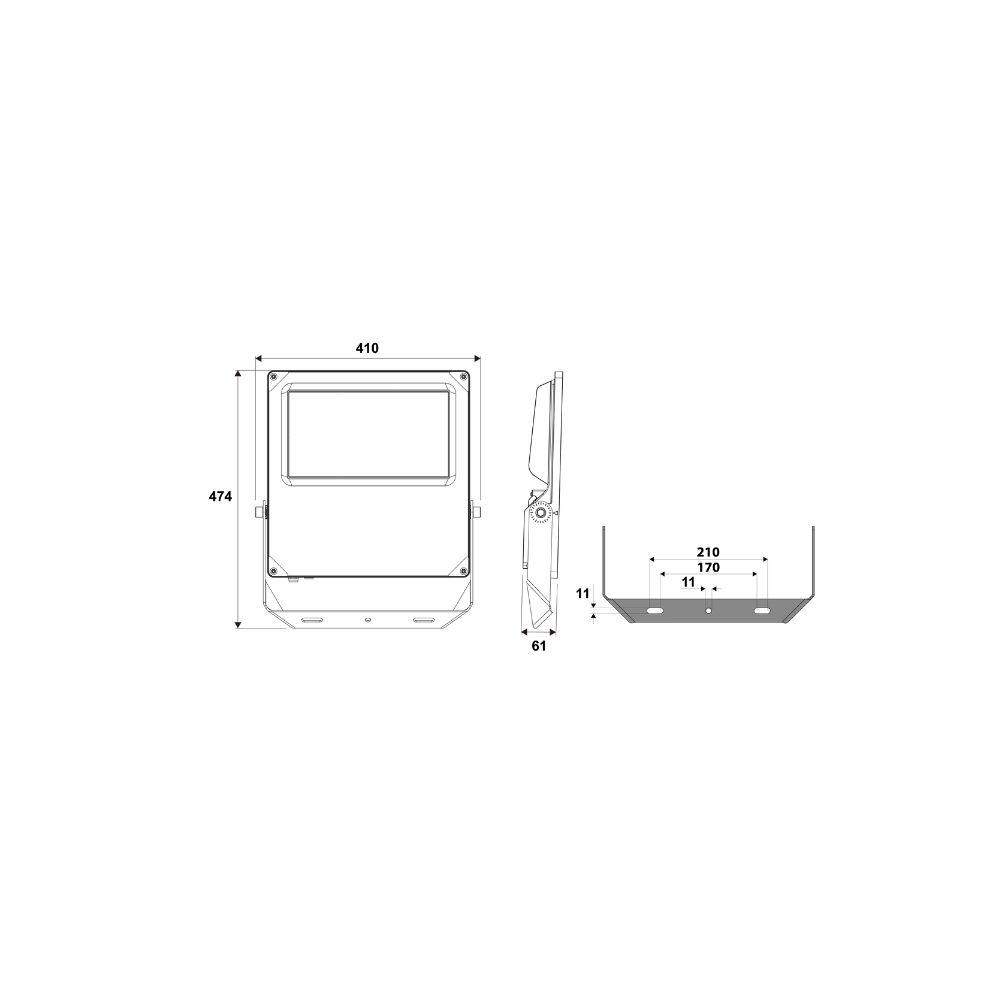

Length
474mm
Width
410mm
Height/depth
61mm
Built-in diameter
0 - 0mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
Yes
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
White
Colour temperature
3000 - 4000 - 5000K
Colour rendering index CRI
80-89
Luminous flux adjustable
Positions
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
871 - 871mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP66
Surface protection
Powder coating
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
138000h
Max. system power
200W
Rated luminous flux according to IEC 62722-2- 1
15000 - 30000lm
Luminaire efficacy
150 - 150lm/W
Power factor
0.98
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotatable
Reflector
None
Warranty
5 years
Product Name
Floodlight | 100W/150W/200W | 100x60° | 3-CCT | light sensor
Light outlet
Direct
Ean
8714984952232
Beam angle
> 80° - Extreme wide beam
Outer box qty
1st
Beam angle adjustable
No
Lamp type
LED not exchangeable
Voltage type
AC
Lamp holder
None
Nominal voltage
220 - 240V
Housing colour
Black
Nominal current
871 - 871mA
Housing material
Aluminium
Number of poles
3
Material cover
Glass transparent
Light source included
Yes, fixed LED
Connection type
Schuko plug
Light distributor
Focal lens
Length
474mm
Light distribution
Symmetric
Width
410mm
Connectable conductor cross section
0.75 - 2.5mm²
Height/depth
61mm
Type of control gear
LED operating device current-controlled
Built-in diameter
0 - 0mm
Exchangeable control gear
Yes
Suitable for built-in mounting
No
With control gear
Yes
Suitable for surface mounting
Yes
Degree of protection (IP), front side
IP66
Suitable for pedestal/floor mounting
Yes
Surface protection
Powder coating
Suitable for wall mounting
Yes
Impact strength
IK08
Suitable for ceiling mounting
Yes
Rated lifetime L70/B50 at 25 °C
138000h
Suitable for light-track mounting
No
Max. system power
200W
Suitable for clamp-mounting
No
Rated luminous flux according to IEC 62722-2- 1
15000 - 30000lm
With movement sensor
No
Luminaire efficacy
150 - 150lm/W
With presence detector
No
Power factor
0.98
With light sensor
Yes
Suitable for lamp power
0 - 0W
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Ending
Colour of light adjustable
Positions
Emergency power supply system
None
Reflector colour
White
Emergency function monitoring system
None
Colour temperature
3000 - 4000 - 5000K
Adjustability
Rotatable
Colour rendering index CRI
80-89
Reflector
None
Luminous flux adjustable
Positions
Warranty
5 years
The integrated asymmetrical lens provides a powerful forward-directed beam with minimal rear light spill. The built-in light sensor offers two sensitivity thresholds and is switched off by default, allowing project-based activation if needed.
The robust housing is designed for long-term outdoor use, withstanding harsh weather conditions (IP66, IK08, corrosion class C4). This 200W version is ideal for illuminating car parks, industrial areas, logistics zones, pathways, sports grounds, façades and outdoor objects.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, please contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-floodlight-100w150w200w-100x60-3-cct-light-sensor-146-372.pdf
Energy labels
Manual
146-372_manual.pdf
Characteristics sheet
146-372-photometric-light-report.pdf
146-372-photometric-light-report-detailed.zip
146-372-eulumdat.zip
146-372.ldt
