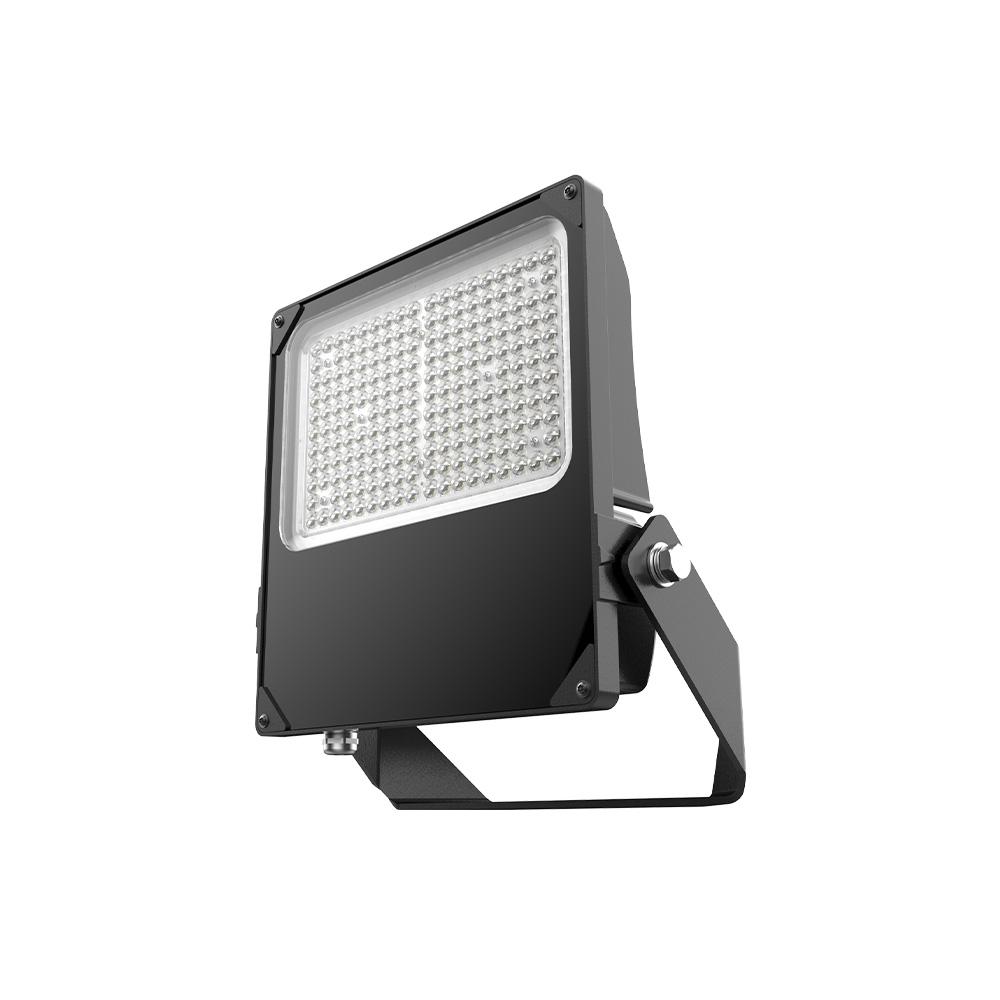

Floodlight pro || 50W | 120° | warm white 3000K
146-32050W floodlight with high >130 lm/W efficiency and 120° beam angle. Suitable for lighting gardens, pathways, entrances, facades and small signage. Optional lenses available: 60° or asymmetric.
Key product features
- Max. system power (W): 50
- Colour temperature (K): 3000
- Degree of protection (IP), front side: IP66
- Rated luminous flux according to IEC 62722-2-1 (lm): 6250
Product Name
Floodlight pro || 50W | 120° | warm white 3000K
Ean
8714984936966
Outer box qty
1st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Schuko plug
Length
200mm
Width
190mm
Height/depth
55mm
Built-in diameter
0 - 0mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
80-89
Luminous flux adjustable
No
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
208 - 227mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
None
Light distribution
Symmetric
Connectable conductor cross section
0 - 0mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP), front side
IP66
Surface protection
Powder coating
Impact strength
IK08
Max. system power
50W
Rated luminous flux according to IEC 62722-2- 1
6250 - 6250lm
Luminaire efficacy
122 - 122lm/W
Power factor
0.95
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotatable
Reflector
None
Warranty
5 years
Product Name
Floodlight pro || 50W | 120° | warm white 3000K
Light outlet
Direct
Ean
8714984936966
Beam angle
> 80° - Extreme wide beam
Outer box qty
1st
Beam angle adjustable
No
Lamp type
LED not exchangeable
Voltage type
AC
Lamp holder
None
Nominal voltage
220 - 240V
Housing colour
Black
Nominal current
208 - 227mA
Housing material
Aluminium
Number of poles
3
Material cover
Glass transparent
Light source included
Yes, fixed LED
Connection type
Schuko plug
Light distributor
None
Length
200mm
Light distribution
Symmetric
Width
190mm
Connectable conductor cross section
0 - 0mm²
Height/depth
55mm
Type of control gear
LED operating device current-controlled
Built-in diameter
0 - 0mm
Exchangeable control gear
No
Suitable for built-in mounting
No
With control gear
Yes
Suitable for surface mounting
Yes
Degree of protection (IP), front side
IP66
Suitable for pedestal/floor mounting
Yes
Surface protection
Powder coating
Suitable for wall mounting
Yes
Impact strength
IK08
Suitable for ceiling mounting
Yes
Max. system power
50W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
6250 - 6250lm
Suitable for clamp-mounting
No
Luminaire efficacy
122 - 122lm/W
With movement sensor
No
Power factor
0.95
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
3000K
Adjustability
Rotatable
Colour rendering index CRI
80-89
Reflector
None
Luminous flux adjustable
No
Warranty
5 years
This 50W floodlight is ideal for illuminating entrances, gardens, walkways, facades or compact signage. Its compact housing fits seamlessly into both residential and commercial environments.
Supplied with a rubber cable and plug for quick installation, and equipped with a wide 120° light distribution without lens. Optional 60° lens or asymmetric lens available depending on application.
Optional bracket available for mounting on Ø65 mm pole. For larger poles (up to Ø150 mm), a heavier bracket is available for one or two floodlights. This makes the fixture flexibly deployable, either individually or in combination for maximum coverage.
For wall mounting, a 1-meter wall bracket is available for positioning on walls or structures.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-floodlight-pro-50w-120-warm-white-3000k-146-320.pdf
Energy labels
Manual
146-320_Manual_NL.pdf
146-320_Manual_EN.pdf
Characteristics sheet
146-320-photometric-light-report.pdf
146-320-eulumdat.zip
