Garden spot || 24V | 40° | 2,5W | black | 2300K | non dim

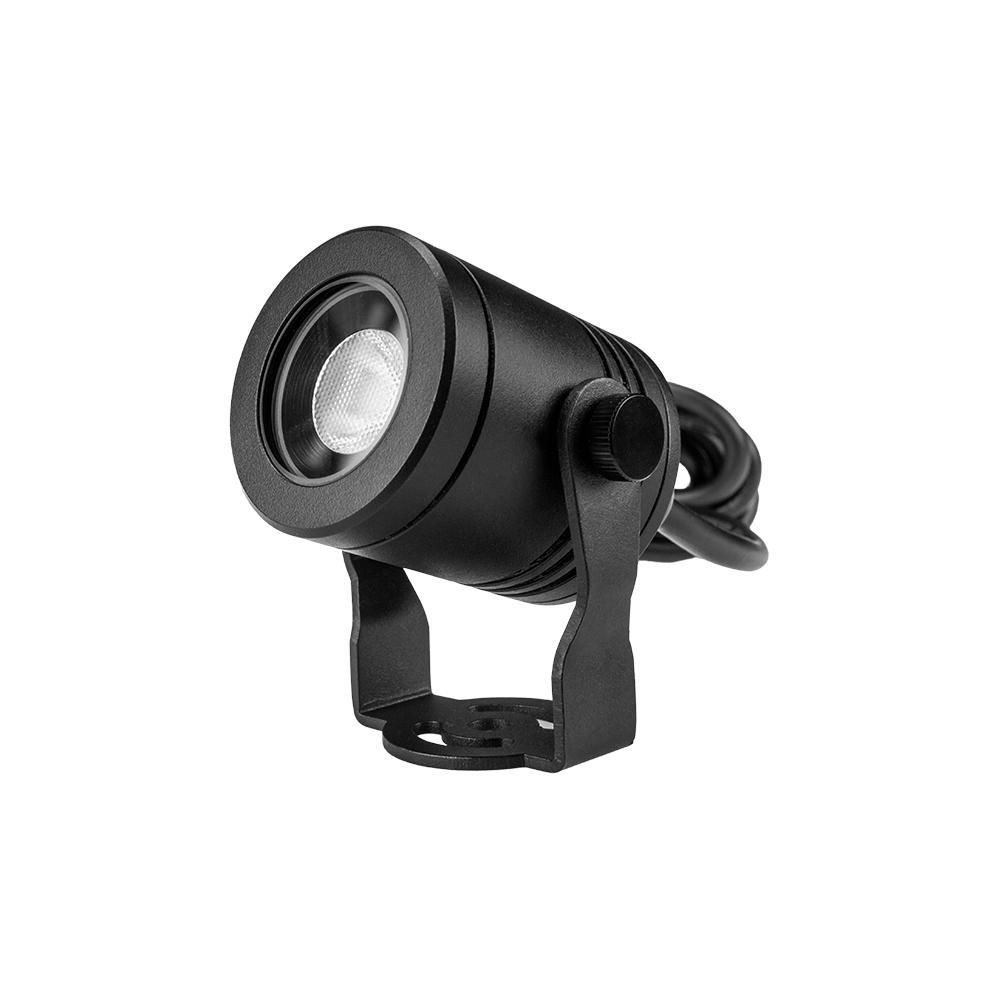

149-403This garden spot has a beam angle of 40° and can be rotated up to 180°. Due to the warm light color this spot is ideal for illuminating trees, facades or other objects outdoors.
Features
- Can be rotated up to 180°
- Easy to install with the supplied mounting bracket

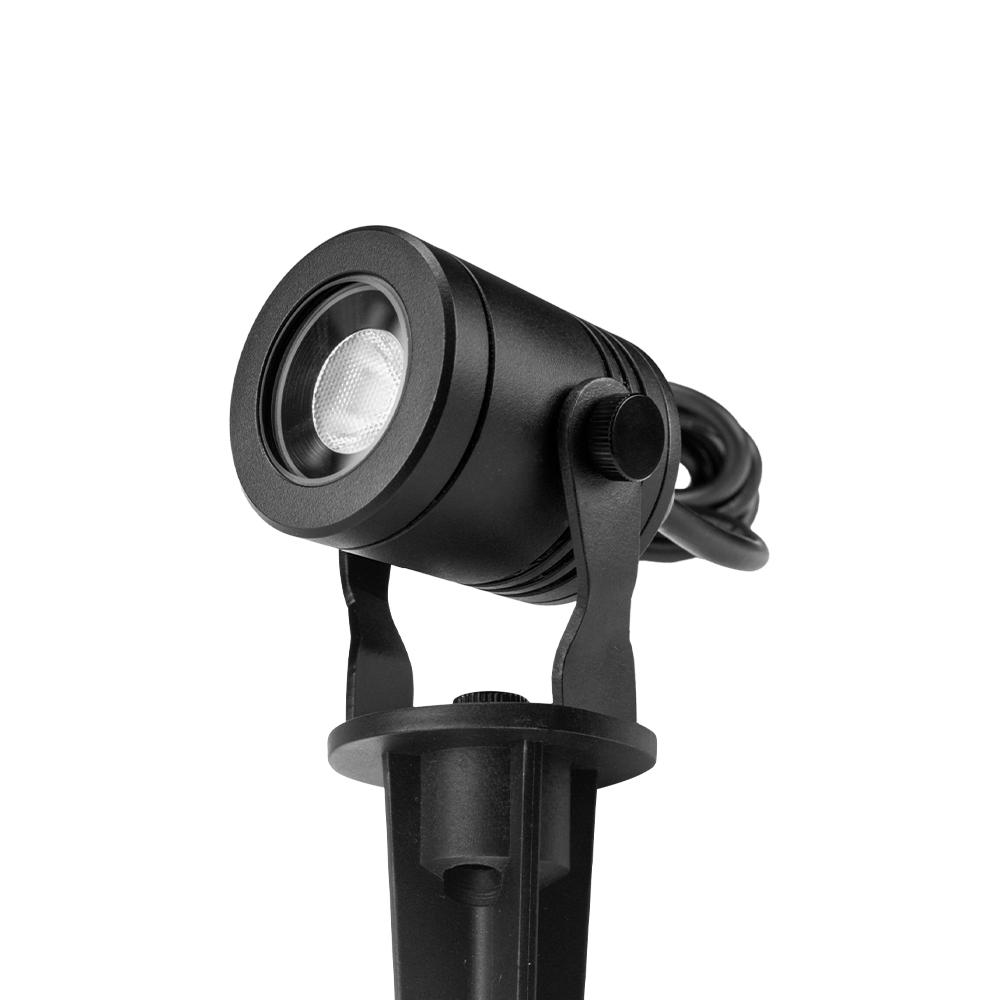

- Can be placed in the ground with ground pin 149-400
- IP65
Product Name
Garden spot || 24V | 40° | 2,5W | black | 2300K | non dim
Ean
8714984941816
Outer box qty
36st
Connection type
Other
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Material cover
Glass transparent

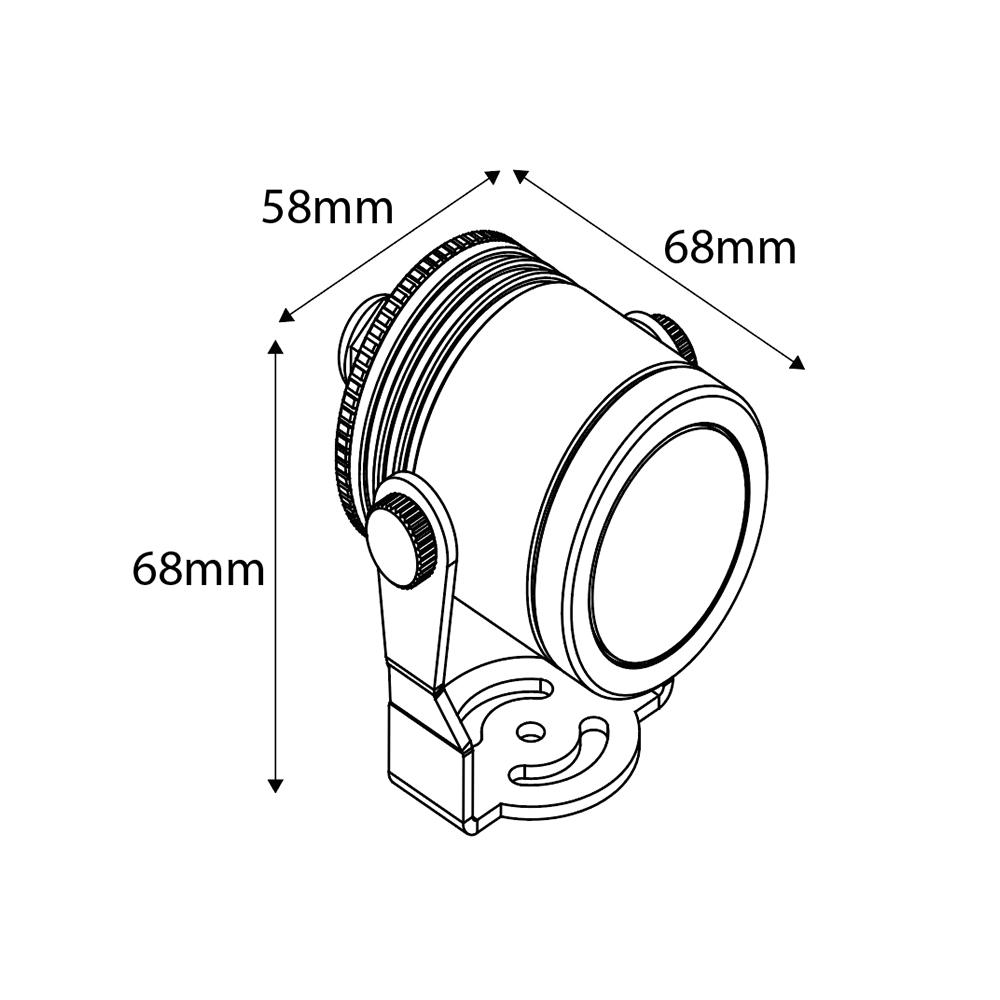

Length
68mm
Width
58mm
Height/depth
68mm
Diameter
58mm
Colour of light
White
Colour temperature
2300K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
No
Light outlet
Direct/indirect
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
24 - 24V
Nominal current
700 - 700mA
Type of power supply
Mains power supply
Number of poles
2
Light distributor
Focal lens
Light distribution
Symmetric
Type of luminaire
Ground spike
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device voltage-controlled
With control gear
No
Exchangeable control gear
No
Degree of protection (IP)
IP65
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
2.5W
Rated luminous flux according to IEC 62722-2- 1
177 - 177lm
Luminaire efficacy
88lm/W
Surface protection
Powder coating
Impact strength
IK06
Type of wiring
Ending
With base plate
Yes
Warranty
3 years
Ambient temperature
-20 - 50°C
Product Name
Garden spot || 24V | 40° | 2,5W | black | 2300K | non dim
Nominal current
700 - 700mA
Ean
8714984941816
Type of power supply
Mains power supply
Outer box qty
36st
Number of poles
2
Connection type
Other
Light distributor
Focal lens
Lamp type
LED not exchangeable
Light distribution
Symmetric
Housing colour
Black
Type of luminaire
Ground spike
Housing material
Aluminium
Connectable conductor cross section
0.75 - 2.5mm²
Material cover
Glass transparent
Type of control gear
LED operating device voltage-controlled
Length
68mm
With control gear
No
Width
58mm
Exchangeable control gear
No
Height/depth
68mm
Degree of protection (IP)
IP65
Diameter
58mm
Rated lifetime L70/B50 at 25 °C
30000h
Colour of light
White
Max. system power
2.5W
Colour temperature
2300K
Rated luminous flux according to IEC 62722-2- 1
177 - 177lm
Colour rendering index CRI
80-89
Luminaire efficacy
88lm/W
Colour of light adjustable
No
Surface protection
Powder coating
Luminous flux adjustable
No
Impact strength
IK06
Light outlet
Direct/indirect
Type of wiring
Ending
Beam angle
41-80° - Wide beam
With base plate
Yes
Beam angle adjustable
No
Warranty
3 years
Voltage type
DC
Ambient temperature
-20 - 50°C
Nominal voltage
24 - 24V
This garden spot has a beam angle of 40° and can be rotated up to 180°. Due to the warm light color this spot is ideal for illuminating trees, facades or other objects outdoors.
Features
Can be rotated up to 180°
Easy to install with the supplied mounting bracket
Can be placed in the ground with ground pin 149-400
IP65
Datasheet
Datasheet-garden-spot-24v-40-25w-black-2300k-non-dim-149-403.pdf
Energy labels
Other attachment
20220908103135712_-812183287.pdf
Manual
149-403_Manual_NL.pdf
149-403_Manual_EN.pdf
