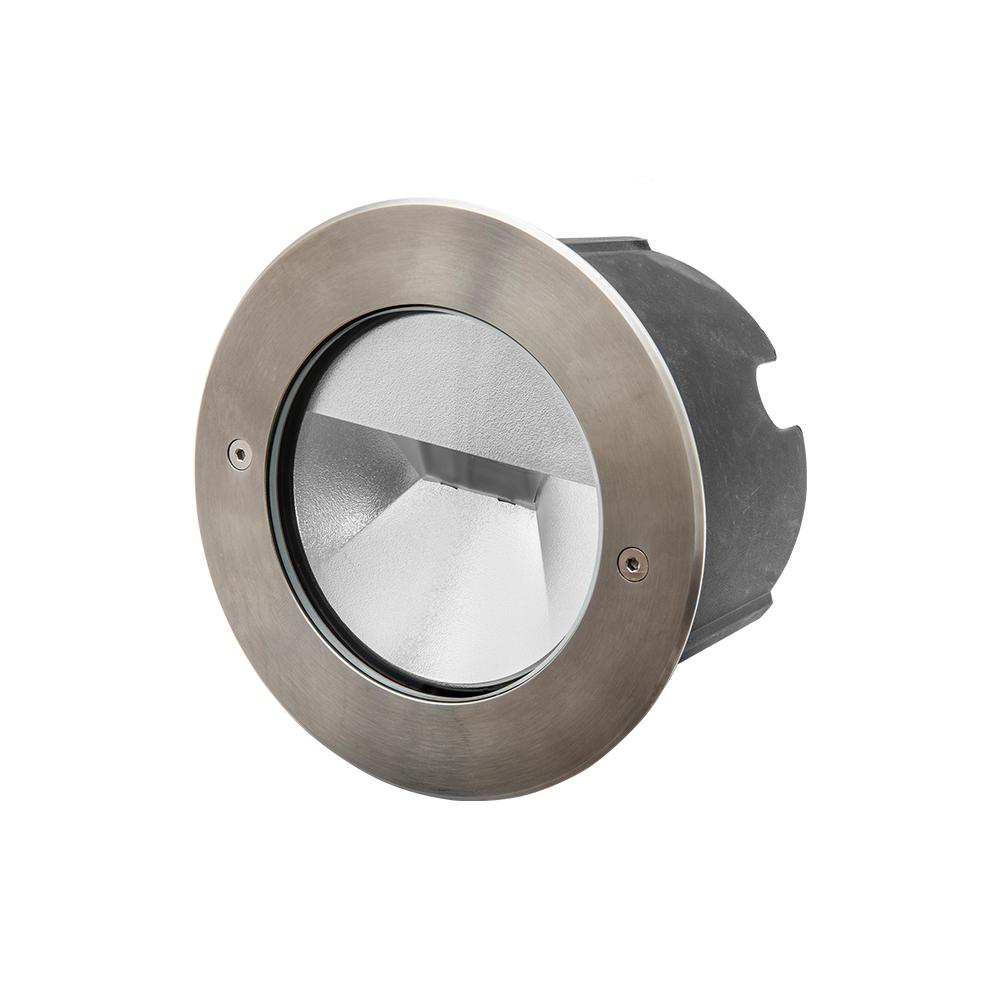

Ground spot | 195mm | 18,8W | asymmetrical | 3000K
140-075Subtle yet powerful: these ground spots offer asymmetric optics, warm white light and a durable stainless steel finish for precise façade or object lighting.
Key product features:
- Light distribution: Asymmetric

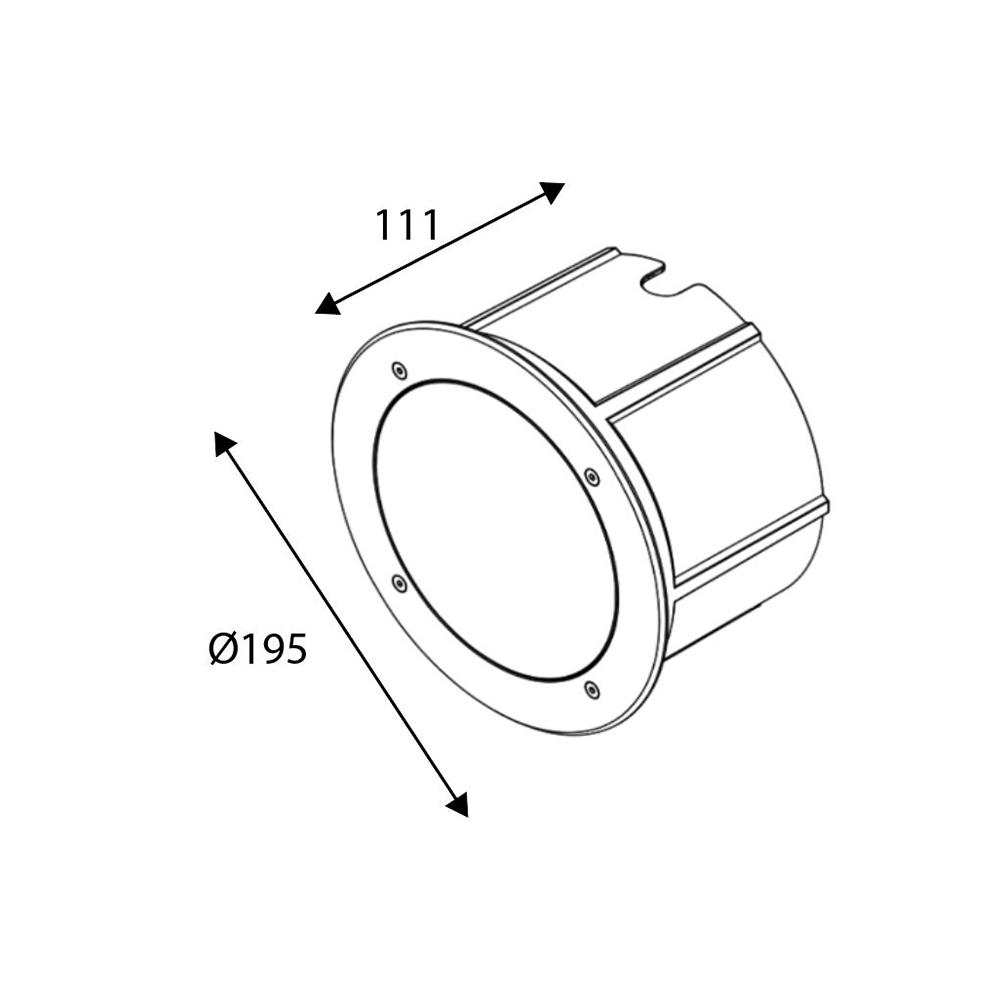

- Outer diameter (mm): 195
- Built-in diameter (mm): 174
- Degree of protection (IP): IP67
- Colour temperature (K): 3000 – 3000
- Max. system power (W): 18.8
Product Name
Ground spot | 195mm | 18,8W | asymmetrical | 3000K
Ean
8714984935761
Outer box qty
8st
Dimmable
No
Dimming DMX
No
Dimming phase cut-off (trailing edge)
No
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Anthracite
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Other
Built-in length
111mm
Built-in height/depth
111mm
Built-in diameter
174mm
Outer diameter
195mm
Colour of light
White
Colour temperature
3000K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
No
Constant light output (CLO)
No
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
91 - 91mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Asymmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Max. surface temperature
50°C
Max. load
1.7kg
Over rollable
No
Electrical connection with connector system
No
Adjustable
No
Degree of protection (IP)
IP67
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
18.8W
Rated luminous flux according to IEC 62722-2- 1
1128 - 1128lm
Luminaire efficacy
61lm/W
Impact strength
IK09
Power factor
0.9
Type of wiring
Ending
Warranty
2 years
Product Name
Ground spot | 195mm | 18,8W | asymmetrical | 3000K
Nominal voltage
220 - 240V
Ean
8714984935761
Nominal current
91 - 91mA
Outer box qty
8st
Number of poles
3
Dimmable
No
Light source included
Yes, fixed LED
Dimming DMX
No
Light distributor
Reflector
Dimming phase cut-off (trailing edge)
No
Light distribution
Asymmetric
Lamp type
LED not exchangeable
Connectable conductor cross section
0.75 - 2.5mm²
Lamp holder
None
Type of control gear
LED operating device current-controlled
Housing colour
Anthracite
With control gear
Yes
Housing material
Aluminium
Exchangeable control gear
No
Material cover
Glass transparent
Max. surface temperature
50°C
Connection type
Other
Max. load
1.7kg
Built-in length
111mm
Over rollable
No
Built-in height/depth
111mm
Electrical connection with connector system
No
Built-in diameter
174mm
Adjustable
No
Outer diameter
195mm
Degree of protection (IP)
IP67
Colour of light
White
Rated lifetime L70/B50 at 25 °C
30000h
Colour temperature
3000K
Max. system power
18.8W
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1128 - 1128lm
Colour of light adjustable
No
Luminaire efficacy
61lm/W
Luminous flux adjustable
No
Impact strength
IK09
Constant light output (CLO)
No
Power factor
0.9
Beam angle
41-80° - Wide beam
Type of wiring
Ending
Beam angle adjustable
No
Warranty
2 years
Voltage type
AC

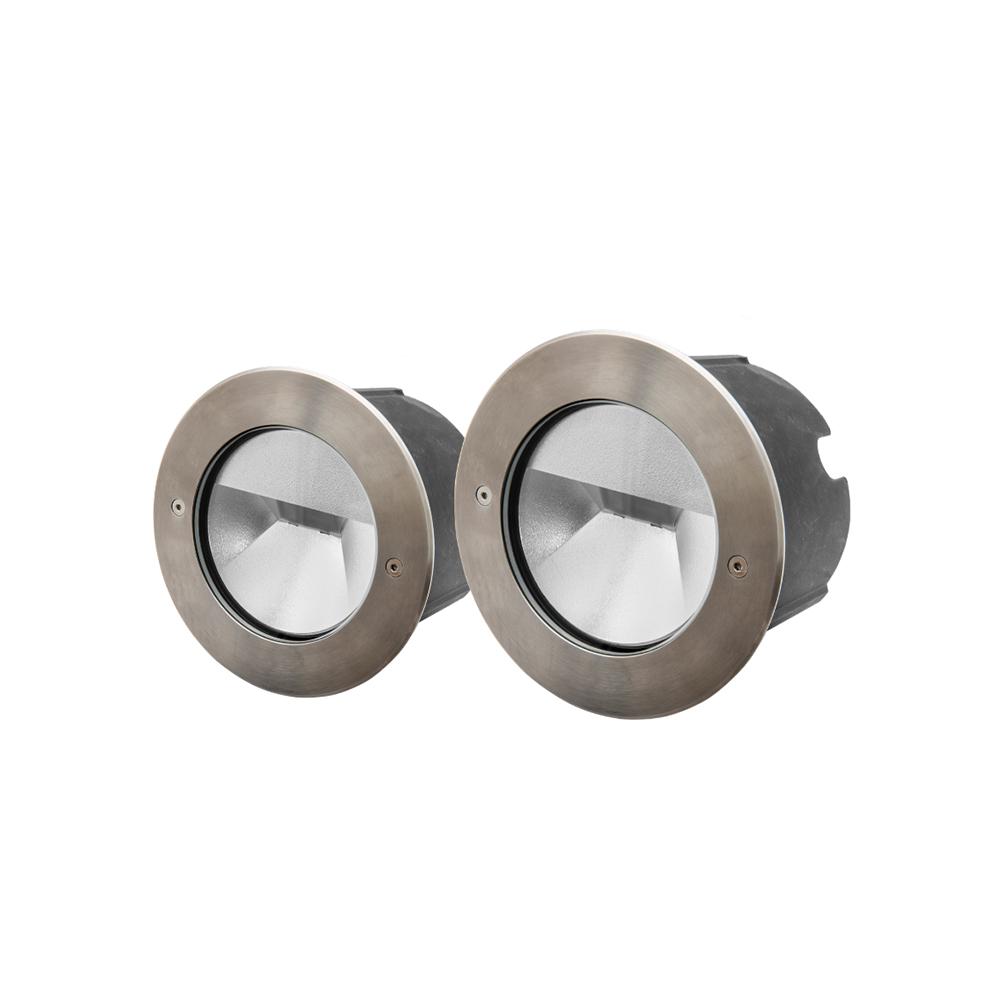

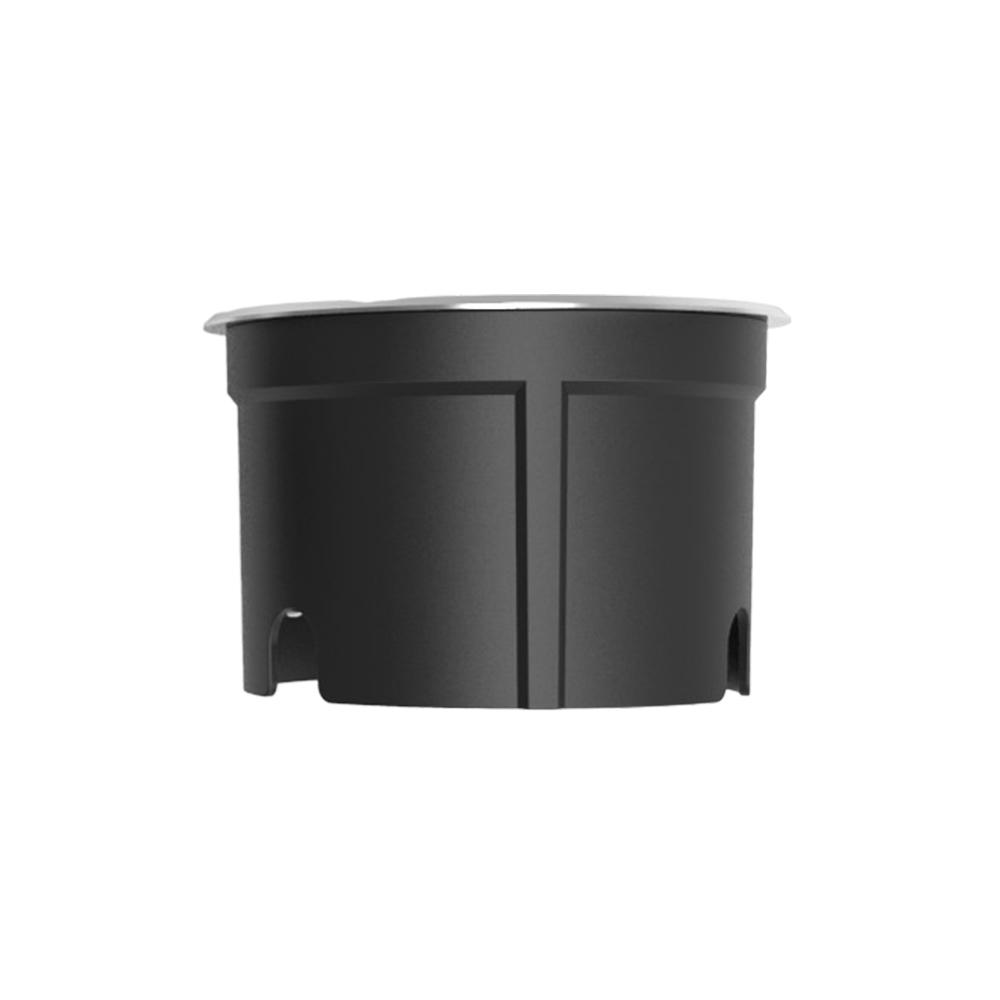

The Tronix 140-074 and 140-075 ground spots are high-quality LED luminaires with an asymmetric beam, ideal for highlighting façades, objects or architectural details.

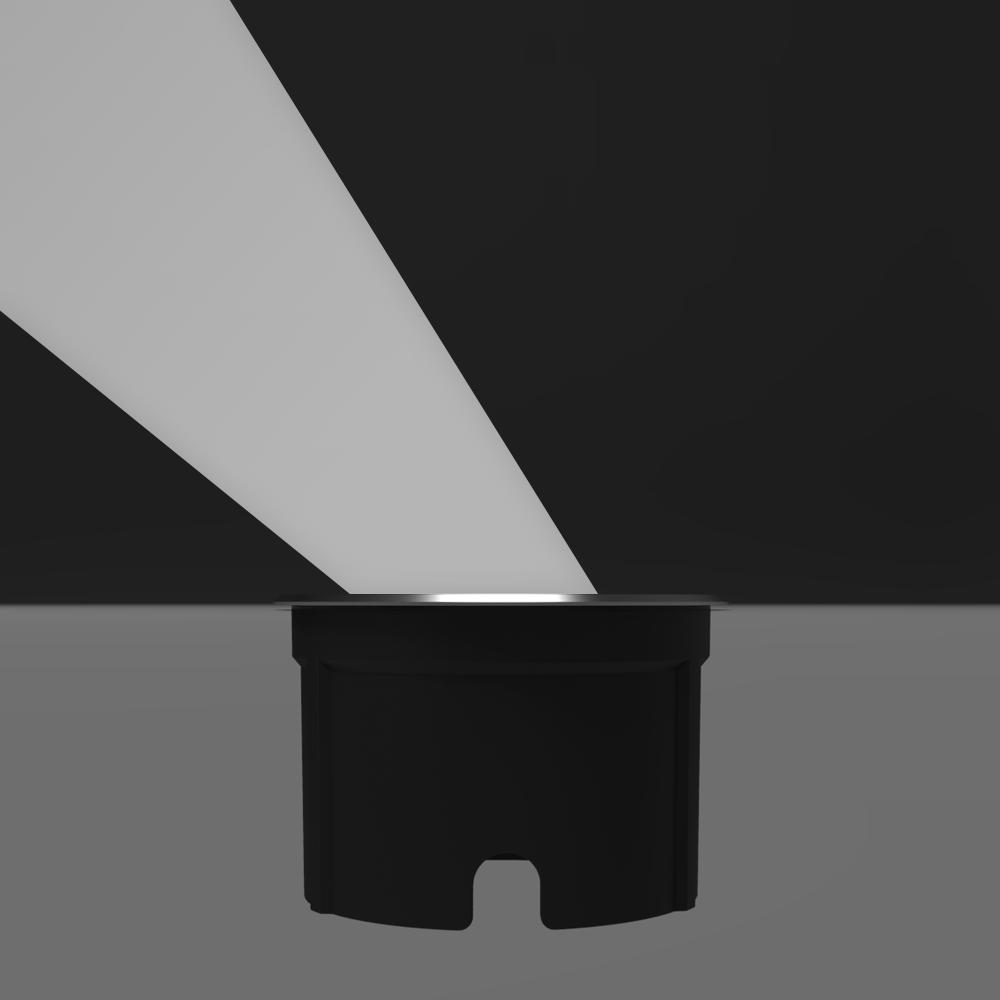

The smart optics project light at an angle, avoiding glare and light pollution.

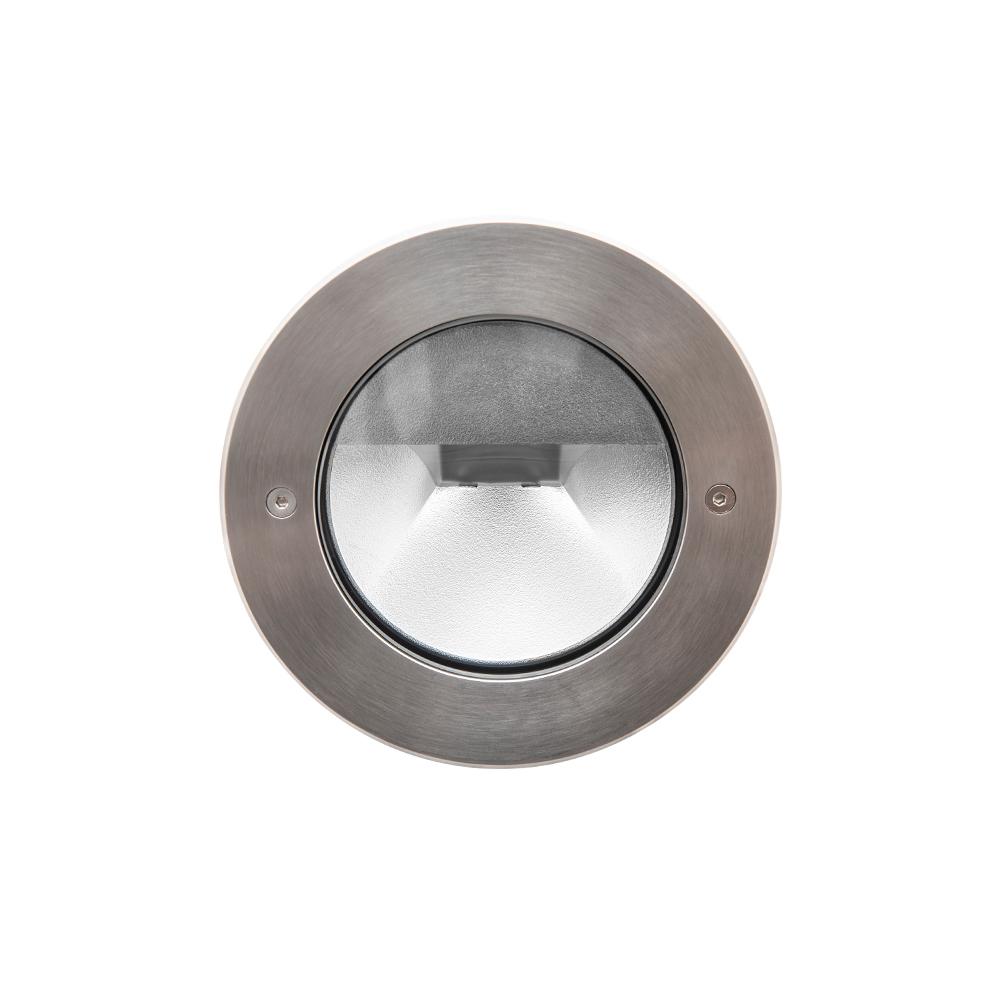

Each unit features a fixed LED module (3000K), 316 stainless steel top ring and IP67-rated housing. Includes 3-metre flexible PUR cable (H07BQ-F 3x1 mm²) resistant to UV, oil and cold, suitable for permanent outdoor installation.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-ground-spot-195mm-188w-asymmetrical-3000k-140-075.pdf
Energy labels
Manual
140-075_Manual_NL.pdf
140-075_Manual_EN.pdf
Characteristics sheet
140-075-photometric-light-report.pdf
140-075.ldt
