Ground spot | 215mm | 40 watt | 30° | IP67 | RGBW | DMX512

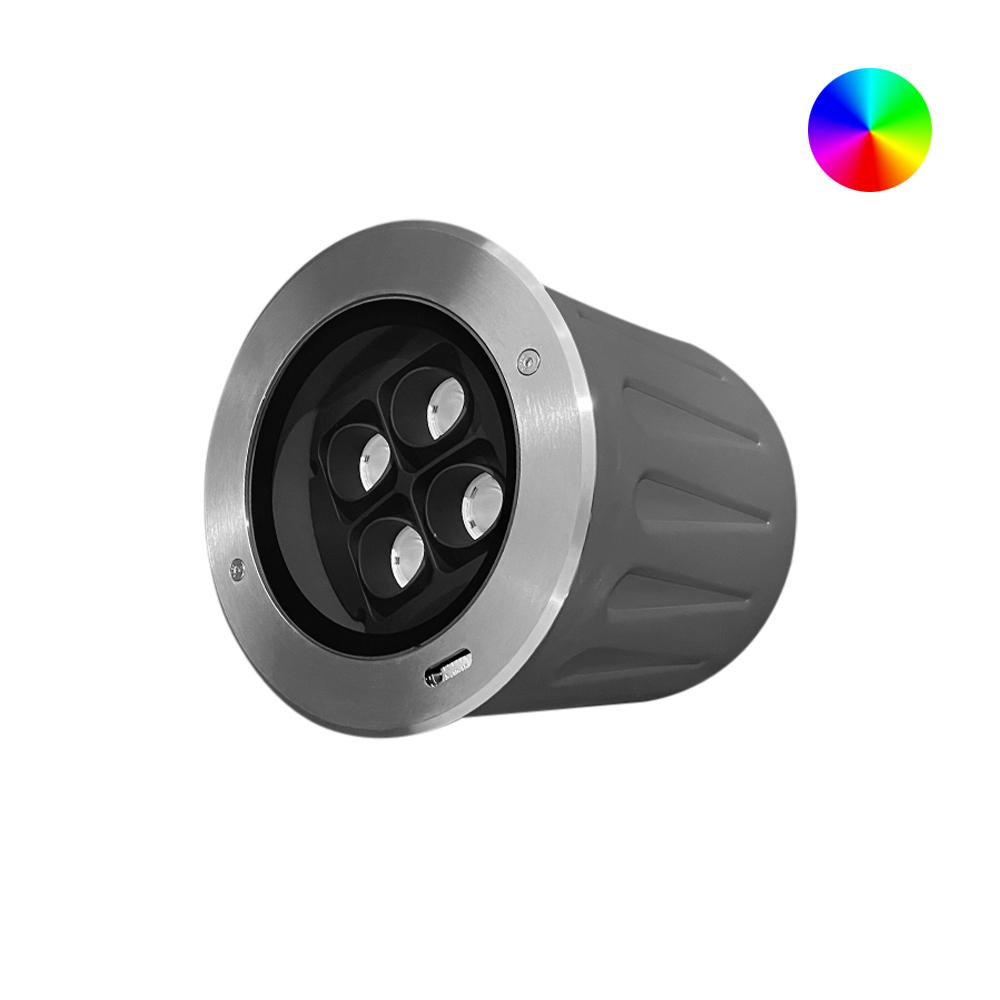

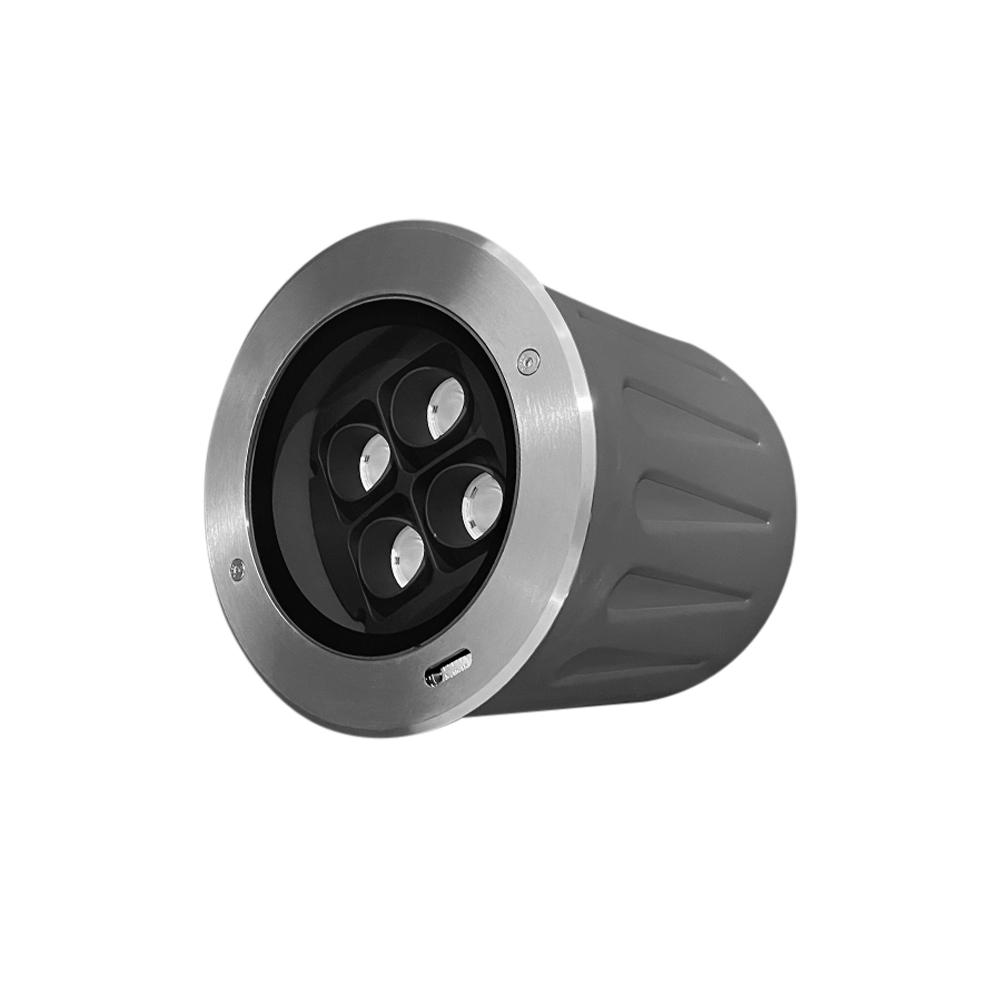

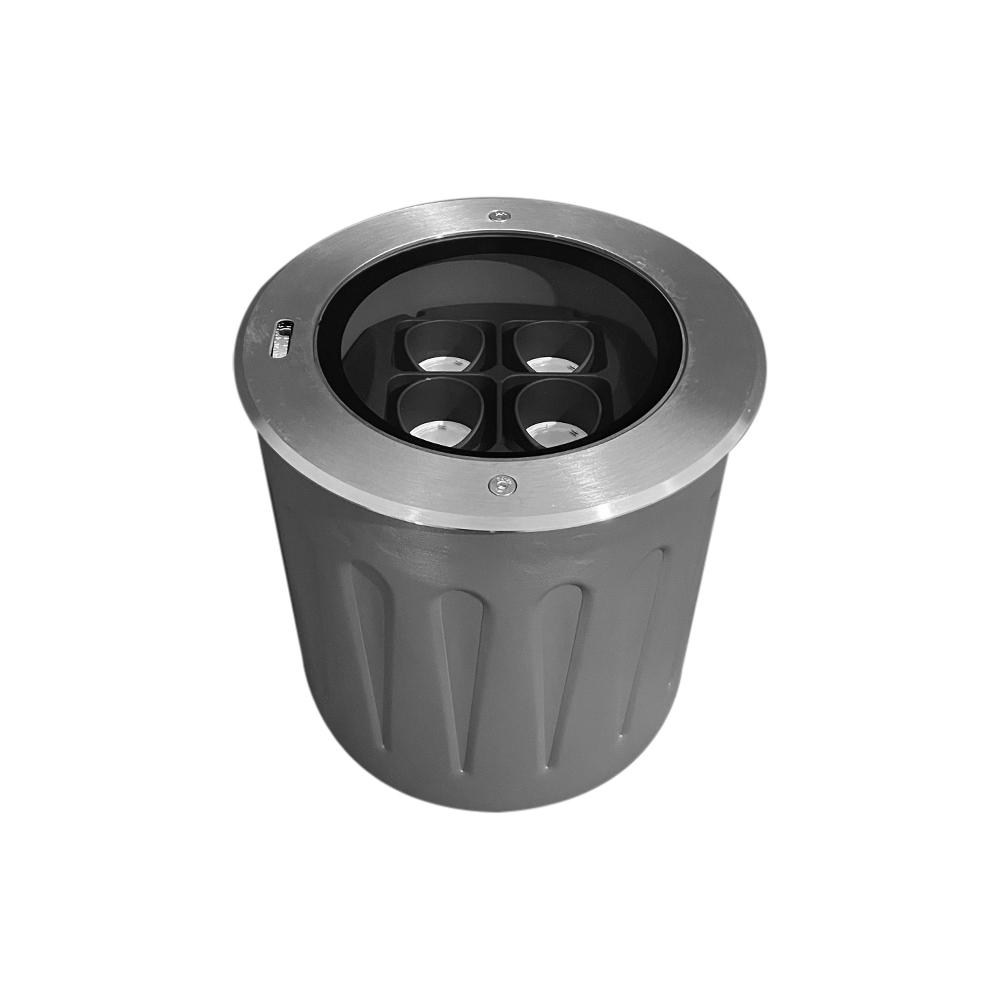

190-140This RGBW LED ground spot offers high resistance to various weather conditions, making it ideally suited as lighting in a garden, along a sidewalk or next to a facade. The inside offers a tiltable frame, making it possible to direct the light as desired.
Features
- RGBW: Red, green, blue, warm white (3000K)
- DMX512 controllable
- Programmed on DMX channel 1 (other channels possible)
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
Product Name
Ground spot | 215mm | 40 watt | 30° | IP67 | RGBW | DMX512
Ean
8714984949034
Outer box qty
4st
Dimmable
Yes
Dimming DMX
Yes
Dimming phase cut-off (trailing edge)
No
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Anthracite
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Other

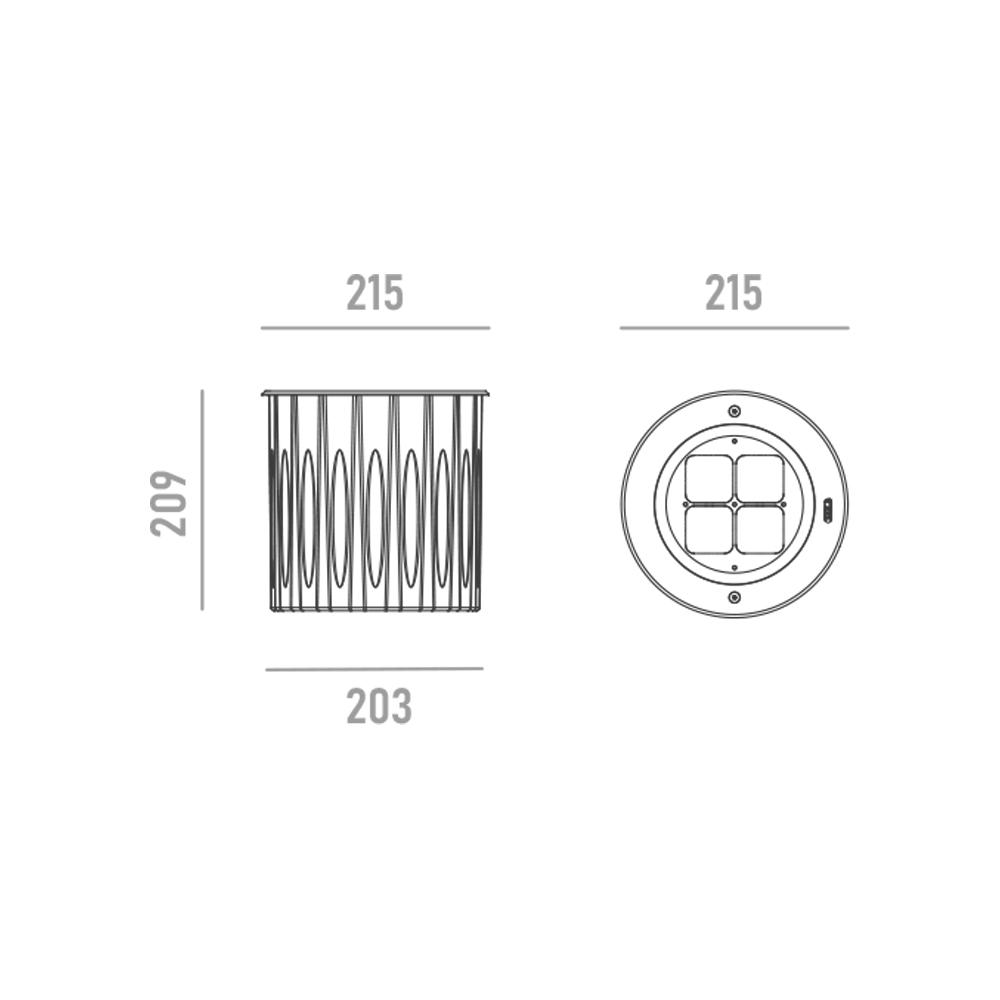

Built-in length
209mm
Built-in height/depth
209mm
Built-in diameter
203mm
Outer diameter
215mm
Colour of light
RGBW
Colour temperature
RGBW
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
No
Constant light output (CLO)
No
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
24 - 24V
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Max. surface temperature
50°C
Max. load
5kg
Over rollable
No
Housing material quality
Stainless steel 316 (1.4401)
Electrical connection with connector system
No
Adjustable
No
Degree of protection (IP)
IP67
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
40W
Rated luminous flux according to IEC 62722-2- 1
1600 - 1600lm
Luminaire efficacy
40lm/W
Impact strength
IK10
Power factor
0.9
Type of wiring
Ending
Warranty
5 years
Product Name
Ground spot | 215mm | 40 watt | 30° | IP67 | RGBW | DMX512
Nominal voltage
24 - 24V
Ean
8714984949034
Number of poles
3
Outer box qty
4st
Light source included
Yes, fixed LED
Dimmable
Yes
Light distributor
Reflector
Dimming DMX
Yes
Light distribution
Symmetric
Dimming phase cut-off (trailing edge)
No
Connectable conductor cross section
0.75 - 2.5mm²
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
Lamp holder
None
With control gear
Yes
Housing colour
Anthracite
Exchangeable control gear
No
Housing material
Aluminium
Max. surface temperature
50°C
Material cover
Glass transparent
Max. load
5kg
Connection type
Other
Over rollable
No
Built-in length
209mm
Housing material quality
Stainless steel 316 (1.4401)
Built-in height/depth
209mm
Electrical connection with connector system
No
Built-in diameter
203mm
Adjustable
No
Outer diameter
215mm
Degree of protection (IP)
IP67
Colour of light
RGBW
Rated lifetime L70/B50 at 25 °C
50000h
Colour temperature
RGBW
Max. system power
40W
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1600 - 1600lm
Colour of light adjustable
No
Luminaire efficacy
40lm/W
Luminous flux adjustable
No
Impact strength
IK10
Constant light output (CLO)
No
Power factor
0.9
Beam angle
21-40° - Medium beam
Type of wiring
Ending
Beam angle adjustable
No
Warranty
5 years
Voltage type
DC
This RGBW LED ground spot offers high resistance to various weather conditions, making it ideally suited as lighting in a garden, along a sidewalk or next to a facade. The inside offers a tiltable frame, making it possible to direct the light as desired.
Features
RGBW: Red, green, blue, warm white (3000K)
DMX512 controllable
Programmed on DMX channel 1 (other channels possible)
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
Datasheet
Datasheet-ground-spot-215mm-40-watt-30-ip67-rgbw-dmx512-190-140.pdf
