Ground spot | 230V | 123mm | 16 watt | 2700K | adj. | dim

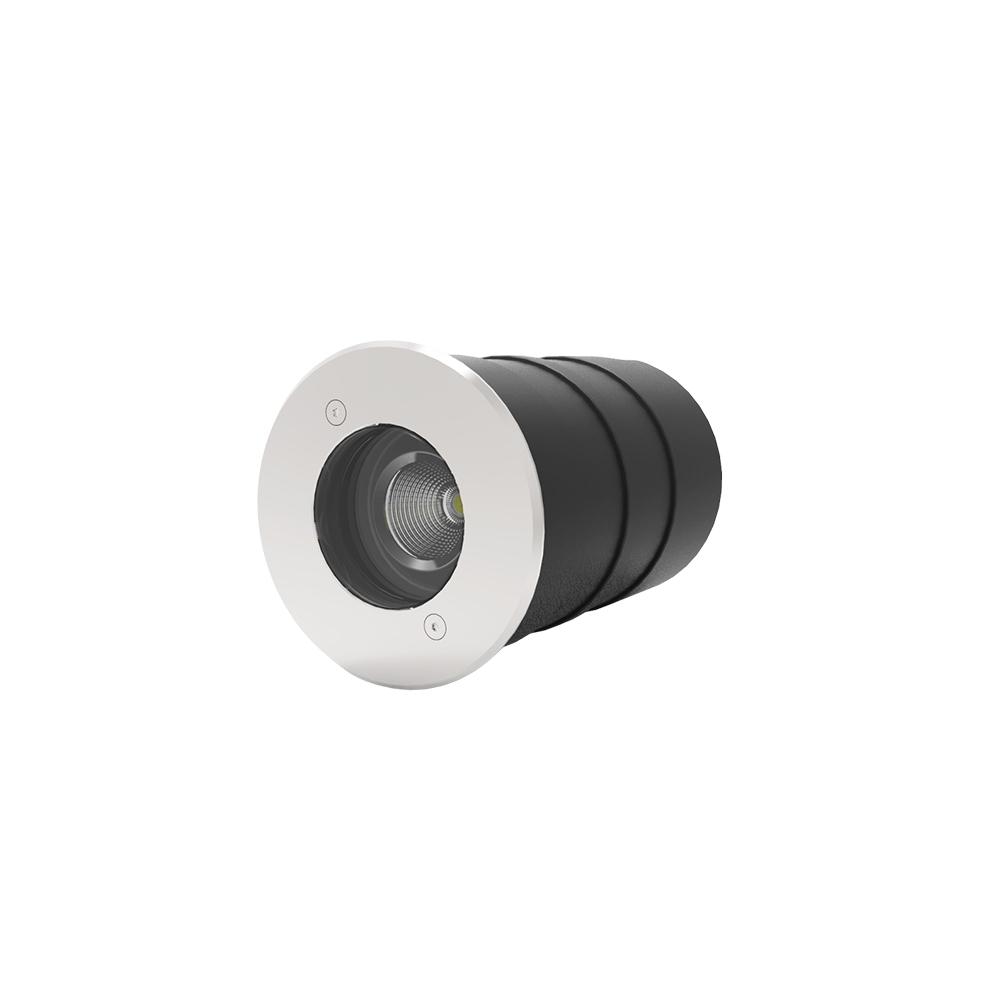

140-086Durable ground spotlight with fixed LED, IP67, IK10, dimmable via phase-cut. Includes internal driver and 3m PUR cable – ideal for long-term outdoor use.
Key product features:
- Outer diameter (mm): 123
- Built-in diameter (mm): 111
- Degree of protection (IP): IP67
- Colour temperature (K): 2700
- Dimming trailing edge: Yes
- Impact strength: IK10
- Max. system power (W): 16
Product Name
Ground spot | 230V | 123mm | 16 watt | 2700K | adj. | dim
Ean
8714984941373
Outer box qty
8st
Dimmable
Yes
Dimming DMX
No
Dimming phase cut-off (trailing edge)
Yes
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Anthracite
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Other

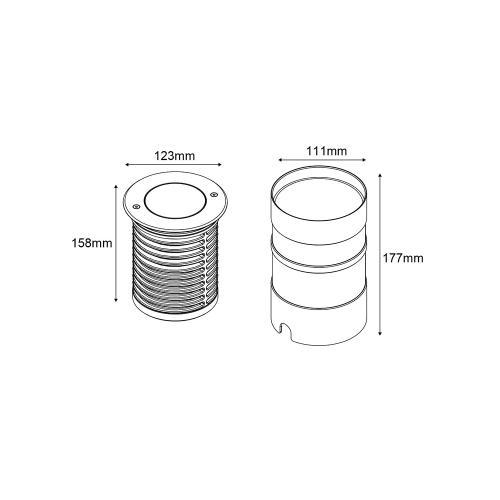

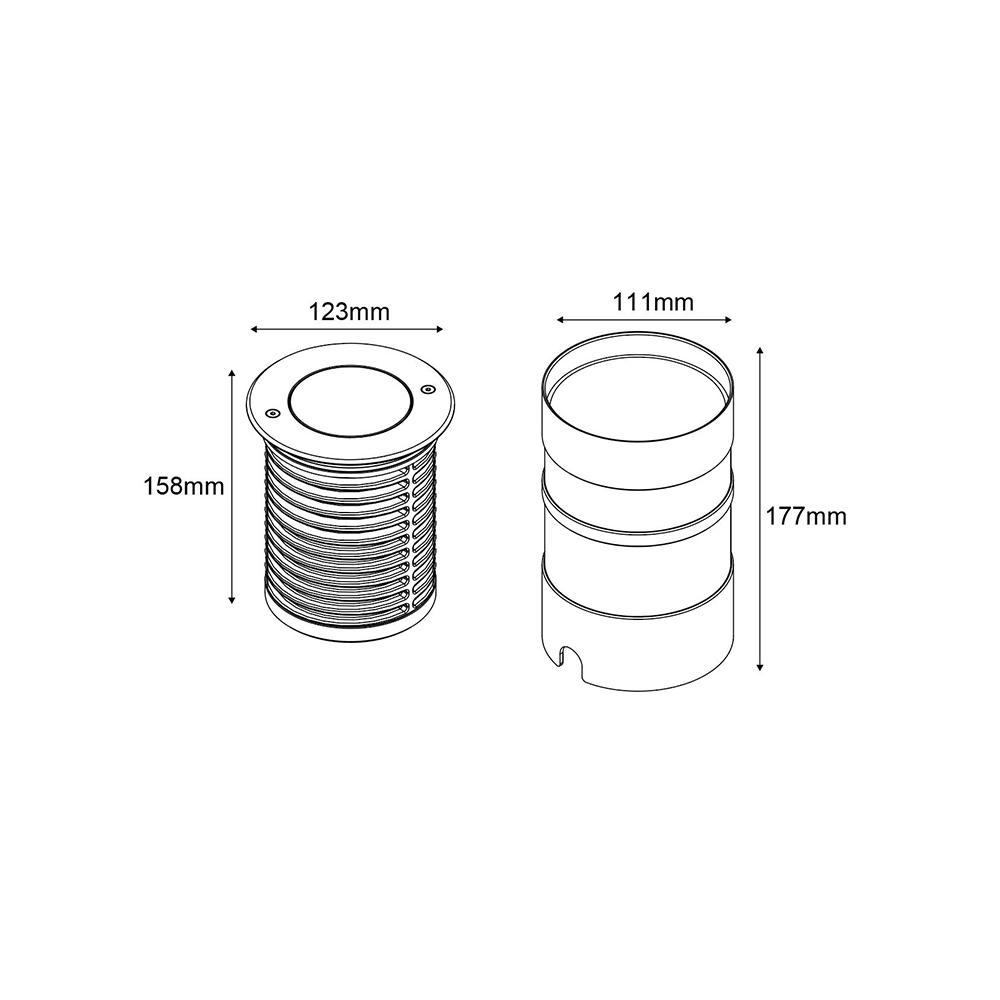

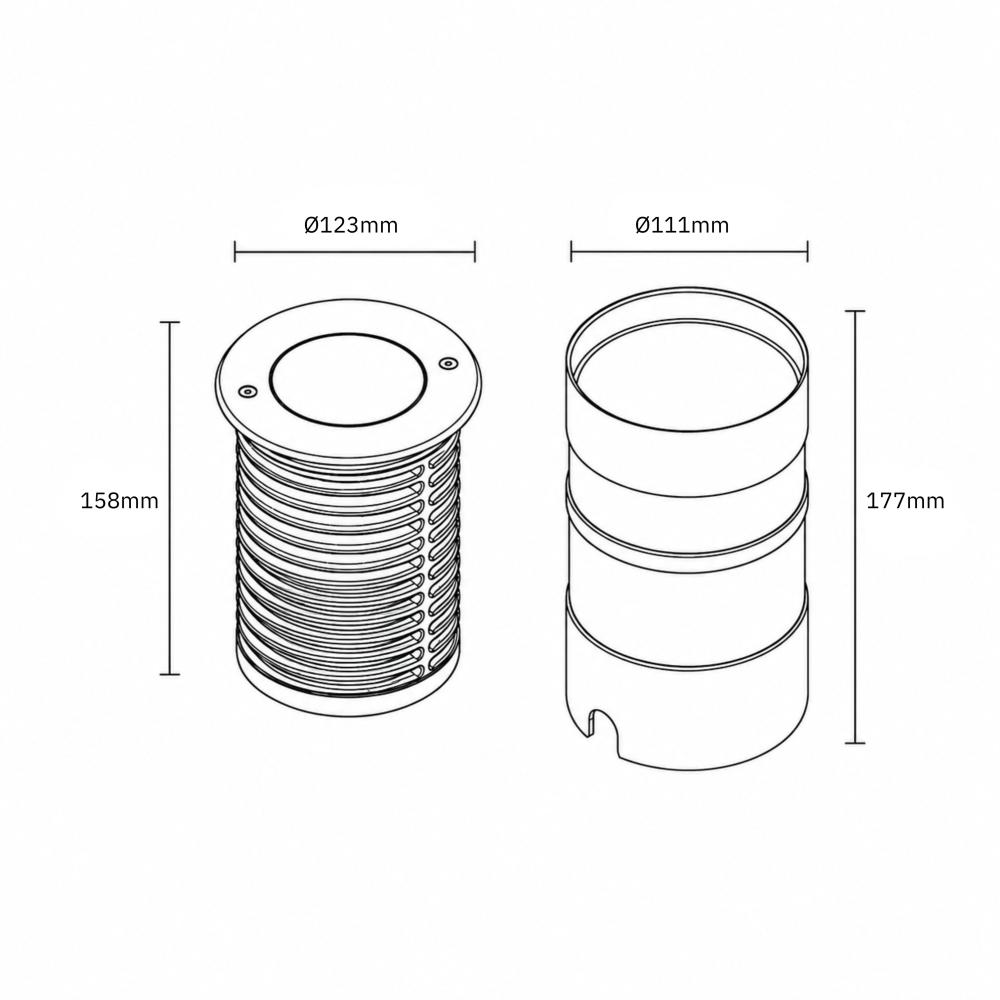

Length
158mm
Height/depth
158mm
Built-in length
177mm
Built-in height/depth
177mm
Built-in diameter
111mm
Outer diameter
123mm
Colour of light
White
Colour temperature
2700K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Constant light output (CLO)
No
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
66 - 66mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
With control gear
Yes
Exchangeable control gear
No
Max. surface temperature
50°C
Max. load
100kg
Over rollable
No
Electrical connection with connector system
No
Adjustable
Yes
Degree of protection (IP)
IP67
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
16W
Rated luminous flux according to IEC 62722-2- 1
1440 - 1440lm
Luminaire efficacy
90lm/W
Impact strength
IK10
Power factor
0.97
Type of wiring
Ending
Warranty
3 years
Product Name
Ground spot | 230V | 123mm | 16 watt | 2700K | adj. | dim
Voltage type
AC
Ean
8714984941373
Nominal voltage
220 - 240V
Outer box qty
8st
Nominal current
66 - 66mA
Dimmable
Yes
Number of poles
3
Dimming DMX
No
Light source included
Yes, fixed LED
Dimming phase cut-off (trailing edge)
Yes
Light distributor
Reflector
Lamp type
LED not exchangeable
Light distribution
Symmetric
Lamp holder
None
Connectable conductor cross section
0.75 - 2.5mm²
Housing colour
Anthracite
Type of control gear
LED operating device current-controlled
Housing material
Aluminium
With control gear
Yes
Material cover
Glass transparent
Exchangeable control gear
No
Connection type
Other
Max. surface temperature
50°C
Length
158mm
Max. load
100kg
Height/depth
158mm
Over rollable
No
Built-in length
177mm
Electrical connection with connector system
No
Built-in height/depth
177mm
Adjustable
Yes
Built-in diameter
111mm
Degree of protection (IP)
IP67
Outer diameter
123mm
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light
White
Max. system power
16W
Colour temperature
2700K
Rated luminous flux according to IEC 62722-2- 1
1440 - 1440lm
Colour rendering index CRI
80-89
Luminaire efficacy
90lm/W
Colour of light adjustable
No
Impact strength
IK10
Luminous flux adjustable
Continuously variable
Power factor
0.97
Constant light output (CLO)
No
Type of wiring
Ending
Beam angle
21-40° - Medium beam
Warranty
3 years
Beam angle adjustable
No

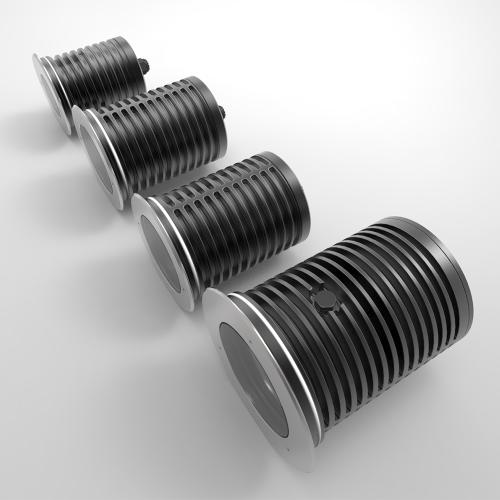

This range of Tronix ground spotlights is available in four sizes and two colour temperatures (2700K and 3000K), combining ambience and functionality. Their clean, round design with durable stainless steel ring blends seamlessly into various outdoor environments.
The fully cast housing integrates a fixed LED and dimmable driver, making them low maintenance and long-lasting. The 3m PUR cable (H07BQ-F 3x1 mm²) resists oil, moisture, UV and mechanical stress, and remains flexible in low temperatures. A 36° beam can be tilted up to 22° for targeted illumination of objects. With an IP67 rating, the luminaires are fully dust- and waterproof, and the IK10-rated housing provides protection against heavy-duty impact.
