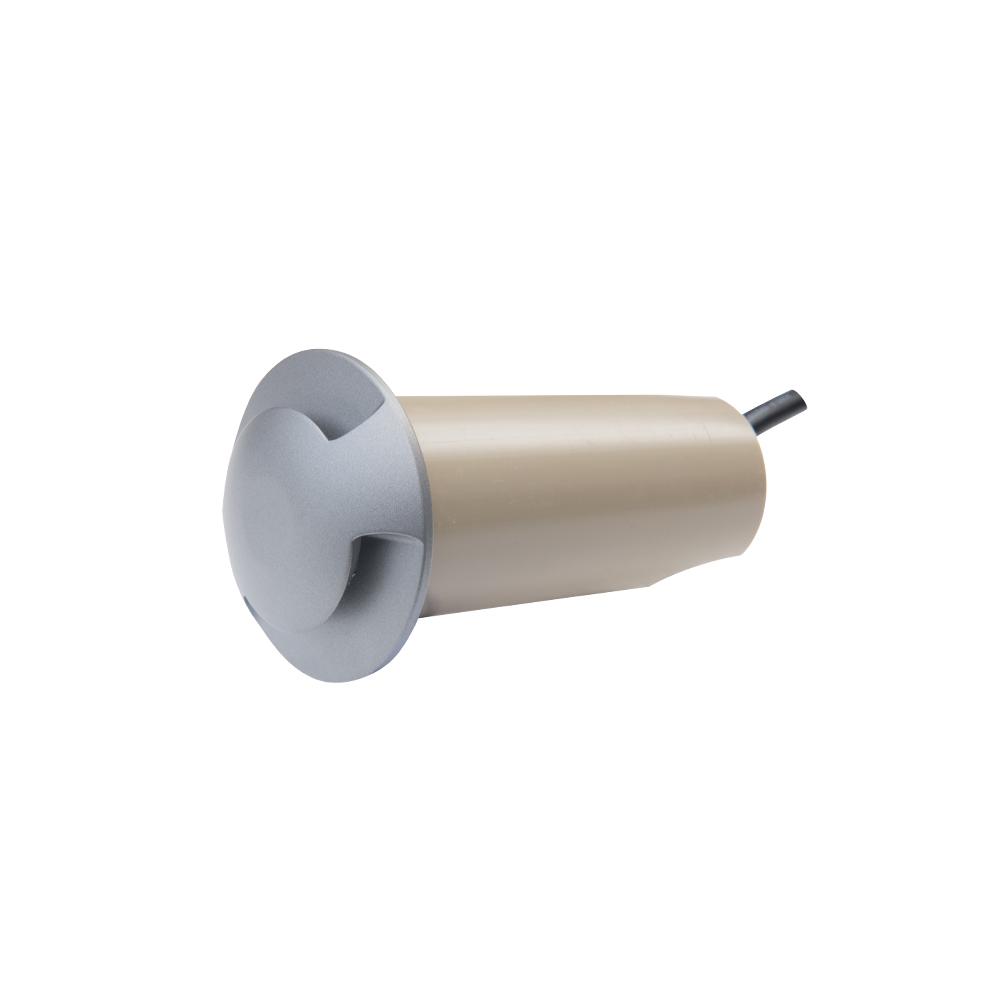

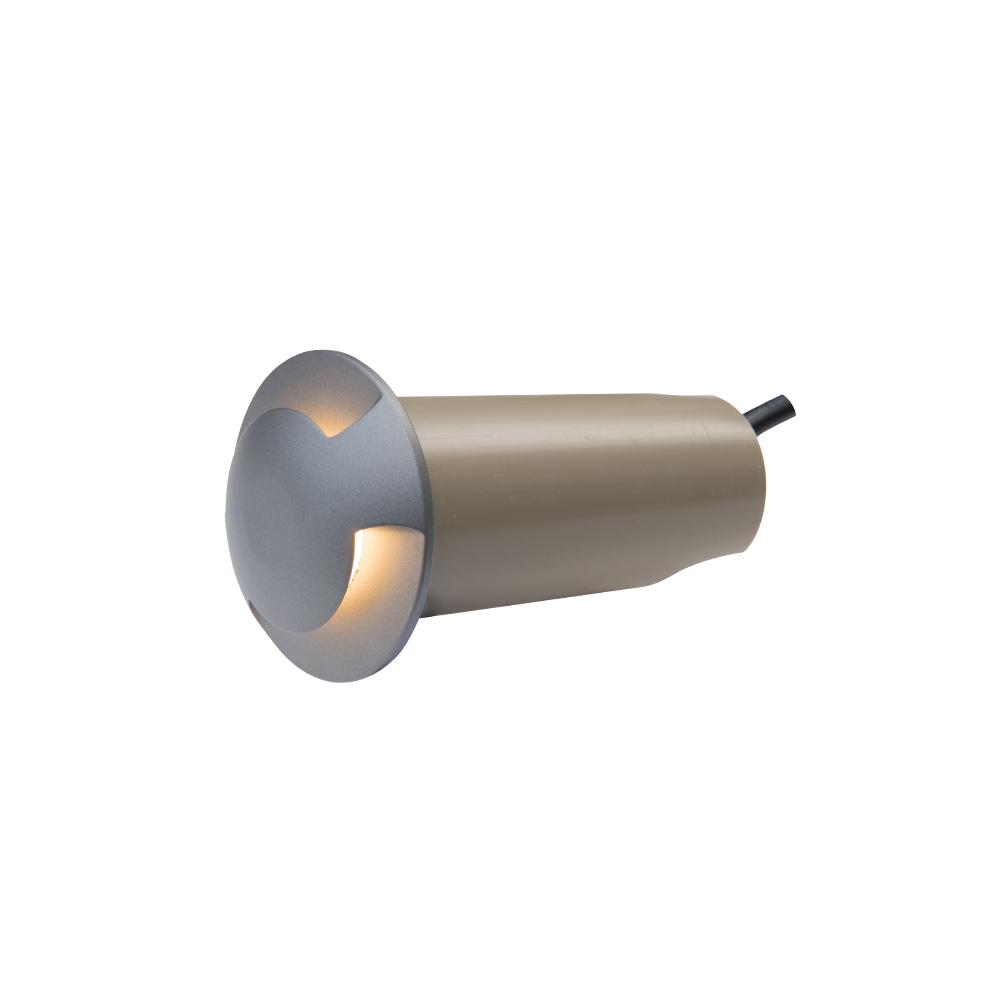

Ground spot || 24V | 60mm | double side | 2,4W | 3000K
140-01624V ground spot with high-quality aluminium cover ring, CREE LEDs and a lightbeam on both sides. Power supply excluded.
Features
- IK08 and IP67
- 24V, excluding power supply
- Extra long connection cable (3 meters)
Product Name
Ground spot || 24V | 60mm | double side | 2,4W | 3000K
Ean
8714984925984
Outer box qty
50st
Dimmable
No
Dimming DMX
No
Dimming phase cut-off (trailing edge)
No
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Beige
Housing material
Aluminium
Material cover
Other
Connection type
Other

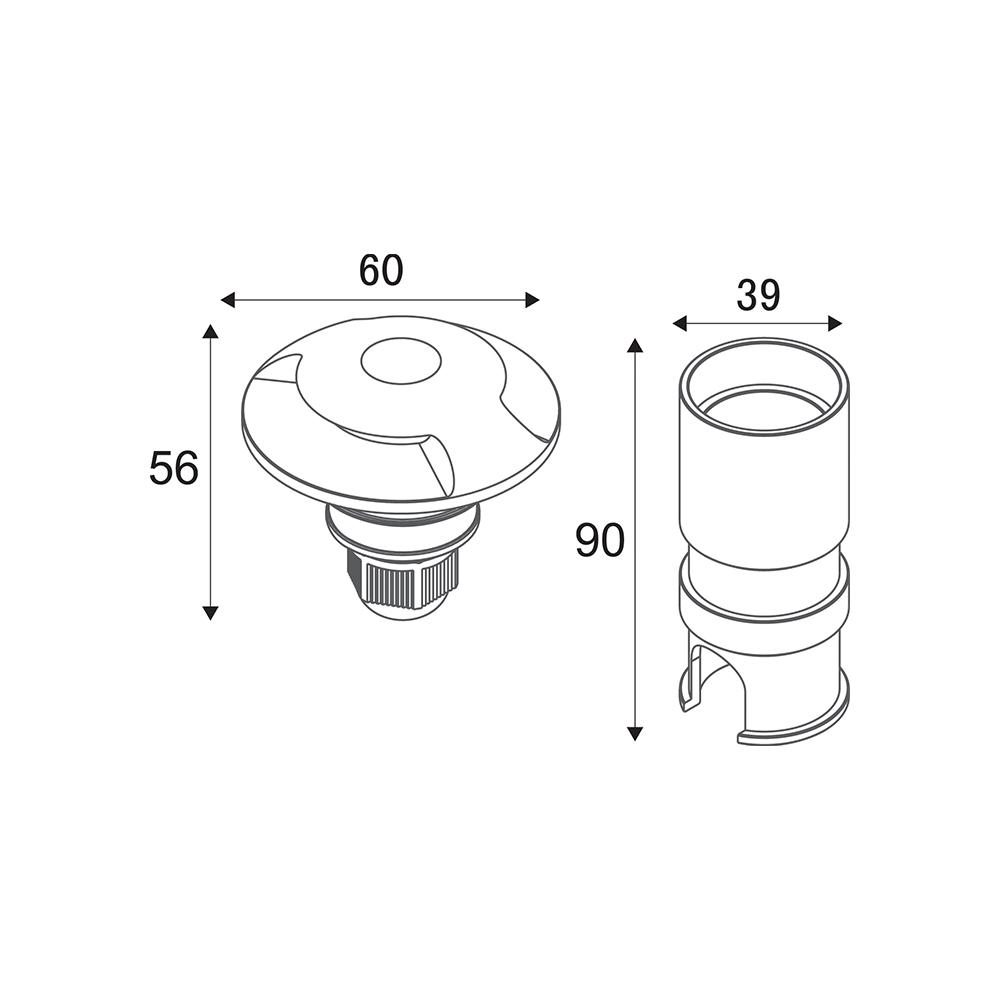

Length
56mm
Height/depth
56mm
Built-in length
90mm
Built-in height/depth
90mm
Built-in diameter
39mm
Outer diameter
60mm
Colour of light
White
Colour temperature
3000K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
No
Constant light output (CLO)
No
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
24 - 24V
Nominal current
700 - 700mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device voltage-controlled
With control gear
No
Exchangeable control gear
Yes
Max. surface temperature
50°C
Max. load
0.25kg
Over rollable
No
Housing material quality
Other
Electrical connection with connector system
No
Adjustable
No
Degree of protection (IP)
IP67
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
2.4W
Rated luminous flux according to IEC 62722-2- 1
111 - 111lm
Luminaire efficacy
46.3lm/W
Impact strength
IK08
Type of wiring
Ending
Warranty
3 years
Product Name
Ground spot || 24V | 60mm | double side | 2,4W | 3000K
Voltage type
DC
Ean
8714984925984
Nominal voltage
24 - 24V
Outer box qty
50st
Nominal current
700 - 700mA
Dimmable
No
Number of poles
2
Dimming DMX
No
Light source included
Yes, fixed LED
Dimming phase cut-off (trailing edge)
No
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Light distribution
Symmetric
Lamp holder
None
Connectable conductor cross section
0.75 - 2.5mm²
Housing colour
Beige
Type of control gear
LED operating device voltage-controlled
Housing material
Aluminium
With control gear
No
Material cover
Other
Exchangeable control gear
Yes
Connection type
Other
Max. surface temperature
50°C
Length
56mm
Max. load
0.25kg
Height/depth
56mm
Over rollable
No
Built-in length
90mm
Housing material quality
Other
Built-in height/depth
90mm
Electrical connection with connector system
No
Built-in diameter
39mm
Adjustable
No
Outer diameter
60mm
Degree of protection (IP)
IP67
Colour of light
White
Rated lifetime L70/B50 at 25 °C
30000h
Colour temperature
3000K
Max. system power
2.4W
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
111 - 111lm
Colour of light adjustable
No
Luminaire efficacy
46.3lm/W
Luminous flux adjustable
No
Impact strength
IK08
Constant light output (CLO)
No
Type of wiring
Ending
Beam angle
> 80° - Extreme wide beam
Warranty
3 years
Beam angle adjustable
No
24V ground spot with high-quality aluminium cover ring, CREE LEDs and a lightbeam on both sides. Power supply excluded.
Features
IK08 and IP67
24V, excluding power supply
Extra long connection cable (3 meters)
Datasheet
Datasheet-ground-spot-24v-60mm-double-side-24w-3000k-140-016.pdf
Energy labels
Manual
140-016_Manual_NL.pdf
140-016_Manual_EN.pdf
