Industrial lightbar 150cm ||52W | 120° | 3-CCT | IP65 | IK08

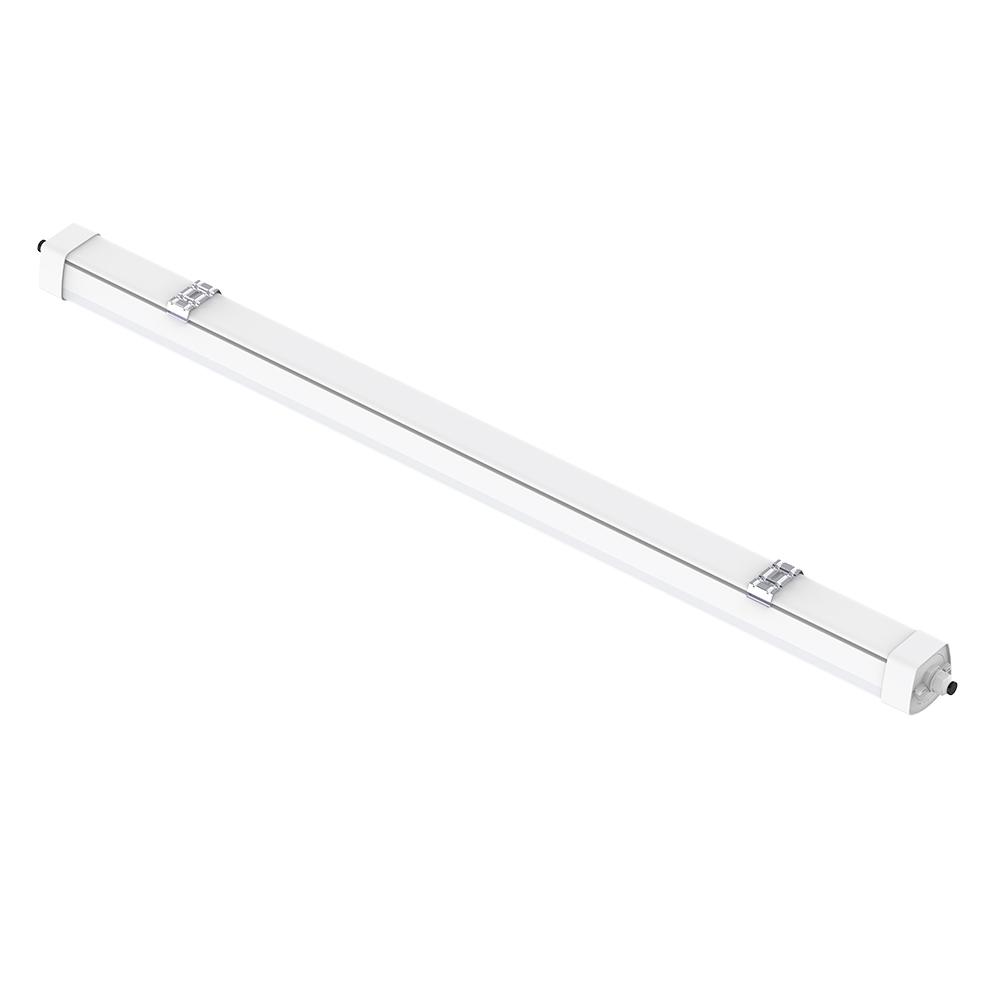

950-078This industrial light bar is pre-adjustable to 3000K, 4000K and 5700K through a CCT switch on the fixture. The light bar is easy to mount on the ceiling, as well as suspended using special 950-079 steel cables.
Features
- High luminous efficiency of >150 Lm/W
- Variable color temperature with 3000K, 4000K and 5700K
- IP65 waterproof
- Includes suspension clips and waterproof connectors (M20)
- Quick to assemble by simple click system. Both for opening the fixture, and the built-in connection block
Product Name
Industrial lightbar 150cm ||52W | 120° | 3-CCT | IP65 | IK08
Ean
8714984947856
Outer box qty
6st
Dimmable
No
Connection type
Push-in clamp
Lamp type
LED not exchangeable
Housing colour
Grey
Material
Plastic
Length
150cm
Length
1500mm
Width
77mm
Height/depth
69mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
5000K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
100 - 240V
Nominal current
1500 - 1500mA
Number of poles
5
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
52W
Rated luminous flux according to IEC 62722-2- 1
7800 - 7800lm
Luminaire efficacy
150lm/W
Power factor
0.9
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
5 years
Product Name
Industrial lightbar 150cm ||52W | 120° | 3-CCT | IP65 | IK08
Voltage type
AC
Ean
8714984947856
Nominal voltage
100 - 240V
Outer box qty
6st
Nominal current
1500 - 1500mA
Dimmable
No
Number of poles
5
Connection type
Push-in clamp
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Connectable conductor cross section
1 - 2.5mm²
Housing colour
Grey
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
150cm
With control gear
Yes
Length
1500mm
Degree of protection (IP)
IP65
Width
77mm
Impact strength
IK08
Height/depth
69mm
Rated lifetime L70/B50 at 25 °C
50000h
With movement sensor
No
Max. system power
52W
With presence detector
No
Rated luminous flux according to IEC 62722-2- 1
7800 - 7800lm
With light sensor
No
Luminaire efficacy
150lm/W
Colour of light
White
Power factor
0.9
Colour temperature
5000K
Type of wiring
Loop-through wiring included
Colour rendering index CRI
80-89
Suitable for emergency lighting
No
Colour of light adjustable
No
Emergency power supply system
None
Luminous flux adjustable
Positions
Emergency function monitoring system
None
Beam angle adjustable
No
Warranty
5 years
This industrial light bar is pre-adjustable to 3000K, 4000K and 5700K through a CCT switch on the fixture. The light bar is easy to mount on the ceiling, as well as suspended using special 950-079 steel cables.
Features
High luminous efficiency of >150 Lm/W
Variable color temperature with 3000K, 4000K and 5700K
IP65 waterproof
Includes suspension clips and waterproof connectors (M20)
Quick to assemble by simple click system. Both for opening the fixture, and the built-in connection block
Datasheet
Datasheet-industrial-lightbar-150cm-52w-120-3-cct-ip65-ik08-950-078.pdf
Energy labels
Other attachment
950-078_3000K_Luminaire_photometric_test_report.pdf
950-078_4000K_luminaire_photometric_test_report.pdf
950-078_5700K_Luminaire_photometric_test_report.pdf
950-078_3000K_IES.IES
950-078_4000K_IES.IES
950-078_5700K_IES.IES
Characteristics sheet
950-078_technical_datasheet_extended.pdf
