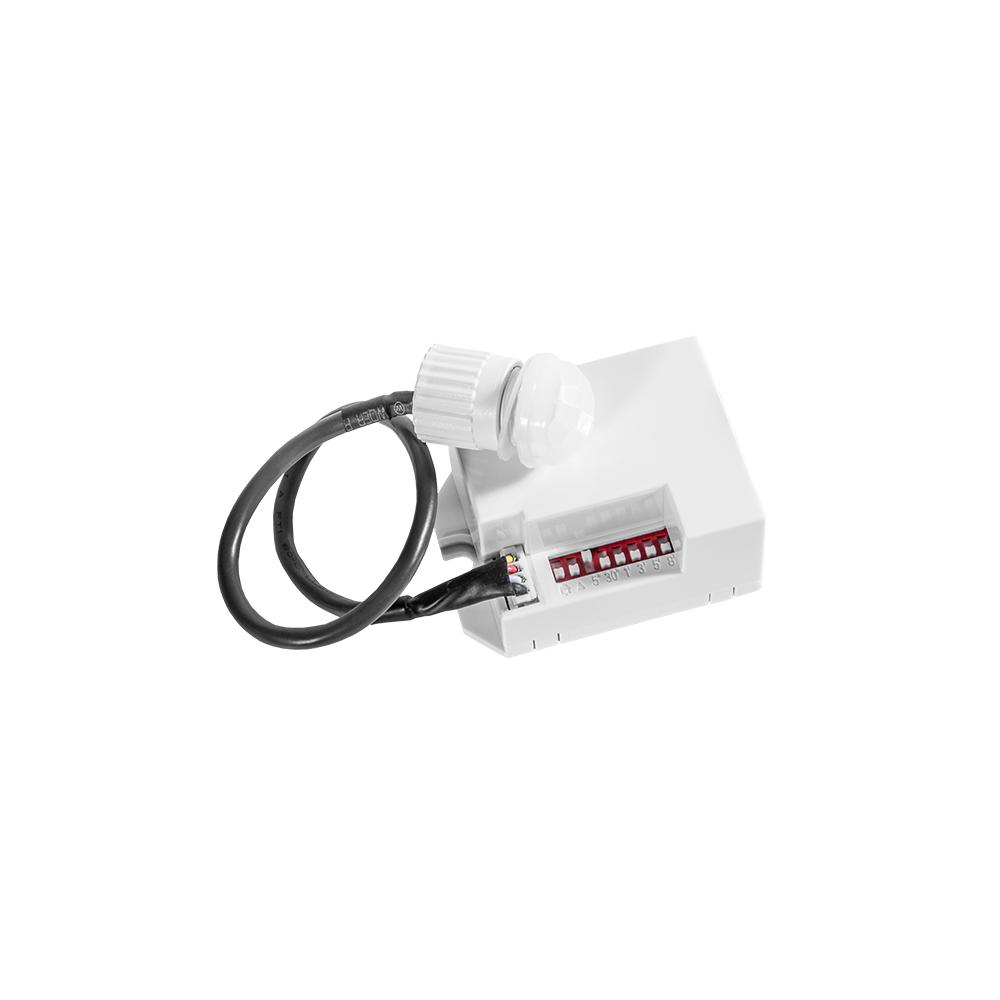

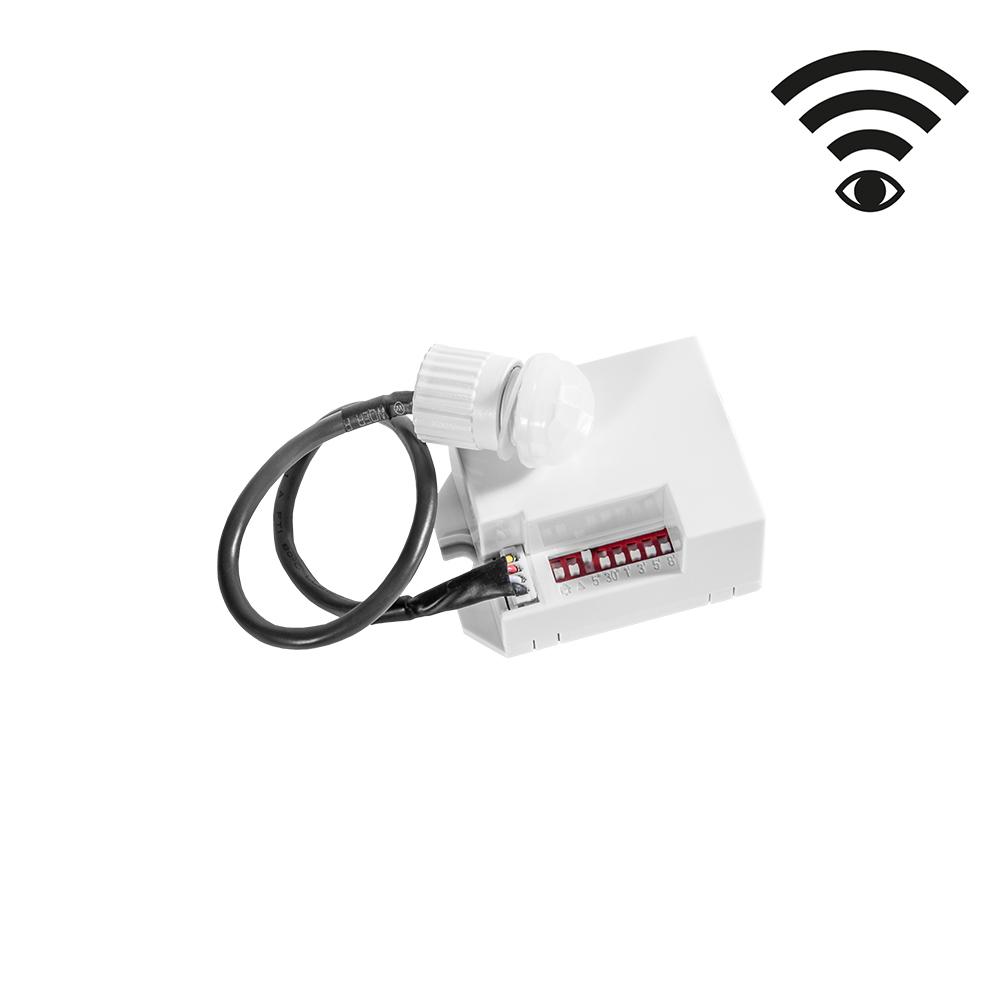

IR motion sensor | recesse mounted | IP20 | max. 200W
214-120Recessed motion sensor for movement detection with 360° detection angle. Operates on 230V and automatically switches lighting based on movement and light level.
Key product features
- Mounting method: Built-in
- Diameter reach on floor (m): 6
- Response value sensitivity adjustable: Yes
- Response value luminosity adjustable: Yes
- Max. duty cycle (min): 8
- With movement sensor: Yes
- With light sensor: Yes
Product Name
IR motion sensor | recesse mounted | IP20 | max. 200W
Ean
8714984909083
Outer box qty
50st
Colour
White
Type
Movement sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
2.5m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
3m
Max. reach frontally
6m
Diameter reach on floor
6m
Detection angle horizontal
360 - 360°
Min. switch-on time
30s
Max. duty cycle
8min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Switch-off delay self-learning
No
Max. switching power
200W
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Matt
Warranty
5 years
Product Name
IR motion sensor | recesse mounted | IP20 | max. 200W
Min. switch-on time
30s
Ean
8714984909083
Max. duty cycle
8min
Outer box qty
50st
With presence detector
No
Colour
White
With movement sensor
Yes
Type
Movement sensor
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
Yes
Sensor connect
No
Response value luminosity adjustable
Yes
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Flush-mounted
Dim function with dimmer basic element
No
Mounting height
2.5m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP20
Max. switching power
200W
Suitable for wireless transmission
No
Operation mode switch
No
Constant light control
No
Staircase light controller
No
Networkable
No
Halogen free
Yes
Max. reach sideways
3m
RAL-number (similar)
9016
Max. reach frontally
6m
Surface finishing
Matt
Diameter reach on floor
6m
Warranty
5 years
Detection angle horizontal
360 - 360°
Compact recessed PIR sensor designed for automatic lighting in indoor areas such as hallways, stairwells, toilets, and entrances. Detects movement up to 6 metres at an installation height of 1.8 to 2.5 metres, with a full 360° detection angle.
Light sensitivity is adjustable between 10 and 2000 lux for day/night detection. In SUN mode the sensor switches at any light level; in MOON mode only at dusk or darkness. Delay time is adjustable from 5 seconds to 8 minutes and resets on renewed detection.
Supports loads up to 800W (incandescent) or 200W (LED/CFL). Own consumption is only 0.45W. For proper operation: install free from obstructions, not near heat sources or ventilation.
Mounting via spring clips in ceiling cut-out. Connect using three terminals: live, neutral, and switched output.
