IR motion sensor || surface mounted | IP20 | max. 600W

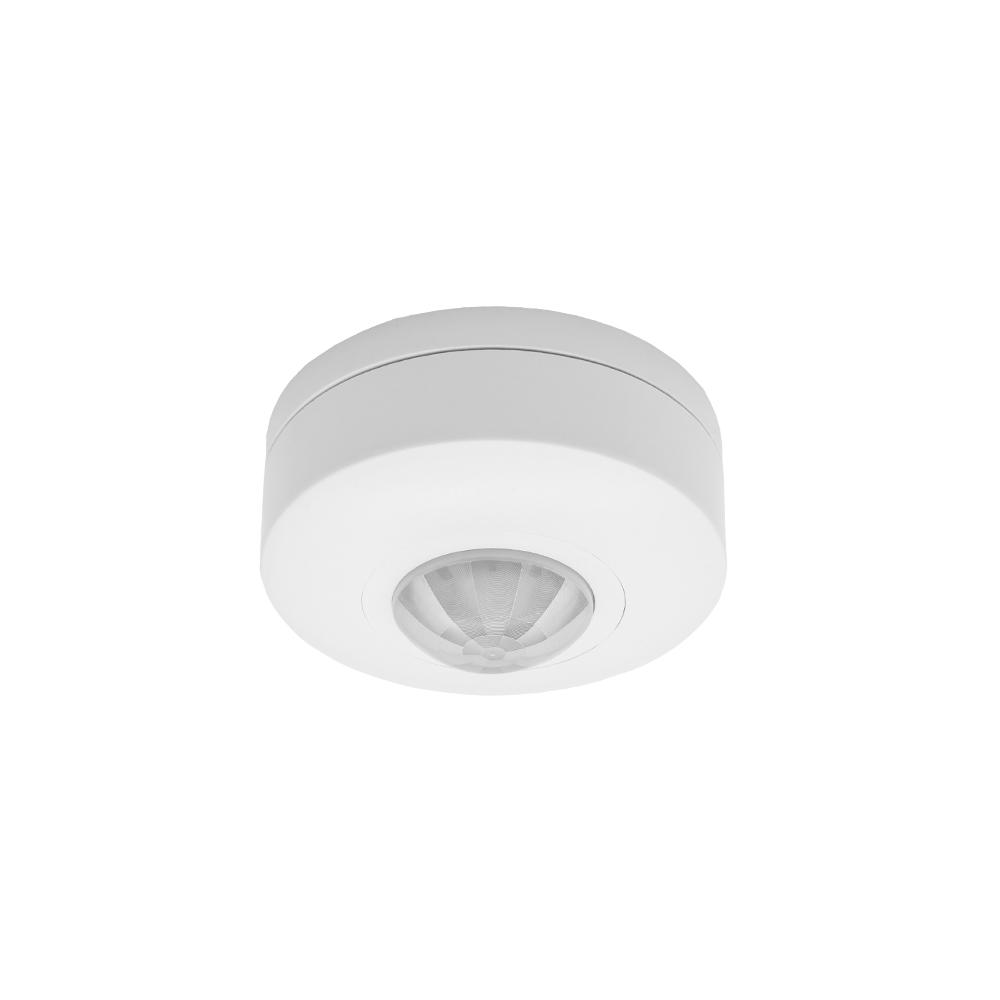

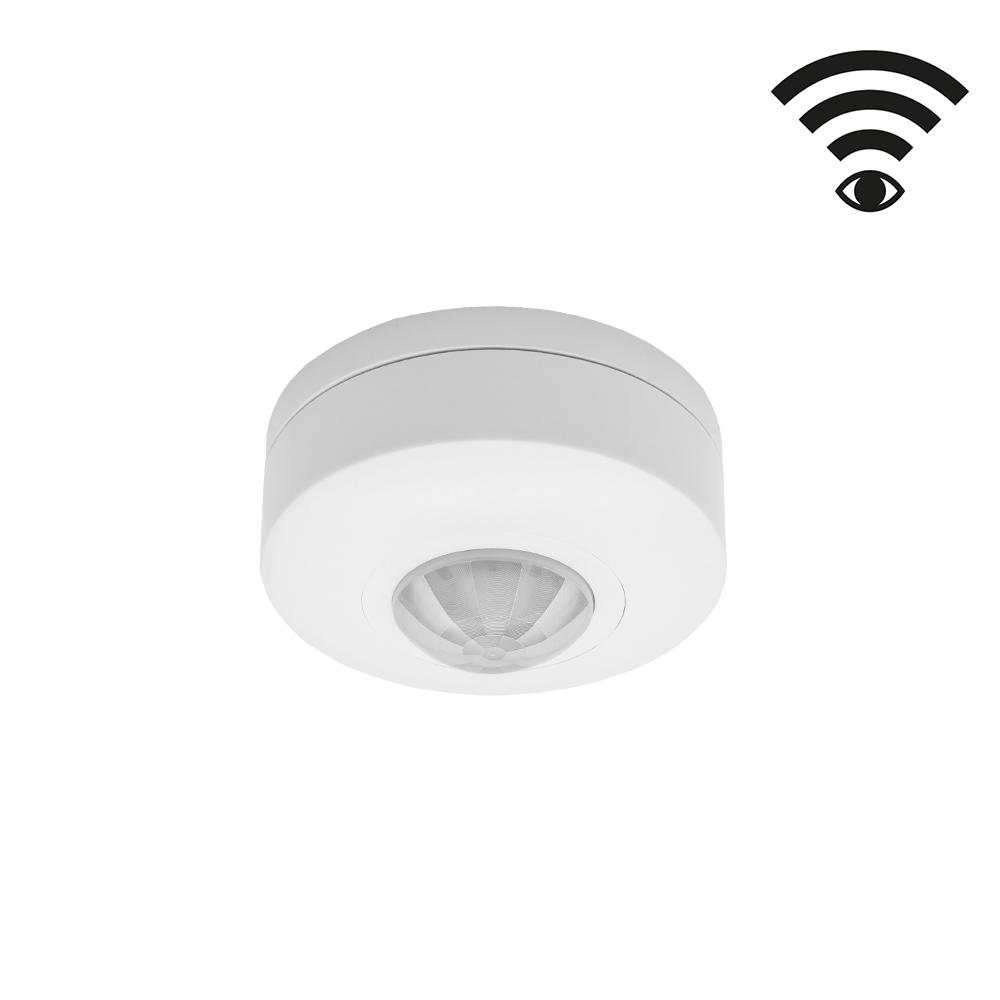

214-052This surface-mounted motion detector has no minimum load and works from one LED lamp. The maximum load is 600 Watt. This LED motion detector detects movement within a radius of Ø6 meters via an infrared sensor at an angle of 360 °. As soon as movement is detected, the lighting switches off. The lighting switches off automatically when there is no more movement or when the set time has expired.
Features
- Detection distance: max. 6 m (<24 ?, 2,2-4 meter height)
- Detects 360°
- Switching capacity of up to 600 Watt
- IP20
- 5 years warranty
Product Name
IR motion sensor || surface mounted | IP20 | max. 600W
Ean
8714984936553
Outer box qty
100st
Colour
White
Type
Movement sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Surface mounted
Mounting height
4m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
6m
Max. reach frontally
6m
Diameter reach on floor
6m
Detection angle horizontal
360 - 360°
Min. switch-on time
10s
Max. duty cycle
15min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Switch-off delay self-learning
No
Max. switching power
600W
Operation mode switch
No
Staircase light controller
Yes
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Matt
Warranty
5 years
Product Name
IR motion sensor || surface mounted | IP20 | max. 600W
Min. switch-on time
10s
Ean
8714984936553
Max. duty cycle
15min
Outer box qty
100st
With presence detector
No
Colour
White
With movement sensor
Yes
Type
Movement sensor
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
Yes
Sensor connect
No
Response value luminosity adjustable
Yes
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Surface mounted
Dim function with dimmer basic element
No
Mounting height
4m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP20
Max. switching power
600W
Suitable for wireless transmission
No
Operation mode switch
No
Constant light control
No
Staircase light controller
Yes
Networkable
No
Halogen free
Yes
Max. reach sideways
6m
RAL-number (similar)
9016
Max. reach frontally
6m
Surface finishing
Matt
Diameter reach on floor
6m
Warranty
5 years
Detection angle horizontal
360 - 360°
This surface-mounted motion detector has no minimum load and works from one LED lamp. The maximum load is 600 Watt. This LED motion detector detects movement within a radius of Ø6 meters via an infrared sensor at an angle of 360 °. As soon as movement is detected, the lighting switches off. The lighting switches off automatically when there is no more movement or when the set time has expired.
Features
Detection distance: max. 6 m (<24 ?, 2,2-4 meter height)
Detects 360°
Switching capacity of up to 600 Watt
IP20
5 years warranty
