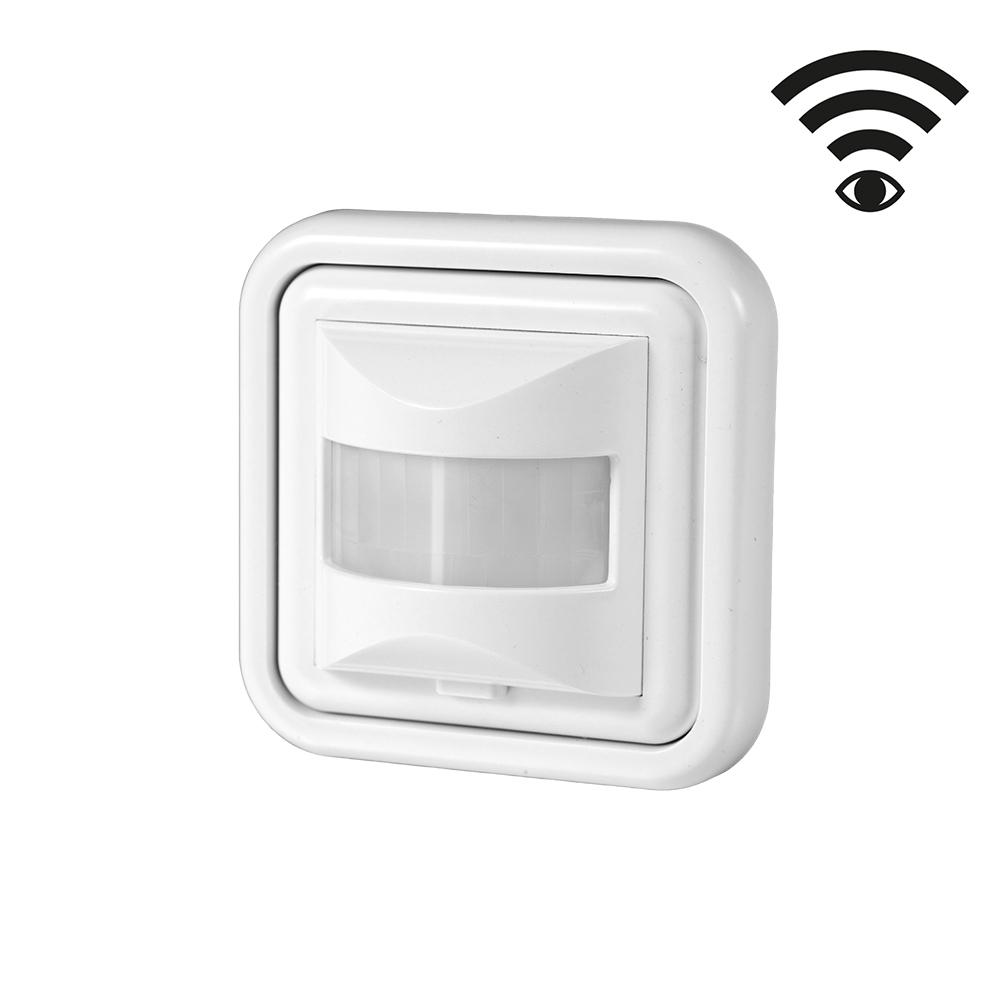

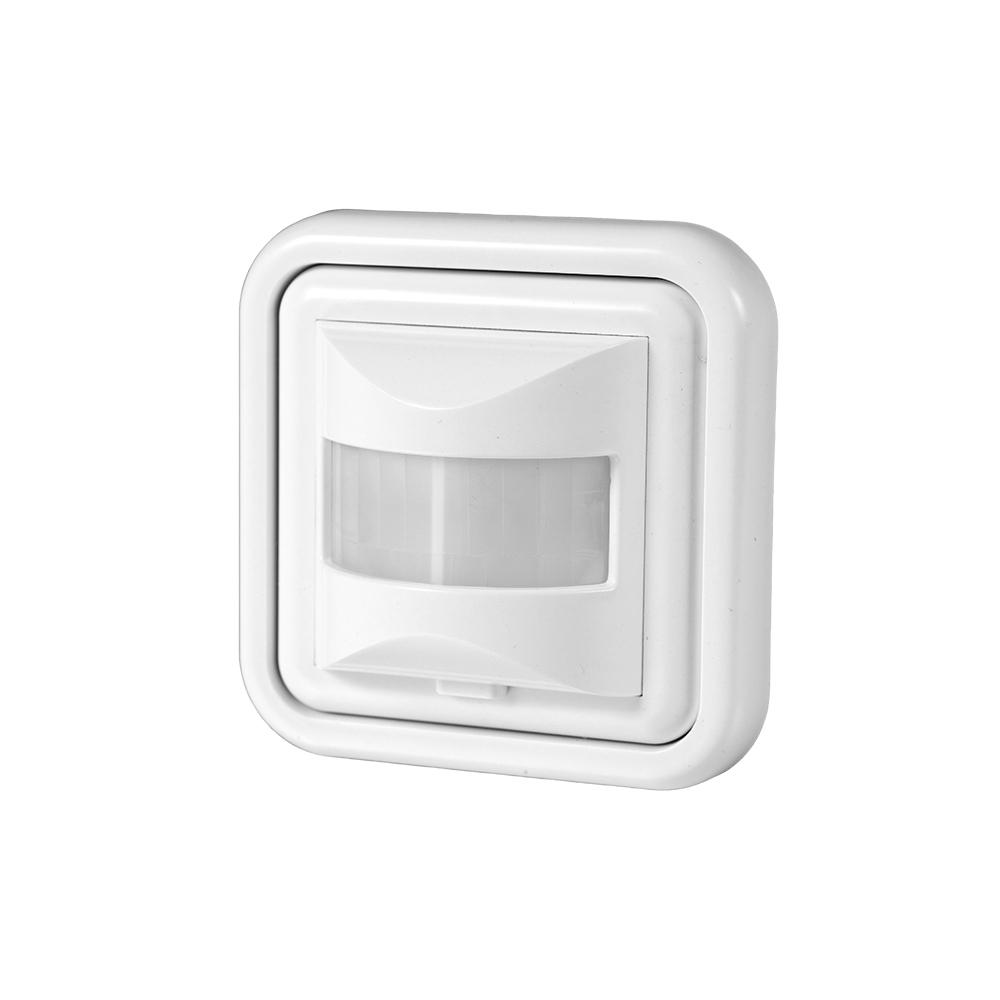

IR motion sensor || wall mounted | IP20 | 160° | max. 200W
214-050This infrared motion sensor replaces a existing light switch. Energy-saving and hygienic. At an installation height of 1 to 1.8 meters, the sensor has a range of 9 meters.

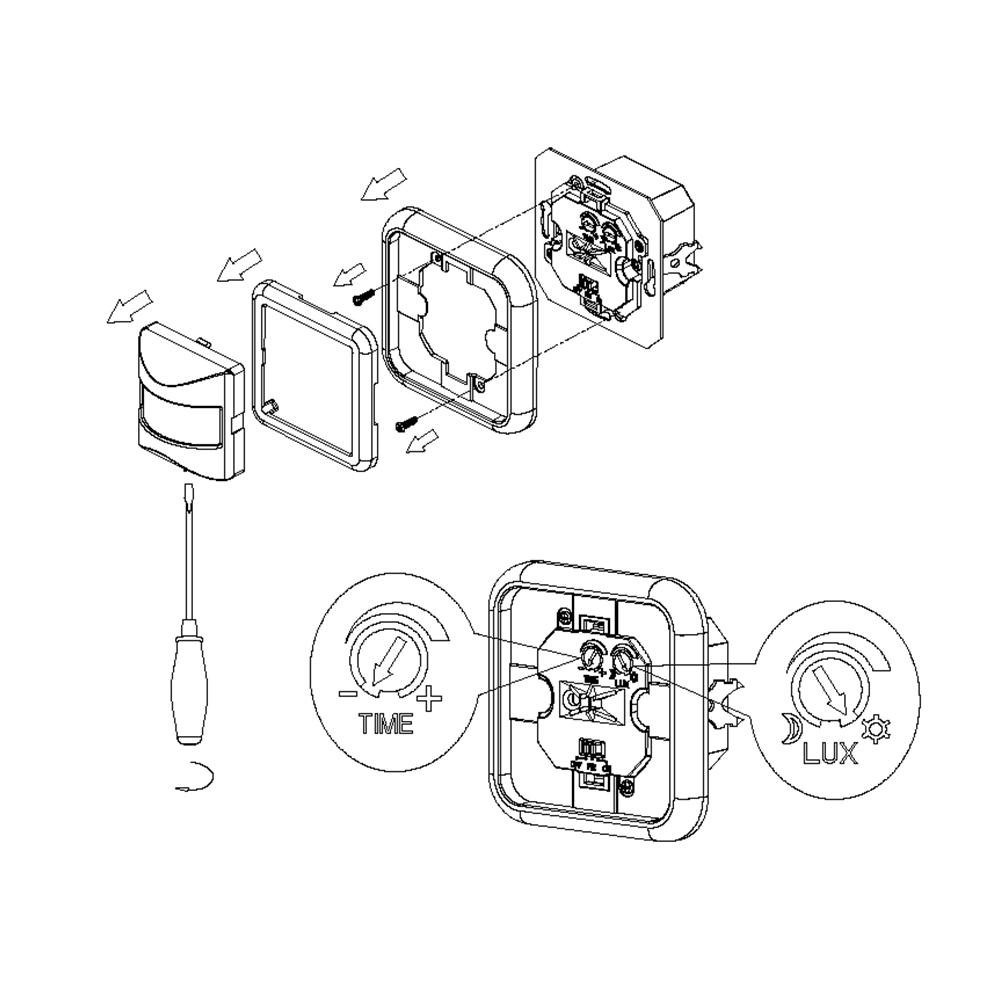

The switch-on time is adjustable from 10 seconds to 7 minutes. In addition, a switch-on threshold can also be set. With 'sun' the sensor detects both during the day and at night, and with 'moon' the sensor only detects at less than 3 Lux.

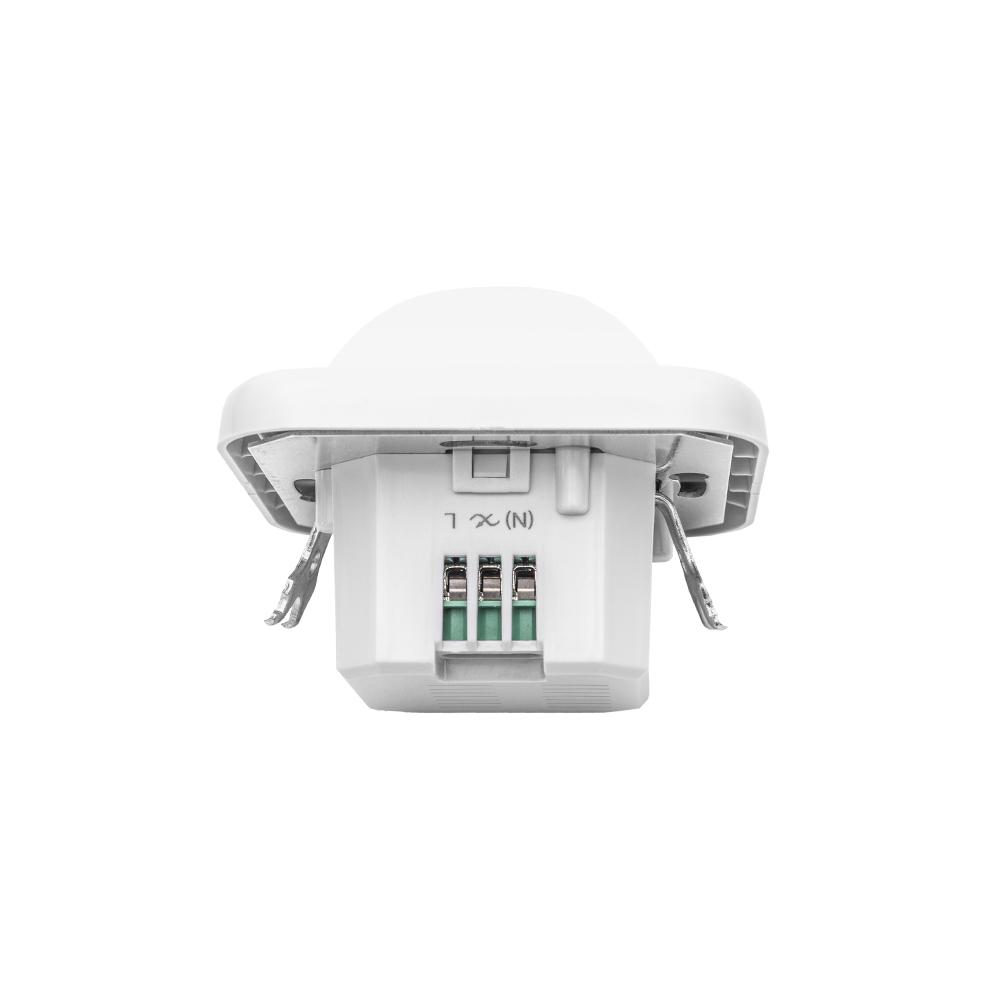

Suitable for 2 or 3 wire connection (with or without N)
Features
- Detection distance: max. 9 m (<24 ?, 1-1,8 meter hoogte)
- Detects at an angle of 160°
- IP20
- 5 years warranty
Product Name
IR motion sensor || wall mounted | IP20 | 160° | max. 200W
Ean
8714984936539
Outer box qty
100st
Colour
White
Type
Movement sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
1.8m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
9m
Max. reach frontally
9m
Diameter reach on floor
9m
Detection angle horizontal
160 - 160°
Min. switch-on time
10s
Max. duty cycle
7min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Switch-off delay self-learning
No
Max. switching power
200W
Operation mode switch
No
Staircase light controller
Yes
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Glossy
Warranty
5 years
Product Name
IR motion sensor || wall mounted | IP20 | 160° | max. 200W
Min. switch-on time
10s
Ean
8714984936539
Max. duty cycle
7min
Outer box qty
100st
With presence detector
No
Colour
White
With movement sensor
Yes
Type
Movement sensor
With light sensor
Yes
Material
Plastic
Response value sensitivity adjustable
Yes
Sensor connect
No
Response value luminosity adjustable
Yes
Material quality
Thermoplastic
Teach-function for response value luminosity
No
Mounting method
Flush-mounted
Dim function with dimmer basic element
No
Mounting height
1.8m
Switch-off delay self-learning
No
Suitable for degree of protection (IP)
IP20
Max. switching power
200W
Suitable for wireless transmission
No
Operation mode switch
No
Constant light control
No
Staircase light controller
Yes
Networkable
No
Halogen free
Yes
Max. reach sideways
9m
RAL-number (similar)
9016
Max. reach frontally
9m
Surface finishing
Glossy
Diameter reach on floor
9m
Warranty
5 years
Detection angle horizontal
160 - 160°
This infrared motion sensor replaces a existing light switch. Energy-saving and hygienic. At an installation height of 1 to 1.8 meters, the sensor has a range of 9 meters.
The switch-on time is adjustable from 10 seconds to 7 minutes. In addition, a switch-on threshold can also be set. With 'sun' the sensor detects both during the day and at night, and with 'moon' the sensor only detects at less than 3 Lux.
Suitable for 2 or 3 wire connection (with or without N)
Features
Detection distance: max. 9 m (<24 ?, 1-1,8 meter hoogte)
Detects at an angle of 160°
IP20
5 years warranty
