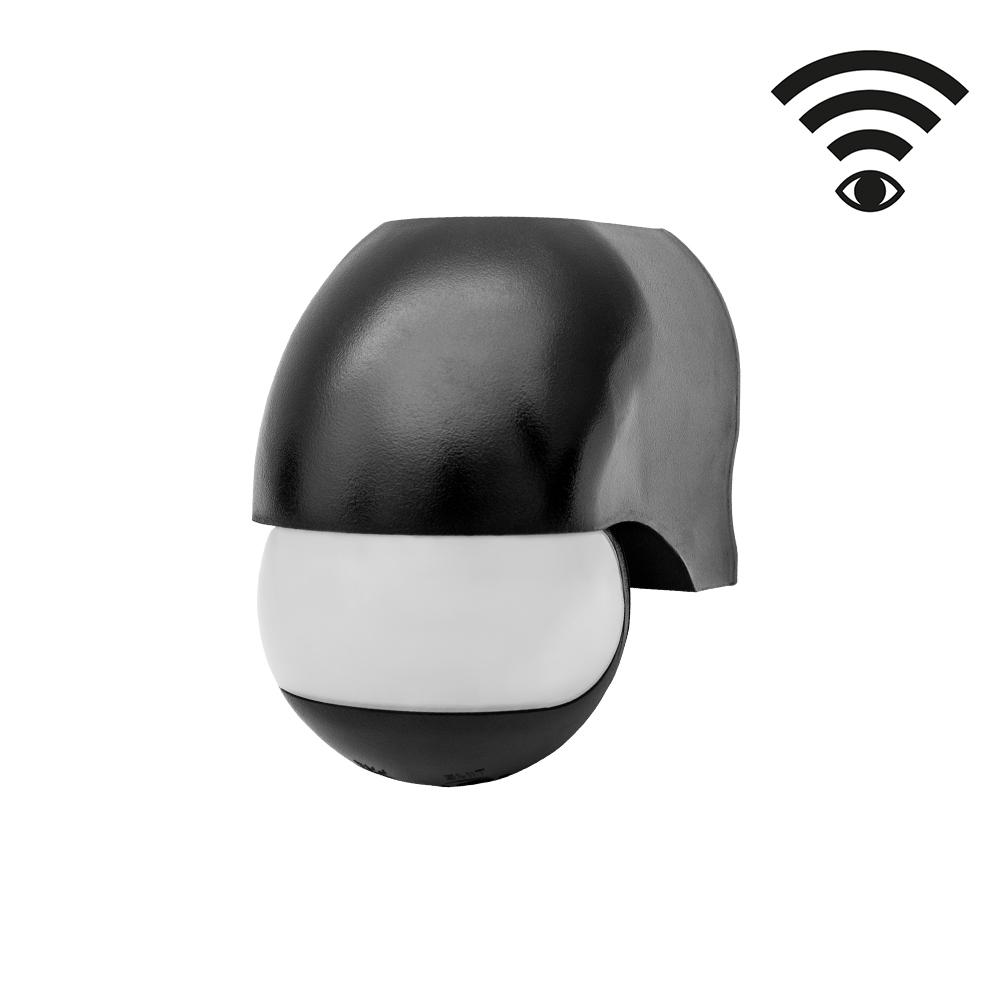

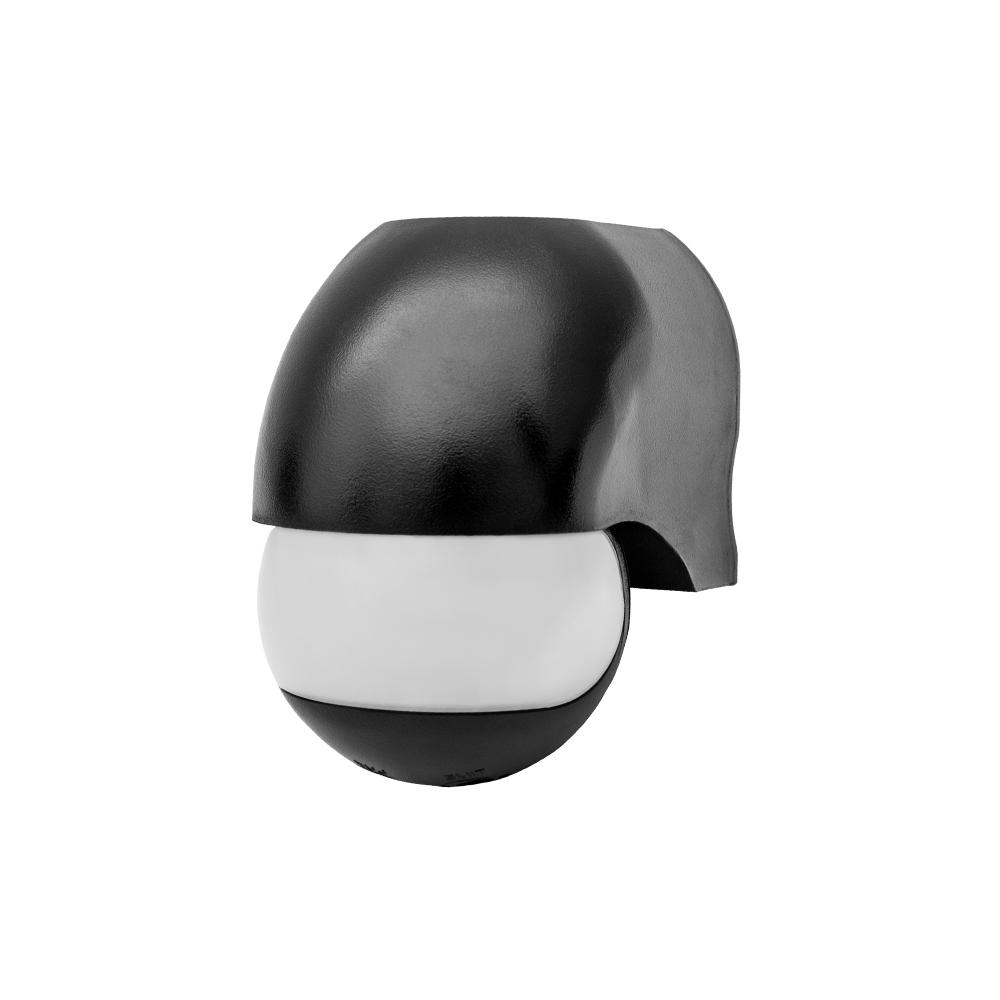

IR motion sensor | wall mounted | IP44 | 180° | max. 400W
214-119This surface mounted motion sensor is suitable for wall mounting. The PIR sensor works with infrared as a control signal. The switch-on time is adjustable from 10 seconds to 7 minutes. In addition, a switch-on threshold can also be set between 3 and 2000 Lux.
The sensor detects when a heat source is moving at a speed of 0.6 to 1.5 m / s. When the heat is no longer detected and some time (adjustable) has passed, the sensor switches the lighting off again.
Features
- Detection distance: max. 12 m (<24 ?, 1,8-2,5 meter height)
- Detects 180º
- IP44
- Sensor can be aimed from left / right and up / down
- Switching capacity of 400W
- 5 years warranty
Product Name
IR motion sensor | wall mounted | IP44 | 180° | max. 400W
Ean
8714984909076
Colour
Black
Type
Movement sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Surface mounted
Mounting height
2.5m
Suitable for degree of protection (IP)
IP44
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
6m
Max. reach frontally
12m
Diameter reach on floor
12m
Detection angle horizontal
180 - 180°
Min. switch-on time
10s
Max. duty cycle
7min
With presence detector
No
With movement sensor
Yes
With light sensor
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Switch-off delay self-learning
No
Max. switching power
400W
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9005
Surface finishing
Glossy
Warranty
5 years
Product Name
IR motion sensor | wall mounted | IP44 | 180° | max. 400W
Min. switch-on time
10s
Ean
8714984909076
Max. duty cycle
7min
Colour
Black
With presence detector
No
Type
Movement sensor
With movement sensor
Yes
Material
Plastic
With light sensor
Yes
Sensor connect
No
Response value sensitivity adjustable
Yes
Material quality
Thermoplastic
Response value luminosity adjustable
Yes
Mounting method
Surface mounted
Teach-function for response value luminosity
No
Mounting height
2.5m
Dim function with dimmer basic element
No
Suitable for degree of protection (IP)
IP44
Switch-off delay self-learning
No
Suitable for wireless transmission
No
Max. switching power
400W
Constant light control
No
Operation mode switch
No
Networkable
No
Staircase light controller
No
Max. reach sideways
6m
Halogen free
Yes
Max. reach frontally
12m
RAL-number (similar)
9005
Diameter reach on floor
12m
Surface finishing
Glossy
Detection angle horizontal
180 - 180°
Warranty
5 years
This surface mounted motion sensor is suitable for wall mounting. The PIR sensor works with infrared as a control signal. The switch-on time is adjustable from 10 seconds to 7 minutes. In addition, a switch-on threshold can also be set between 3 and 2000 Lux.
The sensor detects when a heat source is moving at a speed of 0.6 to 1.5 m / s. When the heat is no longer detected and some time (adjustable) has passed, the sensor switches the lighting off again.
Features
Detection distance: max. 12 m (<24 ?, 1,8-2,5 meter height)
Detects 180º
IP44
Sensor can be aimed from left / right and up / down
Switching capacity of 400W
5 years warranty
