LED dimmer universal | DALI

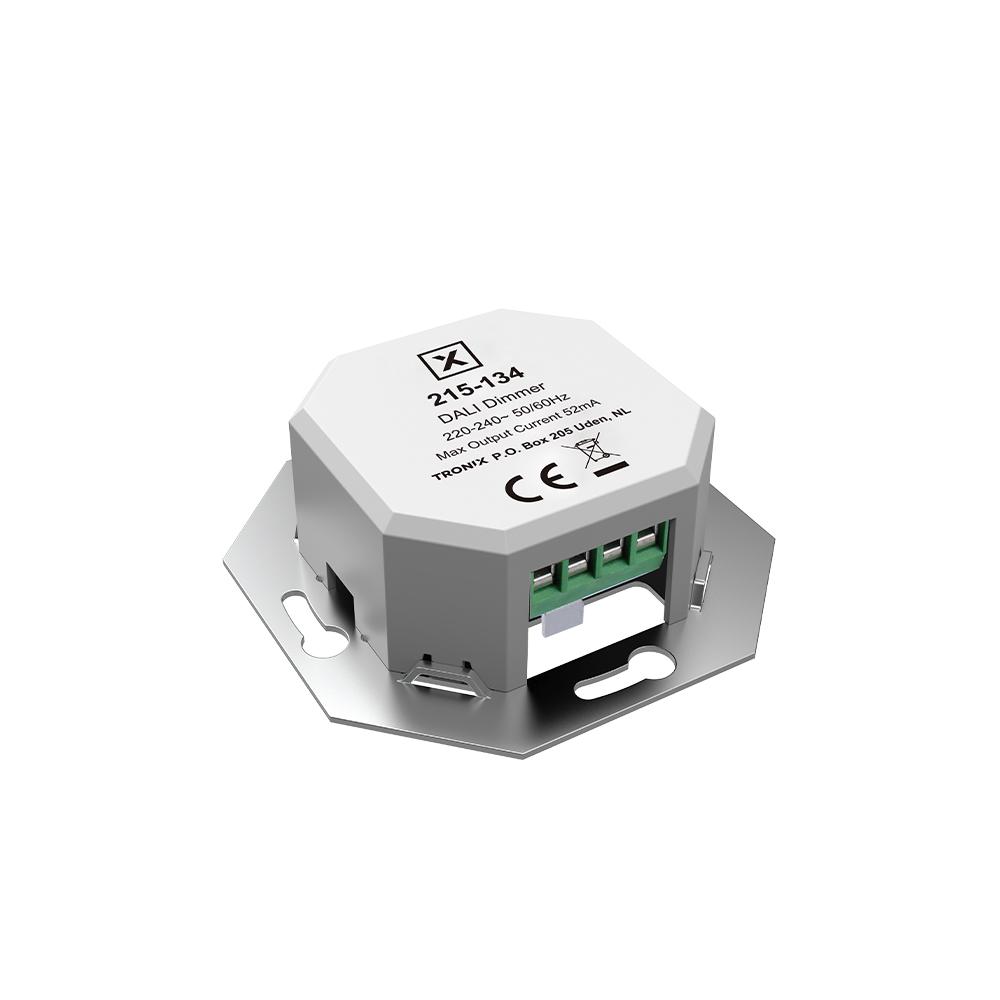

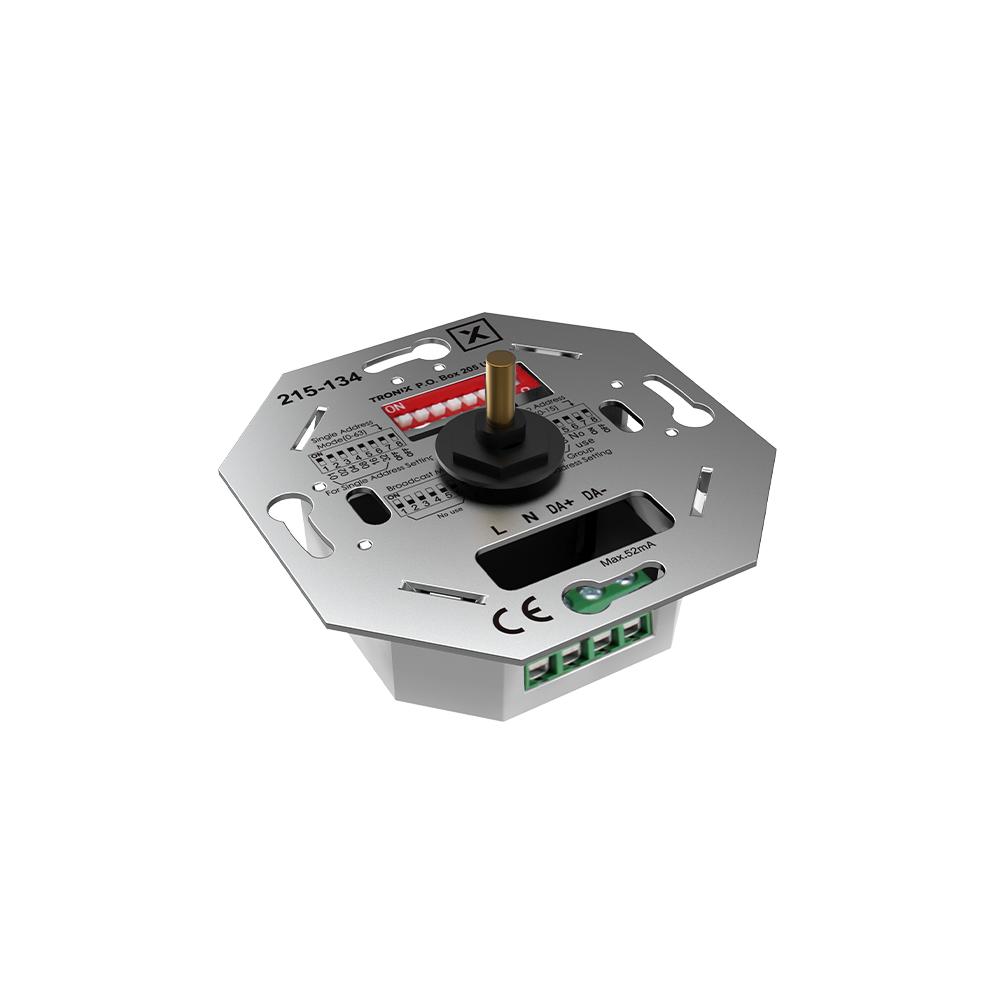

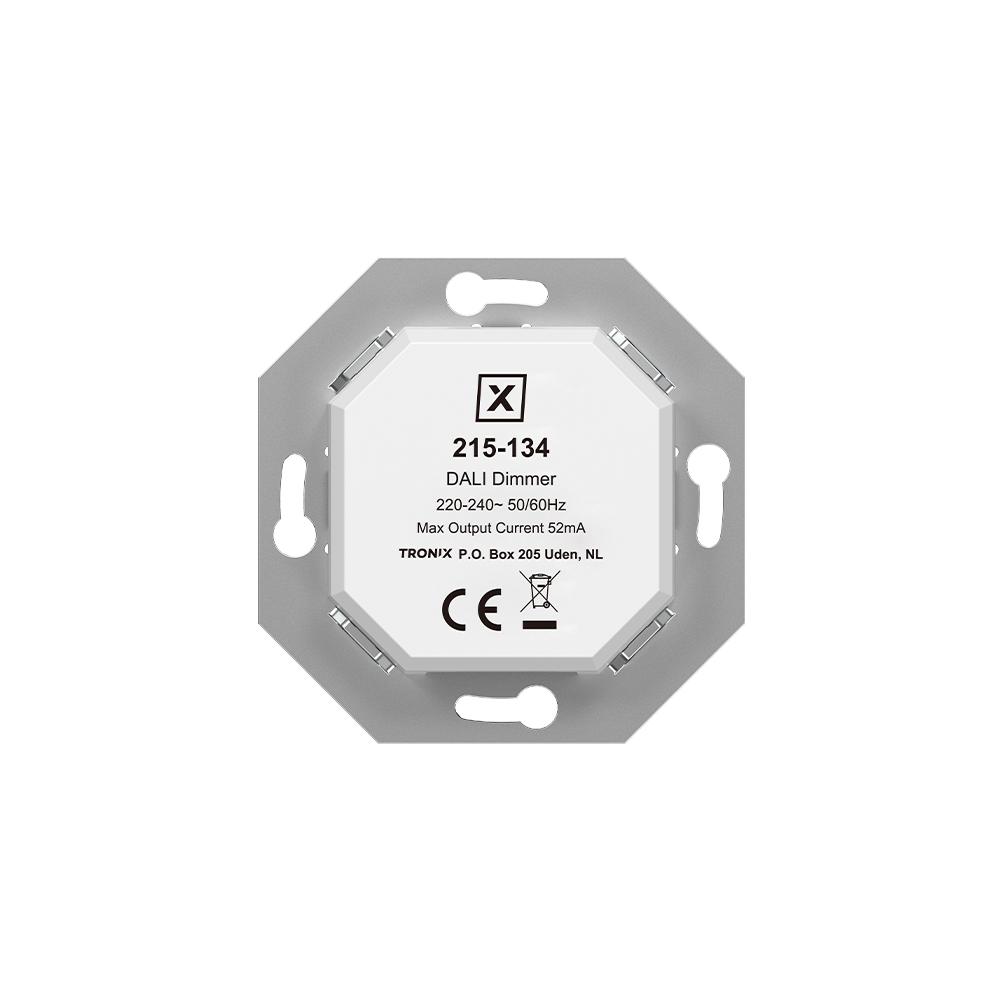

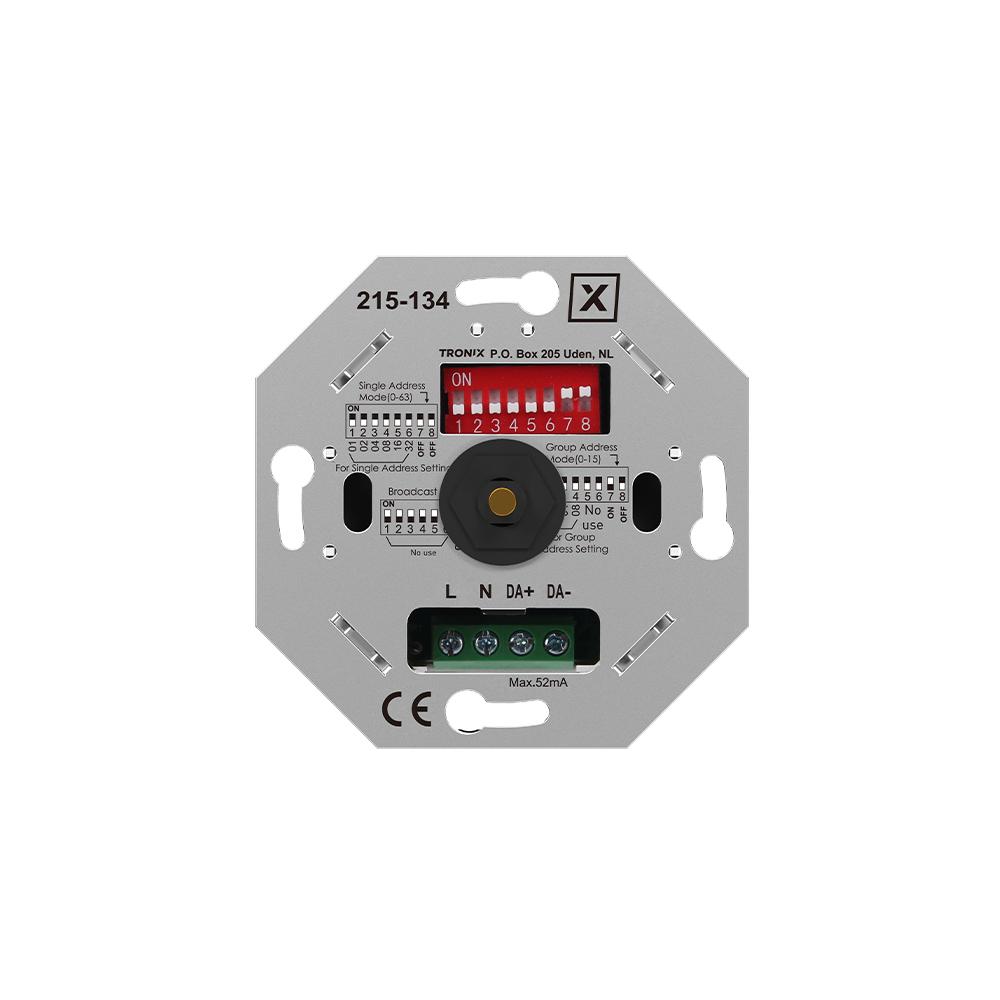

215-134This universal LED dimmer works well with a large selection of LED lighting and can easily be combined with covers from most well-known brands, such as Busch Jaeger, Berker, Gira and Jung. Can also be ordered in combination with universal cover 215-132.
Features
- Built-in on/off and rotary knob dimming control
- Overheating protection
- DALI-based dimmer
- Combination with various LED lamps possible. Want to be sure your combination works? Be sure to ask!
Product Name
LED dimmer universal | DALI
Ean
8714984923775
Outer box qty
100st
Colour
Aluminium
Connection type
Screwed terminal
Operating method
Turn/push button
Control method
DALI
Mounting method
Built-in
Material
Metal
Material quality
Aluminium
Device width
83.5mm
Device height
83.5mm
Device depth
44mm
Applicable with presence indicator
No
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
No
Applicable with button
No
Applicable with transmission button
No
Applicable with time switch/timer
No
Nominal voltage
220 - 240V
Control voltage
220 - 240V
Min. depth of built-in installation box
45mm
Min. brightness controllable
No
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9006
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
LED dimmer universal | DALI
Suitable for degree of protection (IP)
IP20
Ean
8714984923775
Applicable with movement sensor
No
Outer box qty
100st
Applicable with button
No
Colour
Aluminium
Applicable with transmission button
No
Connection type
Screwed terminal
Applicable with time switch/timer
No
Operating method
Turn/push button
Nominal voltage
220 - 240V
Control method
DALI
Control voltage
220 - 240V
Mounting method
Built-in
Min. depth of built-in installation box
45mm
Material
Metal
Min. brightness controllable
No
Material quality
Aluminium
Light value memory
Yes
Device width
83.5mm
Halogen free
Yes
Device height
83.5mm
RAL-number (similar)
9006
Device depth
44mm
Core cross section
0.75 - 2.5mm²
Applicable with presence indicator
No
Warranty
5 years
This universal LED dimmer works well with a large selection of LED lighting and can easily be combined with covers from most well-known brands, such as Busch Jaeger, Berker, Gira and Jung. Can also be ordered in combination with universal cover 215-132.
Features
Built-in on/off and rotary knob dimming control
Overheating protection
DALI-based dimmer
Combination with various LED lamps possible. Want to be sure your combination works? Be sure to ask!
Datasheet
Datasheet-led-dimmer-universal-dali-215-134.pdf
Manual
215-134_Manual.pdf
Characteristics sheet
215-134_technical_datasheet_extended.pdf
