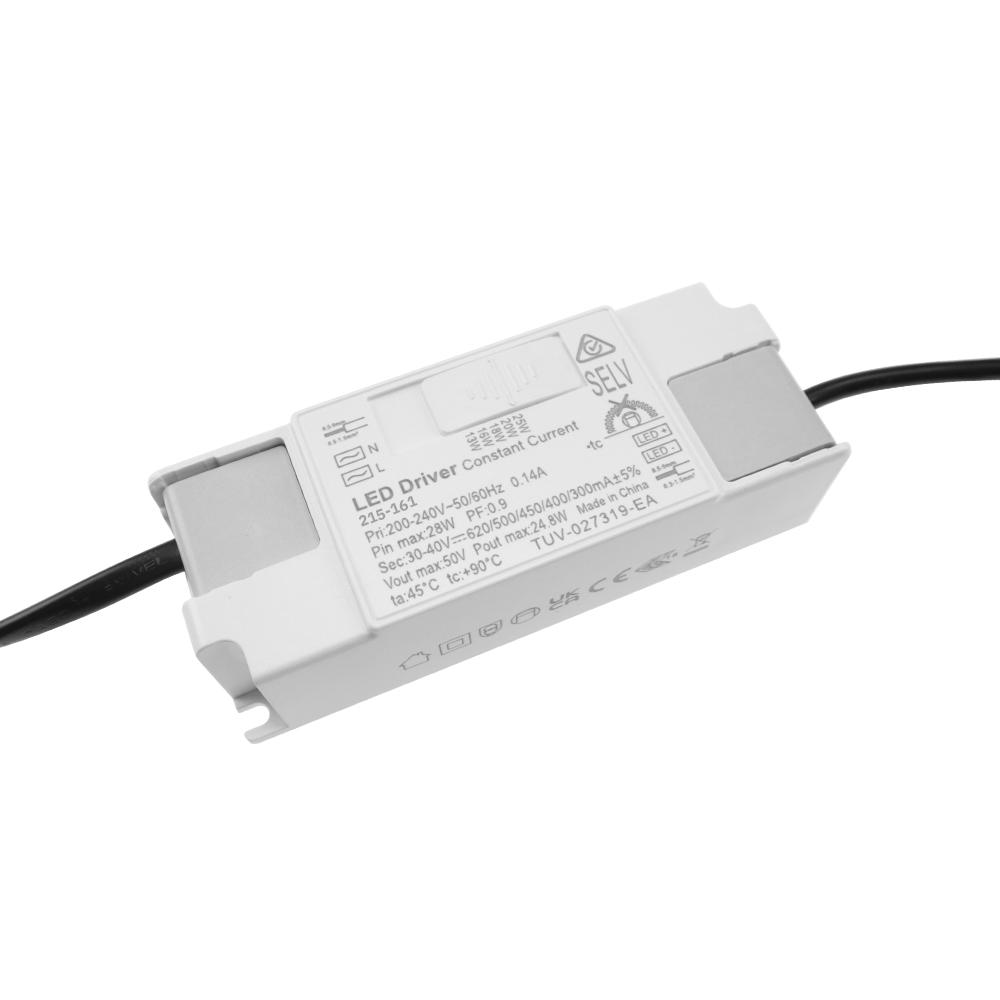

LED driver | 300/400/450/500/620mA | max 40V/25W GST18i3
215-166The ideal LED driver when it comes to a good balance between an attractive price and excellent performance. Thanks to the focus on user-friendliness, you not only have a power supply that works with a wide selection of lamps, but also a product that you can rely on for years to come.
Features
- Constant current output
- Freely adjustable power output from 13 to 25 watts
- Very compact size for easy placement
- IP20 protected
Product Name
LED driver | 300/400/450/500/620mA | max 40V/25W GST18i3
Ean
8714984951303
Outer box qty
72st
Housing
Plastic housing
Model
Static
Output voltage
30 - 40V
Output current
300 - 620mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
13 - 25W
Degree of protection (IP)
IP20

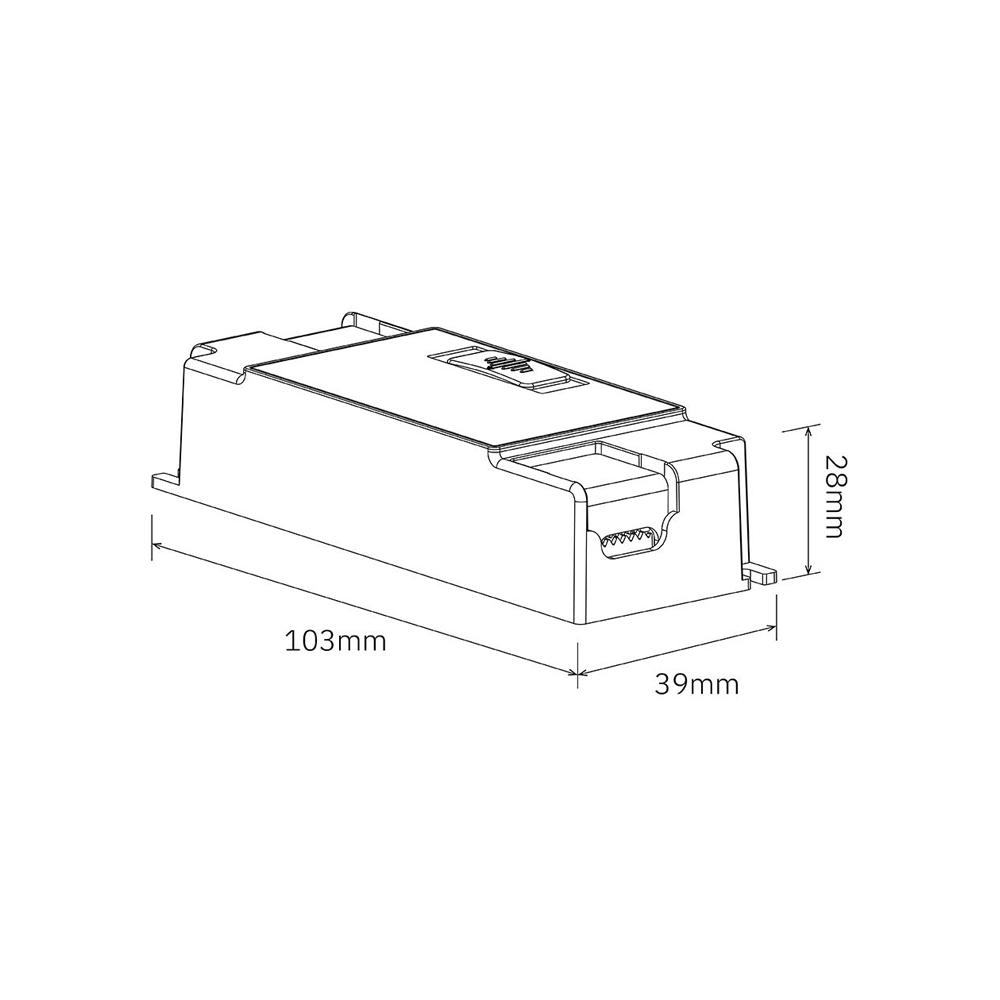

Length
103mm
Width
39mm
Height
28mm
Power consumption
25W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Non-dimmable
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
No
Emergency power supply system
None
Control type
Constant current
Warranty
3 years
Product Name
LED driver | 300/400/450/500/620mA | max 40V/25W GST18i3
Input voltage
200 - 240V
Ean
8714984951303
Frequency input voltage
50 - 60Hz
Outer box qty
72st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Non-dimmable
Output voltage
30 - 40V
Short-circuit protected
Yes
Output current
300 - 620mA
Ambient temperature
-20 - 45°C
Suitable for outdoor use
No
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
13 - 25W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
No
Length
103mm
Emergency power supply system
None
Width
39mm
Control type
Constant current
Height
28mm
Warranty
3 years
Power consumption
25W
The ideal LED driver when it comes to a good balance between an attractive price and excellent performance. Thanks to the focus on user-friendliness, you not only have a power supply that works with a wide selection of lamps, but also a product that you can rely on for years to come.
Features
Constant current output
Freely adjustable power output from 13 to 25 watts
Very compact size for easy placement
IP20 protected
