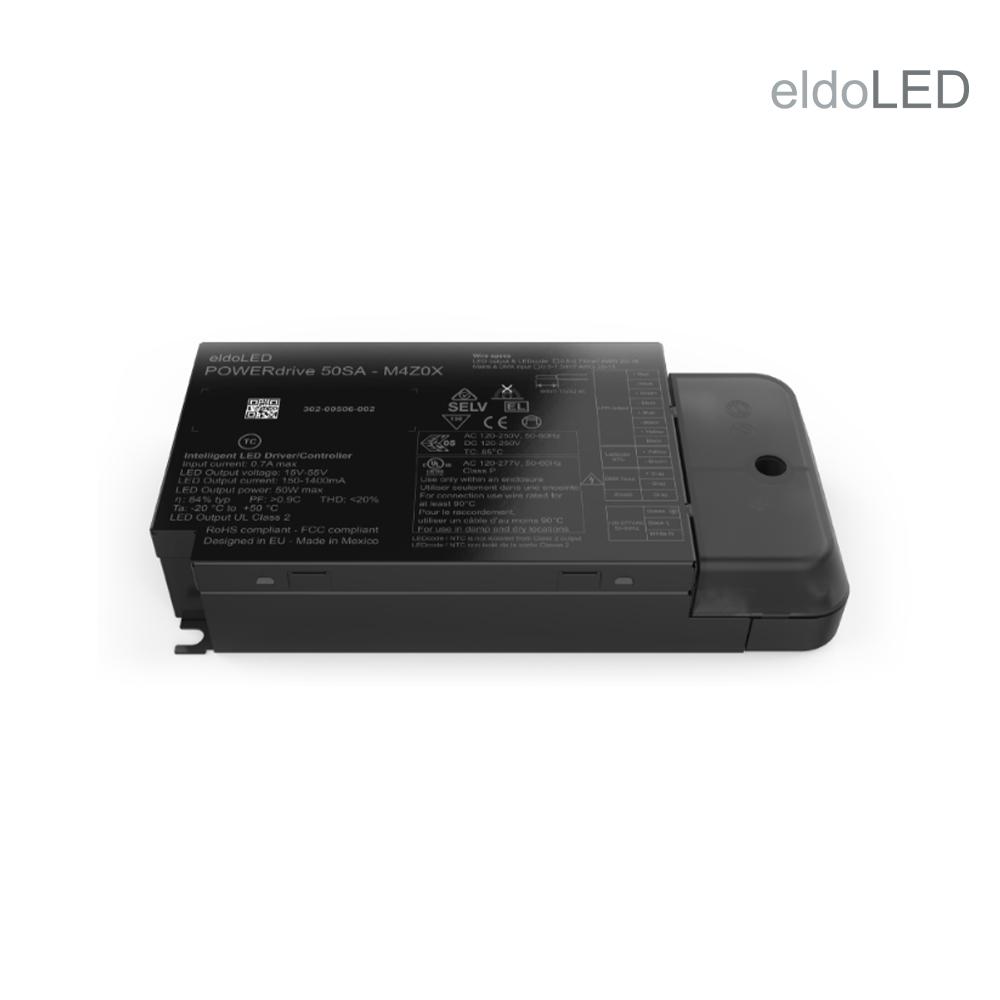

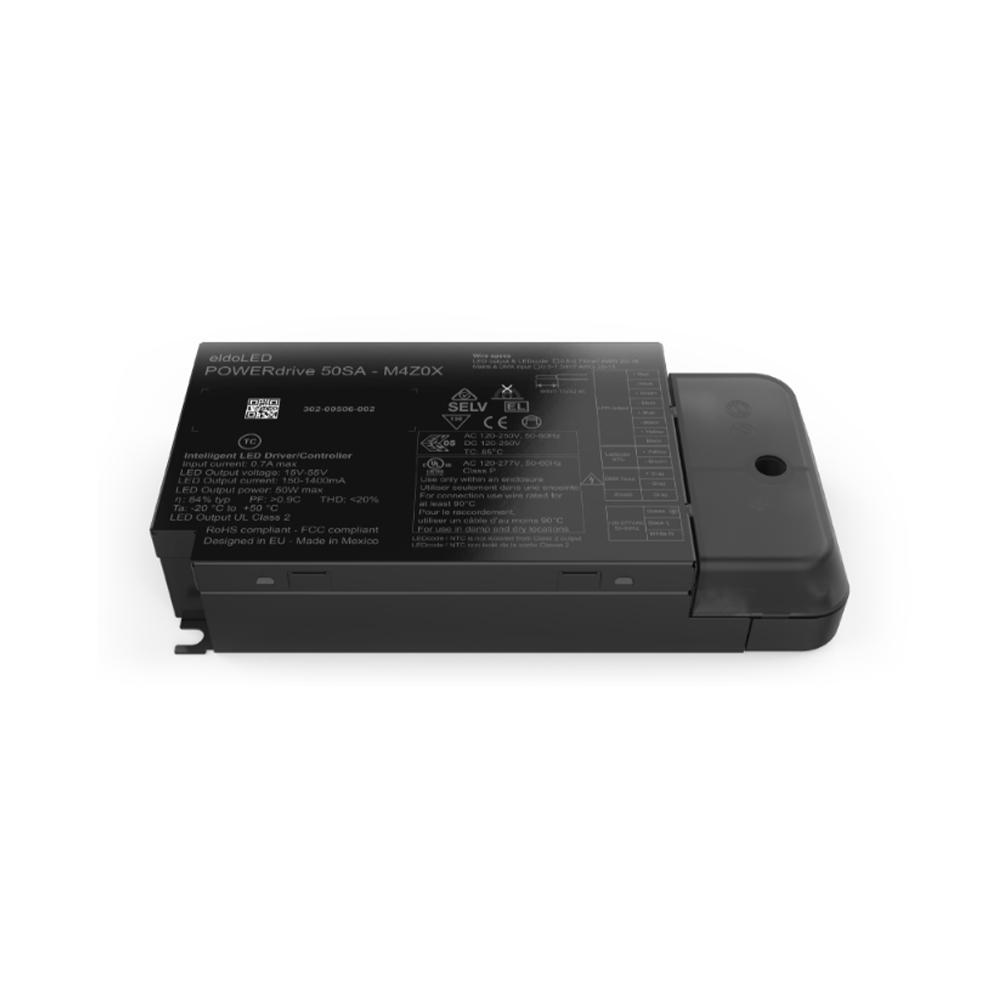

LED driver | eldoLED POWERdrive 50SA-M4Z0X | 50W | DMX
215-681The POWERdrive LED drivers from eldoLED feature four programmable outputs (constant current) and are fully adjustable to your needs. This makes it possible to make use of various light sources, dynamic effects and synchronizing light in multiple locations.
Features
- Can be combined with a variety of LED lighting, including RGBW or single color lighting on DMX
- Output current: 150 - 1400 mA
- Output voltage: 2 - 55 volts
Product Name
LED driver | eldoLED POWERdrive 50SA-M4Z0X | 50W | DMX
Ean
8714984943926
Outer box qty
40st
Housing
Plastic housing
Model
Static
Output voltage
2 - 55V
Output current
150 - 1400mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
50 - 50W
Degree of protection (IP)
IP20

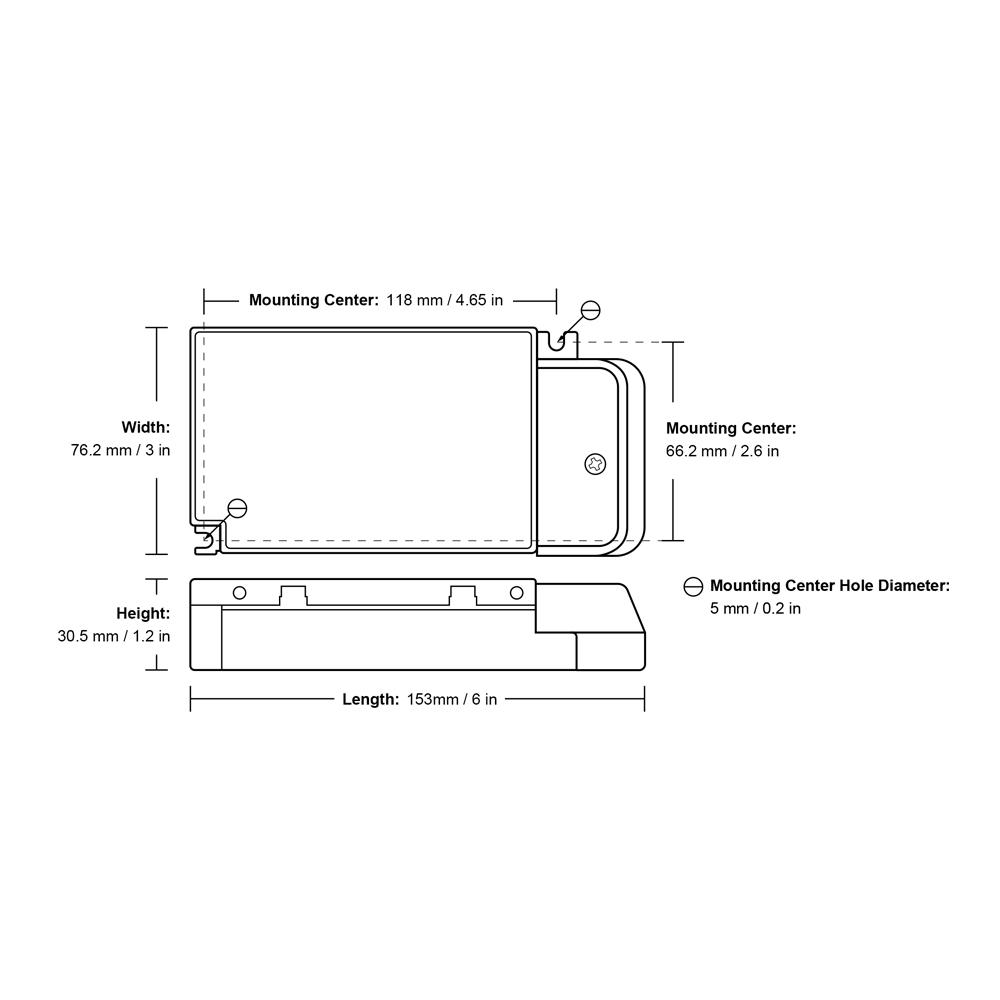

Length
153mm
Width
76.2mm
Height
30.5mm
Power consumption
50W
Input voltage
120 - 250V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
DMX
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | eldoLED POWERdrive 50SA-M4Z0X | 50W | DMX
Input voltage
120 - 250V
Ean
8714984943926
Frequency input voltage
50 - 60Hz
Outer box qty
40st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
2 - 55V
Control method
DMX
Output current
150 - 1400mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
50000h
Output power
50 - 50W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
eldoLED
Length
153mm
Dimmable
Yes
Width
76.2mm
Emergency power supply system
None
Height
30.5mm
Control type
Constant current
Power consumption
50W
Warranty
5 years
The POWERdrive LED drivers from eldoLED feature four programmable outputs (constant current) and are fully adjustable to your needs. This makes it possible to make use of various light sources, dynamic effects and synchronizing light in multiple locations.
Features
Can be combined with a variety of LED lighting, including RGBW or single color lighting on DMX
Output current: 150 - 1400 mA
Output voltage: 2 - 55Â volts
Datasheet
Datasheet-led-driver-eldoled-powerdrive-50sa-m4z0x-50w-dmx-215-681.pdf
Other attachment
20220908103214603_-457833895.pdf
Characteristics sheet
20220908103116899_-1558420943.pdf
